No. Name Description
9 Disc slot Insert or eject a disc to play
10 CD button Select CD/MP3 disc play function
11 Disc eject button Eject a disc
12 Station memory button
[1~6]
13 Power/mute button with
volume dialBriefly press: Switch the system on, activate/deactivate mute
Pause ON/OFF
Press and hold: Switch the system off
Turn dial: adjust volume
14 [ENTER] button,
[TUNE]/[FILE] dialTurn dial: change frequency, song or menu
Press dial: Change or select item or setting value
Press and hold dial: Turn off display window backlight (comes on
if any of buttons is pressed)
Radio mode
Briefly press: Select a stored station directly
Press and hold: Store the listening broadcasting frequency
MP3/CD mode -
-

RadioCD/MP3
2) Display Window
Radio station band: FM1/FM2/AM
FM stereo reception display
EQ: POP/ROCK/COUNTRY/VOICE/JAZZ/
CLASSIC
Receiving broadcasting frequency
Digital clock
Specified station number: P1~P6 1.
2.
3.
4.
5.
6.Disc insertion display
Play mode display
RDM (Random): Play folder in random
order RPT (Repeat): Play folder
repeatedly INT (Intro): Play folder intro
Current folder name
Play disc
Current playing song name
Other information of current playing song:
Play time/album/artist/genre 7.
8.
9.
10.
11.
12.
USB
USB connection
USB play 13.
14.
BT AUDIO
Bluetooth connection 15.

Newly added TPMS (Tire Pressure Monitoring System)
TPMS related warning lamp
TPMS warning lamp Global warning lamp
- TPMS warning lamp: Comes on if an error occurs in any component
related to the TPMS regardless of tire inflation pressure.
- Global warning lamp: Comes on when the tire pressure is low.
DOT LCD display window (supervision
type)
Displays current tire pressure and
abnormality.

3. CAUTIONS FOR AIR BAG SYSTEM
Cautions for air bag maintenance
Whenever installing or removing the devices related to the air bag system, disconnect the negative
battery cable and wait for at least 30 seconds.
Do not connect a tester probe to the inflator to measure the resistance of the component of the air
bag system. The detonator of the inflator may explode due to a sudden extra power supplied by the
tester.
Note that the used components related to the air bag system, especially the air bag unit, should be
packed in an air tight container and prevent it from any impact or damage.
When there is any deployed air bag (including curtain air bag and seat belt pretensioner), the entire
system including the air bag unit should be replaced. The deployed air bag unit should not be reused
since it has status data when it is deployed, and the data cannot be cleared with a diagnostic device.
The air bag and seat belt pretensioner systems contain explosive charges, so handle carefully when
disposing or replacing them. 1.
2.
3.
4.
5.
Cautions for air bag maintenance
Do not modify, change or apply impact on any air bag component. The air bag may be deployed
abruptly, causing serious injuries.
Children and infants should ride in a rear seat. Seating in the passenger seat with carrying a
child or infant is strictly prohibited. An infant or a child could be severely injured by the air bag
deployment.
A child restraint system must not be installed on the front seat. An infant or a child could be severely
injured by the air bag deployment when it is fitted to the passenger seat.
Do not place any objects on the air bag inflation location. You may get injured by those objects during
deployment.
Never put your arms around the front seat from behind, lean on the front seatback, or put your arms
out of the window. You can severely injured when the side air bag deploys.
Never lean on the door since it becomes very dangerous when the side air bag deploys.
The side air bag deploys when there is a severe side collision.
Do not slam the front door to close it. The side air bag may deploy unexpectedly.
When an occupant fastens the seat belt in an unstable or inclined posture, the air bag system cannot
protect the occupant properly. Moreover, the occupant can be injured by the air bag.
Do not move your seat too close to the steering wheel or dashboard. Being too close to the
steering wheel or instrument panel during the air bag deployment could cause serious injury,
including death
Hold only the outer rim of the steering so that the air bag can inflate without any hindrance.
Do not incline toward the steering wheel. Never allow the passenger to put hands or feet on the dash
board. The air bag cannot work properly Do not hold and operate the steering wheel by crossing your
arms You could get seriously injured when the air bag deploys. 1.
2.
3.
4.
5.
6.

7.
8.
9.
10.
11.

When you drive this vehicle with the window or sunroof open at a certain position, you may feel
some pressure upon your ears or hear some noises similar to those from a helicopter. This happens
because of an influx in air through the window or sunroof and its resonance effect. If this happens,
adjust by opening the window or sunroof. - The anti-pinch function is deactivated just before the sunroof closes.
The sunroof safety function is just a safety supplementary system which cannot replace driver's care
and caution. Moreover, it may not be able to operate due to electric part or other conditions. To prevent any body parts from being trapped by the sliding sunroof, an Anti-Pinch Function
automatically opens the sunroof when an object is trapped.

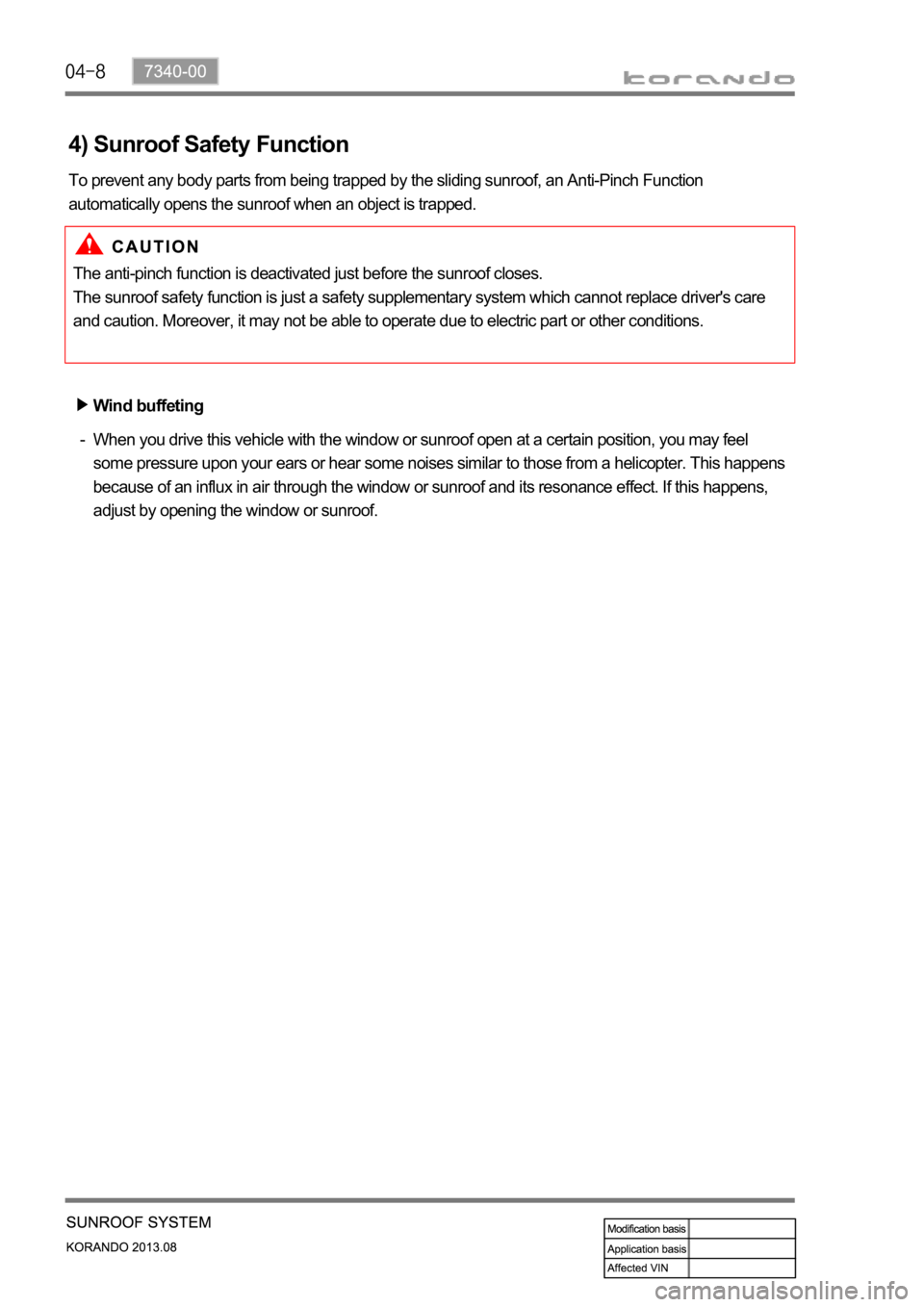

4) Sunroof Safety Function
Wind buffeting
