2013 SSANGYONG KORANDO remote control

Door lock/unlock control by door LOCK switch
When moving the driver or passenger door lock (knob) switch to LOCK from UNLOCK position, BCM
sends the LOCK signal for 0.5 seconds.
When moving the driver or passenger door lock (knob) switch to UNLOCK from LOCK position, BCM
sends the UNLOCK signal for 0.5 seconds.
The LOCK (UNLOCK) operation by the door lock (knob) switch is not available when sending the
LOCK (UNLOCK) signal by any other method such as remote control key.
When reconnecting the battery, the door lock (knob) switch is not operational regardless of the door
lock switch positions.
All doors stay unlocked when receiving the door lock signal in 0.5 seconds after closing the doors. 1.
2.
3.
4.
5.

8510-00
Audio remote control switch (RH)Audio remote control switch (LH)
1) Audio Remote Control Switch
4. STEERING WHEEL SWITCH
MUTE & MODE switch
Volume UP/DOWN switchSEEK UP/DOWN switch
Handsfree switch
Tip switch (D+) Tip switch (D-)

8310-00

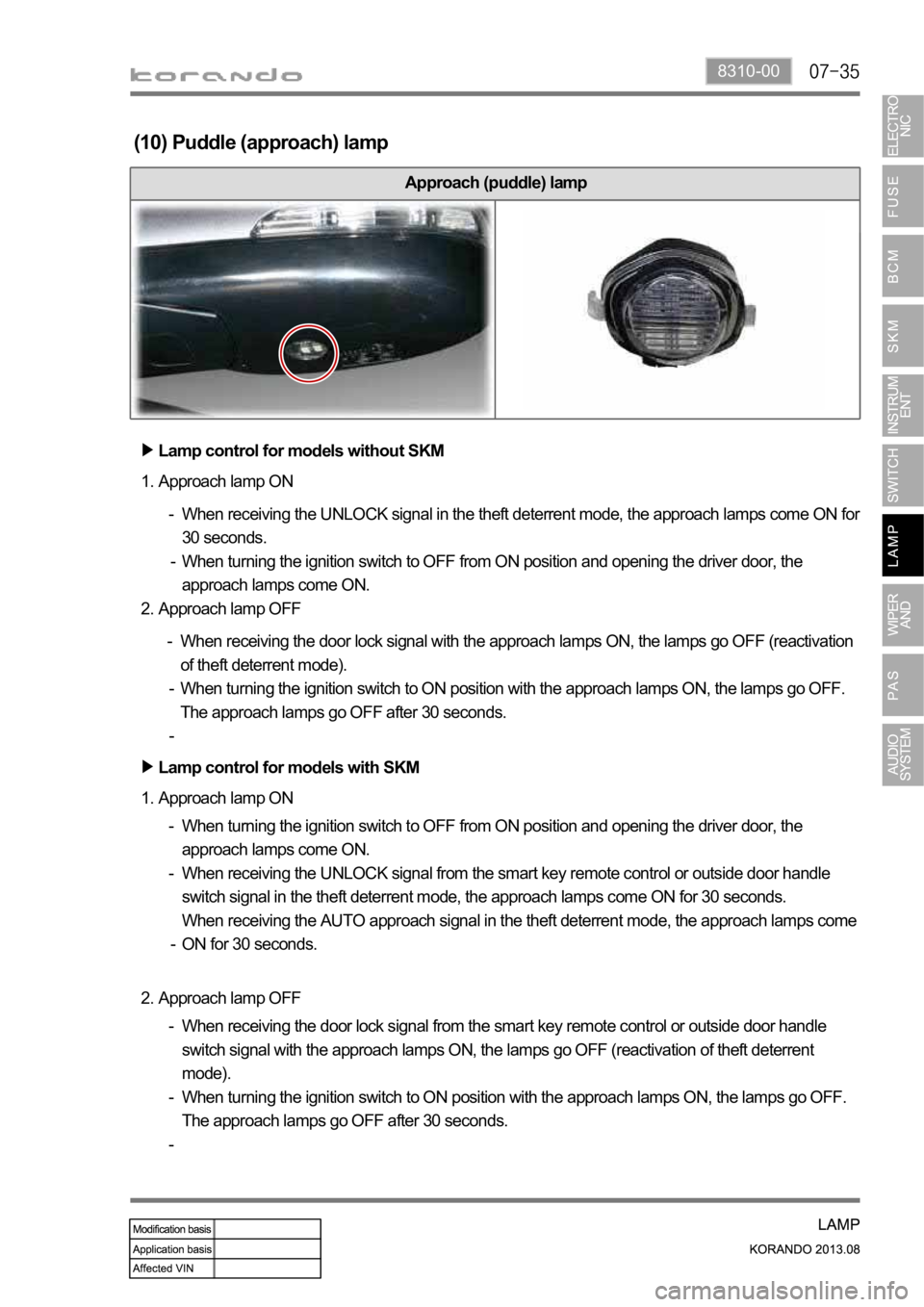

Approach (puddle) lamp
(10) Puddle (approach) lamp
Approach lamp ON 1.Lamp control for models with SKM
When turning the ignition switch to OFF from ON position and opening the driver door, the
approach lamps come ON.
When receiving the UNLOCK signal from the smart key remote control or outside door handle
switch signal in the theft deterrent mode, the approach lamps come ON for 30 seconds.
When receiving the AUTO approach signal in the theft deterrent mode, the approach lamps come
ON for 30 seconds. -
-
-
Approach lamp OFF 2.
When receiving the door lock signal from the smart key remote control or outside door handle
switch signal with the approach lamps ON, the lamps go OFF (reactivation of theft deterrent
mode).
When turning the ignition switch to ON position with the approach lamps ON, the lamps go OFF.
The approach lamps go OFF after 30 seconds. -
-
- Approach lamp ON 1.Lamp control for models without SKM
When receiving the UNLOCK signal in the theft deterrent mode, the approach lamps come ON for
30 seconds.
When turning the ignition switch to OFF from ON position and opening the driver door, the
approach lamps come ON. -
-
Approach lamp OFF 2.
When receiving the door lock signal with the approach lamps ON, the lamps go OFF (reactivation
of theft deterrent mode).
When turning the ignition switch to ON position with the approach lamps ON, the lamps go OFF.
The approach lamps go OFF after 30 seconds. -
-
-

1. OVERVIEW
The audio head unit is fitted with the Bluetooth handsfree for convenience. It has a micro pole antenna
and its own integrated amplifier to improve the radio frequency reception rate and to provide the high-
quality sound. The iPod function also has been added to the USB terminal.
Front door speakerAudio remote
control switch
Audio head unit USB & AUX jack
assemblyBluetooth (hands
-free)microphone
Front door tweeter
speaker

8910-05
Micro pole antennaRear door speaker
Bluetooth (hands-free)
microphone
Audio remote
control switch
USB/AUX jack assembly
Audio head unit

Bluetooth (hands-free)
microphone
It sends the transmission tone
signal to the head unit and outputs
the receiving tone and navigation
guidance sound to the driver's door
speaker during hands-free calling.
Audio head unit
The audio system plays a
various types of music
such as radio, MP3, CD,
USB and iPod. It has a
built-in high output
amplifier, allowing to
provide the high-quality
sound.
Micro pole antenna
Micro pole radio antenna is fitted
to ensure the high sensitivity.Bluetooth (hands-free)
Once the pairing is complete, after
searching for the Bluetooth phone, you
can use a various functions and contents
in the phone via Bluetooth.
Audio remote control switch
Outputs the signal when
power, mode, volume
up/down, handsfree, seek
up/down, mute switch is
operated.USB/AUX jack assembly
Sends USB signal, AUX
(stereo) and iPod output
signals.

Answering an incoming call
When the call is incoming, the bell rings and "CALL IN" and sender's telephone number are
displayed. -
Hang-up call
To hang-up the call, press the [END] button.
- The call is ended and system returns to the previous screen.
- However, the connection between the audio system and the phone remains "connected". 1.To make a call, press the [Call] button.
- "BT TEL" is displayed during a call and you can converse through the microphone and
speaker connected to this system. If you don't want to receive a call, press the [End] button
to reject it.
- After "CALL REJECT" is displayed, the system returns to the previous screen. 1.
To adjust volume
Turn the [VOL] dial to adjust the volume.
- The adjustable range is between BT VOL 06 to 32. 1.
Mute function
Press the [MUTE] button on the audio remote control to activate the mute function.
- "MIC MUTE" is displayed and the other party can't hear your voice.
- Press the [MUTE] button again to resume your conversation. 1.
Private mode
When you press the [Call] button during hands-free call, "PRIVATE" is displayed and hands-free call
is changed to cellular phone call. When you press the [Call] button during cellular phone call, "BT
TEL" is displayed and cellular phone call is changed to hands-free call.
- This function may not be available on some phone models. 1.You can change to private call using a cellular phone during hands-free call. (The other party's voice
is coming through only the cellular phone, not speaker.) -
To disconnect
Press and hold the [End] button to disconnect the connection with Bluetooth device and press and
hold it once again to turn off the Bluetooth function.
- At this time, "BT DISCONNECT" is displayed and the Bluetooth icon disappears. 1.
Playing music stored in cellular phone
Press the [MEDIA] button repeatedly to select "BT AUDIO".
After playing the music using a music-playback function in the cellular phone, turn the [VOL] dial to
adjust the volume.
To exit the function, press the [End] button or press the [BAND/AS], [MEDIA] or CD button to select
other function. 1.
2.
3.

3190-01

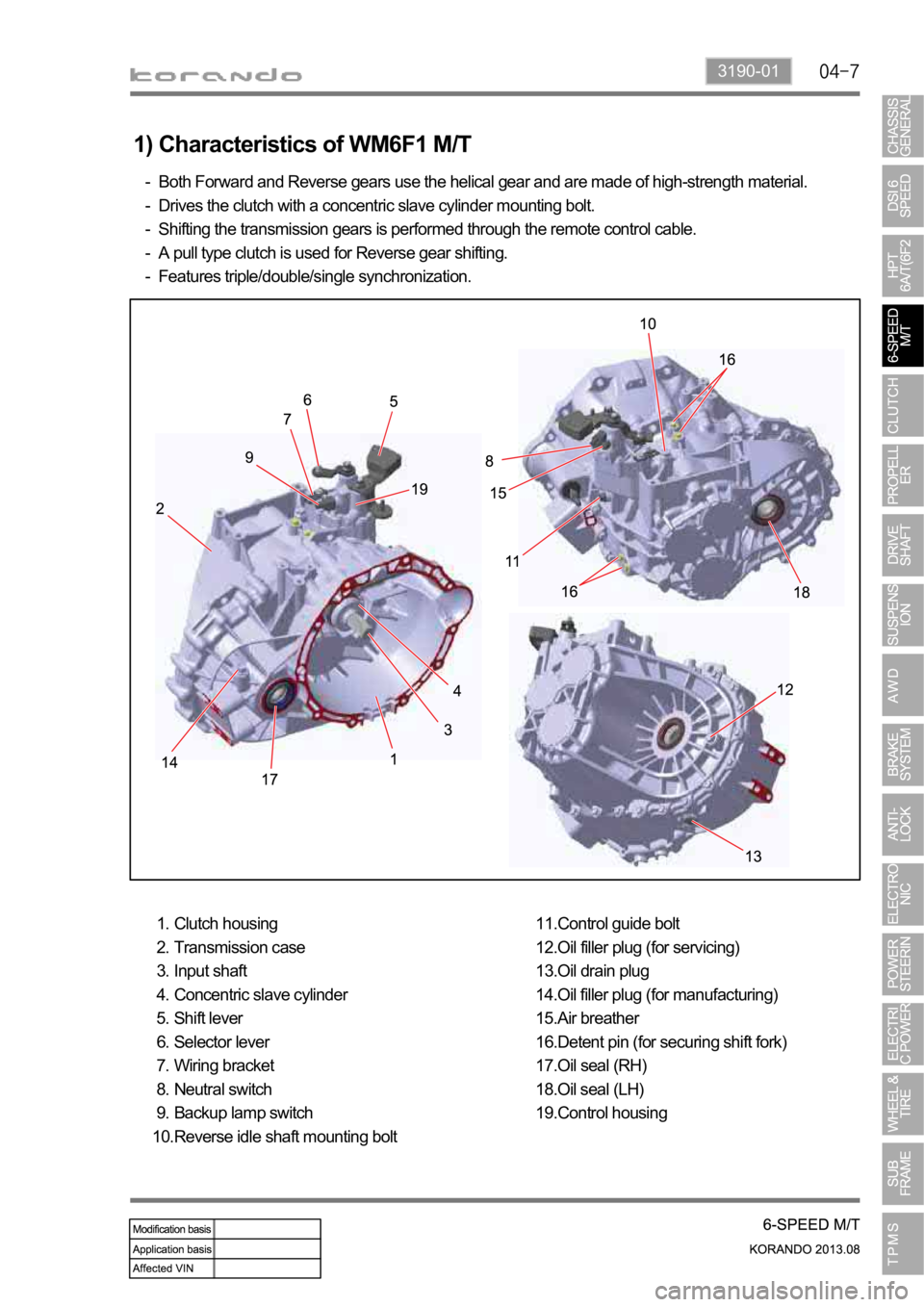

1) Characteristics of WM6F1 M/T
Both Forward and Reverse gears use the helical gear and are made of high-strength material.
Drives the clutch with a concentric slave cylinder mounting bolt.
Shifting the transmission gears is performed through the remote control cable.
A pull type clutch is used for Reverse gear shifting.
Features triple/double/single synchronization. -
-
-
-
-
Clutch housing
Transmission case
Input shaft
Concentric slave cylinder
Shift lever
Selector lever
Wiring bracket
Neutral switch
Backup lamp switch
Reverse idle shaft mounting bolt 1.
2.
3.
4.
5.
6.
7.
8.
9.
10.Control guide bolt
Oil filler plug (for servicing)
Oil drain plug
Oil filler plug (for manufacturing)
Air breather
Detent pin (for securing shift fork)
Oil seal (RH)
Oil seal (LH)
Control housing 11.
12.
13.
14.
15.
16.
17.
18.
19.
