2013 SMART FORTWO COUPE headlamp

Replacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
X Turn the exterior lamp switch to position
0004 (Ypage 62).
X Switch off the ignition.
X Open the service flap (Y page 117).Left headlamp, (right headlamp in reverse)
Parking and side marker lamp bulb X
Removing:
Driver’s side: Turn bulb socket 002Atoward
the outside.
Passenger side: Turn bulb socket 002A
toward the outside.
X Pull bulb socket 002Aout of the headlamp
housing.
X Pull the bulb out of bulb socket 002A.
X Installing: Insert the new bulb into bulb
socket 002A.
X Insert bulb socket 002Ainto the headlamp
housing.
X Driver side: Turn bulb socket 002Atoward
the inside.
Passenger side: Turn bulb socket 002A
toward the inside.
Low‑beam headlamp bulb X
Removing: Take off low‑beam headlamp
cover 002B.
X Detach the electrical connector. X
Bend the retainer spring end down and
forward until it unclips .Fold the
retainer spring back.
X Pull the bulb out of the headlamp
housing.
X Installing: Insert the new bulb into the
headlamp housing.
X Fold the retainer spring forward.
X Bend the retainer spring end forward
then up and back to clip in.
X Attach the electrical connector.
X Reinstall low‑beam headlamp cover 002B.
High‑beam headlamp bulb X
Removing: Take off high‑beam headlamp
cover 0003.
X Detach the electrical connector.
X Tilt the bulb socket down and pull it out.
X Pull the bulb out of the bulb socket.
X Installing: Insert the new bulb into the
bulb socket.
X Fit the bulb so that the retaining lug of
the base plate is pointing up.
X Press the bulb into the bulb socket until
it is fully engaged.
X Attach the electrical connector.
X Reinstall high‑beam headlamp cover 0003.
Front turn signal lamp bulb X
Removing: Turn bulb socket 0002
counterclockwise by aquarter of turn and
pull it out of the headlamp housing.
X Press gently onto the bulb and turn it
counterclockwise.
X Pull the bulb out of bulb socket 0002.
X Installing: Insert the new bulb into bulb
socket 0002.
X Press gently onto the bulb and turn it
clockwise.
X Insert bulb socket 0002into the headlamp
housing. Replacing bulbs
175>> Practical hints. Z

The arrow on bulb socket
0002must be in
line with the line on the headlamp
housing.
X Turn bulb socket 0002clockwise by a
quarter of turn.
Side turn signal lamp bulb X
Removing: Open the door on the
corresponding side. X
Press on retaining lug 0002in the
direction of the arrow until the side turn
signal lamp housing disengages.
X Close the door.
X Use a suitable tool to loosen the side turn
signal lamp housing from the fender.
X Turn the bulb socket counterclockwise
and pull it out of the side turn signal
lamp housing.
X Pull the bulb out of the bulb socket.
X Installing: Insert the new bulb into the
bulb socket.
X Insert the bulb socket into the side turn
signal lamp housing and turn the bulb
socket clockwise.
X Fit the side turn signal lamp housing
onto the fender.
X Press gently onto the side turn signal
lamp housing.
The side turn signal lamp housing must
audibly engage. Replacing bulbs for rear lamps
Before you start to replace a bulb for a rear
lamp, do the following first:
X Turn exterior lamp switch to position
0004 (Ypage 62).
X Switch off the ignition.
Tail lamp unit X
Removing:
Coupé: Open the upper tailgate.
X Open the lower tailgate.
X Cabriolet: Open the rear soft top
(Y page 70).
X Remove the side cover in the cargo
compartment on the corresponding side.
X Fold the damping material forward, if
necessary. Left bulb carrier illustrated as example
0002
Retaining tab
0003 Electrical connector
X Press retaining tab 0002in the center of
the bulb carrier upwards.
X Pull the bulb carrier out of the tail lamp
housing. 176
Replacing bulbs>> Practical hints.

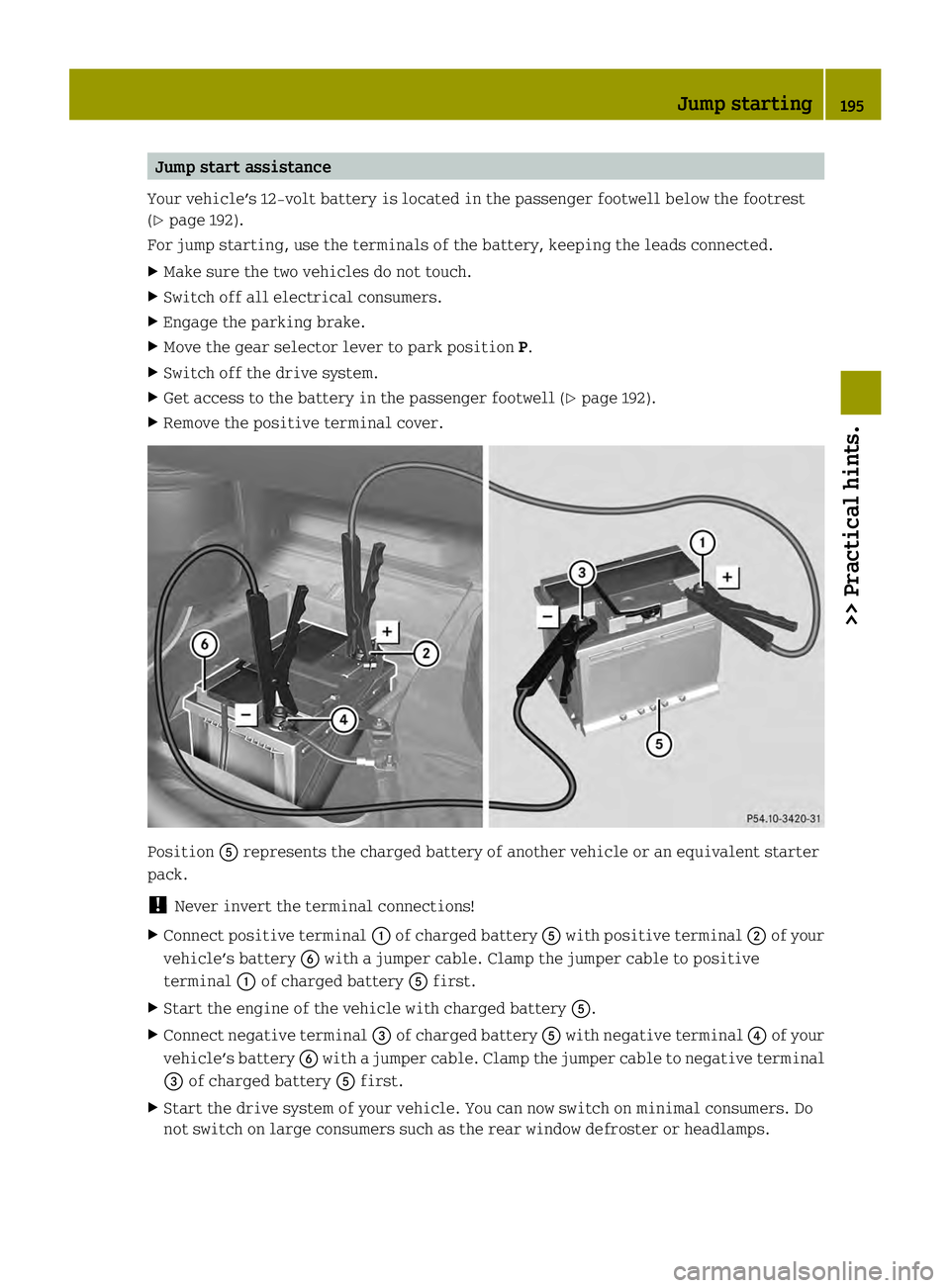

Jump start assistance
Your vehicle’s 12-volt battery is located in the passenger footwell below the footrest
(Y page 192).
For jump starting, use the terminals of the battery, keeping the leads connected.
X Make sure the two vehicles do not touch.
X Switch off all electrical consumers.
X Engage the parking brake.
X Move the gear selector lever to park position P.
X Switch off the drive system.
X Get access to the battery in the passenger footwell (Y page 192).
X Remove the positive terminal cover. Position
0028represents the charged battery of another vehicle or an equivalent starter
pack.
! Never invert the terminal connections!
X Connect positive terminal 0002of charged battery 0028with positive terminal 0003of your
vehicle’s battery 0029with a jumper cable. Clamp the jumper cable to positive
terminal 0002of charged battery 0028first.
X Start the engine of the vehicle with charged battery 0028.
X Connect negative terminal 002Bof charged battery 0028with negative terminal 002Aof your
vehicle’s battery 0029with a jumper cable. Clamp the jumper cable to negative terminal
002B of charged battery 0028first.
X Start the drive system of your vehicle. You can now switch on minimal consumers. Do
not switch on large consumers such as the rear window defroster or headlamps. Jump starting
195>> Practical hints. Z

X
Remove the jumper cables from negative terminals 002Band 002Afirst.
X Remove the jumper cables from positive terminals 0002and 0003.
You can now switch on the headlamps.
X Remount the positive terminal cover.
X Have the 12-vol tbattery checked at the nearest authorized electric drive smart center.
i Please keep in mind that it will take quite some time to charge the 12-volt battery.
When you switch off the drive system after driving a short distance, you may not be able
to start it again.
Charge the 12-volt battery completely as soon as possible. Towing
About towing
This section offers information on towing
methods for breakdown situations and
emergency towing. Recommended towing method -
Breakdown situation
! To prevent damage during transport, do
not tie down the vehicle by its chassis or
suspension parts — use only wheel straps
to position and hold down the vehicle.
Improper tie down on a flatbed carrier
truck or trailer can damage suspension
parts and body panels.
smart recommends that the vehicle be
transported with all wheels off the ground
using a flatbed carrier truck or
appropriate wheel lift/dolly equipment.
Always have your vehicle transported:
R when the 0002warning lamp for the high-
voltage system lights up in the
instrument cluster
R when the Do not tow (away) message
appears in the instrument cluster
R when the multifunction display is
inoperative R
when one or several of the following
warning lamps light up:
-0001 Drive diagnostics (red)
- 0004 12‑Volt battery
0002 Power steering
R if the brake pedal already starts to
pulsate just after towing begins
R if you have to transport the vehicle over
long distances
X Switch off the tow‑away protection* and
interior motion sensor* (Y page 47). Emergency towing
When circumstances do not permit the
recommended towing method, the vehicle
may be towed with all wheels on the ground
using a strap or tow bar connected to
another vehicle. Only tow the vehicle as far
as necessary to have the vehicle moved to a
safe location where the recommended
towing method can be employed. 196
Towing>> Practical hints.
* optional

No. Accessory/Component Amperage Color
001A
CPC, shifter, brake force booster vacuum
pump 7.5 A Brown
001B
Coolant pumps 1 and 2, high-voltage battery 15 A Blue
001D
ESP
®
control unit 25 A Neutral
001E
Exterior lamp switch, turn signal lamp
switch, cockpit switch module, on-board
diagnostics socket, exterior rear view
mirror heating, anti-theft warning system,
rain-light sensor, charge level and power
gauges, central locking system, instrument
cluster, Tire Pressure Monitoring System
(TPMS), brake and turn signal lamps (left and
right) 10 A Red
0020
— — —
0021
— — —
0022
Safety circuit high-voltage battery 15 A Blue
0023
— — —
0024
Rear window wiper (coupé only) 15 A Blue
0033
ESP
®
control unit, EPS control unit, restraint
systems 10 A Red
0034
Electric drive components 7.5 A Brown
0035
Air conditionin
gsystem, exterior rear view
mirror adjustment ,washer pump, audio, seat
heating, wiper switch, cruise control, soft
top switch (cabriolet only) 10 A Red
0036
Auxiliary power outlet 15 A Blue
0037
Left low‑beam headlamp 7.5 A Brown
000D
Right low‑beam headlamp 7.5 A Brown
000C
Backup lamp 15 A Blue
000E
Right high‑beam headlamp 7.5 A Brown
000A
Left high‑beam headlamp 7.5 A Brown
0012
Electric drive components 7.5 A Brown
0025
Rear window defroster 40 A Orange
0026
Soft top (cabriolet only) 30 A Green202
