2013 SKODA OCTAVIA display

›impairment of control units, fitted at the factory or specialist workshop, follow-
ing installation in another vehicle (for example, after a theft);
› impairment of components operated outside of the vehicle;
› the possibility of a legitimate installation or change of control units for repairs
at a specialist garage.
When component protection is activated, the following message appears on the device display screen: Component theft protection - Restricted function. Switch
on ignition.
If the component protection does not activate by switching on the ignition,
please contact a specialist garage.

Description and operation of the device
 Introduction
This chapter contains information on the following subjects:
Description of the device
5
Switching the unit on/off
6
Adjusting the volume
6
First and foremost, pay attention to the safety instructions » page 4 , Important
notes .

Description of the deviceFig. 1
Description of the device
First read and observe the introductory information given on page 5.
 - Control for switching on/off; volume adjustment
Menu button for calls and confirmations
Function keys (the functions for these keys are described in the relevant
chapters)
Display RADIO
- Radio menu » page 16
MEDIA - Media menu » page 18
Depending on equipment fitted: › PHONE
- Phone menu
» page 24
› MUTE - Mute
» page 6
SETUP - Unit settings » page 11
CAR - Settings of the vehicle system » page 33
BACK - Return to higher-level menu 
123456789105Introductory information

  - Backward and forward menu navigation (the key functions are descri-
bed in the relevant chapters)
CD slot 
- Eject CD
SD memory card slot

Switching the unit on/off
First read and observe the introductory information given on page 5.
›
Press the  knob to switch the device on or off.
When the device is switched on, the audio source and operating mode that were active before switching off the device will be restored.
If telephone mode was active before the device was switched off and if the igni-tion or the Bluetooth ®
function are not switched on, the following message is dis-
played: Please connect a mobile telephone. Switch on the ignition or the Blue-
tooth ®
function » page 13.
If the vehicle key is pulled out of the ignition lock while the unit is switched on, the unit will switch off automatically. After switching on the ignition, the unit is
turned on automatically.
If the device was switched off using the 
knob, then the device will not switch
on automatically after switching on the ignition.
If your vehicle is fitted with the KESSY system, the device will switch off automat- ically after the engine has been turned off and the door opened.
When the ignition is switched off, the system switches off automatically after ap-
prox. half an hour (discharge protection of the vehicle battery).

Adjusting the volume
First read and observe the introductory information given on page 5.
Increase the volume
›
Turn the  knob to the right.
11121314
Reduce the volume›Turn the
 knob to the left.
Muting›
Press the MUTE button
or
›
Set the volume to 0 using the  knob.
CAUTION
The car speakers may be damaged if the volume is set too loud or is distorted.
Note
■
The change in volume is displayed on the device display screen.■The following symbol appears in the display when the sound is muted : .■
Some connected sources allow the volume to be changed directly at the source.
■
Excessively high volumes can cause sound resonance in the vehicle.
■
The loudspeakers in the vehicle are designed for a power output of the device
of 4x20 W.

Unit operation
 Introduction
This chapter contains information on the following subjects: Operate via the device display screen
7
Operate using the buttons on the operating lever
8
Operation via the buttons / wheels on the multifunction steering wheel -
Audio menu
8
Operation via the buttons / wheels on the multifunction steering wheel -
Telephone menu
10
First and foremost, pay attention to the safety instructions » page 4 , Important
notes .
Some of the device's features are also displayed in the MAXI DOT display 1)
. De-
pending on the equipment, these features can be operated as follows. 
1)
The display in the MAXI DOT is described in the
» Manual , chapter Information system
6Introductory information

■With the buttons on the operating lever » page 8
■ With the buttons and wheels on the multifunction steering wheel » page 8
Note
The buttons and wheels on the multifunction steering wheel will also be lit if the
ignition and the side light are switched on.
Operate via the device display screen
Fig. 2
Displays
First read and observe the introductory information given on page 6.
Display of menus, menu items and functions Currently selected menu/menu item
Previous menu item
Next menu item
Higher-level menu
ABCDFunction of the menu/menu item
Function with “checkbox”
› 
- Function is switched on
› 
- Function is switched off
Selecting menu/menu item
Select by turning the menu knob 2
» Fig. 1 on page 5.
Confirming menu/menu item
Confirm by pressing the menu button
2
.
Confirming function of menu/menu item
Confirm the function of menu/menu item
E
» Fig. 2 by pressing the correspond-
ing key
3
» Fig. 1 on page 5.
Returning to higher-level menu
Return by pressing the BACK
button.
Switching function on/off with “checkbox” Switch the function on/off by pressing the menu button
2
.
Note
■ Greyed out menus or menu items are not enabled or available.■For some menus or menu items, the current setting is displayed, e.g. Distance:
km or Distance: mi .■
If the device is not currently being used, the display will return to the higher-
level menu after a few seconds.
EF7Introductory information

Operate using the buttons on the operating leverFig. 3
Buttons on the control lever
First read and observe the introductory information given on page 6.
The separate menus and menu items displayed in the MAXI DOT display can be
operated with the buttons on the control lever.
Press and hold - open main menu
Press briefly - select individual menu items or menus
Press briefly - select menu item or menu

AAB
Operation via the buttons / wheels on the multifunction steering wheel - Audio menu
Fig. 4
Multifunction steering wheel: control buttons and wheels
First read and observe the introductory information given on page 6.
Each item in the Audio menu displayed in the MAXI DOT display can be operated
with the buttons/wheels on the multifunction steering wheel. 
Control buttons and wheelsButton/
wheel
» Fig. 4ActionRadioMedia
1Press brieflyChange source, change frequency band1Press and hold but- tonSwitch between the Radio and Media operating modes, and open the last context status (e.g. the last radio station or track to be played)a)2Press brieflySwitch off/on tone b)
Start/stop playback2Turn upwardsIncrease the volume2Turn downwardsReduce the volume 8Introductory information

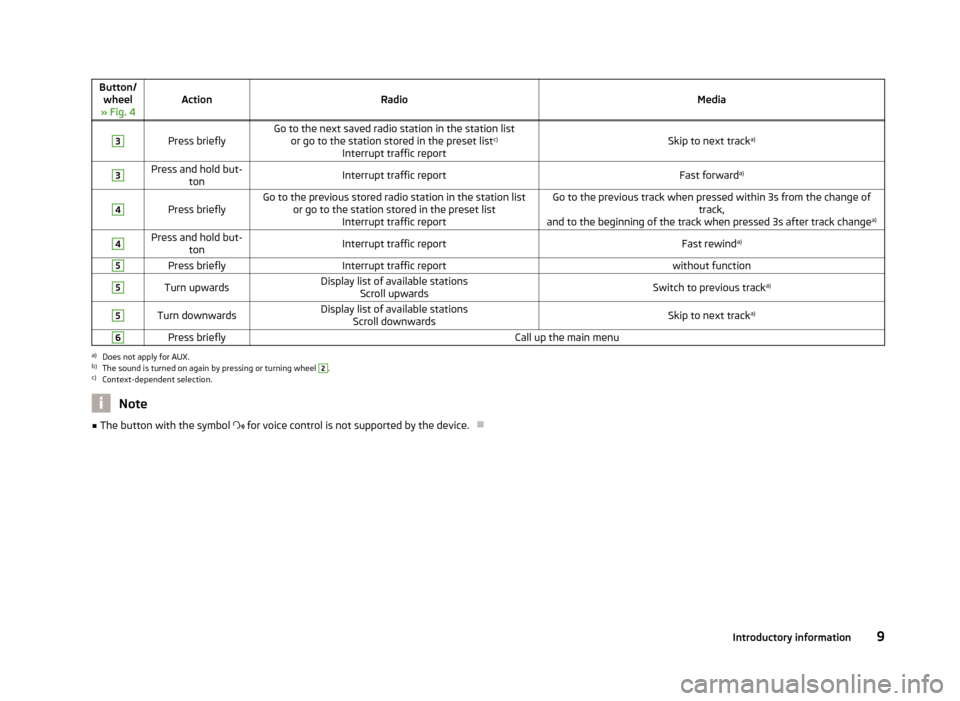

Button/wheel
» Fig. 4ActionRadioMedia
3
Press brieflyGo to the next saved radio station in the station list or go to the station stored in the preset list c)
Interrupt traffic reportSkip to next track a)
3Press and hold but-
tonInterrupt traffic reportFast forward a)4
Press brieflyGo to the previous stored radio station in the station list
or go to the station stored in the preset list Interrupt traffic reportGo to the previous track when pressed within 3s from the change of track,
and to the beginning of the track when pressed 3s after track change a)4Press and hold but-
tonInterrupt traffic reportFast rewind a)5Press brieflyInterrupt traffic reportwithout function5Turn upwardsDisplay list of available stations
Scroll upwardsSwitch to previous track a)5Turn downwardsDisplay list of available stations
Scroll downwardsSkip to next track a)6Press brieflyCall up the main menua)
Does not apply for AUX.
b)
The sound is turned on again by pressing or turning wheel
2
.
c)
Context-dependent selection.
Note■
The button with the symbol  for voice control is not supported by the device.
9Introductory information

Operation via the buttons / wheels on the multifunction steering wheel - Telephone menuFig. 5
Multifunction steering wheel: control buttons and wheels
First read and observe the introductory information given on page 6.
Items in the MAXI DOT display telephone menu can be operated with the but-
tons / dials on the multifunction steering wheel.
The functions of the menu currently active on the phone can be controlled with the buttons and wheels.

Buttons and wheels of the Phone menuButton/wheel
» Fig. 5ActionFunction1Press brieflyMUTE1Turn upwardsIncrease the volume1Turn downwardsReduce the volume2Press brieflyAccept call, end call, entry in the main menu of the telephone, call list, call the dialled contact2Press and hold buttonReject call, redial last call3Turn up/downCall list, previous menu item3Press brieflyConfirm selected menu item4Press brieflyReturn to a previous level in the menu4Press and hold buttonReturn to Main MenuTelephone call function in the MAXI DOT display
Depending on the context, you can select the following functions:
Incoming call ■  Accept - Answer a call
■  Reject - Reject a call
■  Ignore - Ignore a call
Outgoing call
■  End call - End a callCurrent call
■  End call - End a call
■  Mic. off - Microphone off
■  Mic. on - Microphone on
Symbols in the MAXI DOT displaySymbolMeaningCharge status of the phone battery a)Signal strengtha)
10Introductory information

SymbolMeaningA phone is connected with the hands-free system.Missed calls (if there are several missed calls, the number ofcalls is shown next to the symbol)a)
This function is only supported by some mobile phones.
Call list
In the MAXI DOT display, only the call list can be displayed and used.
If the call list includes no entries, the following message appears in the MAXI DOT
display No entries available.
The following symbols are displayed next to each entry in the call list.
SymbolMeaningIncoming callOutgoing callMissed call
Note
■ The button with the symbol  for voice control is not supported by the device.
Device settings

Introduction
This chapter contains information on the following subjects:
Main menu
11
Sound settings
11
Radio settings
12
Media settings
12
Telephone settings
13
Device system settings
13
Update Bluetooth ®
firmware
15
First and foremost, pay attention to the safety instructions » page 4 , Important
notes .

Main menuFig. 6
Main menu Setup
First read and observe the introductory information given on page 11.
Opening the main menu for unit setup
›
Press the button SETUP.
Menu items in the main menu for device setup
■ Sound - Sound setup » page 11
■ Radio setup - Radio settings » page 12
■ Media - Media settings » page 12
■ Telephone - Phone settings » page 13
■ System - System settings » page 13

Sound settings
First read and observe the introductory information given on page 11.
›
Press the SETUP
→ Sound button.
■ Bass - Bass setting
■ Mid - Mid-range setting
■ Treble - Treble setting
■ Balance - Sets the balance between the left and right
■ Fader - Sets the balance between the front and the rear
■ Volume - Volume settings
■ Maximum switch-on volume - Volume after switching on
■ Traffic announcement - sets the volume for the Traffic program alerts (TP) 
11Introductory information

■Speed-dependent vol. adjustment - Speed-dependent volume increase
■ AUX volume - Sets playback volume via an external source
■ Quiet - Low volume
■ Medium - Medium volume
■ Loud - High volume
■ Bluetooth audio - Sets the playback volume via Bluetooth ®
■ Quiet - Low volume
■ Medium - Medium volume
■ Loud - High volume
Radio settings
First read and observe the introductory information given on page 11.
›
Press the button SETUP
→ Radio setup .
■ Radio text - Radio text display on/off
■ Alternative frequency (AF) - Search for alternative frequencies of the station
currently being listened to on/off
■ Arrow keys - Sets the station selection function in RADIO mode
■ Station list - Switches all stations currently in range for the selected fre-
quency band
■ Preset list - Switches only stored stations in the selected frequency band
■ RDS regional - Switches the automatic tracking of related regional stations on/
off ■ Fixed - The selected regional station is kept permanently (another regional
station must be set manually if signal is lost)
■ Automatic - Automatic tracking of regional stations (the device will automati-
cally switch to another available regional station if reception is lost in the re-
gion in question)
■ PTY filter - Selects radio stations by programme type
■ Off - Switches off
■ News - News
■ Music - Music
■ Sport - Sports
■ Culture - Culture
■ Special - Other

■
Station list sort - Sorts the sorted stations
■ Default - by the programme identification (PI code)
■ A-Z - In alphabetical order and also based on the frequency number (if the sta-
tion name changes during the programme, it can be displayed just at the end
of the list)
■ Name of station - Displays the station name
■ Variable - Allows changes to the station name
■ Fixed - The station name is fixed (for the A-Z listing)
■ Delete presets - Deletes the stored stations
Note
■
The Radio Data System (RDS) is used to transfer additional information. The
RDS enables program identification, program type identification (PTY), the recep-
tion of traffic reports (TP) or automatic station tracking, for example. If there is
sufficient reception, RDS-compatible radio stations will be displayed by station
name rather than station frequency.■
The Alternative frequency (AF) function ensures that the best receivable fre-
quency for the selected station is set automatically.
■
The device may not be fully functional in countries where RDS is not adequately
supported. We therefore recommend switching off the RDS regional setting as
well as the Alternative frequency (AF) setting, f applicable. Otherwise, these set-
tings can affect the functionality of the radio.

Media settings
First read and observe the introductory information given on page 11.
›
Press the button SETUP
→ Media .
■ Activate AUX - Switches activation of AUX input on/off
■ Mix/Repeat including subfolders - Switches on/off playback of the tracks in Mix
and Repeat modes including subfolders
■ Display ID3 tags - Switches on/off display of the artist, album and track name in
the device display screen 1)
■ Bluetooth audio - Switches on/off activation of the external audio source via
Bluetooth ®


1)
Regardless of the setting, the ID3 tag is always displayed in the Audio menu in the MAXI DOT display.
12Introductory information
