2013 Seat Mii dimensions

Wheel trims . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . 252
Anti-puncture kit* . . . . . . . . . . . . . . . . . . . . . . . . . 258
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Starting assistance . . . . . . . . . . . . . . . . . . . . . . . . 275
Towing and tow starting . . . . . . . . . . . . . . . . . . . . 278
Technical specifications . . . . . . . . . . . . 282
Description of specifications . . . . . . . . . . . . . . . 282
Technical specifications . . . . . . . . . . . . . . . . . . . . 282
Engine specifications . . . . . . . . . . . . . . . . . . . . . . 285
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289
4Table of Contents

213
Vehicle care and maintenance
WARNING
The use of worn or damaged wheel rims could make driving more danger-
ous and result in serious accidents and damage.
● Only wheel rims which have been approved for use with your vehicle
should be used.
● Inspect wheel rims regularly for damage and replace as required.
WARNING
If the bolted joints of wheel rims with bolted ring trims are not correctly
tightened or loosened, this could result in serious accident.
● Never loosen the bolted joints of wheel rims with bolted ring trims.
● Any work relating to wheel rims with bolted rims should be carried
out at specialised workshop. SEAT recommends visiting a Technical Serv-
ice.

Replacement of new tyres and wheel rims
New tyres
● When tyres are new, drive with extreme caution for the first 600 km
(400 miles), as all tyres need to be run-in. Tyres which have not been run-in
do not have such good grip ⇒ 
or braking capacity ⇒ .
● All four wheels must be fitted with radial tyres of the same type, size
(rolling circumference) and the same tread pattern.
● The tread depth of new tyres may vary, according to the type and make
of tyre and the tread pattern. Replacing tyres
●
Where possible, always replace both wheels on an axle (both wheels on
the front axle or both wheels on the rear axle) ⇒ 
.
● Only replace used tyres with those authorised by SEAT for the corre-
sponding type vehicle. Pay special attention to size, diameter, and maxi-
mum load and speed capacity.
● Never use tyres which are larger than SEAT approved tyres. If the tyres
are too big, they may knock or rub against the chassis or other components,
resulting in damage.
WARNING
New tyres do not give maximum grip and will not have reached their max-
imum braking capacity to start with, and therefore need running in.
● To prevent accidents and major damage, extreme caution should be
taken for the first 600 km (400 miles).
WARNING
There should be adequate space between the tyres and the vehicle in ac-
cordance with the vehicle design. If this is not the case, the tyres may
rub against parts of the running gear, chassis or brake lines, leading to
faults in the brake system or to tread detachment, and the risk of burst
tyres.
● The true tyre dimension should not be greater than the dimensions of
tyres manufactured and approved by SEAT and should not rub against
parts of the vehicle.
Note
Although tyres may be shown as being the same size, the true dimensions
of different types of tyre may vary with respect to the nominal size, or tread
patterns may be different. 
Vehicle diagramPrior to a journey...While drivingCare, cleaning and mainte-
nanceIf and whenTechnical specifications

214Vehicle care and maintenance
Note
If you use tyres that are approved by SEAT, you can be sure that the true tyre
dimensions will be correct for your vehicle. For other tyre models, the tyre
vendor should provide the manufacturer's certificate with the tyre, indicat-
ing that this type of tyre is suitable for your vehicle. This certificate should
always be carried with the vehicle. 
Tyre pressures

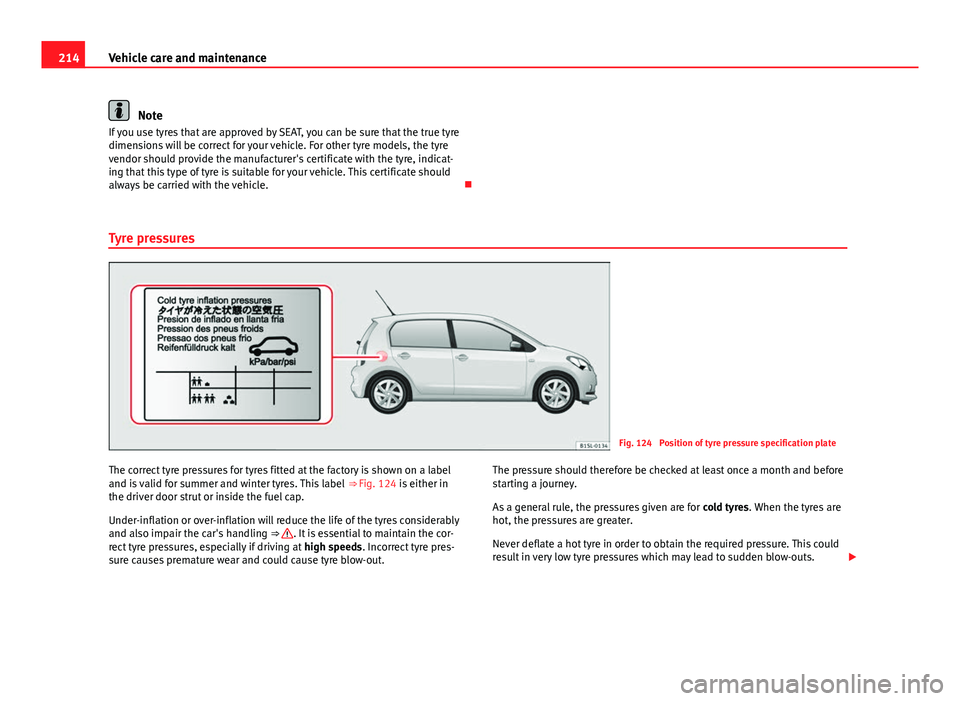

Fig. 124 Position of tyre pressure specification plate
The correct tyre pressures for tyres fitted at the factory is shown on a label
and is valid for summer and winter tyres. This label ⇒ Fig. 124 is either in
the driver door strut or inside the fuel cap.
Under-inflation or over-inflation will reduce the life of the tyres considerably
and also impair the car's handling ⇒ 
. It is essential to maintain the cor-
rect tyre pressures, especially if driving at high speeds. Incorrect tyre pres-
sure causes premature wear and could cause tyre blow-out. The pressure should therefore be checked at least once a month and before
starting a journey.
As a general rule, the pressures given are for
cold tyres. When the tyres are
hot, the pressures are greater.
Never deflate a hot tyre in order to obtain the required pressure. This could
result in very low tyre pressures which may lead to sudden blow-outs. 

282Description of specifications
Technical specifications
Description of specifications
Technical specifications
Introduction
The information in the vehicle documentation always takes
precedence over the information in this Instruction Manual.
All technical specifications provided in this documentation are valid for the
standard model in Spain. The vehicle data card included in the Mainte-
nance Programme or the vehicle registration documentation shows which
engine is installed in the vehicle.
The figures may be different depending whether additional equipment is fit-
ted, for different models, for special vehicles and for other countries.
Additional information and warnings:
● Transporting ⇒ page 95
● Ecological driving ⇒ page 144
● Fuel ⇒ page 177
● Engine oil ⇒ page 185
● Engine coolant ⇒ page 189
● Wheels and tyres ⇒ page 210
● Notes for the user ⇒ page 233
WARNING
Failure to observe requirements for weight, loads, dimensions and maxi-
mum speed may lead to severe accident.


288Description of specifications
Dimensions
Longitude3557 mmWidth1641 - 1645 mmHeight, unladen1478 - 1489 mmWheelbase2420 mmTurning circle diameter a)approx. 9.8 mFront track widtha)1412 - 1428 mmRear track widtha)1408 - 1424 mmGround clearance with maximum au-
thorised load109 mm
a)
Depending on the dimensions of the wheel trims and tyres, there may be variations.
CAUTION
● Special care should be taken when parking in areas with high kerbs or
fixed barriers. Objects protruding from the ground may damage the bumper
or other parts of the vehicle during manoeuvres.
● Special attention is required when driving through entrances, over
ramps, kerbs or other objects. The vehicle underbody, bumpers, mudguards
and running gear, and the engine and exhaust system could be damaged as
you drive over these objects. 
Capacities
Fuel tank capacity
Petrol enginesAround 35.0 l
, of which approximately 4.0 are the reserve.

Control lampAirbag system . . . . . . . . . . . . . . . . . . . . . . . . 67
Brake pad wear warning . . . . . . . . . . . . . . 135
Brake system . . . . . . . . . . . . . . . . . . . . . . . 135
Catalytic converter . . . . . . . . . . . . . . . . . . . 237
Checking the engine oil level . . . . . . . . . . 185
City Safety Assist function . . . . . . . . . . . . . 156
Cruise control system (CCS) . . . . . . . . . . . . 152
Emission control system . . . . . . . . . . . . . . 237
Engine coolant . . . . . . . . . . . . . . . . . . . . . . 189
Engine management . . . . . . . . . . . . . . . . . 237
Engine oil sensor . . . . . . . . . . . . . . . . . . . . 185
ESC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Fuel level . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Hill hold . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Steering column lock . . . . . . . . . . . . . . . . . 147
Control lamps Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Controlling function Electric exterior mirrors . . . . . . . . . . . . . . . . 94
Control units . . . . . . . . . . . . . . . . . . . . . . . . . . . 226 Reprogramming . . . . . . . . . . . . . . . . . . . . . 227
Convenience functions Reprogramming . . . . . . . . . . . . . . . . . . . . . 227
Coolant See engine coolant . . . . . . . . . . . . . . . . . . 189
Crossing a river Salt water . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cruise control system . . . . . . . . . . . . . . . . . . . . 152
Cruise control system (CCS) Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 152
Operations . . . . . . . . . . . . . . . . . . . . . . . . . 153 Curb weight . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
D Damaged tyres . . . . . . . . . . . . . . . . . . . . . . . . . 216
Dangers of not using the seat belt . . . . . . . . . . 59
Dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Airbag system . . . . . . . . . . . . . . . . . . . . 65, 208
Data link connector (DLC) . . . . . . . . . . . . . . . . 227
Data registry . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Data storage during the journey . . . . . . . . . . . 226
Data stored by the control units . . . . . . . . . . . 226
Daytime driving light . . . . . . . . . . . . . . . . . . . . . 85
De-icing the door lock cylinder . . . . . . . . . . . . 203
De-icing the locks . . . . . . . . . . . . . . . . . . . . . . . 203
Deadlock system"Safe" SAFELOCK . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Deadlock (immobilizer) . . . . . . . . . . . . . . . . . . 123
Detail passenger seat . . . . . . . . . . . . . . . . . . . . . . . 14
Diagnostics connection . . . . . . . . . . . . . . . . . . 227
Differential lock See "Brake assist systems" . . . . . . . . . . . . 140
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Dipped beam headlights . . . . . . . . . . . . . . . . . . 84
Dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Instrument panel . . . . . . . . . . . . . . . . . . . . . 19 Disposal
Airbag system . . . . . . . . . . . . . . . . . . . . . . . 235
Belt tensioner . . . . . . . . . . . . . . . . . . . . . . . . 64
End-of-life vehicle . . . . . . . . . . . . . . . . . . . 235
Door handle exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Door release lever interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Childproof locks . . . . . . . . . . . . . . . . . . . . . . 37
Emergency locking and unlocking . . . . . . 244
Drink holders . . . . . . . . . . . . . . . . . . . . . . . . . . 113 Centre console . . . . . . . . . . . . . . . . . . . . . . 114
Drinks bottles see Drink holders . . . . . . . . . . . . . . . . . . . . 113
Driver door Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Driver position . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Driving Check list . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Data storage . . . . . . . . . . . . . . . . . . . . . . . . 226
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 26
Driving through water . . . . . . . . . . . . . . . . . 27
Driving with an automatic gearbox . . . . . . 131
Ecological . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Economic . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . 172
Fuel level to low . . . . . . . . . . . . . . . . . . . . . 173
Journey preparations . . . . . . . . . . . . . . . . . . 25
Parking downhill . . . . . . . . . . . . . . . . . . . . 137
Parking uphill . . . . . . . . . . . . . . . . . . . . . . . 137
Protection of the undercarriage . . . . . . . . . . 25
starting on a slope . . . . . . . . . . . . . . . . . . . 131
292 Index

Sunglasses storage compartment . . . . . . . . . 110
Sun visor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Symbolssee warning lamp . . . . . . . . . . . . . . . . . . . . . 15
Systems ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Anti-lock brake system (ABS) . . . . . . . . . . 140
ASR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
BAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Brake assist system (BAS) . . . . . . . . . . . . . 140
Cruise control system (CCS) . . . . . . . . . . . . 152
EDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Electronic differential lock system (EDL) . 140
Electronic Stability Programme (ESP) . . . . 139
Hill hold . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Optical parking system (OPS) . . . . . . . . . . 150
Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . 150
Parking distance warning system . . . . . . . 150
Safety Assist (City Safety Assist function) 155
TC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Traction control system (ASR) . . . . . . . . . . 140
Traction Control (TC) . . . . . . . . . . . . . . . . . . 140
T Tank flap close . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Natural gas . . . . . . . . . . . . . . . . . . . . . . . . . 175
open . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
TC see Brake assist systems . . . . . . . . . . . . . . 140 Technical data
Axle loads . . . . . . . . . . . . . . . . . . . . . . . . . . 283
Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Curb weight . . . . . . . . . . . . . . . . . . . . . . . . 283
Engine oil specifications . . . . . . . . . . . . . . 185
Identification plate . . . . . . . . . . . . . . . . . . . 283
Manufacturer identification plate . . . . . . . 283
Reservoir capacity . . . . . . . . . . . . . . . . . . . . 92
Roof load . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Total weight . . . . . . . . . . . . . . . . . . . . . . . . 283
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . 214
Vehicle data label . . . . . . . . . . . . . . . . . . . . 283
Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
Technical information Type of fuel . . . . . . . . . . . . . . . . . . . . . . . . . 177
Technical modifications . . . . . . . . . . . . . . . . . . 224 Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Lifting platform . . . . . . . . . . . . . . . . . . . . . . 231
Plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Technical specifications . . . . . . . . . . . . . . . . . . 282 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 288
Temperature display Liquid coolant temperature . . . . . . . . . . . . . 23
Outside temperature . . . . . . . . . . . . . . . . . . 20
Temporary spare wheel . . . . . . . . . . . . . . . . . . 217 Driving advice . . . . . . . . . . . . . . . . . . . . . . . 217
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . 221
Things to note Disconnecting the vehicle's battery . . . . . . 21
parking distance warning system . . . . . . . 150
Removing the key from the vehicle . . . . . . 121
Water underneath the vehicle . . . . . . . . . . 168 Tightening torque
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . 254
TIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Tips for driving . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Before starting out . . . . . . . . . . . . . . . . . . . . 25
Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
tire mobility set Components . . . . . . . . . . . . . . . . . . . . . . . . 259
Tire Mobility Set Check after 10 minutes . . . . . . . . . . . . . . . 261
Do not use . . . . . . . . . . . . . . . . . . . . . . . . . 258
Inflating a tyre . . . . . . . . . . . . . . . . . . . . . . 260
preparation . . . . . . . . . . . . . . . . . . . . . . . . . 260
Sealing a tyre . . . . . . . . . . . . . . . . . . . . . . . 260
see Anti-puncture kit . . . . . . . . . . . . . . . . . 258
Tools see Vehicle tool kit . . . . . . . . . . . . . . . . . . . 247
Total weight . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119, 278 Driving tips . . . . . . . . . . . . . . . . . . . . . . . . . 280
Front towline anchorage . . . . . . . . . . . . . . 280
Special notes . . . . . . . . . . . . . . . . . . . 278, 279
Tow bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
Tow rope . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
Tow starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
Traction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Traction control system (ASR) . . . . . . . . . . . . . 140
Traction Control (TC) . . . . . . . . . . . . . . . . . . . . . 140
Trailer coupling Towing bracket . . . . . . . . . . . . . . . . . . . . . . 107
Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95 Transporting a load . . . . . . . . . . . . . . . . . . . 96
299
Index
