Fuses and bulbs

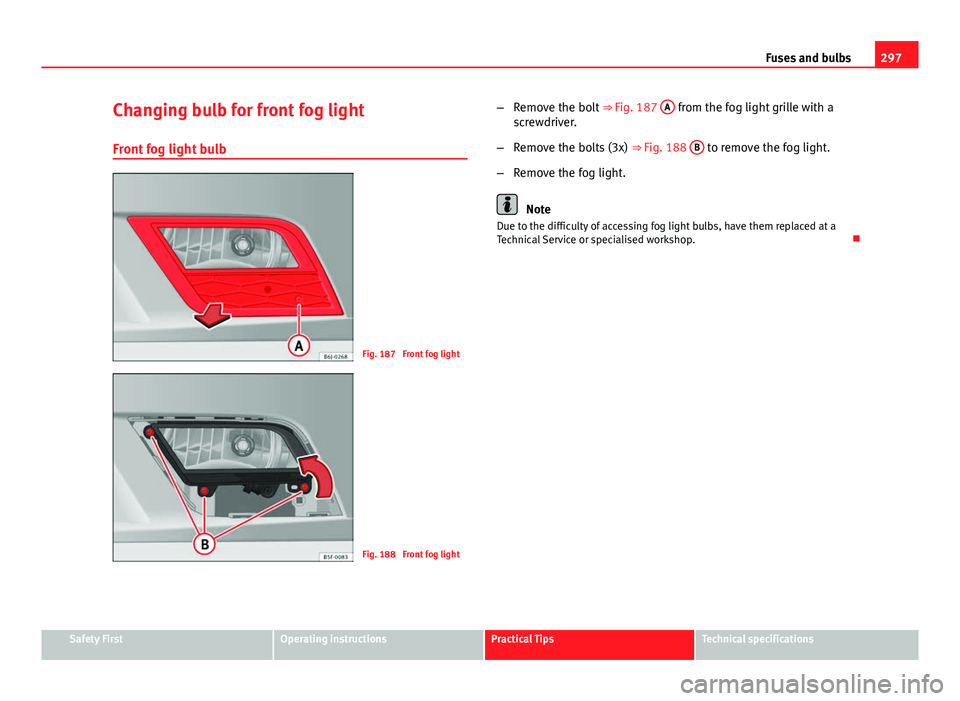

Changing bulb for front fog light
Front fog light bulb
Fig. 187 Front fog light
Fig. 188 Front fog light –
Remove the bolt ⇒ Fig. 187 A
from the fog light grille with a
screwdriver.
– Remove the bolts (3x) ⇒ Fig. 188 B
to remove the fog light.
– Remove the fog light.
Note
Due to the difficulty of accessing fog light bulbs, have them replaced at a
Technical Service or specialised workshop. 
Safety FirstOperating instructionsPractical TipsTechnical specifications

298Fuses and bulbs
Fog light, FR version
Fig. 189 Fog light: ac-
cess to the connector
and to the light bulb
holder
Fig. 190 Fog light: ac-
cess to the connector and
to the light bulb holder
– Remove the 3 screws A
⇒ Fig. 189 from the inside of the wheel
housing and the 2 bottom screws B ⇒ Fig. 189 from the bump-
er using a screwdriver. –
Pull the wheel housing 1
⇒ Fig. 190 to access the 2 hidden
screws C ⇒ Fig. 190 in the bumper.
– Remove the screws using a screwdriver.
– Pull the bumper to release it from its anchorages to access the
connector and the light bulb holder.
Note
Due to the difficulty of accessing fog light bulbs, have them replaced at a
Technical Service or specialised workshop. 
Remove the bulb holder
Fig. 191 Front fog light
– Remove connector ⇒ 
Fig. 191 A
from the bulb.
– Turn bulb holder ⇒ 
Fig. 191 B
to the left and pull. 

305
Technical specifications
Vehicle identification data
Fig. 200 Vehicle data
sticker (luggage compart-
ment)
Fig. 201 Chassis num-
ber. Chassis number in the Easy Connect
–
Select: Function button CAR
> control button
(Car)* Systems >
Service & Control > Chassis number .
Chassis number
The vehicle identification number is located in the Easy Connect, on the ve-
hicle data sticker and under the windscreen, on the driver side ⇒ Fig. 201.
Additionally, the chassis number is located in the engine compartment, on
the right-hand side. The number is engraved on the top side rail, and is par-
tially covered.
Type plate
The type plate is located on the right side door pillar. Vehicles for certain
export countries do not have a type plate.
Vehicle data sticker
The vehicle data sticker is under the carpet trim in the luggage compart-
ment, in the spare wheel well. A sticker with the vehicle data is attached to
the inside cover of the Maintenance Programme.
The following information is provided on the vehicle data sticker: ⇒ Fig. 200
Vehicle identification number (chassis number)
Vehicle type, model, displacement, engine type, finish, engine power
and gearbox type
Engine code, gearbox code, external paint code and internal equipment
code
Optional extras and PR numbers
Consumption values (l/100 km) and CO 2 emissions (g/km)
A
Urban consumption and CO 2 emissions
B Extra-urban consumption and CO 2 emissions
C Combined consumption and CO 2 emissions

1
2
3
45
Safety FirstOperating instructionsPractical TipsTechnical specifications

308Technical specifications
Note
We recommend that you ask your Technical Service for information about
appropriate wheel, tyre and snow chain size. 

309
Technical specifications
Engine specifications
Checking fluid levels
From time to time, the levels of the different fluids in the ve-
hicle must be checked. Never fill with incorrect fluids, other-
wise serious damage to the engine may be caused.
Fig. 202 Diagram for the location of the various elements Coolant expansion tank
Engine oil dipstick
Engine oil filler cap
Brake fluid reservoir
Vehicle battery (underneath the cover)
Windscreen washer reservoir
The checking and refilling of service fluids are carried out on the compo-
nents mentioned above. These operations are described in ⇒ page 251.
1
23456
Overview
You will find further explanations, instructions and restrictions on the tech-
nical specifications as of
⇒ page 304. 
