250Checking and refilling levels
For the sake of the environment
Do not overfill the fuel tank – it may cause the fuel to overflow if it becomes
warm.
Note
Diesel vehicles are fitted with a protective device that prevents the insertion
of the wrong fuel hose 1)
. It is only possible to refuel with Diesel nozzles.
● If the pump nozzle is worn, damaged, or if it is very small, it is possible
that it will not be able to open the protective device. Before trying to insert
the pump nozzle by turning it, try a different pump or request specialist
help.
● If you fill the tank from a reserve fuel canister, the protective device will
not open. One way to resolve this is to pour the fuel in very slowly. 
Refuelling natural gas
Fig. 152 Tank flap open:
gas filler mouth 1, filler
mouth retainer 2
Before refuelling, the engine and the ignition, mobile telephone and heat-
ing must be switched off separately
⇒ .
Read the instructions on how to use the natural gas pump carefully.
The vehicle is not prepared for refuelling with liquefied natural gas (LNG)
⇒ 
. Before refuelling with natural gas, make sure to add the appropriate
type of fuel ⇒ page 246.
Opening the fuel tank cap
The natural gas filler mouth is behind the fuel tank cap, next to the petrol
filler mouth.
● Unlock the vehicle with the key or with the central locking button 
situ-
ated on the driver door ⇒ page 87.
● Press on the rear area of the flap and open it.
Refuelling
Thing to note: if the ambient temperature is very high, the natural gas pump
protection against overheating may disconnect this automatically.
● Remove the plug from the gas filler mouth ⇒ Fig. 152 1
.
● Connect the pump filling nozzle to the gas filler mouth.
● The fuel tank will be full when the pump compressor automatically cuts
the supply.
● If you wish to finish refuelling in advance, press the button on the pump
to stop the flow.
Closing the fuel tank cap
● Check that the gas filler mouth retainer 2
is not trapped with the filler
nozzle. If necessary, place it in the filler mouth again.
● Insert the plug in the filler mouth.
● Close the tank flap. Make sure you hear it click into place. 
1)
according to the country

251
Checking and refilling levels
WARNING
Natural gas is a highly explosive, easily flammable substance. Incorrect
handling of the natural gas can cause accidents serious burns and other
injuries.
● Before refuelling with natural gas, engage the filler neck correctly. If
you smell gas, stop refuelling immediately.
WARNING
The vehicle is not prepared to use liquefied natural gas (LNG) and this
fuel must not be added under any circumstances. Liquefied natural gas
can cause the natural gas tank to explode resulting in serious injury.
Note
● The filling nozzles of all natural gas pumps might not be operated in the
same way. If you do not know, ask a qualified employee at the petrol station
to do the refuelling.
● Noises heard when refuelling are normal and do not indicate the pres-
ence of damage to the system.
● The vehicle natural gas system is prepared both for refuelling with a
small compressor (slow refuel) and a large compressor (fast refuel) in natu-
ral gas service stations. Bonnet
Working on components in the engine compartment
Extra caution is necessary when working on components in
the engine compartment. Always be aware of the danger of injury and scalding as well as the risk of
accident or even fire when working in the engine compartment (e.g. when
checking and refilling fluids). Always observe the warnings listed below
and follow all general safety precautions. The engine compartment of the
vehicle is a potentially hazardous area ⇒ 
.
WARNING
● Switch the ignition off.
● Remove the ignition key.
● Apply the handbrake.
● If the vehicle has a manual gearbox, place the lever in neutral; if it
has an automatic gearbox, place the selector lever in position P.
● Wait for the engine to cool down.
● Keep children away from the engine compartment.
● Never spill liquids used for vehicle operation on the engine compart-
ment, as these may catch fire (e.g. the antifreeze in coolant).
● Take care not to cause short circuits in the electrical system, especial-
ly when working on the battery.
● If working inside the engine compartment, remember that, even when
the ignition is switched off, the radiator fan may start up automatically,
and therefore there is a risk of injury.
● Do not unscrew the cap on the coolant expansion tank when the en-
gine is hot. The cooling system is under pressure. 
Safety FirstOperating instructionsPractical TipsTechnical specifications

260Checking and refilling levels
WARNING
● Brake fluid should be stored in the closed original container in a safe
place out of reach of children. Risk of poisoning!
● If the brake fluid is left in the system for too long and the brakes are
subjected to heavy use, vapour bubbles may form in the brake system.
This would seriously affect the efficiency of the brakes and the safety of
the vehicle. This may cause an accident.
CAUTION
Brake fluid should not come into contact with the vehicle paintwork, as it is
abrasive. 
Battery General information
The battery is located in the engine compartment and is almost mainte-
nance-free. It is checked as part of the Inspection Service. Nevertheless,
check the terminals are clean and have the correct tightening torque, espe-
cially in summer and winter.
Disconnecting the battery
The battery should only be disconnected in exceptional cases. When the
battery is disconnected, some of the vehicle's functions are “lost” ( ⇒ table
on page 260). These functions will require resetting after the battery is re-
connected.
Deactivate the anti-theft alarm* before you disconnect the battery Other-
wise the alarm will be triggered.
effectReprogrammingOne-touch function of the electric
windows⇒ page 104, One-touch opening and
closing*
Remote control keyIf the vehicle does not respond to the
key, they should be synchronised
⇒ page 91
Digital clock⇒ page 63
ESC warning lampAfter driving for a few metres, the
warning lamp goes out again.
If the vehicle is not used for long periods
The vehicle has a system for monitoring the current consumption when the
engine is left unused for long periods of time ⇒ page 226. Some functions,
such as the interior lights, or the remote door opening, may be temporarily
disabled to prevent the battery from running flat. These functions will come
back on as soon as the ignition is switched on and the engine started.
Winter conditions
During the winter, the starting power may be reduced, and if necessary, the
battery should be charged ⇒ 
in Important safety warnings for handling a
vehicle battery on page 261 
Important safety warnings for handling a vehicle battery
All work on batteries requires specialist knowledge. Please refer to a SEAT
Official Service or a workshop specialising in batteries: risk of burns or ex-
ploding battery!
The battery must not be opened. Never try to change the fluid level of the
battery. Explosive gas is released from the battery that could cause an ex-
plosion. 

261
Checking and refilling levels
Wear eye protection.
Battery acid is very corrosive and caustic. Wear protective gloves
and eye protection. In the event of electrolyte splashes, rinse off
with plenty of water.
Fires, sparks, open flames and smoking are prohibited.
The battery should only be charged in a well-ventilated zone. Risk
of explosion!
Keep children away from acid and batteries!
WARNING
● When repairing or working on the electrical system, proceed as fol-
lows:
● 1. Remove the key from the ignition. The negative cable on the bat-
tery must be disconnected.
● 2. When the repair is finished, reconnect the negative pole of the bat-
tery.
● Switch off all electrical consumers before reconnecting the battery.
Reconnect first the positive cable and then the negative cable. Never re-
verse the polarity of the connections. This could cause an electrical fire.
● Ensure that the vent hose is always connected to the battery.
● Never use damaged batteries. This could cause an explosion! Replace
a damaged battery immediately.
CAUTION
● Never disconnect the battery if the ignition is switched on or if the en-
gine is running. This could damage the electrical system or electronic com-
ponents. Charging the battery
Terminals for charging the battery are fitted in the engine
compartment.
–
Note the warnings ⇒ 
in Important safety warnings for han-
dling a vehicle battery on page 261 and ⇒ .
– Switch off all electrical equipment. Remove the ignition key.
– Raise the bonnet ⇒ page 252.
– Open the battery cover.
– Connect the charger clamps as described to the positive pole of
the battery (+) and, exclusively to an earth on the bodywork
(–).
– Only use a charger which is compatible for use with 12 V nomi-
nal voltage batteries. The charge must not exceed a voltage of
15 V.
– Now connect the battery charger to the power socket and switch
on.
– After charging the battery: switch off the battery charger and
disconnect the power socket cable.
– Finally disconnect the charger cables from the battery.
– Replace the battery cover correctly.
– Close the bonnet ⇒ page 253.
Important: Before you charge the battery make sure you read the manufac-
turer's instructions for using the battery charger. 
Safety FirstOperating instructionsPractical TipsTechnical specifications

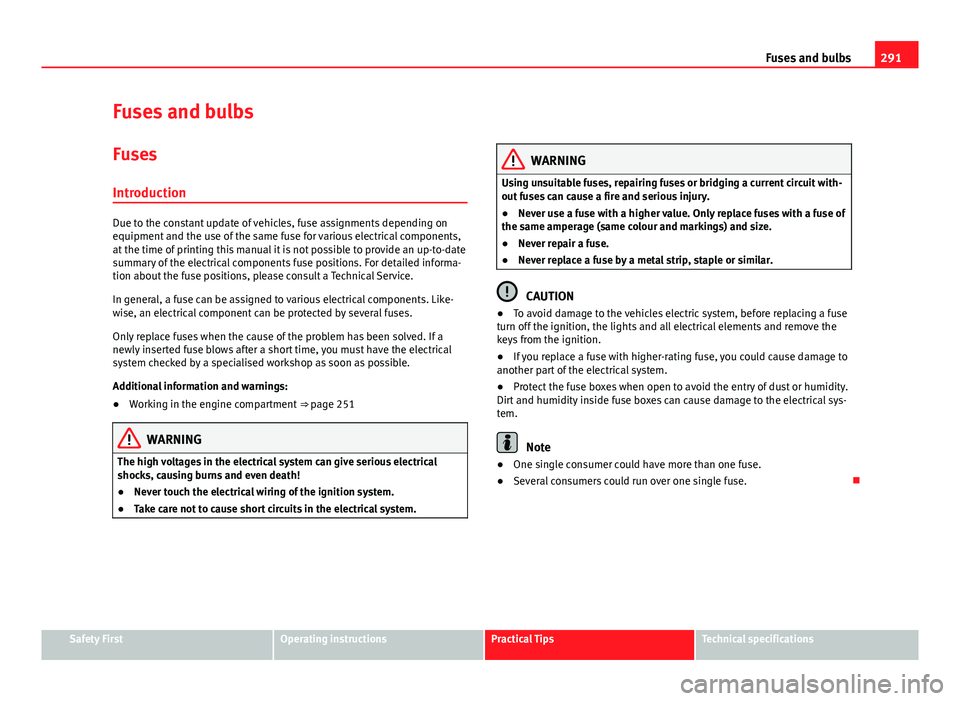

291
Fuses and bulbs
Fuses and bulbs Fuses
Introduction
Due to the constant update of vehicles, fuse assignments depending on
equipment and the use of the same fuse for various electrical components,
at the time of printing this manual it is not possible to provide an up-to-date
summary of the electrical components fuse positions. For detailed informa-
tion about the fuse positions, please consult a Technical Service.
In general, a fuse can be assigned to various electrical components. Like-
wise, an electrical component can be protected by several fuses.
Only replace fuses when the cause of the problem has been solved. If a
newly inserted fuse blows after a short time, you must have the electrical
system checked by a specialised workshop as soon as possible.
Additional information and warnings:
● Working in the engine compartment ⇒ page 251
WARNING
The high voltages in the electrical system can give serious electrical
shocks, causing burns and even death!
● Never touch the electrical wiring of the ignition system.
● Take care not to cause short circuits in the electrical system.
WARNING
Using unsuitable fuses, repairing fuses or bridging a current circuit with-
out fuses can cause a fire and serious injury.
● Never use a fuse with a higher value. Only replace fuses with a fuse of
the same amperage (same colour and markings) and size.
● Never repair a fuse.
● Never replace a fuse by a metal strip, staple or similar.
CAUTION
● To avoid damage to the vehicles electric system, before replacing a fuse
turn off the ignition, the lights and all electrical elements and remove the
keys from the ignition.
● If you replace a fuse with higher-rating fuse, you could cause damage to
another part of the electrical system.
● Protect the fuse boxes when open to avoid the entry of dust or humidity.
Dirt and humidity inside fuse boxes can cause damage to the electrical sys-
tem.
Note
● One single consumer could have more than one fuse.
● Several consumers could run over one single fuse. 
Safety FirstOperating instructionsPractical TipsTechnical specifications

294Fuses and bulbs
Full-LED headlight system*
Full-LED headlights handle all light functions (daylight, side light, turn sig-
nal, dipped beam and route light) with light emitting diodes (LEDs) as a
light source.
Full-LED headlights are designed to last the lifetime of the car and light
bulbs cannot be replaced. In case of headlight failure, go to an authorised
workshop to have it replaced.
Bulbs (12 V)
Halogen headlightsTypeDaytime driving light/side lightP21W SLLDipped beam headlightsH7 LLMain beam headlightsH7 LLTurn signalPY21W LL
Full-LED main headlightsTypeNo bulbs may be replaced. All functions are
with LEDs
Front fog lightTypeFog/cornering lights*H8
Rear bulb lightTypeBrake lights/tail lightsP21W LLSide lights2x W5W LLTurn signalPY21W LLRear fog lightH21WReverse lightsP21W LL
LED rear lightTypeTurn signalPY21W LLRear fog lightH21W
LED rear lightTypeReverse lightsP21W LLThe remaining functions work with LEDs
WARNING
● Take particular care when working on components in the engine com-
partment if the engine is warm. Risk of burns.
● Bulbs are highly sensitive to pressure. The glass can break when you
touch the bulb, causing injury.
● When changing bulbs, please take care not to injure yourself on sharp
edges, in particular on the headlight housing.
CAUTION
● Remove the ignition key before working on the electric system. Other-
wise, a short circuit could occur.
● Switch off the lights or parking lights before you change a bulb.
● Take good care to avoid damaging any components.
For the sake of the environment
Please ask your specialist retailer how to dispose of used bulbs in the prop-
er manner.
Note
● Please check at regular intervals that all lighting (especially the exterior
lighting) on your vehicle is functioning properly. This is not only in the inter-
est of your own safety, but also that of all other road users.
● Before changing a bulb, make sure you have the correct new bulb.
● Do not touch the glass part of the bulb with your bare hands, use a cloth
or paper towel instead. Otherwise, the fingerprints left on the glass will va-
porise as a result of the heat generated by the bulb, they will be deposited
on the reflector and will impair its surface. 

Index
A
ABSsee Anti-lock brake system . . . . . . . . . . . . 222
ACC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189 radar sensor . . . . . . . . . . . . . . . . . . . . . . . . 191
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Acoustic parking aid . . . . . . . . . . . . . . . . . . . . 217
Acoustic warnings Headlights . . . . . . . . . . . . . . . . . . . . . . . . . 111
Adaptive cruise control . . . . . . . . . . . . . . . . . . 189 control lamp . . . . . . . . . . . . . . . . . . . . . . . . 190
malfunction . . . . . . . . . . . . . . . . . . . . . . . . 190
messages on the display . . . . . . . . . . . . . . 190
radar sensor . . . . . . . . . . . . . . . . . . . . . . . . 191
Special driving situations . . . . . . . . . . . . . 199
switching off temporarily . . . . . . . . . . . . . . 198
using . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
warning lamp . . . . . . . . . . . . . . . . . . . . . . . 190
Additional electrical appliances (efficiency pro- gramme) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Adjusting front head restraints . . . . . . . . . . . . . . . . . 131
front seats . . . . . . . . . . . . . . . . . . . . . . . . . . 129
rear head restraints . . . . . . . . . . . . . . . . . . 132
Adjusting the head restraints Front head restraints . . . . . . . . . . . . . . . . . 131
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Airbag covers . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 34
curtain airbags . . . . . . . . . . . . . . . . . . . . . . . 43
Differences between front passenger frontairbag systems . . . . . . . . . . . . . . . . . . . . . 33
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . 36
Knee airbag . . . . . . . . . . . . . . . . . . . . . . . . . 39
side airbags . . . . . . . . . . . . . . . . . . . . . . . . . 40
Air pressure (tyres) . . . . . . . . . . . . . . . . . . . . . . 265
Alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Alcantara: cleaning . . . . . . . . . . . . . . . . . . . . . 245
Ambient lighting . . . . . . . . . . . . . . . . . . . . . . . 118
Anti-dazzle rear vision mirror . . . . . . . . . . . . . . 126
Anti-freeze protection Windscreen washer system . . . . . . . . . . . . 262
Anti-lock brake system . . . . . . . . . . . . . . . . . . . 222
Anti-theft alarm . . . . . . . . . . . . . . . . . . . . . . 87, 95 see also Anti-theft alarm system . . . . . . . . . 87
Anti-theft alarm system Interior monitoring . . . . . . . . . . . . . . . . . . . . 97
Tow-away protection . . . . . . . . . . . . . . . . . . 97
Anti-theft security system . . . . . . . . . . . . . . 87, 98
Anti-theft wheel bolts . . . . . . . . . . . . . . . . . . . 279
Antifreeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Aspects to take into account before starting the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
ASR see Traction control system . . . . . . . . . . . . 222 Assistance systems . . . . . . . . . . . . . . . . . . . . . 184
ACC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
adaptive cruise control . . . . . . . . . . . . . . . 189
Cruise control . . . . . . . . . . . . . . . . . . . . . . . 184
monitoring system Front Assist . . . . . . . . . 202
Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . 218
Assisted starting . . . . . . . . . . . . . . . . . . . . . . . 283
Assist systems Tyre monitoring indicator . . . . . . . . . . . . . . 216
Audible warning . . . . . . . . . . . . . . . . . . . . . . . . . 21
Auto Lock (central locking) . . . . . . . . . . . . . . . . 87
Automatic car washes see Washing . . . . . . . . . . . . . . . . . . . . . . . . 238
Automatic dipped beam control . . . . . . . . . . . 112
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . 173 Backup programme . . . . . . . . . . . . . . . . . . 181
Downhill speed control . . . . . . . . . . . . . . . 178
Driving tips . . . . . . . . . . . . . . . . . . . . . . . . . 176
Kick-down feature . . . . . . . . . . . . . . . . . . . . 179
Launch Control Programme . . . . . . . . . . . . 179
Manual release of selector lever . . . . . . . . 182
Safety interlock for ignition key . . . . . . . . . 163
Selector lever lock . . . . . . . . . . . . . . . . . . . 175
Selector lever positions . . . . . . . . . . . . . . . 173
Steering wheel with gearshift paddles . . . 178
tiptronic . . . . . . . . . . . . . . . . . . . . . . . 173, 178
B
Back support . . . . . . . . . . . . . . . . . . . . . . . . . . 129
325
Index

Balanced (wheels) . . . . . . . . . . . . . . . . . . . . . . 265
Ball coupling . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260Assisted starting . . . . . . . . . . . . . . . . . . . . 283
Charge Level . . . . . . . . . . . . . . . . . . . . . . . . 226
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . 261
Disconnecting/Connecting . . . . . . . . . . . . 260
Power Management . . . . . . . . . . . . . . . . . . 226
Replacement . . . . . . . . . . . . . . . . . . . . . . . . 262
Winter conditions . . . . . . . . . . . . . . . . . . . . 260
Before starting the vehicle . . . . . . . . . . . . . . . . . 8
Bench seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224 Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . 259
Brake servo . . . . . . . . . . . . . . . . . . . . . . . . . 224
New brake pads . . . . . . . . . . . . . . . . . . . . . 224
Braking Brake assist system . . . . . . . . . . . . . . . . . . 222
Hill driving assistant . . . . . . . . . . . . . . . . . 168
C
Carbon components: Cleaning . . . . . . . . . . . . 241
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Care of vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 238
Care (paint care) . . . . . . . . . . . . . . . . . . . . . . . . 240
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . 230
CD-ROM player (navigation) . . . . . . . . . . . . . . 134
Central locking Anti-theft alarm . . . . . . . . . . . . . . . . . . . . . . 95
Central locking switch . . . . . . . . . . . . . . . . . 94 Electric windows . . . . . . . . . . . . . . . . . . . . . 103
Programming . . . . . . . . . . . . . . . . . . . . . . . . 93
Remote control key . . . . . . . . . . . . . . . . . . . . 92
Selective unlocking system . . . . . . . . . . . . . 92
Sliding/tilting sunroof . . . . . . . . . . . . . . . . 103
Central locking system . . . . . . . . . . . . . . . . . . . . 87 Manual locking in an emergency . . . . . . . . 99
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Cetane number (Diesel fuel) . . . . . . . . . . . . . . 247
Changing Windscreen and rear window wiper blades . .263
Changing a bulb . . . . . . . . . . . . . . . . . . . . . . . . 293 Bulb sizes . . . . . . . . . . . . . . . . . . . . . . . . . . 293
Changing gear Engaging gears (manual gearbox) . . . . . . 172
Manual gearbox . . . . . . . . . . . . . . . . . . . . . 172
Changing main headlight main beam . . . . . . . . . . . . . . . . . . . . . . . . . 296
turn signal . . . . . . . . . . . . . . . . . . . . . . . . . . 296
Changing main headlight bulbs daylight bulb . . . . . . . . . . . . . . . . . . . . . . . 295
Dipped beam . . . . . . . . . . . . . . . . . . . . . . . 295
Changing the battery of the vehicle key . . . . . . . . . . . . . . . . . . . . . 91
Chassis number . . . . . . . . . . . . . . . . . . . . . . . . 305
Child-proof lock Electric windows . . . . . . . . . . . . . . . . . . . . . 102
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Child seat Categorisation in groups . . . . . . . . . . . . . . . 50
Group 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Group 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Group 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Groups 0 and 0+ . . . . . . . . . . . . . . . . . . . . . . 50
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . 48
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . 55
on the front passenger seat . . . . . . . . . . . . . 32
Top Tether system . . . . . . . . . . . . . . . . . 55, 56
City emergency braking function . . . . . . . . . . . 206
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238 Alcantara . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Carbon components . . . . . . . . . . . . . . . . . . 241
Display/Easy Connect control panel . . . . . 242
Exhaust pipe . . . . . . . . . . . . . . . . . . . . . . . . 242
Leather . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
Plastic parts . . . . . . . . . . . . . . . . . . . . 240, 242
Radio display . . . . . . . . . . . . . . . . . . . . . . . 242
Rims . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Trim parts . . . . . . . . . . . . . . . . . . . . . . . . . . 242
Trims . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Washing the vehicle . . . . . . . . . . . . . . . . . . 238
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
Windscreen and rear window wiper blades . .263
Cleaning/De-icing the windows . . . . . . . . . . . 241
Cleaning the rims . . . . . . . . . . . . . . . . . . . . . . . 241
Cleaning the upholstery Natural leather . . . . . . . . . . . . . . . . . . . . . . 244
Closing Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Panoramic sliding sunroof . . . . . . . . . . . . . 106
Panoramic sunroof . . . . . . . . . . . . . . . . . . . 106
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
326 Index
