2013 Seat Ibiza ST turn signal

247
If and when
Changing the bulbs of AFS headlights
AFS headlight bulbs
Fig. 168 AFS headlight
bulbs
Turn signal lights
Xenon headlight (dipped beam/main beam) 
Changing the xenon bulb
The procedure for changing the bulb is the same on both sides of the vehi-
cle.
WARNING
This type of bulb should be changed at a specialised workshop.

A
B
Turn signal light bulb
Fig. 169 Turn signal
– Raise the bonnet.
– Turn bulb holder ⇒ Fig. 169 A
to the left and pull.
– Remove the bulb by pressing on the bulb holder and rotating at
the same time to the left.
– Installation involves all of the above steps in reverse sequence. 
Safety FirstOperating instructionsPractical TipsTechnical Specifications

249
If and when
Note
Due to the difficulty of accessing fog light bulbs, have them replaced at a
Technical Service or specialised workshop. 
Remove the bulb holder
Fig. 173 Front fog light
– Remove connector ⇒ 
Fig. 173 A
from the bulb.
– Turn bulb holder ⇒ 
Fig. 173 B
to the left and pull.
– Remove the bulb by pressing on the bulb holder and turning it
anticlockwise at the same time.
– Installation involves all of the above steps in reverse sequence.
– Check that the bulb works properly. Changing rear bulbs
Applies to the model: IBIZA / IBIZA SC
Summary of LED tail lights
LEDS
● Brake lights
● Side lights
Bulbs
● Rear fog light
● Reversing light
● Turn signal 
Safety FirstOperating instructionsPractical TipsTechnical Specifications

250If and when
Applies to the model: IBIZA SC
Tail lights

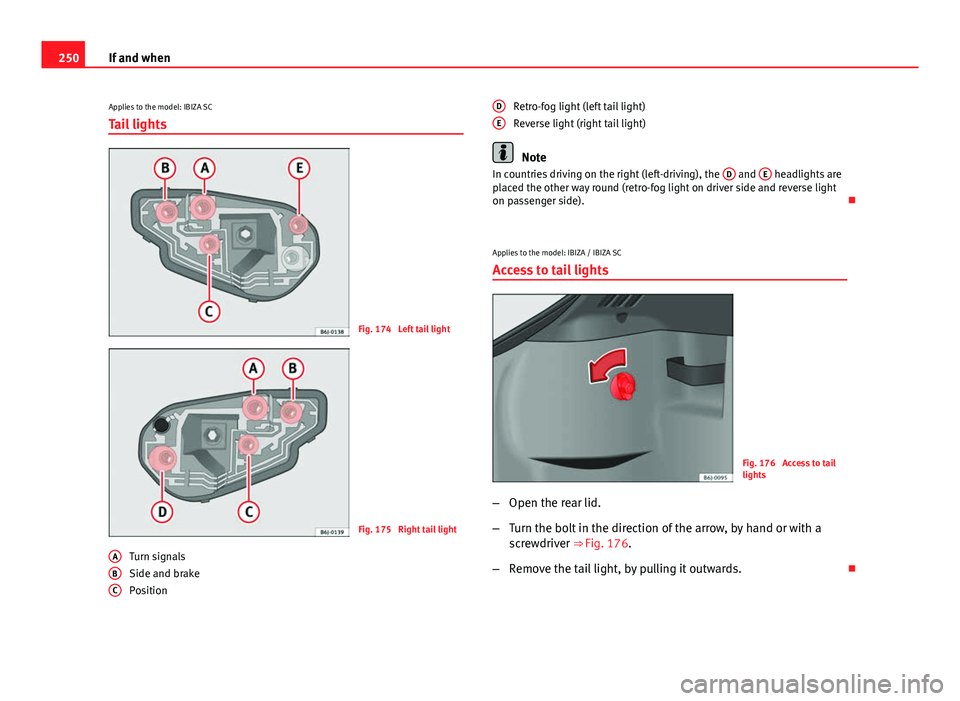

Fig. 174 Left tail light
Fig. 175 Right tail light
Turn signals
Side and brake
Position
A
BC
Retro-fog light (left tail light)
Reverse light (right tail light)
Note
In countries driving on the right (left-driving), the D and E headlights are
placed the other way round (retro-fog light on driver side and reverse light
on passenger side). 
Applies to the model: IBIZA / IBIZA SC
Access to tail lights
Fig. 176 Access to tail
lights
– Open the rear lid.
– Turn the bolt in the direction of the arrow, by hand or with a
screwdriver ⇒ 
Fig. 176.
– Remove the tail light, by pulling it outwards. 
D
E

251
If and when
Applies to the model: IBIZA / IBIZA SC
Changing bulbs on tail lights
Fig. 177 Changing bulbs
on tail lights
Fig. 178 Changing bulbs
on tail lights
– Remove the connector from housing A
⇒ Fig. 176.–
Remove the bulb holder, separating it from the casing. To do
this, press tabs B
in the direction of the arrows
⇒ Fig. 177.
– When the bulb holder has been removed, press in the direction
of the arrow 1
and at the same time, turn in the direction of
the arrow 2 ⇒ Fig. 178
Changing bulbs. LED lamps
Carry out the same operations as in lights fitted with bulbs.
If necessary, remove the socket, as if it were a bulb.
If the brake light and/or side light with LEDs have to be replaced, the tail
light must be replaced. 
Changing the rear lights (on the wing) Applies to the model: IBIZA STOverview of tail lights
Tail lights on side panel Bulb lamps
● Brake lights
● Side light
● Turn signal
Tail lights on side panel LED lamps
● Brake lights (LEDS)
● Side lights (LEDS)
● Turn signal 
Safety FirstOperating instructionsPractical TipsTechnical Specifications

254If and when
Applies to the model: IBIZA STChanging bulbs

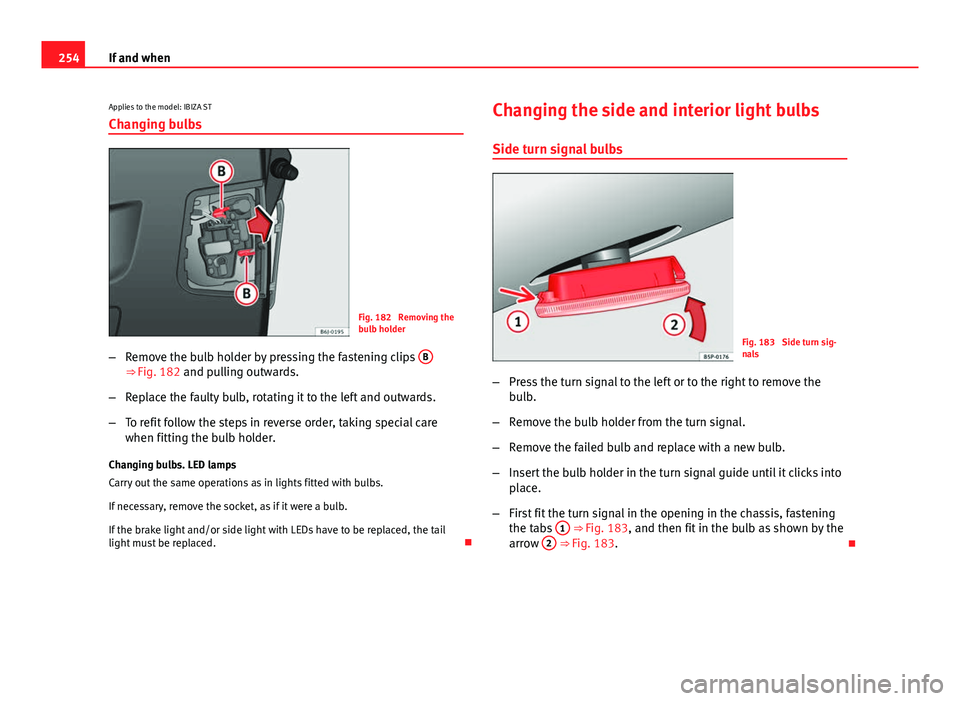

Fig. 182 Removing the
bulb holder
– Remove the bulb holder by pressing the fastening clips B
⇒ Fig. 182 and pulling outwards.
– Replace the faulty bulb, rotating it to the left and outwards.
– To refit follow the steps in reverse order, taking special care
when fitting the bulb holder.
Changing bulbs. LED lamps
Carry out the same operations as in lights fitted with bulbs.
If necessary, remove the socket, as if it were a bulb.
If the brake light and/or side light with LEDs have to be replaced, the tail
light must be replaced. Changing the side and interior light bulbs
Side turn signal bulbs
Fig. 183 Side turn sig-
nals
– Press the turn signal to the left or to the right to remove the
bulb.
– Remove the bulb holder from the turn signal.
– Remove the failed bulb and replace with a new bulb.
– Insert the bulb holder in the turn signal guide until it clicks into
place.
– First fit the turn signal in the opening in the chassis, fastening
the tabs 1
⇒ Fig. 183, and then fit in the bulb as shown by the
arrow 2 ⇒ Fig. 183. 

260If and when
Do not pull too hard with the towing vehicle and take care to avoid jerking
the tow rope. When towing on an unpaved road, there is always a risk of
overloading and damaging the anchorage points.
The ignition of the vehicle being towed must be switched on to prevent the
steering wheel from locking and also to allow the use of the turn signals,
horn, windscreen wipers and washers.
As the brake servo does not work if the engine is not running, you must ap-
ply considerably more pressure to the brake pedal than you normally would.
As the power assisted steering does not work if the engine is not running,
you will need more strength to steer than you normally would.
Towing vehicles with an automatic gearbox
● Put the selector lever into position “N”.
● Do not drive faster than 50 km/h (31 mph).
● Do not tow further than 50 km.
● If a breakdown vehicle is used, the vehicle must be towed with the front
wheels raised.
Note
● Observe legal requirements when towing or tow-starting.
● Switch on the hazard warning lights of both vehicles. However, observe
any regulations to the contrary.
● For technical reasons, vehicles with an automatic gearbox must not be
tow-started.
● If damage to your vehicle means that there is no lubricant in the gear-
box, you must raise the driven wheels while the vehicle is being towed.
● If the vehicle has to be towed more than 50 km (30 miles), the front
wheels should be raised during towing, and towing should be carried out by
a qualified person. ●
The steering wheel is locked when the vehicle has no electrical power.
The vehicle must then be towed with the front wheels raised. Towing should
be carried out by a qualified person.
● The towline anchorage should always be kept in the vehicle. 
Towline anchoragesFig. 190 Fitting the tow-
line anchorage to front of
the vehicle
Fitting the towline anchorage
– Take the towline anchorage from the on-board tool set.
– Remove the front cover by pressing down on its left-hand side.
For FR finishes, press down and pull outwards. For the rest of
the Sport finishes, remove the cover by inserting a screwdriver
into the lower slot and levering gently.
– Bolt the anchorage to its limit to the left, in the direction of the
arrow⇒ Fig. 190. 
