2013 Seat Exeo technical data

63
Cockpit
Speedometer with odometer
The speedometer indicates the speed of the vehicle and the
distance travelled.
Fig. 43 Detailed view of
the instrument panel:
Odometer
The distance is normally stated in kilometres (km). On some models, how-
ever, the odometer will show “miles”.
Lower odometer
The lower odometer records the vehicle's total mileage.
Upper odometer (trip recorder)
The upper odometer shows the distance that has been travelled since the
trip recorder was last reset. It is used to measure short trips. The last digit of
the trip recorder indicates distances of 100 metres or one tenths of a mile.
The upper odometer can be reset to zero by pressing the reset button
⇒  Fig. 43. Fault display
If there is a fault in the instrument panel, the letters
DEF will appear perma-
nently in the trip recorder display. Please have the fault repaired as soon as
possible.
Electronic immobiliser
The vehicle key data is consulted when the ignition is switched on.
If an uncoded key is used, the message SAFE* will appear in the trip record-
er display. The vehicle can no longer be started if that happens. 
Fuel reserve
The display only works when the ignition is switched on.
When the needle reaches the reserve zone, the symbol lights up in the in-
strument panel display ⇒ page 81. At this point there are still about 8 to
10 litres of fuel left in the tank. This is your reminder to fill up soon.
You can consult the tank capacity of your vehicle in the ⇒ page 305, Di-
mensions and capacities section.
CAUTION
Never run the tank completely dry. If there is an irregular fuel supply, misfir-
ing can occur. This means that fuel could reach the exhaust system without
burning. This may lead to the catalytic converter reheating and being dam-
aged. 
Safety FirstOperating instructionsPractical TipsTechnical Specifications

225
Checking and refilling levels
WARNING
● Fuel is highly flammable and can cause serious burns and other inju-
ries.
–Never smoke or use an open flame when filling the fuel tank of the
vehicle, or a spare fuel canister, with fuel. This is an explosion haz-
ard.
– Follow legal requirements for the use of spare fuel canisters.
– For safety reasons we do not recommend carrying a spare fuel can-
ister in the vehicle. The canister could be damaged in an accident and
leak.
● If, in exceptional circumstances, you have to carry a spare fuel canis-
ter, please observe the following points:
–Never fill the spare fuel canister inside the vehicle or on it. An elec-
trostatic charge could build up during filling, causing the fuel fumes
to ignite. This could cause an explosion. Always place the canister on
the ground to fill it.
– Insert the fuel nozzle into the mouth of the canister as far as possi-
ble.
– If the spare fuel canister is made of metal, the filling nozzle must
be in contact with the canister during filling. This helps prevent an
electrostatic charge building up.
– Never spill fuel in the vehicle or in the luggage compartment. Fuel
vapours are explosive. Danger of death.
CAUTION
● Fuel spills should be removed from the paintwork immediately.
● Never run the tank completely dry. An irregular fuel supply could cause
misfiring. As a result, unburnt fuel could enter the catalytic converter and
cause damage.
● When filling the fuel tank after having run it completely dry on a vehicle
with a diesel engine the ignition must be switched on for at least 30 sec-
onds without starting the engine. When you then start the engine it may take longer than normal (up to one minute) for the engine to start firing.
This is due to the fact that the fuel system has to purge itself of air before
starting.
For the sake of the environment
Do not try to put in more fuel after the automatic filler nozzle has switched
off; this may cause the fuel to overflow if it becomes warm. 
Petrol Petrol types
The recommended fuel types are listed on a sticker inside
the fuel tank flap.
Only unleaded petrol conforming to standard DIN EN 228 may be used for
vehicles with catalytic converters (EN = “European Standard”).
Fuel types are differentiated by the octane rating, e.g: 91, 95, 98 RON (RON
= “Research Octane Number”, unit for determining the knock resistance of
petrol). You may use petrol with a higher octane number than the one rec-
ommended for your engine. However, this has no advantage in terms of fuel
consumption and engine power.
The correct fuel type for your vehicle is given in the technical table for the
engine, in the Technical Data section. 
Safety FirstOperating instructionsPractical TipsTechnical Specifications

293
Description of specifications
Technical Specifications
Description of specifications Important information
Important
The information in the vehicle documentation always takes
precedence over the information in this Instruction Manual.
All technical specifications provided in this documentation are valid for the
standard model in Spain. The vehicle data card included in the Mainte-
nance Programme or the vehicle registration documentation shows which
engine is installed in the vehicle.
The figures may be different depending whether additional equipment is fit-
ted, for different models, for special vehicles and for other countries. Abbreviations used in the Technical Specifications section
Abbrevia-
tionMeaning
kWKilowatt, engine power measurement.
PSPferdestärke (horsepower), formerly used to denote engine
power.
rpmRevolutions per minute - engine speed.NmNewton metres, unit of engine torque.litres per100 kmFuel consumption in litres per 100 km (70 miles).
g/kmCarbon dioxide emissions in grams per km (mile) travelled.CO 2Carbon dioxideCNCetane number, indication of the diesel combustion power.
RONResearch octane number, indication of the knock resistance
of petrol.
Safety FirstOperating instructionsPractical TipsTechnical Specifications

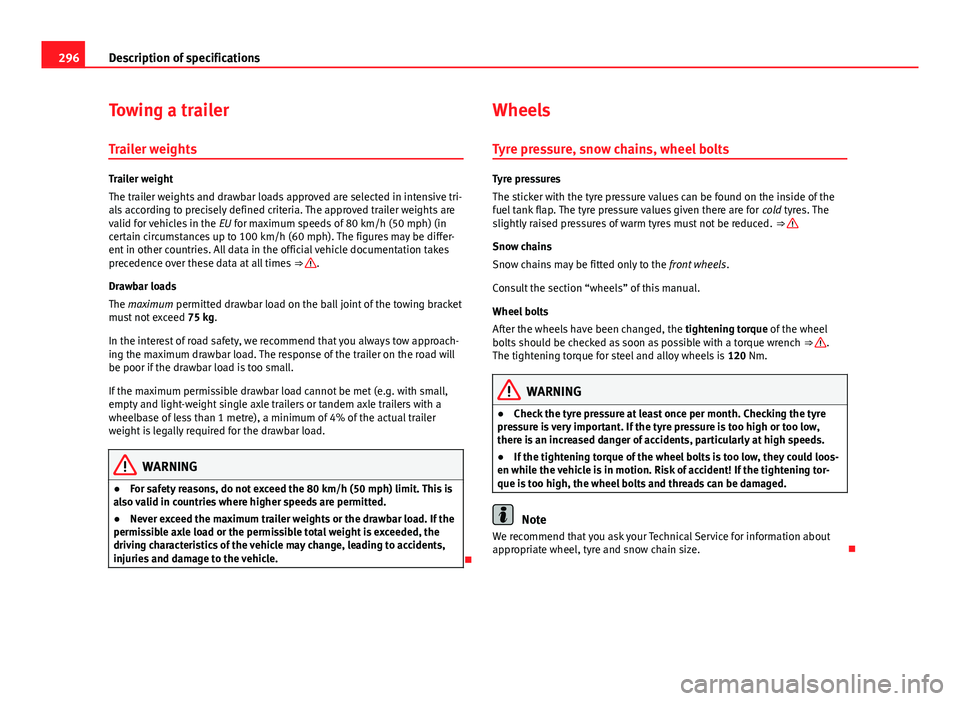

296Description of specifications
Towing a trailer
Trailer weights
Trailer weight
The trailer weights and drawbar loads approved are selected in intensive tri-
als according to precisely defined criteria. The approved trailer weights are
valid for vehicles in the EU for maximum speeds of 80 km/h (50 mph) (in
certain circumstances up to 100 km/h (60 mph). The figures may be differ-
ent in other countries. All data in the official vehicle documentation takes
precedence over these data at all times ⇒ 
.
Drawbar loads
The maximum permitted drawbar load on the ball joint of the towing bracket
must not exceed 75 kg.
In the interest of road safety, we recommend that you always tow approach-
ing the maximum drawbar load. The response of the trailer on the road will
be poor if the drawbar load is too small.
If the maximum permissible drawbar load cannot be met (e.g. with small,
empty and light-weight single axle trailers or tandem axle trailers with a
wheelbase of less than 1 metre), a minimum of 4% of the actual trailer
weight is legally required for the drawbar load.
WARNING
● For safety reasons, do not exceed the 80 km/h (50 mph) limit. This is
also valid in countries where higher speeds are permitted.
● Never exceed the maximum trailer weights or the drawbar load. If the
permissible axle load or the permissible total weight is exceeded, the
driving characteristics of the vehicle may change, leading to accidents,
injuries and damage to the vehicle.
 Wheels
Tyre pressure, snow chains, wheel bolts
Tyre pressures
The sticker with the tyre pressure values can be found on the inside of the
fuel tank flap. The tyre pressure values given there are for cold tyres. The
slightly raised pressures of warm tyres must not be reduced. ⇒ 
Snow chains
Snow chains may be fitted only to the front wheels.
Consult the section “wheels” of this manual.
Wheel bolts
After the wheels have been changed, the tightening torque of the wheel
bolts should be checked as soon as possible with a torque wrench ⇒ 
.
The tightening torque for steel and alloy wheels is 120 Nm.
WARNING
● Check the tyre pressure at least once per month. Checking the tyre
pressure is very important. If the tyre pressure is too high or too low,
there is an increased danger of accidents, particularly at high speeds.
● If the tightening torque of the wheel bolts is too low, they could loos-
en while the vehicle is in motion. Risk of accident! If the tightening tor-
que is too high, the wheel bolts and threads can be damaged.
Note
We recommend that you ask your Technical Service for information about
appropriate wheel, tyre and snow chain size. 

305
Technical specifications
Dimensions and capacities
Dimensions
Length, width 4661-4741a)
mm/ 1772 mm
Height at kerb weight 1430 mm
Front and rear projection 976 mm/ 1043-1123a)
mm
Wheelbase 2642 mm
Turning circle 11.2 m
Track width b) Front
Rear
1522 mm 1523 mm
Capacities
Fuel tank 70 litres. Reserve 10 litres.
Windscreen washer fluid container with headlight washer 4.8 l.
Tyre pressure
Summer-grade tyres:
The correct tyre pressure can be seen on the sticker on the inside of the tank flap.
Winter tyres:
The pressure of these tyres is the same as the summer tyre pressure plus 0.2 bar.
a) With towing eye.
b) This data will change depending on the type of wheel rim. 
Safety FirstOperating instructionsPractical TipsTechnical Specifications

Stopping the engine . . . . . . . . . . . . . . . . . . . . 168
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Switches on the driver doorElectric windows . . . . . . . . . . . . . . . . . . . . . 110
Symbols Red symbols in central display . . . . . . . . . . 78
Yellow symbols on central display . . . . . . . 80
T Technical modifications . . . . . . . . . . . . . . . . . . 222
The danger of not using the seat belt . . . . . . . . 20
The environment Heated rear window . . . . . . . . . . . . . . . . . . 126
Leaks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Warming up the engine . . . . . . . . . . . . . . . 167
Tightening torque of wheel bolts . . . . . . . . . . 296
tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
tiptronic mode . . . . . . . . . . . . . . . . . . . . . . . . . 185
Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Tow-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200, 290 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . 202
Notes on towing . . . . . . . . . . . . . . . . . 200, 201
Removable towing bracket . . . . . . . . . . . . 203
Technical requirements . . . . . . . . . . . . . . . 200
Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . 296
Towing bracket, fitting . . . . . . . . . . . . . . . . . . . 208
Towing eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
Towline anchorage . . . . . . . . . . . . . . . . . . . . . . 290
Tow starting General notes . . . . . . . . . . . . . . . . . . . . . . . 290 Traction control system
How the system works . . . . . . . . . . . . . . . . 190
Traction control system (ASR) control lamp . . . . . . . . . . . . . . . . . . . . . . . . . 69
Trailer weights . . . . . . . . . . . . . . . . . . . . . . . . . 296
Trip recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Turn signal lamps Hazard warning lights . . . . . . . . . . . . . . . . . 69
Trailer turn signals . . . . . . . . . . . . . . . . . . . . 67
Turn signals . . . . . . . . . . . . . . . . . . . . . . . . . 69
Turn signals . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Tyre mobility system . . . . . . . . . . . . . . . . . . . . . 253
Tyre Mobility System . . . . . . . . . . . . . . . . . . . . 259
Tyre pressure . . . . . . . . . . . . . . . . . . . 67, 91, 242 Loss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
Tyre pressure monitoring . . . . . . . . . . . . . . . . . 243
Tyre pressure monitoring system . . . . . . . . . . . 90
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . . . . 296
Tyre repair kit Tyre Mobility System . . . . . . . . . . . . . . . . . 259
Tyres and wheels Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 248
Tyres tread depth . . . . . . . . . . . . . . . . . . . . . . . 246
Tyres useful life . . . . . . . . . . . . . . . . . . . . . . . . . 246
Tyres with directional tread pattern . . . . . . . . 242
U Underbody protection . . . . . . . . . . . . . . . . . . . 215
Upholstery Treating your upholstery . . . . . . . . . . . . . . 217 V
Vehicle care Treating your upholstery . . . . . . . . . . . . . . 217
Vehicle data . . . . . . . . . . . . . . . . . . . . . . . . . . . 294
Vehicle identification data . . . . . . . . . . . . . . . . 294
Vehicle identification number . . . . . . . . . . . . . 294
Vehicle keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Vehicle maintenance electrically adjustable seats . . . . . . . . . . . 218
heated seats . . . . . . . . . . . . . . . . . . . . . . . . 218
natural leather . . . . . . . . . . . . . . . . . . . . . . 219
non-electrically adjustable seats . . . . . . . 218
seats with airbag components . . . . . . . . . 218
seats without airbag components . . . . . . 218
synthetic leather . . . . . . . . . . . . . . . . . . . . 220
trim fabrics . . . . . . . . . . . . . . . . . . . . . . . . . 218
unheated seats . . . . . . . . . . . . . . . . . . . . . . 218
Vehicle modifications . . . . . . . . . . . . . . . . . . . 222
Vehicle paintwork Maintenance . . . . . . . . . . . . . . . . . . . . . . . . 212
Products for vehicle maintenance . . . . . . . 210
Vehicle washing . . . . . . . . . . . . . . . . . . . . . . . . 211
Ventilation slits . . . . . . . . . . . . . . . . . . . . . . . . . 17
W
Warning lamp Alternator . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Warning lamps Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Anti-lock brake system . . . . . . . . . . . . . . . . . 68
Electronic differential lock . . . . . . . . . . . . . . 68
314 Index
