2013 RENAULT KANGOO Air con

13B-181
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.
V1 MR-376-X76-13B000$150.mif

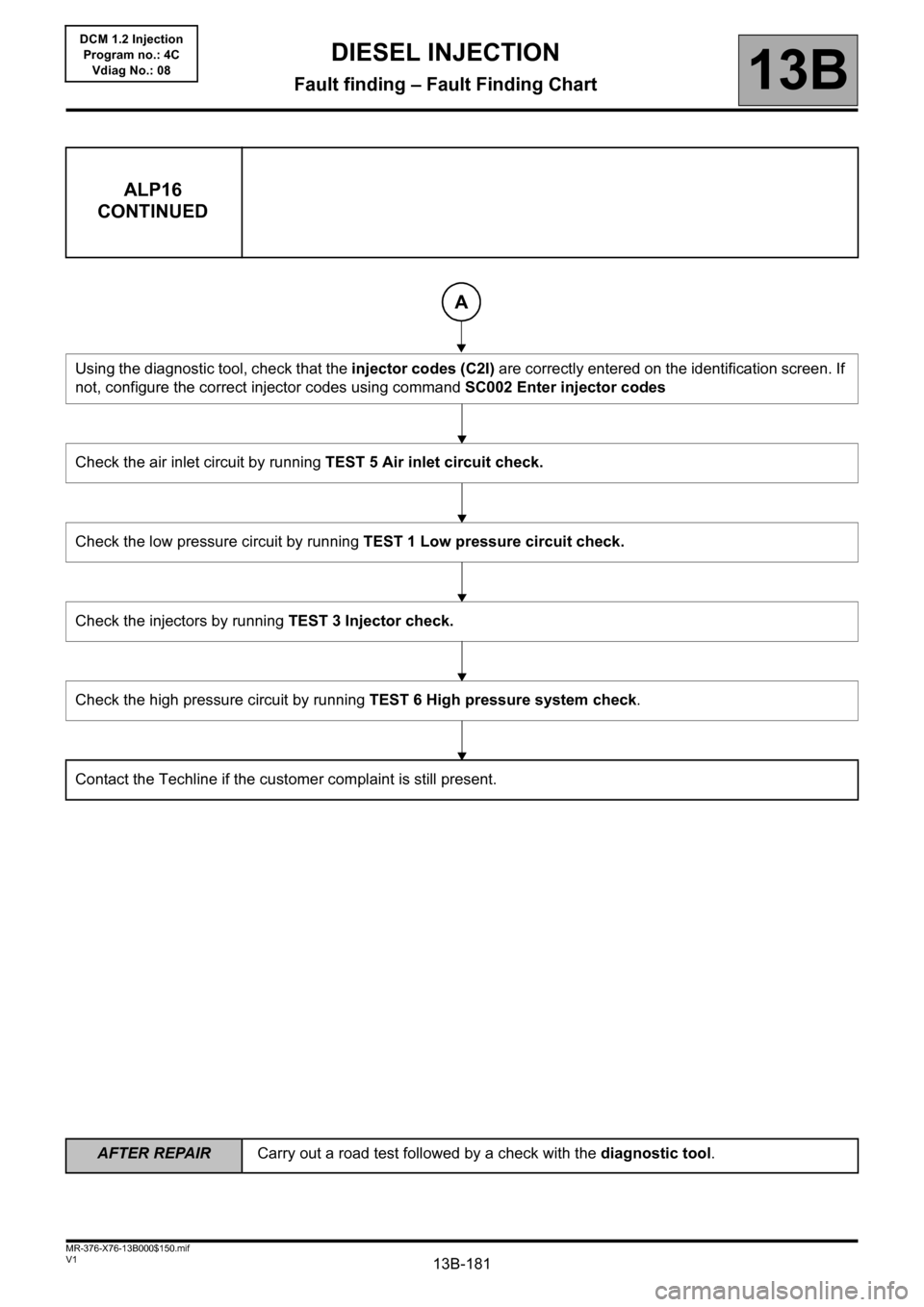

DIESEL INJECTION
Fault finding – Fault Finding Chart13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
ALP16
CONTINUED
Using the diagnostic tool, check that the injector codes (C2I) are correctly entered on the identification screen. If
not, configure the correct injector codes using command SC002 Enter injector codes
Check the air inlet circuit by running TEST 5 Air inlet circuit check.
Check the low pressure circuit by running TEST 1 Low pressure circuit check.
Check the injectors by running TEST 3 Injector check.
Check the high pressure circuit by running TEST 6 High pressure system check.
Contact the Techline if the customer complaint is still present.
A

13B-182
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.
V1 MR-376-X76-13B000$150.mif
DIESEL INJECTION
Fault finding – Fault Finding Chart13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
ALP17 Blue, white or black smoke
NOTESOnly address this customer complaint after a complete check with the diagnostic
tool.
Check that the fuel tank is correctly filled and that the appropriate fuel is used.
Apply TEST 13 Diesel fuel conformity check.
Check the levels of engine oil and coolant.
Is the compression in order? Carry out the necessary repairs
Check the electrical conformity of the heater plugs (the resistance of the heater plug must be less than 2 ).
Is the catalytic converter clogged or damaged?Replace the catalytic converter (see MR 388
(Logan/Sandero), MR 451 (Duster), MR 423
(Thalia 2/Symbol 2) or MR 374 (Kangoo VLL),
Mechanical, 19B, Exhaust, Catalytic
converter: Removal - Refitting).
Check the air inlet circuit by running TEST 5 Inlet circuit check.
NO
YES
YES
NO
A
DCM1.2_V08_ALP17

13B-183
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.
V1 MR-376-X76-13B000$150.mif
DIESEL INJECTION
Fault finding – Fault Finding Chart13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
ALP17
CONTINUED
Using the diagnostic tool, check that the injector codes (C2I) are correctly entered on the identification screen. If
not, configure the correct injector codes using command SC002 Enter injector codes
Check the low pressure circuit: run TEST 1 Low pressure circuit check.
Check the injectors by running TEST 3 Injector check.
Contact the Techline if the customer complaint is still present.
A

13B-184
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.
V1 MR-376-X76-13B000$150.mif
DIESEL INJECTION
Fault finding – Fault Finding Chart13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
ALP18 Blue, black or white smoke when accelerating.
NOTESOnly address this customer complaint after a complete check with the diagnostic
tool.
Check that the fuel tank is correctly filled and that the appropriate fuel is used.
Apply TEST 13 Diesel fuel conformity check.
Check the levels of engine oil and coolant.
Check that the engine has not sucked up its oil (engine racing).
Is the compression in order? Carry out the necessary repairs.
Check the electrical conformity of the heater plugs (the resistance of the heater plug must be less than 2 ).
Is the catalytic converter clogged or damaged?Replace the catalytic converter (see MR 388
(Logan/Sandero), MR 451 (Duster), MR 423
(Thalia 2/Symbol 2) or MR 374 (Kangoo VLL),
Mechanical, 19B, Exhaust, Catalytic converter:
Removal - Refitting).
Check the air inlet circuit by running TEST 5 Inlet circuit check.
NO
YES
YES
NO
A
DCM1.2_V08_ALP18

13B-185
AFTER REPAIRCarry out a road test followed by a check with the diagnostic tool.
V1 MR-376-X76-13B000$150.mif
DIESEL INJECTION
Fault finding – Fault Finding Chart13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
ALP18
CONTINUED
Check that the turbocharger is working properly.
Run TEST 11 Air line at the turbocharger.
Run TEST 10 Turbocharger solenoid valve check.
Run TEST 12 Turbocharger.
Is the turbocharger in order?Carry out the necessary repairs.
Visually check the condition of the engine wiring harness.
Using the diagnostic tool, check that the injector codes (C2I) are correctly entered on the identification screen. If
not, configure the correct injector codes using command SC002 Enter injector codes
Check the low pressure circuit by running TEST 1 Low pressure circuit check.
Check the injectors by running TEST 3 Injector check.
Check the condition of the computer connections (for bent pins, signs of oxidation, silicone, etc.) and check that
the computer connectors lock correctly.
Contact the Techline if the customer complaint is still present.
A
NO
YES

13B-186V1 MR-376-X76-13B000$160.mif
DIESEL INJECTION
Fault finding – Tests13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
Some specific checks are grouped together into tests and are performed as required in the various fault finding
charts (ALPs) or when interpreting faults.
*Technical Note 3419: Fault finding on the turbocharger for petrol and diesel engines
NOTESOnly consult these tests when dealing with a fault finding chart (ALP) or
Interpretation of faults
Low pressure circuit checkTEST 1
Electrical circuit checkTEST 2
Injector checkTEST 3
Inlet circuit checkTEST 5
High pressure system check TEST 6
High pressure circuit sealing check TEST 7
Injector return flowTEST 8
Diesel filter checkTEST 9
Turbocharger solenoid valve checkTEST 10:
Apply TEST 4
of Technical
Note 3419
Turbocharger air chainTEST 11
TurbochargerTEST 12:
Apply TEST 7
of Technical
Note 3419*
Diesel fuel conformity check TEST 13
DIESEL INJECTION
Fault finding – Tests

13B-187V1 MR-376-X76-13B000$160.mif
DIESEL INJECTION
Fault finding – Tests13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
TEST 1 Low pressure circuit check
Check the conformity of the low pressure circuit
connections
Are the low pressure circuit connections correct? Carry out the necessary repairs.
Check the condition of the priming bulb, and that it is
working properly.
Look for leaks at the unions.
Are there leaks from the hoses and unions? Carry out the necessary repairs
Check that there are no air bubbles in the diesel fuel. Bleed the low-pressure circuit.
Place a container under the filter.
– Disconnect the return hose from the filter
and plug the filter.
– Pump using the priming bulb until there is no
air left.
– Reconnect the return hose immediately. Check if there are air bubbles in the low pressure
circuit.
Low pressure circuit correct.
NO
YES
YES
NO
YES
NO
DCM1.2_V08_TEST01

13B-189V1 MR-376-X76-13B000$160.mif
DIESEL INJECTION
Fault finding – Tests13B
DCM 1.2 Injection
Program no.: 4C
Vdiag No.: 08
TEST 3 Injector check
Conduct a visual inspection around the injectors.
Is there diesel fuel around the injectors?Locate the source of the leak and carry out the
necessary repairs.
Control the injectors using the commands:
– AC005 Cylinder 1 injector,
– AC006 Cylinder 2 injector,
– AC007 Cylinder 3 injector,
– AC008 Cylinder 4 injector.
Can you hear the valve moving when you are 1
metre from the vehicle?Check the insulation and the continuity of the
electrical circuit.
Run TEST 9 Diesel filter check.
If TEST 9 is correct, replace the faulty
injector(s) (see MR 388 (Logan/Sandero) or MR
451 (Duster), MR 423 (Thalia 2/Symbol 2) or MR
374 (Kangoo VLL), Mechanical, 13B, Diesel
injection, Diesel injector: Removal - Refitting).
End of test 3.YES
NO
NO
YES
DCM1.2_V08_TEST03
