2013 Ram C/V wheel

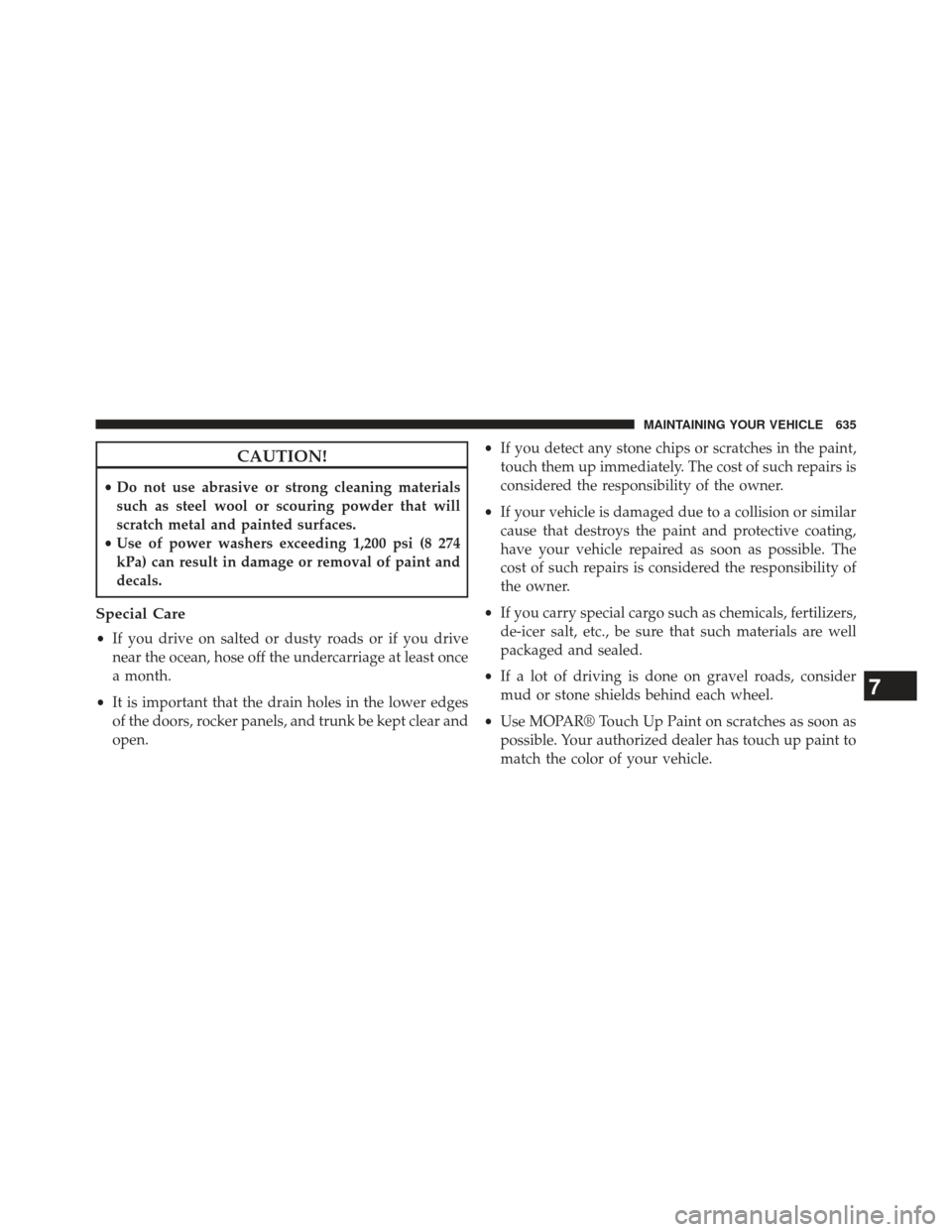

CAUTION!
•Do not use abrasive or strong cleaning materials
such as steel wool or scouring powder that will
scratch metal and painted surfaces.
• Use of power washers exceeding 1,200 psi (8 274
kPa) can result in damage or removal of paint and
decals.
Special Care
• If you drive on salted or dusty roads or if you drive
near the ocean, hose off the undercarriage at least once
a month.
• It is important that the drain holes in the lower edges
of the doors, rocker panels, and trunk be kept clear and
open. •
If you detect any stone chips or scratches in the paint,
touch them up immediately. The cost of such repairs is
considered the responsibility of the owner.
• If your vehicle is damaged due to a collision or similar
cause that destroys the paint and protective coating,
have your vehicle repaired as soon as possible. The
cost of such repairs is considered the responsibility of
the owner.
• If you carry special cargo such as chemicals, fertilizers,
de-icer salt, etc., be sure that such materials are well
packaged and sealed.
• If a lot of driving is done on gravel roads, consider
mud or stone shields behind each wheel.
• Use MOPAR® Touch Up Paint on scratches as soon as
possible. Your authorized dealer has touch up paint to
match the color of your vehicle.
7
MAINTAINING YOUR VEHICLE 635

Wheel And Wheel Trim Care
All wheels and wheel trim, especially aluminum and
chrome plated wheels, should be cleaned regularly with
a mild soap and water to prevent corrosion.
To remove heavy soil and/or excessive brake dust, use
MOPAR® Wheel Cleaner or equivalent or select a non-
abrasive, non-acidic cleaner.
•For chrome wheels, use MOPAR® Chrome Cleaner
(Part#04318013) or equivalent.
• For aluminum wheels, use MOPAR® Wheel Cleaner
(Part# 04796239AB) or equivalent.
CAUTION!
Do not use scouring pads, steel wool, a bristle brush,
or metal polishes. Do not use oven cleaner. These
products may damage the wheel’s protective finish.
Avoid automatic car washes that use acidic solutions
or harsh brushes that may damage the wheel’s pro-
tective finish. Only MOPAR® Wheel Cleaner or
equivalent is recommended.
Stain Repel Fabric Cleaning Procedure – If
Equipped
StainRepel seats may be cleaned in the following manner:
• Remove as much of the stain as possible by blotting
with a clean, dry towel.
• Blot any remaining stain with a clean, damp towel.
636 MAINTAINING YOUR VEHICLE

CavityCar-
tridge Fuse Mini-
Fuse Description
M16 — 10 Amp RedAirbag Module/
Occupant Classifi- cation Module
M17 — 15 Amp BlueLeft Tail/License/
Park Lamp, Run- ning Lamps
M18 — 15 Amp BlueRight Tail/Park/
Run Lamp
M19 — 25 Amp NaturalPowertrainCavityCar-
tridge Fuse Mini-
Fuse Description
M20 — 15 Amp BlueInstrument Cluster
Interior Light,
Switch Bank, Steer- ing Column Mod-
ule, Switch Steering Wheel
M21 — 20 Amp YellowPowertrain
M22 — 10 Amp RedHorn
M23 — 10 Amp RedHorn
646 MAINTAINING YOUR VEHICLE

Mileage or time passed
(whichever comes first)
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000
Additional Inspections
Inspect the CV joints. XX X X X
Inspect front suspension, tie rod
ends, boot seals, and replace if
necessary. XXX X X X X
Inspect the brake linings, replace
as necessary. XXX X X X X
Adjust parking brake on vehicles
equipped with four wheel disc
brakes. XXX X X X X
8
M
A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
S662 MAINTENANCE SCHEDULES

WARNING!
The traction grade assigned to this tire is based on
straight-ahead braking traction tests, and does not
include acceleration, cornering, hydroplaning, or
peak traction characteristics.
Temperature Grades
The temperature grades are A (the highest), B, and C,
representing the tire’s resistance to the generation of heat
and its ability to dissipate heat, when tested under
controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the
material of the tire to degenerate and reduce tire life, andexcessive temperature can lead to sudden tire failure. The
grade C corresponds to a level of performance, which all
passenger car tires must meet under the Federal Motor
Vehicle Safety Standard No. 109. Grades B and A repre-
sent higher levels of performance on the laboratory test
wheel, than the minimum required by law.
WARNING!
The temperature grade for this tire is established for
a tire that is properly inflated and not overloaded.
Excessive speed, under-inflation, or excessive load-
ing, either separately or in combination, can cause
heat buildup and possible tire failure.
676 IF YOU NEED CONSUMER ASSISTANCE

SteeringPower .............................. .485
Tilt Column .......................... .232
Wheel, Heated ........................ .233
Wheel, Tilt ........................... .232
Steering Wheel Audio Controls ...............435
Steering Wheel Mounted Sound System Controls . . .435
Storage ............................... .649
Storage Bin ............................. .279
Storage, Vehicle .......................... .458
Storing Your Vehicle ...................... .649
Stow n Go (Fold in Floor) Seats ...............196
Sunglasses Storage ....................... .253
Sun Roof .............................. .266
Supplemental Restraint System - Airbag ..........75
Sway Control, Trailer ...................... .498
Synthetic Engine Oil ...................... .612
System, Remote Starting .....................30 Tachometer
............................. .315
Telescoping Steering Column .................232
Temperature Control, Automatic (ATC) ..........446
Temperature Gauge, Engine Coolant ............326
Tilt Steering Column ...................... .232
Tire and Loading Information Placard ...........510
Tire Markings ........................... .502
Tires ................................. .122
Aging (Life of Tires) .....................523
Air Pressure .......................... .514
Chains .............................. .525
Changing ............................ .571
Compact Spare ........................ .520
General Information .....................514
High Speed .......................... .517
Inflation Pressures ...................... .516
Jacking .............................. .571
10
INDEX 693
