2013 Peugeot Partner Tepee radio controls

3
Contents
CONTENT
S
9. TECHNOLOGY
on BOARD
5. ACCESSORIES
129-132
6. CHECKS
133-142
7. QUICK HELP
143-163
Emergency
or assistance 9.1
Peugeot Connect
Navigation (RT6) 9.3
Peugeot Connect
Sound 9.63 Towing a trailer 129
Other accessories 131
Opening the bonnet 134
Petrol engine 135
Diesel engine 136
Levels 137
Checks 139
Fuel 141
Fuel cut-off 142
Diesel priming pump 142Battery 143
Puncture repair kit 145
Changing a wheel 146
Removable
snow screen 150
Snow chains 151
Changing a bulb 152
a fuse 157
a wiper blade 161
Being towed 162
8. TECHNICAL DATA
164-170
Dimensions 164
Weights 168
Identifi cation markings 169
10. VISUAL SEARCH
171-176
Exterior 171
Instruments and
controls 172
Interior 174
Technical data -
Maintenance 175

Peugeot Connect is the
name given to all of the new
equipment of the radio/
navigation range.
The "Technology on board"
section presents the new
radio/navigation systems.
The "Visual Search" section
assists you in fi nding the
controls and functions
and their associated page
numbers on the schematic
outlines of the vehicle
(visual index).

9.3

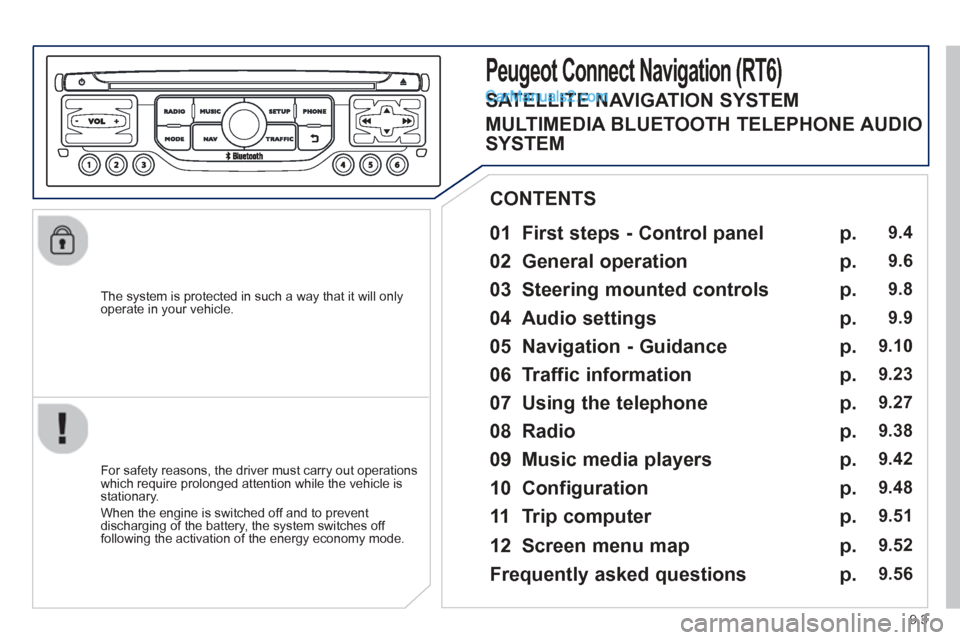

The system is protected in such a way that it will onlyoperate in your vehicle.

01 First steps - Control panel
For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the system switches off following the activation of the energy economy mode.
CONTENTS

02 General o
peration

03 Steerin
g mounted controls

04 Audio settin
gs

05 Navi
gation - Guidance

06 Traffic information
07 Usin
g the telephone
0
8 Radio

09 Music media pla
yers

10 Confi
guration

11 Tr i
p computer
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
9.4
9.6
9.8
9.9
9.10
9.23
9.27
9.
38
9.42
9.48
9.51
PeugeotCtonnectNavigation (RT6)
12 Screen menu map p. 9.52
Frequently asked questions p. 9.56
SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH TELEPHONE AUDIO
SYSTEM

9.8

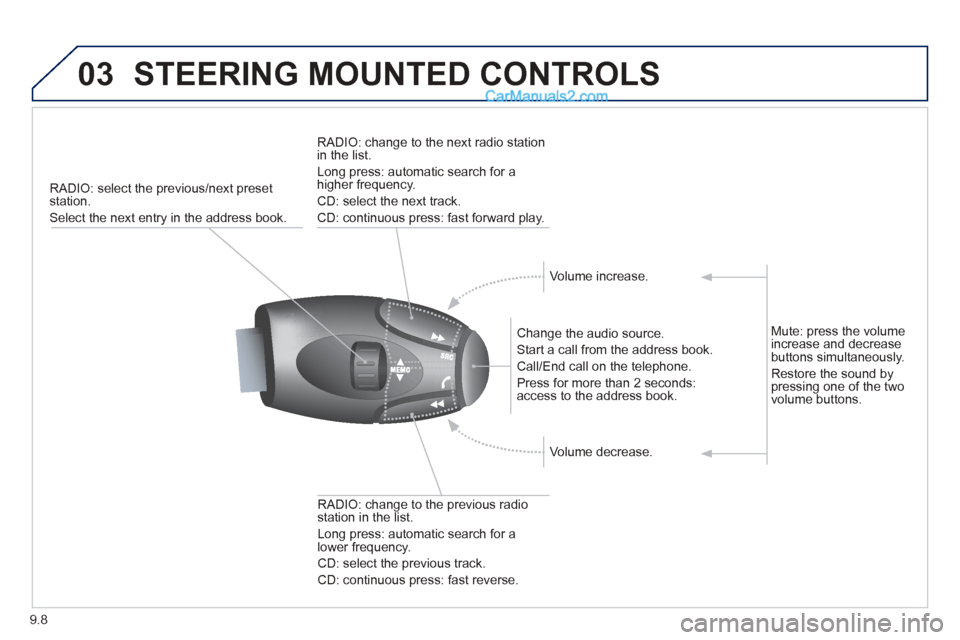

03STEERING MOUNTED CONTROLS
RADIO: select the previous/next preset station.
Select the next entry in the address book. Chan
ge the audio source.

Start a call from the address book.

Call/End call on the telephone.
Pr
ess for more than 2 seconds: access to the address book.
RADI
O: change to the previous radio station in the list.

Lon
g press: automatic search for a
lower frequency.

CD: select the previous track.

CD: continuous press: fast reverse.
RADI
O: change to the next radio station
in the list.

Lon
g press: automatic search for ahigher frequency.

CD: select the next track.

CD: continuous press: fast forward play.
V
olume increase.
V
olume decrease.
Mute: press the volume increase and decrease buttons simultaneously.
Restore the sound by
pressing one of the two
volume buttons.

9.39
08RADIO
By alphabetical list
Pr
ess RADIO, select the station of your choice and confi rm.
B
y automatic frequency search
Pr
ess  or  for the automatic searchfor a lower or higher radio frequency.

Or turn the thumb wheel at the steeringmounted controls.
B
y manual frequency search
Pr
ess  or  to adjust the radio
frequency step by step.
SELECTING A STATION

The external environment (hill, building, tunnel, underground car park...) may interfere with the reception, including in RDS station tracking mode. Thisphenomenon is a normal result of the way in which radio waves are transmitted and does not in any way indicate a fault with the audio system.
The qualit
y of reception is represented by the number of
active waves in this symbol.
Pr
ess RADIO or OK to display the contextual menu.
CHANGING WAVEBAND
Select "Change waveband ".

Select "AM / FM" and confi rm.

9.40
08
Press the button on the numerical keypad to recall a
preset station.
Or press then turn the thumb wheel at the steeringmounted controls.

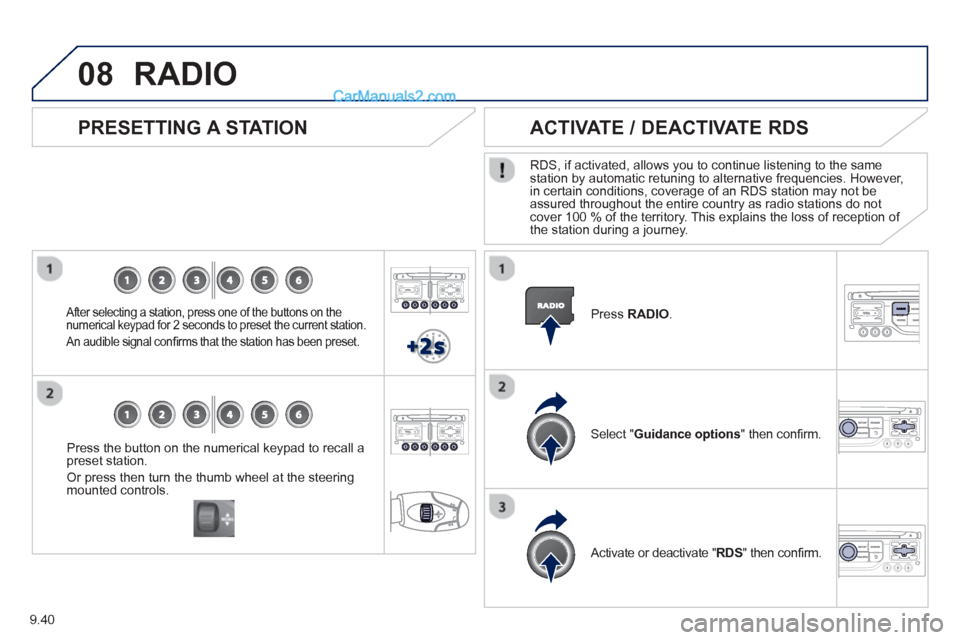

PRESETTING A STATION
After selecting a station, press one of the buttons on the
numerical keypad for 2 seconds to preset the current station.

An audible si
gnal confi rms that the station has been preset.
Press RADIO.
ACTIVATE / DEACTIVATE RDS
RDS, if activated, allows you to continue listening to the samestation by automatic retuning to alternative frequencies. However,
in certain conditions, coverage of an RDS station may not be
assured throughout the entire country as radio stations do notcover 100 % of the territory. This explains the loss of reception of
the station during a journey.
Select "Guidance options" then con fi rm.
A
ctivate or deactivate " RDS
" then con fi rm.
RADIO

9.44

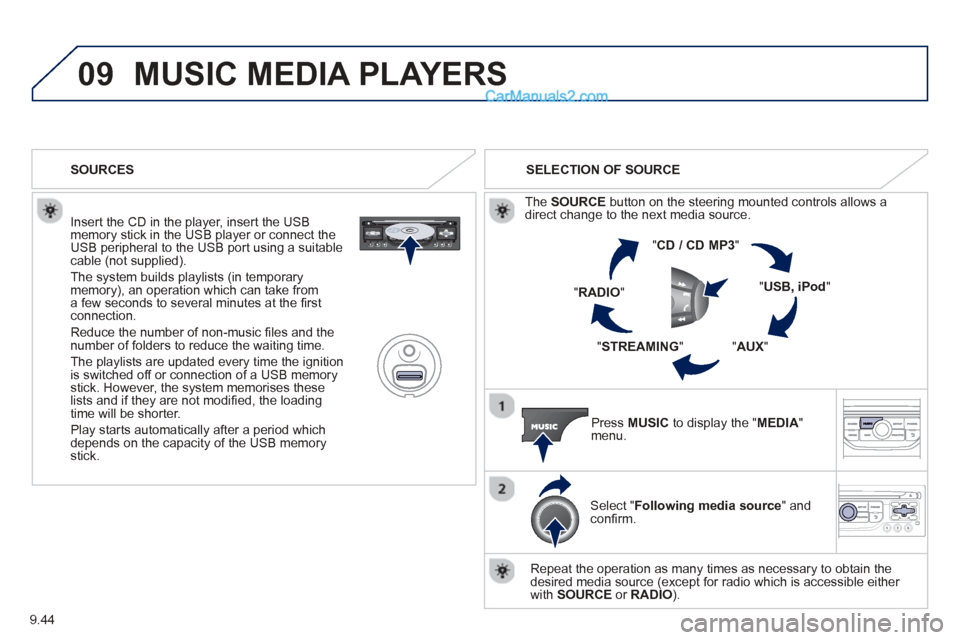

09MUSIC MEDIA PLAYERS
Insert the CD in the player, insert the USBmemory stick in the USB player or connect theUSB peripheral to the USB port using a suitablecable (not supplied).
The s
ystem builds playlists (in temporarymemory), an operation which can take froma few seconds to several minutes at the fi rstconnection.
R
educe the number of non-music fi les and the number of folders to reduce the waiting time.
The pla
ylists are updated every time the ignition
is switched off or connection of a USB memory stick. However, the system memorises these
lists and if they are not modifi ed, the loadingtime will be shorter.
Pla
y starts automatically after a period which
depends on the capacity of the USB memory stick. SELECTION OF SOURCE
Th
e SOURCE button on the steering mounted controls allows a
direct change to the next media source.
" CD / CD MP
3 "
"
USB, iPod "
"AUX " "STREAMING "
"RADIO "
Press MUSICto display the "MEDIA " menu.

Select "Following media source " and confi rm.
Repeat the operation as man
y times as necessary to obtain the
desired media source (except for radio which is accessible either
with SOURCE or RADIO).
SOURCES

9.65

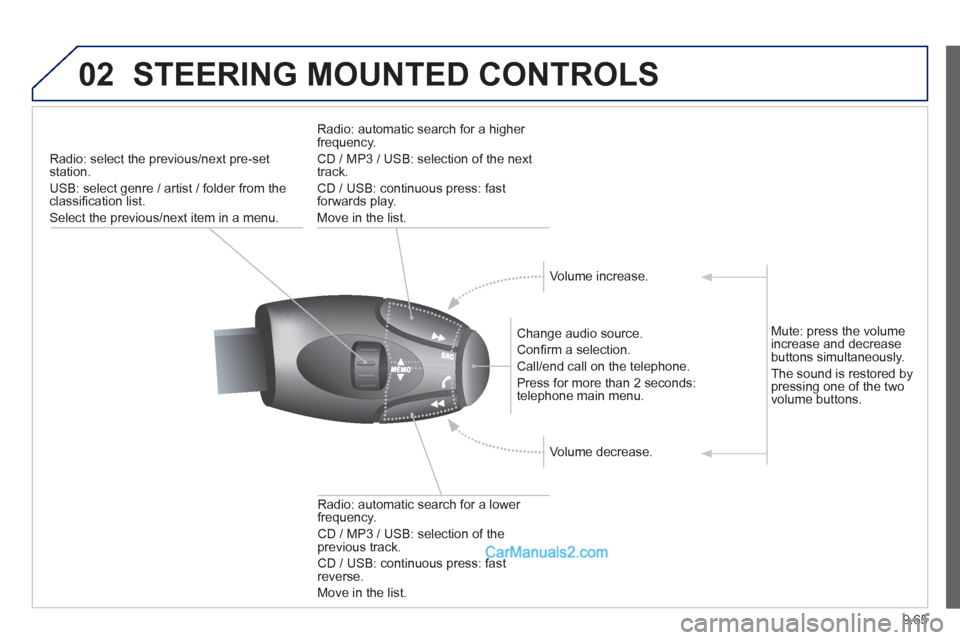

02STEERING MOUNTED CONTROLS
Radio: select the previous/next pre-setstation.
U
SB: select genre / artist / folder from the classifi cation list.
Select the previous/next item in a menu.

Chan
ge audio source.

Confi rm a selection.
Call/end call on the telephone.
Pr
ess for more than 2 seconds:
telephone main menu.

R
adio: automatic search for a lower
frequency.

CD / MP3 / USB: selection of theprevious track.

CD / USB: continuous press: fastreverse.
M
ove in the list.

Radio: automatic search for a hi
gher
frequency.

CD / MP3 / USB: selection of the next
track.

CD / USB: continuous press: fastforwards play.
M
ove in the list.

V
olume increase.

V
olume decrease.
Mute: press the volume increase and decrease buttons simultaneously.
The sound is restored by
pressing one of the two
volume buttons.
