2013 Peugeot Partner Tepee bulb

155
QUICK HELP
7


Changing a bulb


REAR LAMPS




- Identify the faulty bulb then open
the rear doors to 180°.
Refer to the "Access" section of
chapter 2.

- Remove the two fi xing bolts using
the screwdriver stored in the tool kit
under the right-hand seat.

- Pull the lamp unit from the outside.

- Holding the lamp, disconnect the
electrical connector.

When refi tting, take care to
reposition the tabs and the supply
wire correctly to avoid trapping the
wire.
After changing the rear direction
indicator bulb, the reinitialisation time is
above 2 minutes.

- Move aside the 4 tabs then extract
the bulb holder.

- Remove the faulty bulb by
pressing it lightly while turning it
anticlockwise.

- Change the bulb.


When removing the lamp unit:


- with tailgate, pull the lamp unit
towards the centre of the vehicle,

- with hinged doors, pull the lamp
unit towards you.
For more information concerning the
bulbs, refer to the "Types of bulb".


1.
Brake lamps / sidelamps

Type B
, P21/5W - 21/5W

2.
Direction indicators

Type B
, PY21W - 21W (amber)

3.
Reversing lamps

Type B
, P21W - 21W

4.
Foglamps

Type B
, P21W - 21W

High pressure washing
When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the other lamps
and their edges to avoid damaging
their coating and seals.

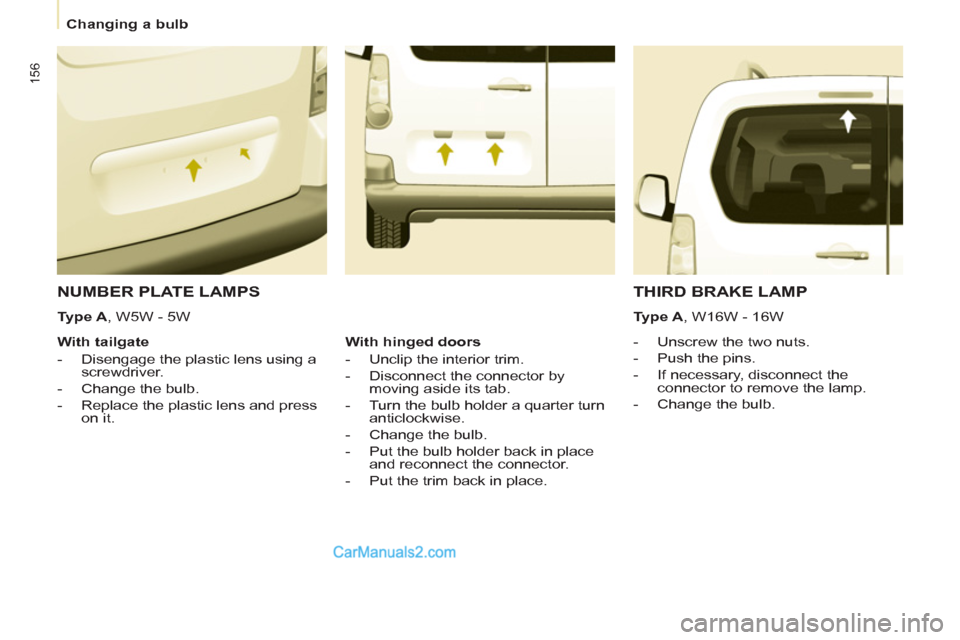

156


Changing a bulb


NUMBER PLATE LAMPS




- Unscrew the two nuts.

- Push the pins.

- If necessary, disconnect the
connector to remove the lamp.

- Change the bulb.


With tailgate


- Disengage the plastic lens using a
screwdriver.

- Change the bulb.

- Replace the plastic lens and press
on it.

THIRD BRAKE LAMP


Ty p e A
, W16W - 16W

With hinged doors


- Unclip the interior trim.

- Disconnect the connector by
moving aside its tab.

- Turn the bulb holder a quarter turn
anticlockwise.

- Change the bulb.

- Put the bulb holder back in place
and reconnect the connector.

- Put the trim back in place.



Type A
, W5W - 5W

171


Exterior

VISUAL SEARCH
10

EXTERIOR


Remote control 19-20
Changing the battery,
reinitialisation 20
Key 19
Starting 48
Hill start assist 49
Central locking / unlocking 19, 28

Filler cap, fuel tank 141
Fuel cut-off, Diesel priming 142

Wiper blades 161
Door mirrors 101
Side repeaters 154

Front lamps, foglamps, direction
indicators 50-51, 153-154
Headlamp beam height
adjustment 52
Changing front bulbs 152-154
Headlamp wash 54, 138
Snow cover 150

Front doors 22
Sliding side doors 23-24
Key 19
Opening the bonnet 134
Child lock 127

Towing, lifting 129-130, 162
Towbar 129-130
Parking sesnsors 105-106
Rear roof fl ap 27
Emergency control 24

Spare wheel, jack, changing a
wheel, tools 146-150
Temporary puncture repair kit 145
Infl ation, pressures 169
Zenith roof 88
Roof bars 92, 93
Rear lamps, direction
indicators 50-51, 155-156
3rd brake lamp 156
Changing rear bulbs 152, 155-156
Doors, tailgate 24-26
Accessories 131

Number plate lamp 156
Dimensions 164-167

Brakes, pads 104, 139
Emergency braking 107

ABS, EBFD 107
ASR, ESC 108
"Grip control" 109
Tyres, pressures 169
Snow chains 151
Tyre under-infl ation detection 38

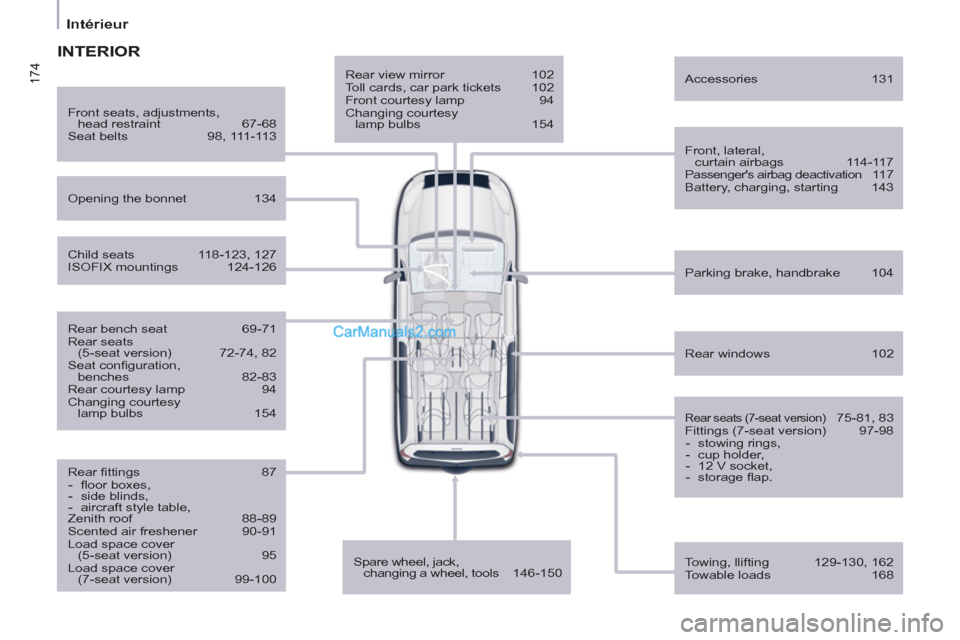

174


Intérieur



Rear view mirror 102
Toll cards, car park tickets 102
Front courtesy lamp 94
Changing courtesy
lamp bulbs 154

Front, lateral,
curtain airbags 114-117
Passenger's airbag deactivation 117
Battery, charging, starting 143

Opening the bonnet 134

Rear windows 102
Front seats, adjustments,
head restraint 67-68
Seat belts 98, 111-113
Accessories 131


INTERIOR


Rear bench seat 69-71
Rear seats
(5-seat version) 72-74, 82
Seat confi guration,
benches 82-83
Rear courtesy lamp 94
Changing courtesy
lamp bulbs 154

Rear fi ttings 87


- fl oor boxes,

- side blinds,

- aircraft style table,
Zenith roof 88-89
Scented air freshener 90-91
Load space cover
(5-seat version) 95
Load space cover
(7-seat version) 99-100
Child seats 118-123, 127
ISOFIX mountings 124-126

Parking brake, handbrake 104

Rear seats (7-seat version) 75-81, 83
Fittings (7-seat version) 97-98


- stowing rings,

- cup holder,

- 12 V socket,

- storage fl ap.


Towing, llifting 129-130, 162
Towable loads 168
Spare wheel, jack,
changing a wheel, tools 146-150

175


Technical data - Maintenance

VISUAL SEARCH
10

TECHNICAL DATA - MAINTENANCE


Identifi cation markings, serial
number, paint code, tyres 169
Snow chains 151

Windscreen /
headlamp wash, levels 138

Changing bulbs, lighting 152-156
Checks 139-140


- battery,

- gearbox,

-
air fi lter/passenger compartment fi lter,

- oil fi lter,

- particle emission fi lter,

- parking brake,

- brake pads,

- brake drums, discs.

Engine fuses 157, 160

Under the bonnet


- Diesel 136

- petrol 135
Fuel cut-off, Diesel priming 142
Dimensions 164-167
Weights 168

Opening the bonnet, stay 134
Levels 137-138


- Diesel additive,

- engine oil dipstick,

- power steering fl uid,

- brake fl uid,

- coolant.
Bleeding water, Diesel fi lter 140
Warning lamps 31-36

Changing a wiper blade 161
