CONTENT
S

Contents
39. TECHNOLOGY on BOARD5. ACCESSORIES
104-107
6. CHECKS 108-118
7. QUICK HELP 119-141


The "Technology on board"
section presents the new radio/
navigation systems.
Towing a trailer 104Other accessories 106Trade range 107
Opening the bonnet 108Diesel engines 109Petrol engine 110Levels 111Checks 113Fuel 116Fuel cut-off 117Diesel priming pump 117
Battery 119Puncture repair kit 121Changing a wheel 123Removable snow screen 127Snow chains 128Changing a bulb 129a fuse 134
a wiper blade 139Towing the vehicle 140
8. TECHNICAL DATA142-150
Dimensions 142Weights 148Identification markings 150
10. VISUAL SEARCH 151-160
Emergency or assistance 9.1Peugeot Connect Navigation(RT6) 9.3
Peugeot Connect Sound 9.63


WIP: World In PEUGEOT is
the name given to all of the
new equipment of the radio/
navigation range.
The "Visual Search " section
assists you in finding the
controls and functions and their
associated page numbers on
the schematic outlines of the
vehicle (visual index).
Exterior 151Instruments and controls 152Interior 154Technical data - Maintenance 155

19


Interior

FAMILIARISATIO
N
1


Limit the causes of
excess consumption

Spread loads throughout the vehicle;
place the heaviest items in the bottom of
the boot, as close as possible to the rear
seats.
Limit the loads carried in the vehicle and
reduce wind resistance (roof bars, roof
rack, bicycle carrier, trailer...). Use a roof
box in preference.
Remove roof bars and roof racks after
use.

At the end of winter, remove snow tyres
and refit your summer tyres.



Observe the recommendations
on maintenance

Check the tyre pressures regularly, when
cold, referring to the label in the door
aperture, driver's side.
Carry out this check in particular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the tyres
on any trailer or caravan.

Have your vehicle serviced regularly
(engine oil, oil filter, air filter...) and observe
the schedule of operations recommended
by the manufacturer.


When refuelling, do not continue after the
third cut-off of the nozzle to avoid any
overflow.

At the wheel of your new vehicle,
it is only after the first 1 800 miles
(3 000 kilometres) that you will see
the fuel consumption settle down to a
consistent average.

24
Access
DOORS
Load space

- comes on if the doors are
locked and from the time the
ignition is switched on.


From the inside
From the outside

Use the remote control to lock/unlock the
vehicle.
Insert the metal part of the key in the lock on
the driver's side if the remote control does
not work.

Cab and load space
The first press permits central
locking of the front and rear
doors, if they are closed.
A second press permits central unlocking of
the vehicle.
The control does not work if the vehicle has
been locked using the remote control or the
key from the outside. Pressing permits locking/
unlocking of the rear doors from
the cab.
The indicator lamp the control:


Anti-intrusion protection

When the vehicle is started, the system
automatically locks the front doors. When
you reach approximately 6 mph (10 km/h),
the system locks the rear doors.

Activation / deactivation of the function
With the ignition on, a long
press on this button activates or
deactivates the function.



Opening warning lamp

If this warning lamp comes on,
check that the cab doors and
the rear or side doors are closed
correctly.

- flashes if the doors are locked
when stationary with the
engine off, This selective door locking function is
activated on delivery. At your request, the
dealer network can deactivate this opening
selectivity between the cab and load space;
contact a PEUGEOT dealer.
The doors can still be opened from the
inside.
Driving with the doors locked may
make access to the cabin more difficult
in an emergency.

29


Instruments and controls

READY TO SET OFF
2

WARNING LAMPS

Each time the engine is started: a series of warning lamps comes on applying a check auto-test. They go off again almost immediately.
When the engine is running: the warning lamp becomes a warning if it remains on continuously or flashes. This initial warning may be
accompanied by an audible signal and a message in the screen.
Do not ignore these warnings

Warning lamp
is
indicates
Solution - action

STOP on, associated
with another
warning
lamp and
accompanied by
a message in
the screen. major faults linked with the
"Brake fluid level", "Engine oil
pressure and temperature",
"Coolant temperature",
"Electronic brake force
distribution", "Power steering"
and "Under-inflation detection"
warning lamps.
You must stop as soon as it is safe to do so, park,
switch off the ignition and call a PEUGEOT dealer or
a qualified workshop.

Parking brake /
Brake fluid
level / EBFD on. parking brake applied or not
released correctly. Releasing the parking brake switches off the warning lamp.
on. low brake fluid level. Top up using a fluid recommended by PEUGEOT.

remains on, even
though the level
is correct and
associated with the
ABS warning lamp.
failure of the electronic brake
force distribution.
You must stop as soon as it is safe to do so, park,
switch off the ignition and call a
PEUGEOT dealer or
a qualified workshop.

Engine oil
pressure and
temperature on while driving. insufficient pressure or
temperature too high. Park, switch off the ignition and allow to cool. Visually
check the level. Chapter 6, "Levels" section.
remains on,
even though the
level is correct. major fault. Call a PEUGEOT dealer or a qualified workshop.

35


Instruments and controls

READY TO SET OFF
2

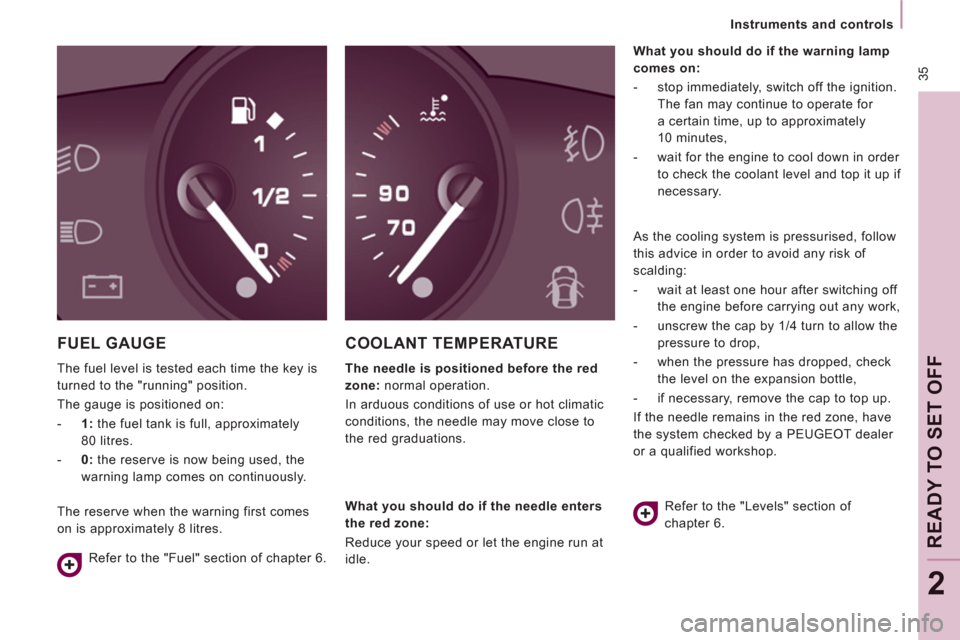

FUEL GAUGE

The fuel level is tested each time the key is
turned to the "running" position.
The gauge is positioned on:


- 1:
the fuel tank is full, approximately
80 litres.

- 0:
the reserve is now being used, the
warning lamp comes on continuously.
COOLANT TEMPERATURE

The needle is positioned before the red
zone:
normal operation.
In arduous conditions of use or hot climatic
conditions, the needle may move close to
the red graduations.
What you should do if the warning lamp
comes on:


- stop immediately, switch off the ignition.
The fan may continue to operate for
a certain time, up to approximately
10 minutes,

- wait for the engine to cool down in order
to check the coolant level and top it up if
necessary.
Refer to the "Fuel" section of chapter 6.
What you should do if the needle enters
the red zone:
Reduce your speed or let the engine run at
idle. Refer to the "Levels" section of
chapter 6. The reserve when the warning first comes
on is approximately 8 litres. As the cooling system is pressurised, follow
this advice in order to avoid any risk of
scalding:


- wait at least one hour after switching off
the engine before carrying out any work,

- unscrew the cap by 1/4 turn to allow the
pressure to drop,

- when the pressure has dropped, check
the level on the expansion bottle,

- if necessary, remove the cap to top up.
If the needle remains in the red zone, have
the system checked by a PEUGEOT dealer
or a qualified workshop.

38


Instruments and controls

When the display shows "=0"
, release
the button; the spanner disappears.
After this operation, if you wish to disconnect
the battery, lock the vehicle and wait for at
least five minutes, otherwise the zero re-set
will not be registered.


Zero re-set

Your PEUGEOT dealer or a qualified
workshop carries out this operation after
each service.
However, if you carry out the service
yourself, the re-set procedure is as follows:


- switch off the ignition,

- press and hold the trip recorder reset
button,

- switch on the ignition.
The display begins a countdown.


Engine oil level indicator

When the ignition is switched on, the engine
oil level is indicated for a few seconds, after
the service information.

Oil level correct

Low oil level
Flashing of "OIL"
, linked
with the service warning
lamp, accompanied by
an audible signal and a message in the
screen, indicates a low oil level which could
damage the engine.
If the low oil level is confirmed by a check
using the dipstick, it is essential that the
level is topped up.

Oil level gauge fault
Flashing of "OIL--"
indicates a malfunction
of the engine oil level
indicator. Contact a PEUGEOT dealer or a
qualified workshop.
The level read will only be correct
if the vehicle is on level ground and
the engine has been off for more than
30 minutes.
Dipstick

A
= maximum, never exceed
this level as a surplus of oil may
damage the engine.
Contact a PEUGEOT dealer or a
qualified workshop without delay.

B
= minimum, top up the level via
the oil filler cap, using the grade
of oil suited to your engine.



Trip recorder zero reset
button
With the ignition on, press the
button until the zeros appear.


Lighting dimmer

With the lighting on, press the
button to vary the brightness
of the instruments and
controls. When the lighting
reaches the minimum (or maximum) setting,
release the button then press it again to
increase (or reduce) the brightness.
As soon as the lighting is of the required
brightness, release the button.
Service overdue
With the engine running the spanner
remains on until the service has been
carried out.
Each time the ignition is switched
on and for a few seconds, the
spanner fl ashes and the excess
distance is displayed.

44


Gearboxes and steering wheel

STARTING AND STOPPING


Key

Take care to prevent the key from coming
into contact with grease, dust, rain or a
damp environment.
A heavy object attached to the key (key
ring, ...) weighing the key down in the
ignition switch may cause a malfunction.


Good practice when starting


Door or bonnet open warning lamp

If this comes on, a door or the
bonnet is not closed correctly, check!

Diesel pre-heating warning lamp
If the temperature is high
enough, the warning lamp comes
on for less than one second, you
can start without waiting.
In cold weather, wait for this warning lamp
to go off then operate the starter (Starting
position) until the engine starts.



Good practice when stopping


Minimise engine and gearbox wear
When switching off the ignition, let the
engine run for a few seconds to allow the
turbocharger (Diesel engine) to return to
idle.
Do not press the accelerator when switching
off the ignition.
There is no need to engage a gear after
parking the vehicle.

Running and accessories position.
To unlock the steering, turn the steering
wheel gently while turning the key, without
forcing. In this position, certain accessories
can be used.

Starting position.
The starter is operated, the engine turns
over, release the key.

STOP position:
steering lock.
The ignition is off. Turn the steering wheel
until the steering locks. Remove the key.
STEERING WHEEL HEIGHT AND
REACH ADJUSTMENT
When the vehicle is stationary, release the
steering wheel adjustment mechanism by
lowering the lever.
Adjust the steering wheel for height and
reach, then lock the adjustment mechanism
by pushing the lever fully upwards.

Starting and stopping

ESP
OFF
87


Driving safely

SAFETY
4

ANTI-SLIP REGULATION (ASR)AND DYNAMIC STABILITY
CONTROL (DSC)
These systems are linked and complement
the ABS.
The ASR system is very useful for
maintaining optimum drive and avoiding
losses of control of the vehicle on
acceleration.
The system optimises drive to prevent the
wheels skidding, by acting on the brakes of
the drive wheels and on the engine. It also
allows the directional stability of the vehicle
to be improved on acceleration. acts on the engine and the brake of one
or more wheels, in order to put the vehicle
back on course.

Deactivating the ASR/DSC systems

In certain exceptional conditions (starting
the vehicle when stuck in mud or snow, or
on loose ground...), it could prove useful
to deactivate the ASR and DSC systems to
make the wheels spin and regain grip.


- Press the button, located on the centre
console.

- The indicator lamp comes on: the ASR
and DSC systems no longer operate.
Operating check

Good practice

The ASR/DSC systems offer increased
safety during normal driving, but should not
encourage the driver to take risks or to drive
at high speed.
The operation of these systems is assured
only if the recommendations of the
manufacturer regarding the wheels (tyres
and rims), the braking components, the
electronic components and fitting and repair
procedures are observed.
After an impact, have these systems
checked by a PEUGEOT dealer or a
qualified workshop.
Use the DSC to hold your course without
attempting to countersteer.
If there is a variation between the trajectory
followed by the vehicle and that required by
the driver, the DSC system automatically

Operation of the ASR and DSC
systems
The LED flashes when
the ASR or DSC is
triggered.

They engage again:


- automatically above 30 mph (50 km/h),

- manually by pressing the button again.
When a malfunction of the
systems occurs, the warning lamp
comes on, accompanied by an
audible signal and a message in
the screen.
Contact a PEUGEOT dealer or a qualified
workshop to have the system checked.
The warning lamp may also come on if the
tyres are under-inflated. Check the pressure
of each tyre.
