Instruments and controls


INSTRUMENT PANEL



1.
Distance recorder in miles / kilometres.

2.
Screen.

3.
Dials and gauges.

4.
Rev counter.

INSTRUMENTS AND CONTROLS
Instrument panel screen 1



- Time,

- Miles / Kilometres travelled,

- Range,

- Fuel consumption,

- Average speed,

- Headlamp beam height,

- Programmable overspeed warning via
MODE,

- Stop & Start,

- Service indicator.



Instrument panel screen 2



- Time,

- Date,

- Ambient temperature,

- Miles / Kilometres travelled,

- Range,

- Fuel consumption,

- Average speed,

- Headlamp beam height,

- Programmable overspeed warning via
MODE,

- Stop & Start,

- Service indicator,

- Warning messages displayed in the top
section,

- Radio (frequency of the current station).

Mirrors and windows
77
3
EASE OF USE and COMFOR
T
MIRRORS AND WINDOWS
MIRROR
S Door mirrors

These are divided into two zones:

A -
Upper mirror

B -
Lower mirror
The mirror glass is spherical in order to
widen the lateral field of vision. Objects
seen in the mirror are in reality closer than
they appear. Therefore, this must be taken
into account in order to assess the distance
correctly.
The shell incorporates the direction indicator
side repeater and the aerials, according to
the equipment available on board (GPS,
GSM, Radio, ...).
Electrical controls

The ignition switch must be in the MAR
position.
Turn the control to select the mirror zone.

1
Driver's mirror:

A1 -
Upper mirror

B1 -
Lower mirror
Then move the control in the direction of the
adjustment required.

2
Passenger mirror:

A2 -
Upper mirror

B2 -
Lower mirror
Then move the control in the direction of the
adjustment required.
Rear view mirror

The lever located on the lower edge moves
the mirror into two positions.
For the day position, the lever is pushed.
For the night position to prevent dazzle, pull
the lever towards you.
Electric folding

Press this control.
Defrosting the mirrors

Press the rear screen defrosting
button.

Audio equipment

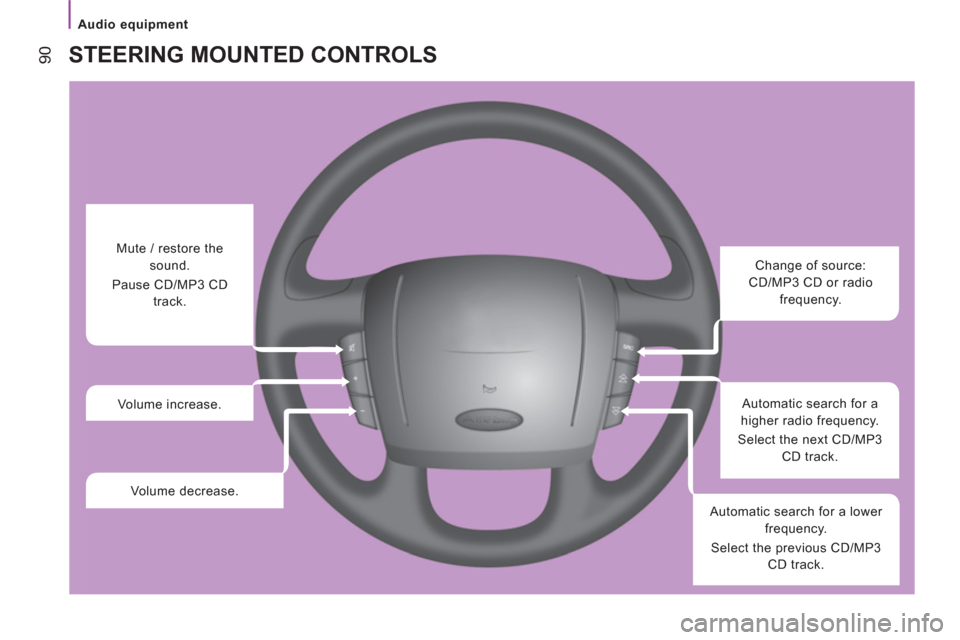

90 STEERING MOUNTED CONTROLS








Change of source:
CD/MP3 CD or radio
frequency.

Automatic search for a
higher radio frequency.
Select the next CD/MP3
CD track.

Automatic search for a lower
frequency.
Select the previous CD/MP3
CD track.
Mute / restore the
sound.



Pause CD/MP3 CD
track.
Volume increase.

Volume decrease.

97

Bluetooth hands-free system
4
TECHNOLOGY
on
BOAR
D


When you switch on the audio system, you may have to enter a
code for access to its functions.
In this cases, the message " Radio Code
" is displayed in the
screen, followed by 4 dashes.
The 4-number code should be entered using the buttons 1 to 6.
You have 20 seconds to enter the code.
If the wrong code is entered, the audio system gives an audible
signal and the message message " Radio blocked/wait
" is
displayed. You should then start the procedure again.


Keep your code in a safe place, never inside the
vehicle
.


TELEPHONE PRE-EQUIPMENT


If the hands-free kit is fitted to your vehicle, you can use the
audio system and the steering mounted controls to manage your
telephone calls.
During an incoming call, the audio system is deactivated, and
the message " PHONE
" is displayed.
The volume can be adjusted and stored via the " EXTERNAL
AUDIO
" menu.
Each time an incorrect code is entered, the waiting time before
the code can be entered again increases progressively (1 minute,
2 minutes, 4 minutes, 8 minutes, 16 minutes, 30 minutes, 1 hour,
2 hours, 4 hours, 8 hours, 16 hours, 24 hours).


The language of the Bluetooth system adapts automatically
by detecting the language set on your telephone.

SYSTEM


INTRODUCTION

This system allows you to:


- send and receive calls via the Bluetooth® connection with your
mobile telephone,

- display the names of your contacts and numbers from the
directory of your mobile phone in the instrument panel screen,

- use voice commands to make a call and manage your
contacts while keeping both hands on the steering wheel,

- hear your text messages via the voice synthesiser built into
the system,

- listen to MP3, WMA, AAC, M4A, MP4 and WAV audio files
from a USB storage device,

- display information on the track being played in the radio
screen (title, artist, etc...),

- control vocally a portable music player (iPod
® type),

- recharge your portable music player (iPod
® type) via the USB
port.
