TECHNI
CAL DATA

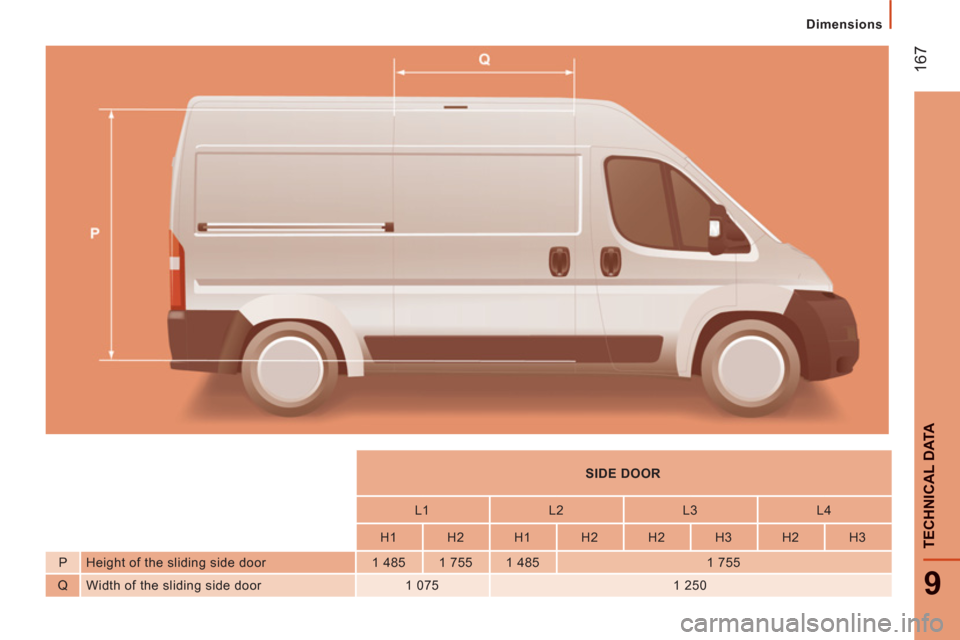

Dimensions
CHASSIS CAB
L1
L2
L2S
L3
L4
L Overall length
4 908
5 358
5 708
5 943
6 208
A Wheelbase
3 000
3 450
3 800
4 035
4 035
B Front overhang
948
C Rear overhang
960
1 225
D Overall width (excluding mirrors)
2 050
- Passable width
2 207
- Max permitted body width
2 350
E Width of front track
1 810
- Width of rear track
1 790
- Width of increased rear track
1 980
F Overall height
2 153
- Max permitted body height
3 500
174
Exterior
EXTERIOR
Rear lamps, direction indicators,
3 rd
brake lamp,
foglamps 36, 47, 153, 156
Left-hand side:
fuel fi ller cap, fuel tank 144
Fuel cut-off 144
Load space 75-76
Rear doors 28
Number plate lamp 156
Parking sensors 83
Spare wheel, jack, changing a wheel,
tools, puncture repair kit 148-152
Infl ating, pressures 173
Towing, lifting 162
Towbar, towball 133-134
Dimensions 164-170
Accessories 135-136
Roof bars 135
Brakes, pads 139, 141
ABS, Electronic brake force distribution 11 5
EBA 11 5
ASR, ESP 116-117
Tyres, pressures 173
Pneumatic suspension 86
Key, remote control, battery 21-23
Starting 41-42
Central locking 29
Confi dential card 25
Alarm 26
Wiper blade 161
Door mirror 77
Side repeater 155
Front lamps, foglamps, direction
indicators 153-155
Headlamp beam height adjustment 49
Headlamp wash 50
Changing bulbs 153-155
Opening/closing doors 27-29
Key 23
Opening the bonnet, stay 137
Mode - autoclose 81
