CHECK
S
Checks
CHECKS
Air filter and passenger compartmentfilter
A clogged passenger compartment fi lter may
reduce the performance of the air conditioning
system and generate undesirable odours. The
replacement intervals for these components
are indicated in the servicing booklet.
Depending on the environment (dusty
atmosphere...) and the use of the vehicle
(urban driving...), change them twice as
often if necessary, refer to the "Under the
bonnet" section of chapter 7.
Manual gearbox
Have the level checked in accordance with
the manufacturer's servicing schedule.
To check the main levels and certain
components, in accordance with the
manufacturer's servicing schedule, refer to
the pages of the servicing booklet which
correspond to your vehicle's engine.
Only use products recommended by
PEUGEOT or products of equivalent quality
and specification.
In order to optimise the operation of units as
important as the braking system, PEUGEOT
selects and offers specific products.
In order to avoid damaging the electrical
units, high pressure washing to clean the
engine compartment is strictly prohibited.
Parking brake
Where the parking brake travel is too great
or there is a reduction in the performance
of the system, the parking brake should be
adjusted, even between services.
Have the system checked by a PEUGEOT
dealer. Bleeding the water contained in the Diesel filter
If this warning lamp comes on, bleed
the fi lter, otherwise bleed regularly
each time the engine oil is changed.
To drain the water out, unscrew
the bleed screw or the water in
Diesel sensor, located at the base of the
filter. Leave open until all of the water has
been drained out. Then tighten the bleed
screw or the water sensor.
HDi engines use advanced technology. All
work requires a special qualification which is
guaranteed by a PEUGEOT dealer.
Battery
At the start of winter, have your battery
checked by a PEUGEOT dealer.
Brake pads
Brake pad wear depends on the style of
driving, in particular for vehicles which are
used in town, over short distances. It may
be necessary to check the thickness of the
pads, even between services.
Unless there is a leak on the system, a drop
in the brake fluid level indicates that the
brake pads are worn.
Brake disc/drum wear status
For any information relating to checking
the brake disc/drum wear status, contact a
PEUGEOT dealer.
Oil filter
Change the fi lter regularly, in accordance with
the servicing schedule.
The presence of this label, in particular with
the Stop & Start system, indicates the use of
a specifi c 12 V lead-acid battery with special
technology and specifi cation. The involvement
of a PEUGEOT dealer or a qualifi ed workshop
is essential when replacing or disconnecting
the battery.
Diesel engines
17
1
9
TECHNI
CAL DATAQuality of the fuel used for Diesel engines
The Diesel engines are perfectly compatible with biofuels which conform to current and future European standards (Diesel fuel which
complies with standard EN 590 mixed with a biofuel which complies with standard EN 14214) available at the pumps (containing up to 7 %
Fatty Acid Methyl Ester).
The B30 biofuel can be used in certain Diesel engines; however, this use is subject to strict application of the special servicing conditions.
Consult a PEUGEOT dealer.
The use of any other type of (bio)fuel (vegetable or animal oils, pure or diluted, domestic fuel...) is strictly prohibited (risk of damage to the
engine and fuel system).

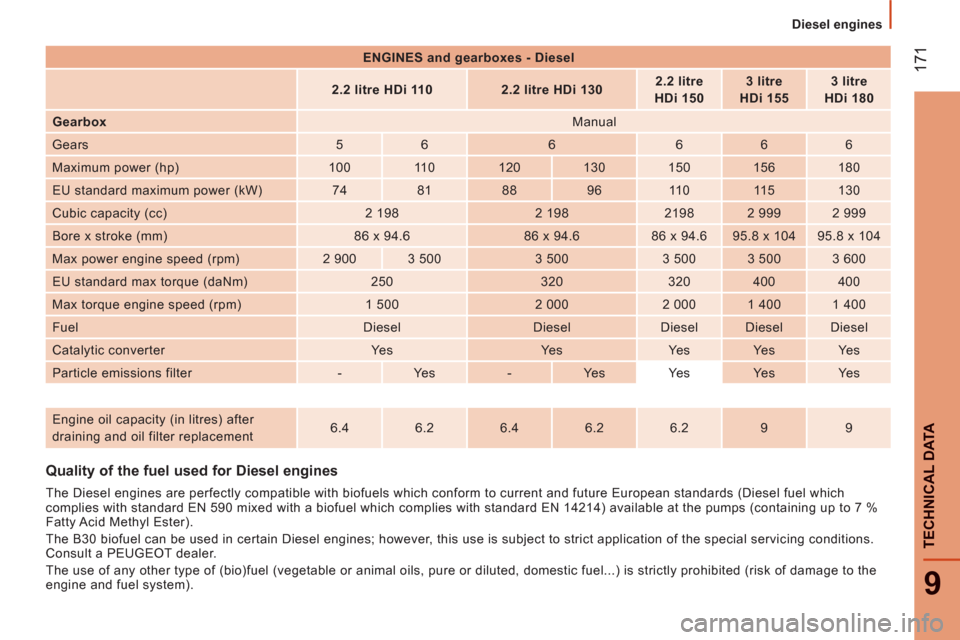

ENGINES and gearboxes - Diesel
2.2 litre HDi 110
2.2 litre HDi 130
2.2 litre
HDi 150
3 litre
HDi 155
3 litre
HDi 180
Gearbox
Manual
Gears
5
6
6
6
6
6
Maximum power (hp)
100
11 0
120
130
150
156
180
EU standard maximum power (kW)
74
81
88
96
11 0
11 5
130
Cubic capacity (cc)
2 198
2 198
2198
2 999
2 999
Bore x stroke (mm)
86 x 94.6
86 x 94.6
86 x 94.6
95.8 x 104
95.8 x 104
Max power engine speed (rpm)
2 900
3 500
3 500
3 500
3 500
3 600
EU standard max torque (daNm)
250
320
320
400
400
Max torque engine speed (rpm)
1 500
2 000
2 000
1 400
1 400
Fuel
Diesel
Diesel
Diesel
Diesel
Diesel
Catalytic converter
Ye s
Ye s
Ye s
Ye s
Ye s
Particle emissions filter
-
Ye s
-
Ye s
Ye s
Ye s
Ye s
Engine oil capacity (in litres) after
draining and oil filter replacement
6.4
6.2
6.4
6.2
6.2
9
9
17
5
Instruments and controls
10
VISUAL SEARCH
INSTRUMENTS AND CONTROLS
Instrument panels, screens, speedometer 30
Warning lamps, indicator lamps 31-37
Indicators, gauge 38-39
Lighting controls 47
Automatic illumination of headlamps 48
Guide-me-home lighting 48
Parking lamps 49
Fuses 157-160
Mode, vehicle confi guration 79-82
Programmable additional heating 62-64
Additional heating,
rear air conditioning 60-61
Pneumatic suspension 86
Stop & Start 43-45
Headlamp beam height adjustment 49
Lighting dimmer 39
Setting the time 81
Front/rear wipers 50
Screenwash/headlamp wash 50
Trip computer - MODE 79-82
Starter, ignition switch 41
Hill start 42
Cruise control 51-53
Fixed speed limiter 118
Steering wheel, reach adjustment 40
Horn 115
Instruments and controls 8
Electric windows, mirrors 77-78
Locking the load space 29
Gearbox 40
Parking sensors 83
