2013 Peugeot 807 key battery

Access

20


Changing the remote control
battery
Battery ref.: CR1620/3 volts.
The information "battery fl at" is given
by an audible signal, accompanied by
a message on the multifunction display.
To replace the battery, unclip the
casing using a coin at the ring.
If the remote control does not work
after the battery has been changed,
re-programme the remote control.

Reinitialising the remote control

Following changing of the
remote control battery or
disconnection of the vehicle
battery, the remote control
may have to be reinitialised.
Do not discard the remote control
batteries, they contain metals which
are harmful to the environment.
Take them to a PEUGEOT dealer, or to
any other approved collection point. Wait at least one minute before
using the remote control.

Insert the key in the ignition
switch with the buttons
(padlocks) of the remote
control facing you.
Switch on the ignition.
Press the locking padlock for at least
fi ve seconds within the next ten
seconds.
Switch off the ignition.
Wait at least one minute before using
the remote control.
The remote control is now working
again.

84

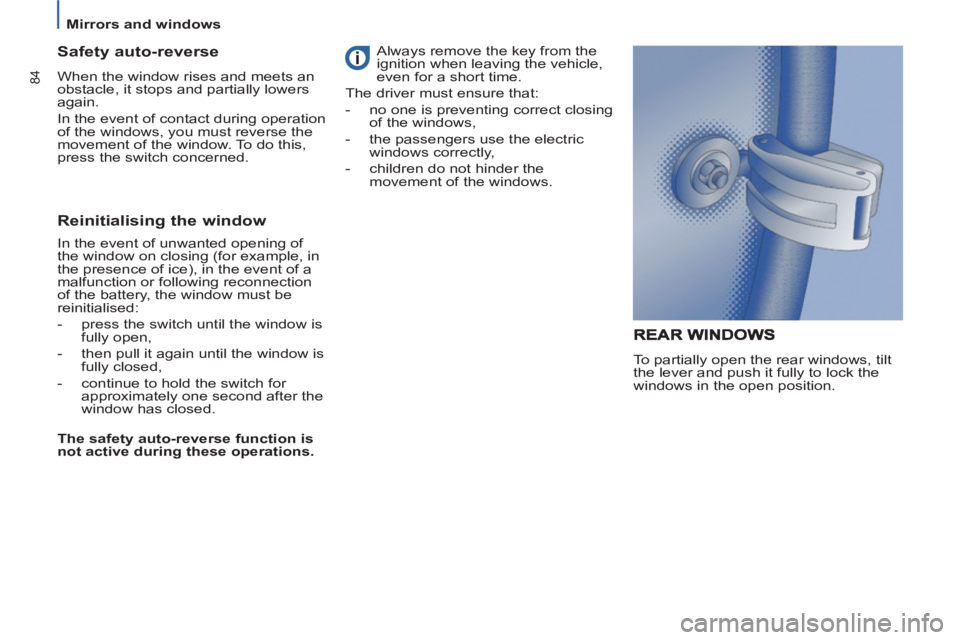

Mirrors and windows


To partially open the rear windows, tilt
the lever and push it fully to lock the
windows in the open position.

Safety auto-reverse

When the window rises and meets an
obstacle, it stops and partially lowers
again.
In the event of contact during operation
of the windows, you must reverse the
movement of the window. To do this,
press the switch concerned.


Reinitialising the window

In the event of unwanted opening of
the window on closing (for example, in
the presence of ice), in the event of a
malfunction or following reconnection
of the battery, the window must be
reinitialised:


-
press the switch until the window is
fully open,

- then pull it again until the window is
fully closed,

- continue to hold the switch for
approximately one second after the
window has closed.

The safety auto-reverse function is
not active during these operations. Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
The driver must ensure that:


- no one is preventing correct closing
of the windows,

- the passengers use the electric
windows correctly,

- children do not hinder the
movement of the windows.

11 6


Battery


ECONOMY MODE FUNCTION

After the engine has stopped, with
the key in the ignition position, certain
functions (windscreen wiper, electric
windows, courtesy lights, audio
equipment, etc.) can only be used for a
cumulative duration of thirty minutes, to
prevent discharging the battery.
Once the thirty minutes are over, the
message "Economy mode active"

appears on the display and the active
functions are put on standby.
To resume the use of these functions
immediately, start the engine and let it
run for a few seconds.
A fl at battery will prevent the engine
from starting.

To charge the battery using a
battery charger


- disconnect the battery,

- follow the instructions for use
given by the battery charger
manufacturer,

- reconnect starting with the negative
(-) terminal,

- check that the terminals and
connectors are clean. If they are
covered with sulphate (white or
greenish deposit), disconnect them
and clean them.

TERY
BATT

This is housed in a compartment
located underneath the fl oor, in front of
the driver's seat.
Before disconnecting the battery, you
must wait for 2 minutes after switching
off the ignition.
Never disconnect a terminal when the
engine is running.
Never charge a battery without fi rst
disconnecting the terminals.
Close the sunroof and the windows
before disconnecting the battery. If
they do not operate normally following
reconnection of the battery, they must
be reinitialised.
It is advisable to disconnect the
battery if the vehicle is not to be used
for a period of more than one month.
After every reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to allow the electronic
systems to be initialised. If slight
diffi culties are experienced after this,
please contact a PEUGEOT dealer.
The door open monitoring electrical
system consumes power, remember
to close the sliding doors when your
vehicle is parked for long periods.


To start the vehicle from
another battery


- connect the red cable to the
positive (+) terminals of the two
batteries,

- connect one end of the green or
black cable to the negative (-)
terminal of the slave battery,

- connect the other end of the green
or black cable to an earth point on
the broken down vehicle as far as
possible from the battery,

- operate the starter, let the engine run,


- wait for the engine to return to idle,
then disconnect the cables. For the sunroofs safety auto-
reverse, refer to the "Accesses"
section of chapter 2. For the electric windows safety
auto-reverse, refer to the "Mirrors
and windows" section of chapter 3.

139
VISUAL SEARCH
10
Exterior
Spare wheel, jack, changing,
fi tting 117-120 Rear lamps, direction indicators,
3rd brake lamp 43-45, 123
Changing rear bulbs 122-123 Accessories 107
Sun roof 26
Roof bars 105
Fuel fi ller cap 109
Fuel tank 31, 109
Fuel cut-off/priming 110
Boot, tailgate 25
Parking sensors 87
Towing, lifting 131
Towbar 103-104
Brakes 86, 88-89
ABS, EBFD 88
ASR, ESP 89
Tyre under-infl ation detection 90 Opening/closing doors 23-24
Locks 18
Opening/closing the bonnet 111
Electric child lock 25


Wiper blade 46, 130
Door mirror 82
Front lamps/foglamps,
direction indicators 43-45
Headlamp beam
height adjustment 45
Headlamp wash 46, 114
Changing front bulbs 121-122 Very cold climate screen 106 Key, starting, battery 18-21, 42
Central locking 18, 23
Alarm 22



EXTERIOR


Infl ating, pressure 17
Tyres, pressure 17
