EASE OF USE and COMFORT
3
79


Practical information

REAR INTERIOR LAYOUT


5. Storage compartment
11. Luggage retaining net "octopus"
position
Secure the net's four hooks in their
stowing rings on the fl oor.
1. Access handle

2. Grab handle and coat hook

3. Door tray with storage for a can
and a bottle of water or for the
portable bin with ashtray

4. High load retaining net fastenings
Open the covers of the upper
fastenings in row 3.
Install the ends of the metal bar in
these fastenings.
Secure the two tray strap hooks in the
stowing rings on the fl oor.
Pull the two straps taut.
Secure the two hooks on the elastic
parts of the tray in these rings.
The rings are located directly below the
corresponding upper fastenings.
6. Can holder

7. Storage compartment

8. Bottle holder or portable bin with
ashtray

9. Luggage retaining net "hammock"
position fastenings
Fold the net in two.
Secure the two centre hooks in the
stowing rings on the fl oor.
Secure the net's remaining four hooks
on the tailgate pillars.

10.
12 V socket for accessories (120 W)

This permits the connection of a mobile
telephone charger, a baby's bottle
warmer, ...
12. Load space cover
(5 seat version)
To install it:


- position one end of the roller in
row 2,

- compress the opposite end of the
roller and position it,

- release it to allow it to engage,

- unroll the cover as far as the pillars,

- secure the two hooks on the pillars,
To remove it:


- pull the cover towards you to
detach it from its fastenings,

- return the cover into its roller,

- compress it and remove it from its
support in row 2.


13. Rear shelf with umbrella holder
(7-8 seat version)
To remove the shelf:


- pull it rearward

- lift it slightly, then remove it
To install it:


- tilt it forwards slightly,

- push to engage it in its fastenings.

104


Towing a trailer

On the contrary, use a high gear to
lower the engine speed and reduce
your speed.
In all cases, pay attention to the
coolant temperature.
Brakes:
towing increases the braking
distance. Drive at a moderate speed,
change down early and brake
gradually. Please contact a PEUGEOT dealer
fi rst for further information.


Automatic adjustment
For vehicles with Xenon bulbs, and if
the change in load makes it necessary,
this system automatically corrects the
height of the beam after approximately
2 minutes. The driver is then assured
of having optimum lighting and not
causing a nuisance to other road
users.


In certain cases of particularly
arduous use (towing the
maximum load up a steep slope
in high temperatures), the engine
automatically limits its power. In this
case, cutting off the air conditioning
allows the engine power to be
recovered, and therefore the towing
speed to be signifi cantly increased
(approximately 12 mph [20 km/h]
more). Sequential control of the
gearbox may also become unavailable.

Lighting

Bicycle carrier

Refer to the "Identifi cation
features" section of chapter 8. Refer to the "Steering wheel
controls" section of chapter 3.




When using a trailer connection,
you must add a fuse. Refer to
the "Changing a fuse" section of
chapter 7.
If the coolant temperature warning light
comes on, stop the vehicle and switch
off the engine as soon as possible.

Tyres:
check the tyre pressures of
the towing vehicle and of the trailer,
observing the recommended pressure.
Side wind:
sensitivity to side wind is
increased. Drive smoothly and at a
moderate speed.






Towbar

We recommend the use of original
PEUGEOT towbars, which have been
tested for endurance from the design
stage of your vehicle.
Towing equipment must be fi tted in
accordance with the manufacturer's
instructions, with particular attention to
the towing capacities of your vehicle,
the load towed, the nose weight and
the electrical connection. As this fi tting
should be carried out by a professional,
we recommend that you entrust the
fi tting of this equipment to a PEUGEOT
dealer.
In accordance with the general
instructions referred to above, we draw
your attention to the risk connected
with fi tting a towbar or other electrical
accessory which is not recommended
by the PEUGEOT network. Fitting such
equipment could result in a failure of
your vehicle's electronic system.
Manual adjustment
Adjust your headlamps so as not to
dazzle other road users. Check the
electrical signalling of the trailer.
If you fi t a bicycle carrier on
the tailgate, deactivate the
rear wiper from the display's
confi guration menu.

107


Other accessories

ACCESSORIES
5





OTHER ACCESSORIES

These accessories and parts, after
being tested and approved for reliability
and safety, are all adapted to your
vehicle. A wide choice of recommended
accessories and original parts is offered
by the PEUGEOT Marque. To avoid any jamming under the
pedals:


- ensure that the mat and its fi xings
are positioned correctly,

- never place one mat on top of
another.


Compatible portable equipment
For the hands-free kit audio
equipment, the fi tting of an RCA
auxiliary socket is offered specifi cally
by the Network.
The audio cable for connection to
the auxiliary socket (RCA yellow-red
located in the glove box) is also offered
by the network.
Following connection of the cable and
selection of the AUX mode, via the
source button, your portable equipment
is ready to operate.
Set the portable equipment to half
volume to avoid saturating the audio
system sound. Then use the audio
system volume button.
Audio systems, telephone,
hands-free kit, speakers, CD
changer, navigation system,
DVD player, ...

Alloy wheels, trims,
aluminium interior trim kit,
mud fl aps, ...
Seat covers compatible with
side airbags, mats, boot tray,
sunroof, luggage net, door
defl ectors, cool box secured
on the slides, clip armrest, load
carrying roof bars, roof box,
snow chains, ski carrier, tailgate
bicycle carrier, interior bicycle carrier,
booster seats and child seats, Isofi x
seats, side sun blinds and rear blind, ...
Trailer towbar which must be fi tted by a
PEUGEOT dealer.
The fi tting of electrical equipment
or accessories which are not
recommended by PEUGEOT
may result in a failure of your vehicle’s
electronic system.
Please note this specifi c warning. You
are advised to contact a representative
of the Marque to be shown the range
of recommended equipment or
accessories.
Depending on the country in which
the vehicle is sold, it is compulsory to
have a safety jacket, warning triangle
and replacement bulbs available in the
vehicle.
Screenwash, interior and
exterior maintenance
and cleaning products,
replacement bulbs, ...
When using a tailgate bicycle
carrier, deactivate the rear
wiper from the display
confi guration menu.
Before installing a radiocommunication
transmitter with aerial, contact a
PEUGEOT dealer who will inform you
of the specifi cations of the transmitters
which can be fi tted, in accordance with
the Motor Vehicle Electromagnetic
Compatibility Directive (2004/104/EC).

A further range is also available,
structured around comfort, leisure and
maintenance:

Anti-theft alarm, window
engraving,
fi rst aid kit, safety
jacket, rear parking assistance,
warning triangle, ...

122


Changing a bulb



Rear lights



1.
Direction indicators

PY 21 W (amber).

2.
Brake/side lights

P 21 W/5 W.

3.
Reversing lights

P 21 W.

4.
Fog lamps

P 21 W.
5 - Direction indicators
PY 21 W (amber).


- Turn the bulb holder a quarter of a
turn to the left and remove it.

- Change the bulb.


The headlamps are fi tted with
polycarbonate glass with a
protective coating. Do not clean
them with a dry or abrasive cloth, nor
with a detergent or solvent product.
Use a sponge and soapy water.
In certain climatic conditions (low
temperature, humidity), condensation
inside the headlamp glass is normal;
it disappears a few minutes after the
lights are switched on.
Direction indicator side repeaters
WY 5 W (amber).


- Push the repeater rearwards and
release it from the mirror.

- Hold the connector and turn the
bulb holder a quarter of a turn to
the left.

- Turn the bulb a quarter of a turn to
the left, remove it and change it.
When refi tting, engage the repeater
towards the rear and move it towards
the front of the mirror.


Amber coloured bulbs (direction
indicators and side repeaters)
must be changed for bulbs of
identical specifi cation and colour.
These 4 bulbs are changed from inside
the vehicle:


- open the tailgate,

- remove the air extraction grille on
the side concerned,

- unclip the light harness,

123
QUICK HELP
7


Changing a bulb

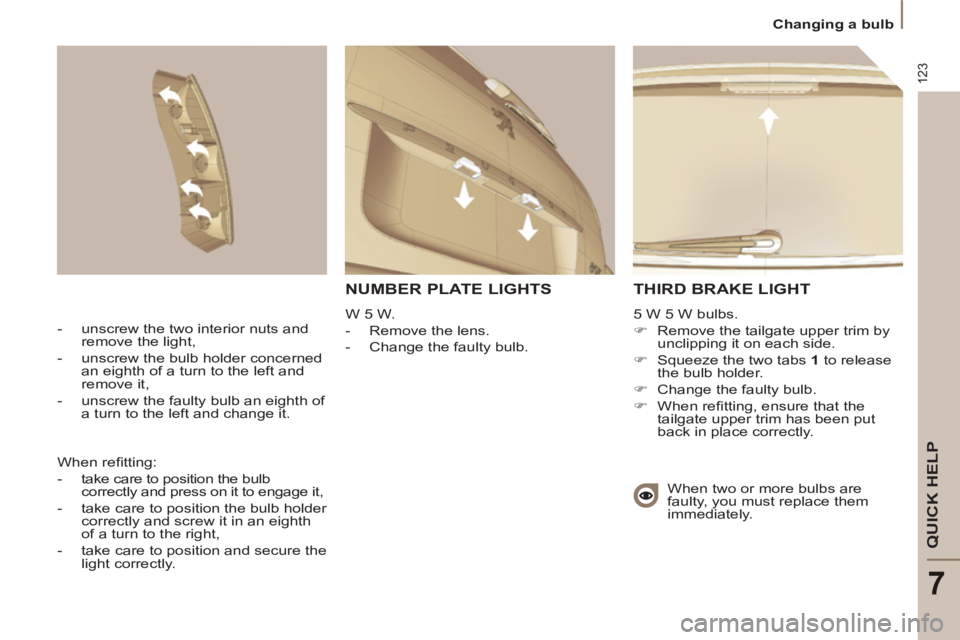

THIRD BRAKE LIGHT

5 W 5 W bulbs.


)
Remove the tailgate upper trim by
unclipping it on each side.

)
Squeeze the two tabs 1
to release
the bulb holder.

)
Change the faulty bulb.

)
When refi tting, ensure that the
tailgate upper trim has been put
back in place correctly.
- unscrew the two interior nuts and
remove the light,

- unscrew the bulb holder concerned
an eighth of a turn to the left and
remove it,

- unscrew the faulty bulb an eighth of
a turn to the left and change it.
When two or more bulbs are
faulty, you must replace them
immediately. When refi tting:


- take care to position the bulb
correctly and press on it to engage it,

- take care to position the bulb holder
correctly and screw it in an eighth
of a turn to the right,

- take care to position and secure the
light correctly.



NUMBER PLATE LIGHTS

W 5 W.


- Remove the lens.

- Change the faulty bulb.

139
VISUAL SEARCH
10
Exterior
Spare wheel, jack, changing,
fi tting 117-120 Rear lamps, direction indicators,
3rd brake lamp 43-45, 123
Changing rear bulbs 122-123 Accessories 107
Sun roof 26
Roof bars 105
Fuel fi ller cap 109
Fuel tank 31, 109
Fuel cut-off/priming 110
Boot, tailgate 25
Parking sensors 87
Towing, lifting 131
Towbar 103-104
Brakes 86, 88-89
ABS, EBFD 88
ASR, ESP 89
Tyre under-infl ation detection 90 Opening/closing doors 23-24
Locks 18
Opening/closing the bonnet 111
Electric child lock 25


Wiper blade 46, 130
Door mirror 82
Front lamps/foglamps,
direction indicators 43-45
Headlamp beam
height adjustment 45
Headlamp wash 46, 114
Changing front bulbs 121-122 Very cold climate screen 106 Key, starting, battery 18-21, 42
Central locking 18, 23
Alarm 22



EXTERIOR


Infl ating, pressure 17
Tyres, pressure 17

140


Interior


Rear fi ttings 78-79


- stowing rings,

- storage tray,

- load space cover,

- hooks,

- luggage retaining net,

- grab handle,

- coat hook,

- bottle/can holder,

- accessories socket. Boot, tailgate 25
Rear windows 84
Side blinds 81 Front seats 59-63, 75


- head restraint,

- electric controls,

- manual controls. Courtesy lamp, interior lighting 80
Seat belts 91-92
Airbags 93-96
Battery 116
Battery fuses 126-127
Economy mode 116
Front fi ttings 76-77


- storage tray,

- glove box,

- cooled compartment,

- bottle/cup holder,

- accessories socket,

- mat,

- storage compartment.
Isofi x mountings 98-99
Electric child lock 25


Rear seats, bench seat 64-70


- head restraint,

- writing table.
Child seats 97-102
Confi guration, modularity 71-73

INTERIOR
