2013 PEUGEOT 3008 service interval

39
IN
S
Following this operation, if you
wish to disconnect the battery,
lock the vehicle and wait at
least fi ve minutes for the zero reset
to be taken into account.






Service indicator zero reset
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows:


)
switch off the ignition,

)
press and hold the trip distance re-
corder zero reset button,

)
switch on the ignition; the distance
recorder display begins a count-
down,

)
when the display indicates "=0"
, re-
lease the button; the spanner disap-
pears.
The distance remaining may
be weighted by the time fac-
tor, depending on the driving
conditions.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.

Service overdue
For 5 seconds after the ignition is
switched on, the spanner fl ashes
to
indicate that the service must be carried
out as soon as possible.

Example:
the service is overdue by
186 miles (300 km).
For 5 seconds after the ignition is
switched on, the screen indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains on
.
Retrieving the service information
You can access the service information
at any time.


)
Press the trip distance recorder zero
reset button.
The service information is displayed
for a few seconds, then disappears.

171
CHECKS
CHECKING LEVELS
















Oil level



The check is carried out either
when the ignition is switched on
using the oil level indicator on
the instrument panel, or using
the dipstick.
It will only be correct if the vehicle is on
level ground and the engine has been
off for more than 30 minutes.
It is normal to top up the oil level be-
tween two services (or oil changes).
PEUGEOT recommends that you check
the level, and top up if necessary, every
3 000 miles (5 000 kms).
Take care when working under
the bonnet, as certain areas of
the engine may be extremely
hot (risk of burns) and the cooling fan
could start at any time (even with the
ignition off).

If a level drops signifi cantly, have the
corresponding system checked by a
PEUGEOT dealer or a qualifi ed work-
shop.
Check all of these levels regularly, in line
with the servicing booklet and the re-
quirements of the warranty. Top them up
if necessary, unless otherwise indicated.
After topping up the oil, the
check when switching on the
ignition with the oil level indi-
cator in the instrument panel
is not valid during the 30 minutes
after topping up.

Engine oil change
Refer to the servicing booklet for details
of the interval for this operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.











Power steering fluid level

The power steering fl uid level
should be close to the "MAX"
mark. With the engine cold, un-
screw the cap to check the level.
Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations and
meet the DOT3 or DOT4 standard.

Changing the fl uid
Refer to the servicing booklet for details
of the interval for this operation. The brake fl uid level should be
close to the "MAX" mark. If it is
not, check the brake pad wear.










Brake fluid level


Oil specifi cation
The oil must be the correct grade for
your engine and conform to the manu-
facturer's recommendations.

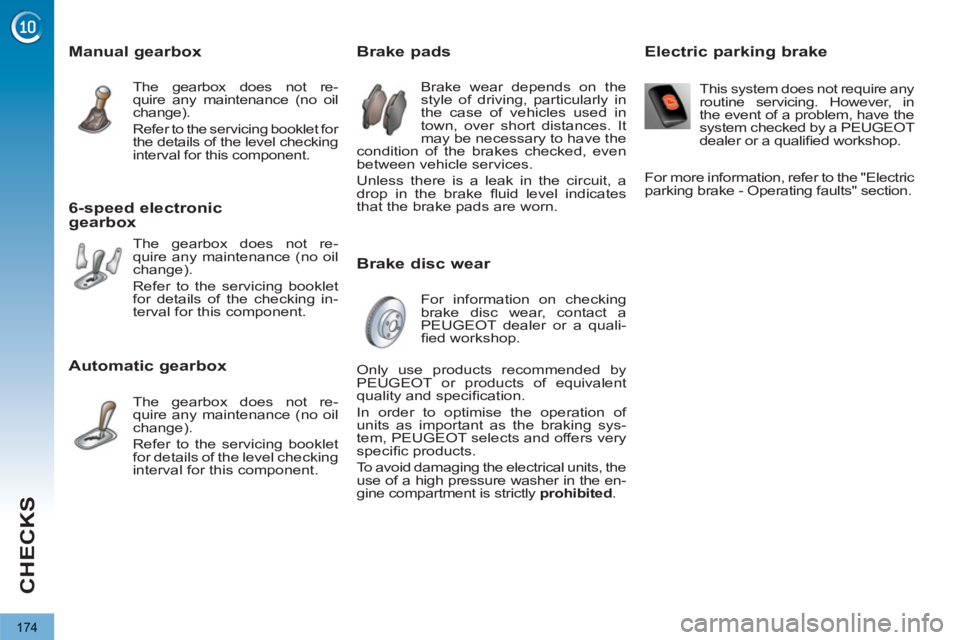

174
CHECKS

Brake disc wear














Brake pads

Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak in the circuit, a
drop in the brake fl uid level indicates
that the brake pads are worn.
For information on checking
brake disc wear, contact a
PEUGEOT dealer or a quali-
fi ed workshop.







Manual gearbox

The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the servicing booklet for
the details of the level checking
interval for this component.







6-speed electronic
gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the servicing booklet
for details of the checking in-
terval for this component.







Automatic gearbox

The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the servicing booklet
for details of the level checking
interval for this component. This system does not require any
routine servicing. However, in
the event of a problem, have the
system checked by a PEUGEOT
dealer or a qualifi ed workshop.
















Electric parking brake


For more information, refer to the "Electric
parking brake - Operating faults" section.























Only use products recommended by
PEUGEOT or products of equivalent
quality and specifi cation.
In order to optimise the operation of
units as important as the braking sys-
tem, PEUGEOT selects and offers very
specifi c products.
To avoid damaging the electrical units, the
use of a high pressure washer in the en-
gine compartment is strictly prohibited
.
