2013 PEUGEOT 3008 navigation

CONTENTS
FAMILIARISATION 4-26
INSTRUMENTS and
CONTROLS 27-41CHILDSAFETY 112-123
MULTIFUNCTION
SCREENS42-55SAFETY 124-136
COMFORT 56-71
ACCESS 72-86
VISIBILITY 87-98
FITTINGS 99-111
Instrument panels 27Indicator and warning lamps 29Indicators 37Adjustment buttons 41
Child seats 112ISOFIX child seats 120Child lock 123
Screen A without audio equipment4t2Screen A with audio equipment 44Screen C (Peugeot Connect Sound (RD5))4616/9 retractable colour screen(Peugeot Connect Navigation (RT6) or Peugeot Connect Media
Navigation (NG4 3D)) 49Trip computer 52
Direction indicators 124Hazard warning lamps 124Horn 124Tyre under-inflation detection 125ESC system 126Grip control 128Front seat belts 130Airbags 133
Heating and Ventilation 56Manual air conditioning 58Rear screen demist - defrost 59Dual-zone digital air conditioning 60Front seats 63Rear seats 67Mirrors 69Steering wheel adjustment 71
Remote control key 72Alarm 77Electric windows 79Doors 81Boot 83Lower tailgate 84Fuel tank 85Misfuel prevention (Diesel) 86
Lighting controls 87LED lamps 89Automatic illumination ofheadlamps 90Headlamp adjustment 91Directional lighting 92Wiper controls 93Automatic rain sensitive wipers 95Courtesy lamps 96Interior mood lighting 97
Interior fittings 99Front armrest 101Rear multimedia 103Panoramic sunroof 105Boot fittings 106
ECO-DRIVING 25

CONTENTS
ALPHABETICAL
INDEX 337-341
DRIVING 137-165
CHECKS 166-17
4
PRACTICAL
INFORMATION 175-206
TECHNICALDATA 207-214
AUDIO EQUIPMENT andTELEMATICS 215-336
Electric parking brake 137Hill start assist 142Head-up display 145Distance alert 147Speed limiter 149Cruise control 151Manual gearbox 153Gear shift indicator 1536-speed electronic gear control gearbox 154Automatic gearbox 158Stop & Start 161Parking sensors 164
Bonnet 167Running out of fuel (Diesel) 168Petrol engines 169Diesel engines 170Checking levels 171Checks 173
Temporary puncture repair kit 175Changing a wheel 181Changing a bulb 186Changing a fuse 19112 V battery 198Energy economy mode 201Changing a wiper blade 202
Towing the vehicle 202Towing a trailer 204Fitting roof bars 205Very cold climate screen 205Accessories 206
Petrol engines 207Petrol weights 208Diesel engines 209Diesel weights 210Dimensions 212
Identification markings 213
Emergency or assistance 215Peugeot Connect Media
Navigation (NG4 3D) 219Peugeot Connect Navigation (RT6)263Peugeot Connect Sound (RD5) 317
VISUAL
SEARCH 342-348

8
INTERIOR


Electric parking brake
This combines the functions of auto-
matic application
on switching off the
engine and automatic release
on accel-
eration.
Manual application/release is possible.
137

Audio and communication systems
These systems benefi t from the latest tech-
nology: MP3 compatible Peugeot Connect
Sound (RD5), Peugeot Connect USB, Blue-
tooth, Peugeot Connect Media Navigation
(NG4 3D) or Peugeot Connect Navigation
(RT6) with 16/9 retractable colour screen,
JBL audio system, auxiliary sockets.
219
Head-up display
This system projects certain information
into the fi eld of vision of the driver: speed,
cruise control/speed limiter and Distance
alert.
145

Dual-zone digital air conditioning
This systems allows different levels of
comfort to be set for the driver and front
passenger. It then controls these level
automatically according to the ambient
conditions.
60 Peugeot Connect
Navigation (RT6) 263
317
Peugeot Connect
Sound (RD5)

Peugeot Connect Media
Navigation (NG4 3D) Peugeot Connect USB
242,
298,
324
247,
285,
327 Bluetooth
PEUGEOT
Assistance 216

IN
S

Screen(s)


A.
Speed limiter

or
Cruise control.

(mph or km/h)

B.
Trip distance recorder.

(miles or km)
C.
Service indicator.

(miles or km) or,
Engine oil level indicator.

or
distance recorder.

(miles or km)

D.
6-speed electronic gear control
or automatic gearbox.


E.
Warning messages and function
status messages, trip computer,
GPS navigation information.




Instrument panel navigator

This group of buttons permits:


- When stationary
, confi guration of the
vehicle's equipment and the screen
settings (languages, units...),

- While driving
, scrolling of the active
functions (trip computer, navigation...).
Controls
There are four buttons to control the
screen in the instrument panel:


1.
Access the main menu, confi rm the
selection.

2.
Move up through the menu.

3.
Move down through the menu.

4.
Return to the previous display, exit
from the menu.

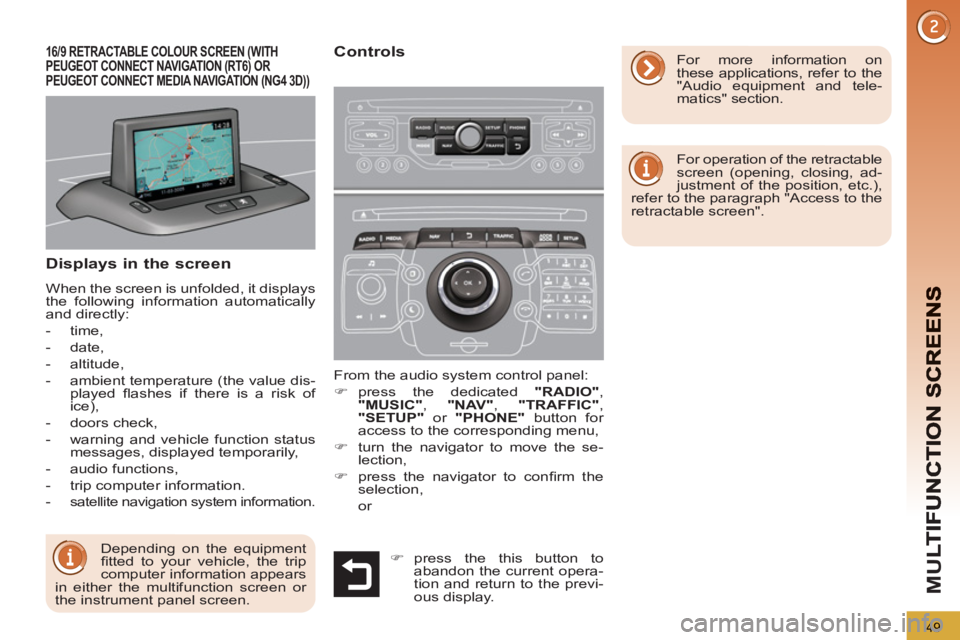

49
M
U
Displays in the screen
When the screen is unfolded, it displays
the following information automatically
and directly:


- time,

- date,

- altitude,

- ambient temperature (the value dis-
played fl ashes if there is a risk of
ice),

- doors check,

- warning and vehicle function status
messages, displayed temporarily,

- audio functions,

- trip computer information.

-
satellite navigation system information.

From the audio system control panel:


)
press the dedicated "RADIO"
,
"MUSIC"
, "NAV"
, "TRAFFIC"
,
"SETUP"
or "PHONE"
button for
access to the corresponding menu,

)
turn the navigator to move the se-
lection,

)
press the navigator to confi rm the
selection,
or
16/9 RETRACTABLE COLOUR SCREEN (WITH PEUGEOT CONNECT NAVIGATION (RT6) ORPEUGEOT CONNECT MEDIA NAVIGATION (NG4 3D))

Controls


For operation of the retractable
screen (opening, closing, ad-
justment of the position, etc.),
refer to the paragraph "Access to the
retractable screen".

For more information on
these applications, refer to the
"Audio equipment and tele-
matics" section.

Depending on the equipment
fi tted to your vehicle, the trip
computer information appears
in either the multifunction screen or
the instrument panel screen.

)
press the this button to
abandon the current opera-
tion and return to the previ-
ous display.

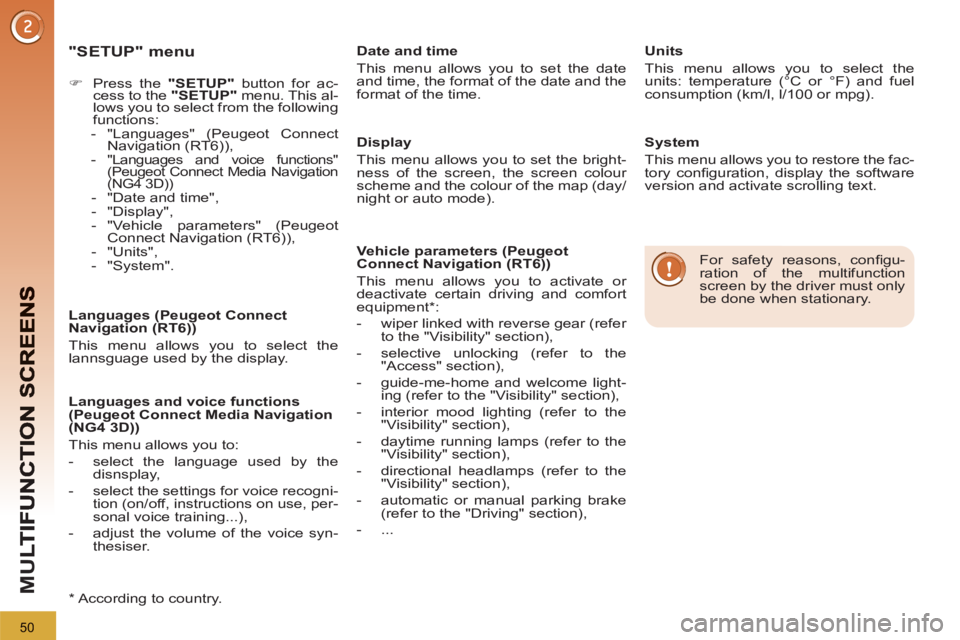

50
M
U

"SETUP" menu




)
Press the "SETUP"
button for ac-
cess to the "SETUP"
menu. This al-
lows you to select from the following
functions:


- "Languages" (Peugeot Connect
Navigation (RT6)),

-
"Languages and voice functions"
(Peugeot Connect Media Navigation
(NG4 3D))

- "Date and time",

- "Display",

- "Vehicle parameters" (Peugeot
Connect Navigation (RT6)),

- "Units",

- "System".



Languages (Peugeot Connect
Navigation (RT6))
This menu allows you to select the
lannsguage used by the display.

Languages and voice functions
(Peugeot Connect Media Navigation
(NG4 3D))
This menu allows you to:


- select the language used by the
disnsplay,

- select the settings for voice recogni-
tion (on/off, instructions on use, per-
sonal voice training...),

- adjust the volume of the voice syn-
thesiser.

Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time.

Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).

Vehicle parameters (Peugeot
Connect Navigation (RT6))
This menu allows you to activate or
deactivate certain driving and comfort
equipment * :


- wiper linked with reverse gear (refer
to the "Visibility" section),

- selective unlocking (refer to the
"Access" section),

- guide-me-home and welcome light-
ing (refer to the "Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- automatic or manual parking brake
(refer to the "Driving" section),

- ...


For safety reasons, confi gu-
ration of the multifunction
screen by the driver must only
be done when stationary.



Units
This menu allows you to select the
units: temperature (°C or °F) and fuel
consumption (km/l, l/100 or mpg).

System
This menu allows you to restore the fac-
tory confi guration, display the software
version and activate scrolling text.

*
According to country.

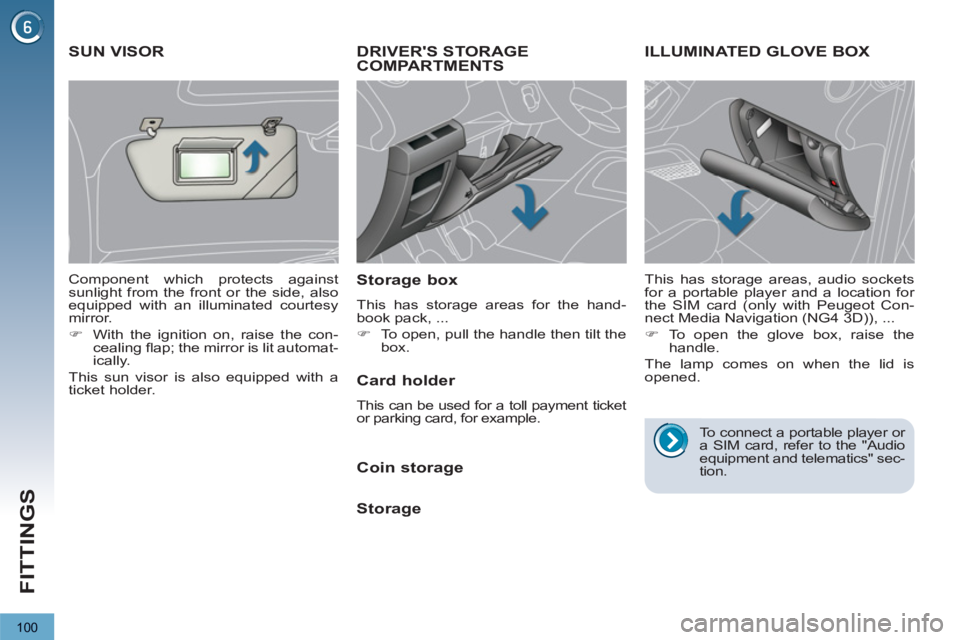

100
FITTINGS
DRIVER'S STORAGE
COMPARTMENTS

Storage box

This has storage areas for the hand-
book pack, ...


)
To open, pull the handle then tilt the
box.

ILLUMINATED GLOVE BOX


This has storage areas, audio sockets
for a portable player and a location for
the SIM card (only with Peugeot Con-
nect Media Navigation (NG4 3D)), ...


)
To open the glove box, raise the
handle.
The lamp comes on when the lid is
opened.
SUN VISOR

Component which protects against
sunlight from the front or the side, also
equipped with an illuminated courtesy
mirror.


)
With the ignition on, raise the con-
cealing fl ap; the mirror is lit automat-
ically.
This sun visor is also equipped with a
ticket holder.

Card holder

This can be used for a toll payment ticket
or parking card, for example.


Coin storage

Storage


To connect a portable player or
a SIM card, refer to the "Audio
equipment and telematics" sec-
tion.

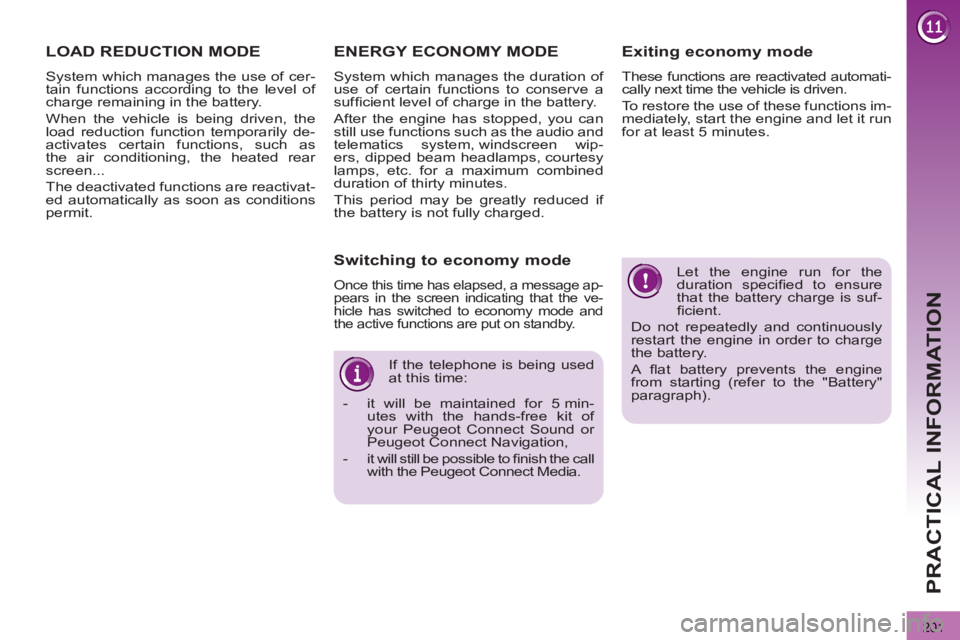

201
PRACTICAL INFORMATION
Let the engine run for the
duration specifi ed to ensure
that the battery charge is suf-
fi cient.
Do not repeatedly and continuously
restart the engine in order to charge
the battery.
A fl at battery prevents the engine
from starting (refer to the "Battery"
paragraph). If the telephone is being used
at this time:


- it will be maintained for 5 min-
utes with the hands-free kit of
your Peugeot Connect Sound or
Peugeot Connect Navigation,

- it will still be possible to fi nish the call
with the Peugeot Connect Media.



Exiting economy mode

These functions are reactivated automati-
cally next time the vehicle is driven.
To restore the use of these functions im-
mediately, start the engine and let it run
for at least 5 minutes.
LOAD REDUCTION MODE
System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily de-
activates certain functions, such as
the air conditioning, the heated rear
screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
suffi cient level of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio and
telematics system, windscreen wip-
ers, dipped beam headlamps, courtesy
lamps, etc. for a maximum combined
duration of thirty minutes.
This period may be greatly reduced if
the battery is not fully charged.

Switching to economy mode

Once this time has elapsed, a message ap-
pears in the screen indicating that the ve-
hicle has switched to economy mode and
the active functions are put on standby.
