2013 NISSAN XTERRA tow

1. Engine hood (P. 3-9)
2. Windshield wiper and washer switch(P. 2-26)
3. Windshield (P. 8-20)
4. Power windows (P. 2-47)
5. Door locks, keyfob, keys
(P. 3-3, 3-5, 3-2)
6. Mirrors (P. 3-14)
7. Tire pressure (P. 8-34)
8. Flat tire (P. 6-3)
9. Tire chains (P. 5-38)
10. Replacing bulbs (P. 8-29)
11. Headlight and turn signal switch
(P. 2-28)
12. Fog light switch (if so equipped)
(P. 2-31)
13. Tow hooks (if so equipped) (P.6-14)
See the page number indicated in paren-
theses for operating details.
WII0058
EXTERIOR FRONT
Illustrated table of contents0-3

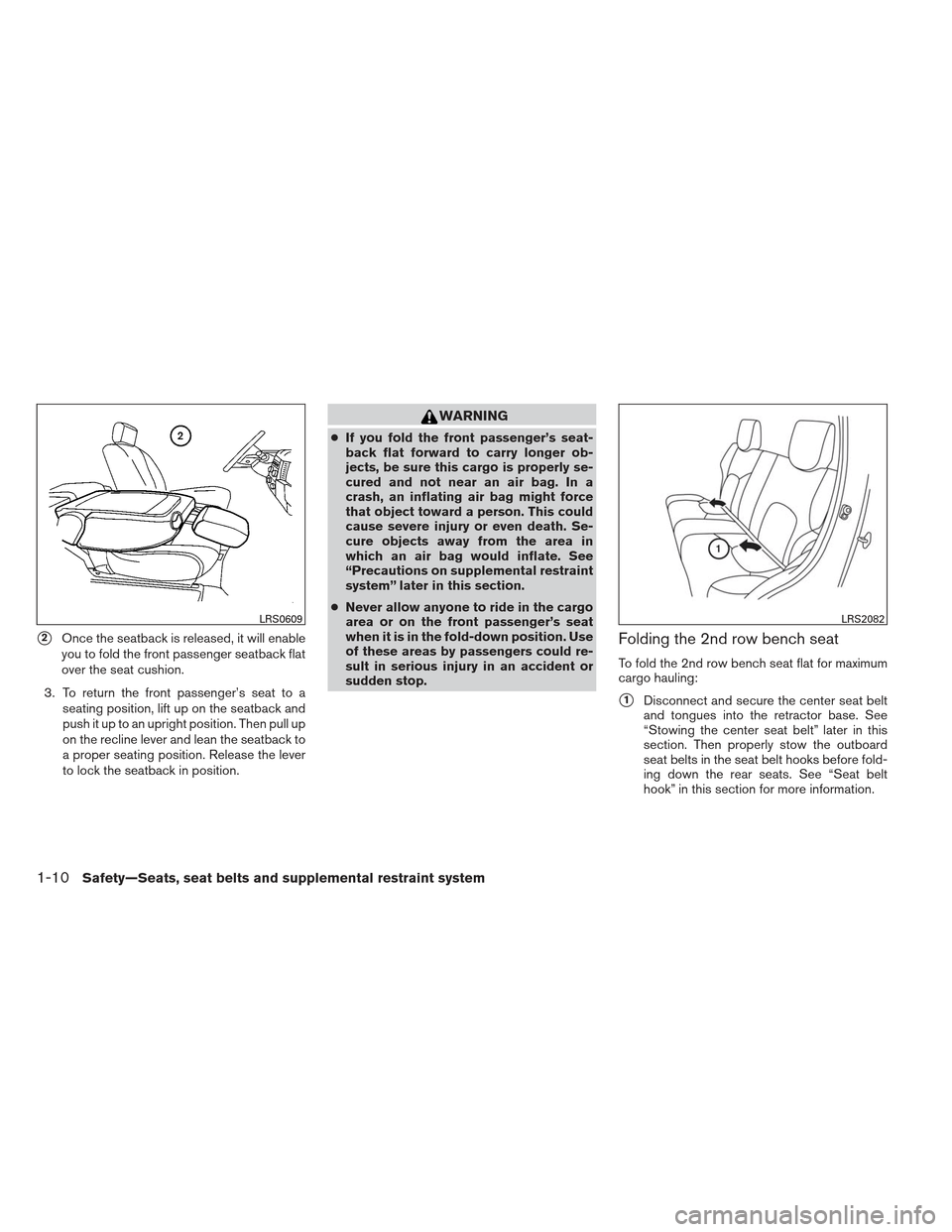

2Once the seatback is released, it will enable
you to fold the front passenger seatback flat
over the seat cushion.
3. To return the front passenger’s seat to a seating position, lift up on the seatback and
push it up to an upright position. Then pull up
on the recline lever and lean the seatback to
a proper seating position. Release the lever
to lock the seatback in position.
WARNING
●If you fold the front passenger’s seat-
back flat forward to carry longer ob-
jects, be sure this cargo is properly se-
cured and not near an air bag. In a
crash, an inflating air bag might force
that object toward a person. This could
cause severe injury or even death. Se-
cure objects away from the area in
which an air bag would inflate. See
“Precautions on supplemental restraint
system” later in this section.
● Never allow anyone to ride in the cargo
area or on the front passenger’s seat
when it is in the fold-down position. Use
of these areas by passengers could re-
sult in serious injury in an accident or
sudden stop.
Folding the 2nd row bench seat
To fold the 2nd row bench seat flat for maximum
cargo hauling:
1Disconnect and secure the center seat belt
and tongues into the retractor base. See
“Stowing the center seat belt” later in this
section. Then properly stow the outboard
seat belts in the seat belt hooks before fold-
ing down the rear seats. See “Seat belt
hook” in this section for more information.
LRS0609LRS2082
1-10Safety—Seats, seat belts and supplemental restraint system

The headrests must be removed before fold-
ing down the seatbacks. To remove the
headrests, push and hold the lock knob
while moving the headrest in an upward
direction. Store the headrest properly so it is
not loose in the vehicle.
Pull the strap forward, located in the center
of each seat cushion, and fold each seat
cushion toward the front of the vehicle.
2Then pull the straps located on the outside
edge of each seatback to fold the seatbacks
forward.3This provides a level cargo floor.
LRS2083LRS2084
Safety—Seats, seat belts and supplemental restraint system1-11

4To return the bench seats to a seating posi-
tion, reverse this process. Raise the seat-
backs to an upright position. Make
sure to hold the seat belts above the
seat cushion, then push the seat cush-
ion down into place.
5. To return the headrest to the normal position, align the headrest stalks with the holes in the
seat. Push and hold the lock knob and push
the headrest down until it locks in place.Removing the 2nd row bench seat
cushions
The rear seat cushion can be removed to provide
additional space when folding the 2nd row seat-
backs flat. To remove the 2nd row bench seat
cushions:
1. Pull the straps forward, located in the center of each seat cushion, to fold the seat cush-
ions forward.
2. Lift up and fold each of the red release handles on the seat base toward the front of
the vehicle. This will release the seat cushion
from the seat base. 3. Then lift up on the seat cushion to remove it
from the seat base. Be sure to store it in a
secure place.
To return the rear seatback to a seating position: 1. Push the anchor bars on the bottom of the seat cushions down into the seat base.
2. Rotate the seat cushion toward the rear of the vehicle and push down until they are
folded flat to secure each seat cushion to the
seat base. Make sure to hold the seat
belts above the seat cushion and prop-
erly push the seat cushion down into
place.
WARNING
● Never allow anyone to ride in the cargo
area or on the rear seat when it is in the
fold-down position. Use of these areas
by passengers without proper restraints
could result in serious injury in an acci-
dent or sudden stop.
● Do not allow people to ride in any area
of your vehicle that is not equipped with
seats and seat belts. Be sure everyone
in your vehicle is in a seat and using a
seat belt properly. Never ride in the rear
seat unless the seat bottom cushions
are in place and latched.
LRS0580LRS2085
1-12Safety—Seats, seat belts and supplemental restraint system

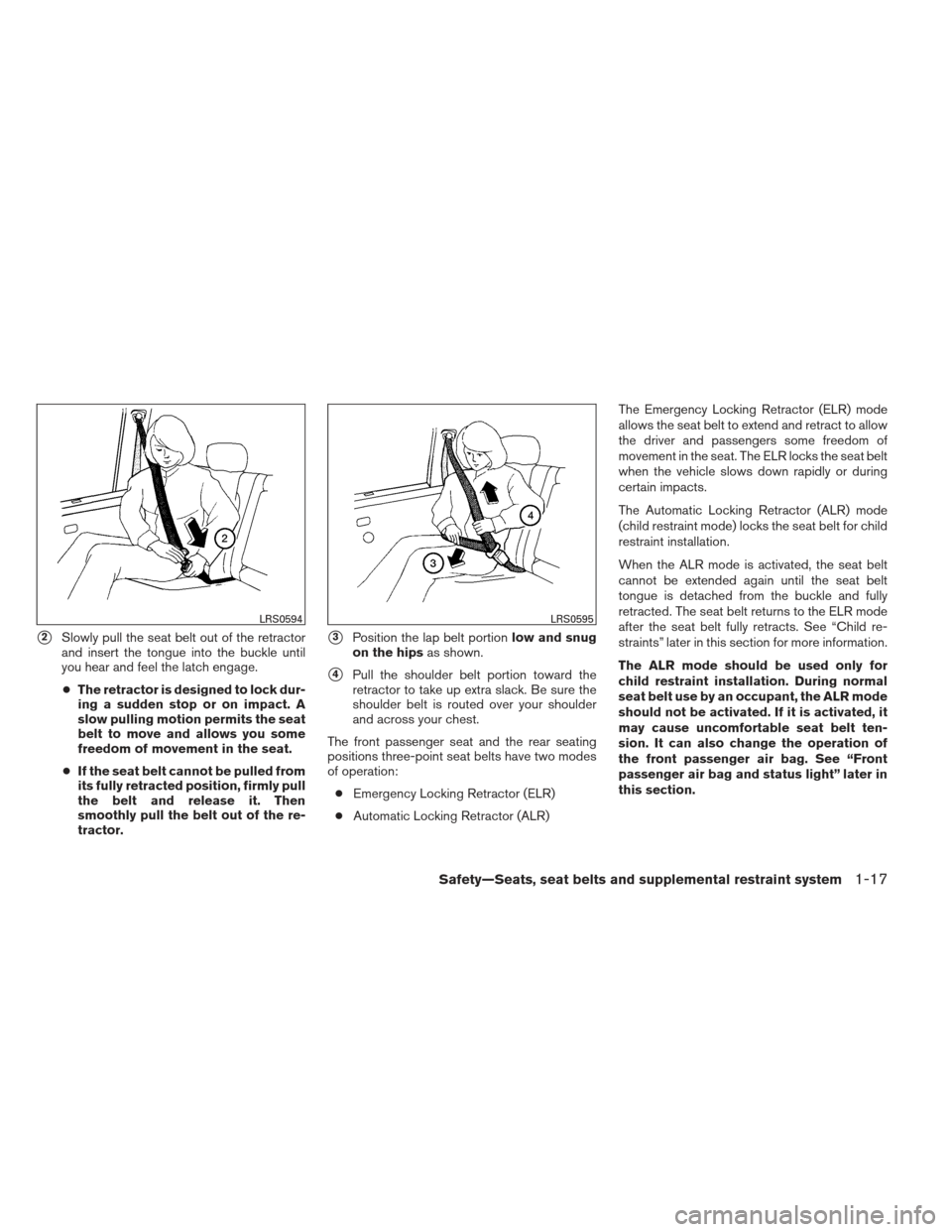

2Slowly pull the seat belt out of the retractor
and insert the tongue into the buckle until
you hear and feel the latch engage.
● The retractor is designed to lock dur-
ing a sudden stop or on impact. A
slow pulling motion permits the seat
belt to move and allows you some
freedom of movement in the seat.
● If the seat belt cannot be pulled from
its fully retracted position, firmly pull
the belt and release it. Then
smoothly pull the belt out of the re-
tractor.3Position the lap belt portion low and snug
on the hips as shown.
4Pull the shoulder belt portion toward the
retractor to take up extra slack. Be sure the
shoulder belt is routed over your shoulder
and across your chest.
The front passenger seat and the rear seating
positions three-point seat belts have two modes
of operation: ● Emergency Locking Retractor (ELR)
● Automatic Locking Retractor (ALR) The Emergency Locking Retractor (ELR) mode
allows the seat belt to extend and retract to allow
the driver and passengers some freedom of
movement in the seat. The ELR locks the seat belt
when the vehicle slows down rapidly or during
certain impacts.
The Automatic Locking Retractor (ALR) mode
(child restraint mode) locks the seat belt for child
restraint installation.
When the ALR mode is activated, the seat belt
cannot be extended again until the seat belt
tongue is detached from the buckle and fully
retracted. The seat belt returns to the ELR mode
after the seat belt fully retracts. See “Child re-
straints” later in this section for more information.
The ALR mode should be used only for
child restraint installation. During normal
seat belt use by an occupant, the ALR mode
should not be activated. If it is activated, it
may cause uncomfortable seat belt ten-
sion. It can also change the operation of
the front passenger air bag. See “Front
passenger air bag and status light” later in
this section.
LRS0594LRS0595
Safety—Seats, seat belts and supplemental restraint system1-17

Stowing the center seat belt
When folding down the rear seat, the rear center
seat belt can be retracted into a stowed position
as follows:1. Hold the connector tongue
1so that the
seat belt does not retract suddenly when the
tongue is released from the connector
buckle.
2. Insert a suitable tool such as a key
Ainto
the connector buckle and release the con-
nector tongue
1.
3. Fold the connector as illustrated
2.
4. Then secure the connector tongue into the retractor base
3in the ceiling.
WARNING
●Do not unfasten the rear center seat
belt connector except when folding
down the rear seat.
● When attaching the rear center seat
belt connector, be certain that the seat-
backs are completely secured in the
latched position and the rear center
seat belt connector is completely
secured.
● If the rear center seat belt connector
and the seatbacks are not secured in
the correct position, serious personal
injury may result in an accident or sud-
den stop.
LRS0602
1-20Safety—Seats, seat belts and supplemental restraint system

Attaching the center seat belt
Always be sure the center seat belt connector
tongue and connector buckle are attached. Dis-
connect only when folding down the rear seat.
To connect the buckle:
1Pull out the seat belt tongue from the retrac-
tor base.
2Pull out the connector tongue from the
molded retractor base.
3Pull the seat belt and secure the receiver
buckle until it clicks.
The center seat belt connector tongue and re-
ceiver buckle are indicated by the > and < mark.
The center seat belt connector tongue can be
attached only into the rear center seat belt con-
nector buckle.
To fasten the seat belt, see “Fastening the seat
belts” earlier in this section.
WARNING
● Do not unfasten the rear center seat
belt connector except when folding
down the rear seat.
● When attaching the rear center seat
belt connector, be certain that the seat-
backs are completely secured in the
latched position and the rear center
seat belt connector is completely
secured.
● If the rear center seat belt connector
and the seatbacks are not secured in
the correct position, serious personal
injury may result in an accident or sud-
den stop.
2nd row center seat belt comfort
guide
When using the 2nd row center seat belt it may
be necessary to use the comfort guide to adjust
the shoulder belt height for occupants of different
sizes for added comfort and to help obtain proper
seat belt fit.
1. Raise the head restraint on the 2nd row driver’s side seating position. Remove the
comfort guide from the stowed position by
pulling the cord from the channel.
LRS2086
Safety—Seats, seat belts and supplemental restraint system1-21

2. Insert the shoulder belt into the back of thecomfort guide so that the seat belt lays flat in
the guide. Be sure that the comfort guide
routes the seat belt properly over the center
of your shoulder and across your chest. The
belt should be away from your face and
neck, but not falling off of your shoulder. 3. To return the seat belt comfort guide to the
stowed position, route the comfort guide
strap in the channel under the 2nd row driv-
er’s side seating position head restraint and
attach the guide in the clip.
Shoulder belt height adjustment (front
and 2nd row outboard seats)
The shoulder belt anchor height should be ad-
justed to the position best for you. (See “Precau-
tions on seat belt usage” earlier in this section.)
To adjust, pull out
1the adjustment button and
move the shoulder belt anchor
2to the desired
position so the belt passes over the center of the
shoulder. The belt should be away from your face
and neck, but not falling off your shoulder. Re-
lease the adjustment button to lock the shoulder
belt anchor into position.
LRS0610LRS2087
Front and 2nd row outboard seats
LRS0242
1-22Safety—Seats, seat belts and supplemental restraint system
