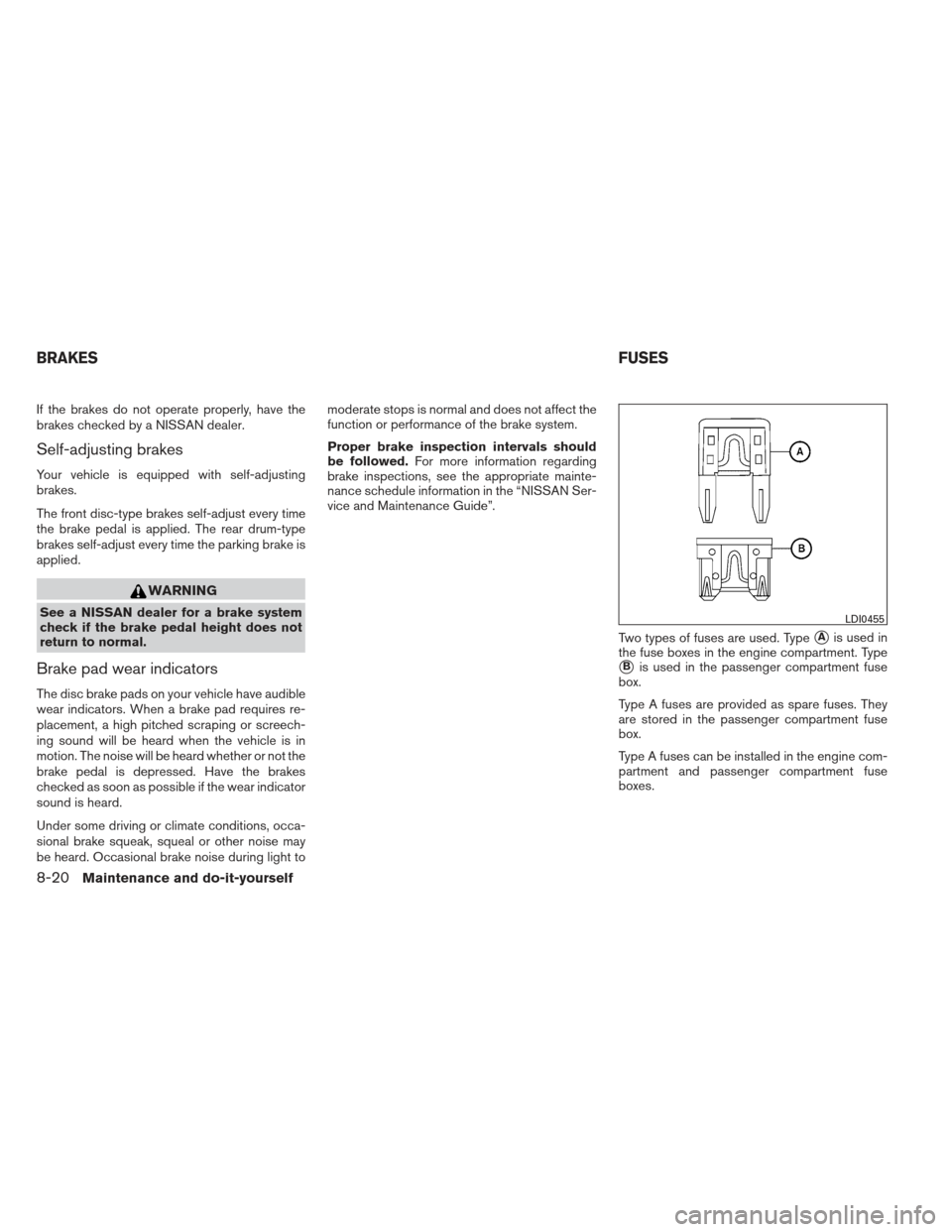

If the brakes do not operate properly, have the
brakes checked by a NISSAN dealer.
Self-adjusting brakes
Your vehicle is equipped with self-adjusting
brakes.
The front disc-type brakes self-adjust every time
the brake pedal is applied. The rear drum-type
brakes self-adjust every time the parking brake is
applied.
WARNING
See a NISSAN dealer for a brake system
check if the brake pedal height does not
return to normal.
Brake pad wear indicators
The disc brake pads on your vehicle have audible
wear indicators. When a brake pad requires re-
placement, a high pitched scraping or screech-
ing sound will be heard when the vehicle is in
motion. The noise will be heard whether or not the
brake pedal is depressed. Have the brakes
checked as soon as possible if the wear indicator
sound is heard.
Under some driving or climate conditions, occa-
sional brake squeak, squeal or other noise may
be heard. Occasional brake noise during light tomoderate stops is normal and does not affect the
function or performance of the brake system.
Proper brake inspection intervals should
be followed.
For more information regarding
brake inspections, see the appropriate mainte-
nance schedule information in the “NISSAN Ser-
vice and Maintenance Guide”.
Two types of fuses are used. Type
Ais used in
the fuse boxes in the engine compartment. Type
Bis used in the passenger compartment fuse
box.
Type A fuses are provided as spare fuses. They
are stored in the passenger compartment fuse
box.
Type A fuses can be installed in the engine com-
partment and passenger compartment fuse
boxes.
LDI0455
BRAKES FUSES
8-20Maintenance and do-it-yourself

●If a methanol blend is used, it should
contain no more than 5% methanol
(methyl alcohol, wood alcohol) . It
should also contain a suitable amount
of appropriate cosolvents and corro-
sion inhibitors. If not properly formu-
lated with appropriate cosolvents and
corrosion inhibitors, such methanol
blends may cause fuel system damage
and/or vehicle performance problems.
At this time, sufficient data is not avail-
able to ensure that all methanol blends
are suitable for use in NISSAN ve-
hicles.
If any driveability problems such as engine stall-
ing and difficult hot-starting are experienced after
using oxygenate-blend fuels, immediately
change to a non-oxygenate fuel or a fuel with a
low blend of MTBE.
Take care not to spill gasoline during refu-
eling. Gasoline containing oxygenates can
cause paint damage.
E–15 fuel
E-15 fuel is a mixture of approximately 15% fuel
ethanol and 85% unleaded gasoline. E-15 can
only be used in vehicles designed to run on E-15
fuel. Do not use E-15 in your vehicle. U.S. gov-
ernment regulations require fuel ethanol dispens-
ing pumps to be identified with small, square, orange and black label with the common abbre-
viation or the appropriate percentage for that
region.
E–85 fuel
E-85 fuel is a mixture of approximately 85% fuel
ethanol and 15% unleaded gasoline. E-85 can
only be used in a Flexible Fuel Vehicle (FFV) . Do
not use E-85 in your vehicle. U.S. government
regulations require fuel ethanol dispensing
pumps to be identified by a small, square, orange
and black label with the common abbreviation or
the appropriate percentage for that region.
Aftermarket fuel additives
NISSAN does not recommend the use of any
aftermarket fuel additives (for example, fuel injec-
tor cleaner, octane booster, intake valve deposit
removers, etc.) which are sold commercially.
Many of these additives intended for gum, varnish
or deposit removal may contain active solvents or
similar ingredients that can be harmful to the fuel
system and engine.
Octane rating tips
Using unleaded gasoline with an octane
rating lower than recommended can cause
persistent, heavy “spark knock.” (“Spark
knock” is a metallic rapping noise.) If se-
vere, this can lead to engine damage. If youdetect a persistent heavy spark knock even
when using gasoline of the stated octane
rating, or if you hear steady spark knock
while holding a steady speed on level
roads, have a NISSAN dealer correct the
condition. Failure to correct the condition
is misuse of the vehicle, for which NISSAN
is not responsible.
Incorrect ignition timing may result in spark
knock, after-run and/or overheating, which may
cause excessive fuel consumption or engine
damage. If any of the above symptoms are en-
countered, have your vehicle checked at a
NISSAN dealer.
However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is not a
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.
9-4Technical and consumer information

Due to legal requirements in some states and
Canadian Provinces, your vehicle may be re-
quired to be in what is called the “ready condi-
tion” for an Inspection/Maintenance (I/M) test of
the emission control system.
The vehicle is set to the “ready condition” when it
is driven through certain driving patterns. Usually,
the ready condition can be obtained by ordinary
usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready” condition. Before taking the
I/M test, check the vehicle’s
inspection/maintenance test readiness condi-
tion. Place the ignition switch in the ON position
without starting the engine. If the Malfunction
Indicator Light (MIL) comes on steady for 20 sec-
onds and then blinks for 10 seconds , the I/M test
condition is “not ready”. If the MIL does not blink
after 20 seconds, the I/M test condition is
“ready”. Contact a NISSAN dealer to set the
“ready condition” or to prepare the vehicle for
testing.This vehicle is equipped with an Event Data Re-
corder (EDR) . The main purpose of an EDR is to
record, in certain crash or near crash-like situa-
tions, such as an air bag deployment or hitting a
road obstacle, data that will assist in understand-
ing how a vehicle’s systems performed. The EDR
is designed to record data related to vehicle
dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this
vehicle is designed to record such data as:
● How various systems in your vehicle were
operating;
● Whether or not the driver and passenger
safety belts were buckled/fastened;
● How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
● How fast the vehicle was traveling.
● Sounds are not recorded. These data can help provide a better understand-
ing of the circumstances in which crashes and
injuries occur. NOTE: EDR data are recorded by
your vehicle only if a nontrivial crash situation
occurs; no data are recorded by the EDR under
normal driving conditions and no personal data
(e.g. name, gender, age and crash location) are
recorded. However, other parties, such as law
enforcement, could combine the EDR data with
the type of personally identifying data routinely
acquired during a crash investigation.
To read data recorded by an EDR, special equip-
ment is required and access to the vehicle or the
EDR is needed. In addition to the vehicle manu-
facturer and NISSAN dealer, other parties, such
as law enforcement, that have the special equip-
ment, can read the information if they have ac-
cess to the vehicle or the EDR. EDR data will only
be accessed with the consent of the vehicle
owner or lessee or as otherwise required or per-
mitted by law.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST
EVENT DATA RECORDERS (EDR)
Technical and consumer information9-19

10 Index
A
ABS (Anti-lock Braking System) ........5-27
Air bag (See supplemental restraint
system) .....................1-36
Air bag system Front (See supplemental front impact air bag
system) ...................1-43
Side and curtain (See supplemental
side air bag and curtain side-impact
air bag system) ...............1-48
Airbagwarninglabels.............1-50
Airbagwarninglight...........1-51,2-16
Air cleaner housing filter ............8-17
Air conditioner Air conditioner operation ..........4-16
Air conditioner service ...........4-21
Air conditioner specification label .....9-11
Air conditioner system refrigerant and
oil recommendations .............9-6
Heater and air conditioner controls ....4-14
Servicing air conditioner ..........4-21
Airflowcharts..................4-17
Anchor point locations .............1-22
Antenna.....................4-52
Anti-lock brake warning light ..........2-12
Anti-lock Braking System (ABS) ........5-27
Armrests .....................1-5
Audible reminders ...............2-19
Audio system ..................4-21
Compact disc (CD) player . .4-33, 4-36, 4-41 FM/AM radio with compact disc
(CD) player
..............4-31,4-34
FM/AM/SAT radio with compact disc
(CD) player .................4-38
Audio System iPod®Player.............4-46,4-49
Audio system Radio ....................4-21
Steering wheel audio control switch . . .4-52
USB interface ................4-44
Automatic Automatic power window switch .....2-30
Automatic transmission fluid (ATF) ....8-11
Automatic door locks ..............3-7
AUXjack..............4-33,4-37,4-43
B
Battery ......................8-13
Chargewarninglight............2-13
Before starting the engine ...........5-12
Belt (See drive belt) ..............8-16
Block heater Engine ....................5-31
Bluetooth® hands-free phone system ....4-54
Boosterseats..................1-32
Brake Anti-lock Braking System (ABS) ......5-27
Brake fluid ..................8-12
Brake light (See stop light) .........8-28
Brake system ................5-26
Brake warning light .............2-12 Brake wear indicators
........2-19,8-20
Parking brake operation ..........5-19
Self-adjusting brakes ............8-20
Brakes ......................8-20
Break-inschedule ...............5-22
Brightness/contrast button ...........4-8
Brightness control Instrument panel ..............2-24
Bulb check/instrument panel ..........2-12
Bulbreplacement................8-28
C
Capacities and recommended
fuel/lubricants ...................9-2
Cargo (See vehicle loading information) . . .9-12
CarphoneorCBradio.............4-53
CDcareandcleaning .............4-51
CD player (See audio system) . .4-33, 4-36, 4-41
Child restraints .......1-17,1-18,1-19,1-21
Precautions on child
restraints ........1-19,1-24,1-29,1-32
Top tether strap anchor point locations . .1-22
Child safety rear door lock ............3-7
Chimes,audiblereminders...........2-19
Cleaning
exterior and interior ..........7-2
Clock...................4-32,4-35
C.M.V.S.S. certification label ..........9-10
Cold weather driving ..............5-30
Compact disc (CD) player ....4-33,4-36,4-41
Continuously Variable Transmission (CVT) . .5-15

Continuously Variable Transmission
(CVT) fluid..................8-12
Driving with Continuously Variable
Transmission (CVT) .............5-15
Controlpanelbuttons...............4-2 Brightness/contrast button ..........4-8
Enterbutton..................4-2
Setting button .................4-5
Controls Audiocontrols(steeringwheel).......4-52
Heater and air conditioner controls .....4-14
Coolant Capacities and recommended
fuel/lubricants .................9-2
Changing engine coolant ...........8-8
Checking engine coolant level ........8-8
Corrosionprotection ...............7-6
Cruise control ..................5-20
Cupholders...................2-28
Curtain side-impact air bag system
(See supplemental side air bag and curtain
side-impact air bag system) ...........1-48
D
Daytime running light system (Canada only) . .2-23
Defroster switch Rear window defroster switch .......2-22
Dimensionsandweights.............9-8
Dimmer switch for instrument panel ......2-24
Display controls (see control panel buttons) . .4-2
Door locks .....................3-5
Door open warning light .............2-13
Drive belt .....................8-16 Driving
Cold weather driving ............5-30
Driving with Continuously Variable
Transmission (CVT) .............5-15
Driving with manual transmission ......5-18
Precautions when starting and driving ....5-2
E
Economy - fuel ..................5-24
Emission control information label .......9-10
Emission control system warranty .......9-17
Engine Before starting the engine ..........5-12
Block heater .................5-31
Capacities and recommended
fuel/lubricants .................9-2
Changing engine coolant ...........8-8
Changing engine oil .............8-10
Changing engine oil filter ..........8-11
Checking engine coolant level ........8-8
Checking engine oil level ...........8-9
Engine compartment check locations ....8-6
Engine cooling system ............8-7
Engineoil ...................8-9
Engine oil and oil filter recommendation . . .9-5
Engine oil pressure warning light ......2-13
Engine oil viscosity ..............9-5
Engine serial number ............9-10
Engine specifications .............9-7
Starting the engine ..........5-13,5-14
Enterbutton....................4-2
Eventdatarecorders ..............9-19
Exhaust gas (Carbon monoxide) .........5-2
Extended storage switch ............8-23 F
Flashers (See hazard warning flasher switch) . .6-2
Flat tire .......................6-3
Floor mat positioning aid .............7-5
Fluid Automatic transmission fluid (ATF) .....8-11
Brake fluid ..................8-12
Capacities and recommended
fuel/lubricants .................9-2
Continuously Variable Transmission
(
CVT)fluid..................8-12
Engine coolant .................8-7
Engine oil ...................8-9
F.M.V.S.S. certification label ...........9-10
Foglightswitch .................2-25
Front air bag system
(See supplemental restraint system) ......1-43
Front seats .....................1-2
Fuel Capacities and recommended
fuel/lubricants .................9-2
Fuel economy ................5-24
Fuel-filler door and cap ...........3-27
Fuel-filler door lock opener lever ......3-27
Fuelgauge...................2-8
Fuel octane rating ...............9-4
Fuel recommendation .............9-3
Loose fuel cap warning ........2-6,3-27
Fuses.......................8-20
Fusiblelinks ...................8-21
10-2

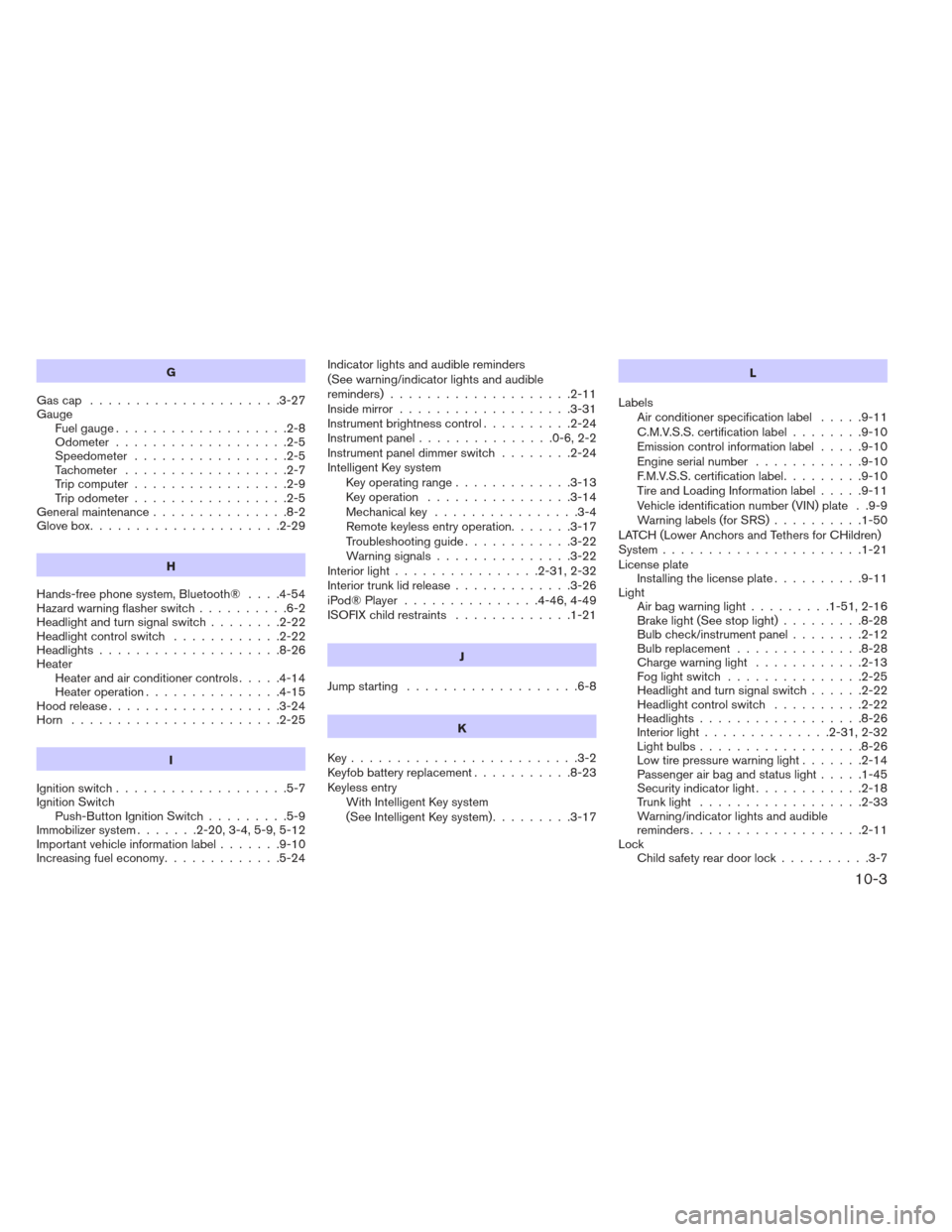

G
Gascap .....................3-27
Gauge Fuel gauge ...................2-8
Odometer ...................2-5
Speedometer .................2-5
Tachometer ..................2-7
Trip computer .................2-9
Trip odometer .................2-5
Generalmaintenance...............8-2
Glovebox.....................2-29
H
Hands-free phone system, Bluetooth® ....4-54
Hazard warning flasher switch ..........6-2
Headlightandturnsignalswitch........2-22
Headlightcontrolswitch ............2-22
Headlights....................8-26
Heater Heater and air conditioner controls .....4-14
Heater operation ...............4-15
Hood release ...................3-24
Horn .......................2-25
I
Ignition switch ...................5-7
Ignition Switch Push-Button Ignition Switch .........5-9
Immobilizer system .......2-20,3-4,5-9,5-12
Importantvehicleinformationlabel.......9-10
Increasing fuel economy .............5-24 Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders)....................2-11
Inside mirror
...................3-31
Instrument brightness control ..........2-24
Instrument panel ...............0-6,2-2
Instrument panel dimmer switch ........2-24
Intelligent Key system Key operating range .............3-13
Key operation ................3-14
Mechanicalkey ................3-4
Remote keyless entry operation .......3-17
Troubleshooting guide ............3-22
Warning signals ...............3-22
Interiorlight................2-31,2-32
Interiortrunklidrelease.............3-26
iPod® Player ...............4-46,4-49
ISOFIX child restraints .............1-21
J
Jump starting ...................6-8
K
Key.........................3-2
Keyfob battery replacement ...........8-23
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-17 L
Labels Air conditioner specification label .....9-11
C.M.V.S.S. certification label ........9-10
Emission control information label .....9-10
Engine serial number ............9-10
F.M.V.S.S. certification label .........9-10
Tire and Loading Information label .....9-11
Vehicle identification number (VIN) plate . .9-9
Warning labels (for SRS) ..........1-50
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-21
License plate Installing the license plate ..........9-11
Light Airbagwarninglight.........1-51, 2-16
Brake light (See stop light) .........8-28
Bulb check/instrument panel ........
2-12
Bulbreplacement..............8-28
Charge warning light ............2-13
Fog light switch ...............2-25
Headlightandturnsignalswitch......2-22
Headlight control switch ..........2-22
Headlights..................8-26
Interiorlight..............2-31,2-32
Lightbulbs..................8-26
Low tire pressure warning light .......2-14
Passenger air bag and status light .....1-45
Security indicator light ............2-18
Trunklight ..................2-33
Warning/indicator lights and audible
reminders...................2-11
Lock Child safety rear door lock ..........3-7
10-3

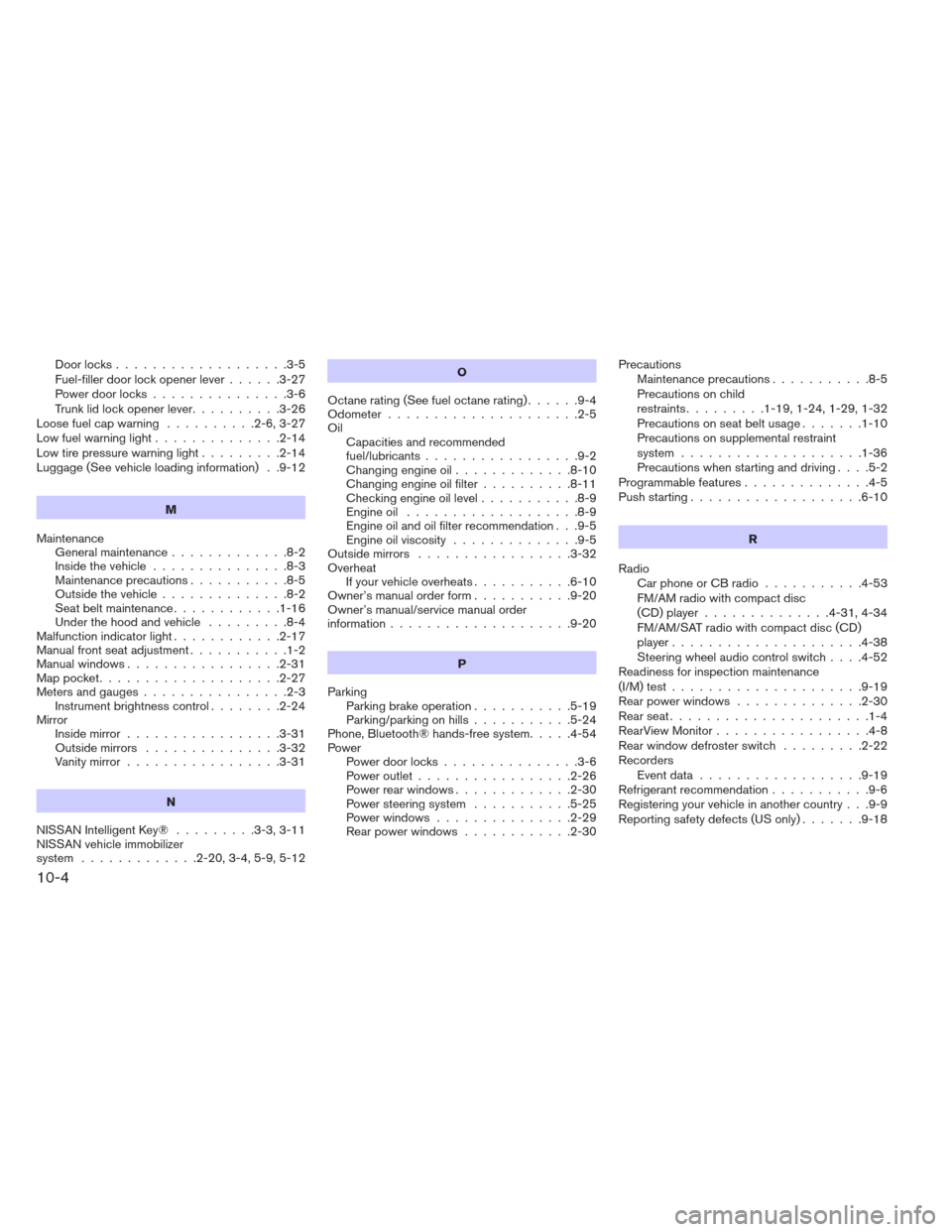

Door locks...................3-5
Fuel-filler door lock opener lever ......3-27
Power door locks ...............3-6
Trunk lid lock opener lever ..........3-26
Loose fuel cap warning ..........2-6,3-27
Lowfuelwarninglight..............2-14
Low tire pressure warning light .........2-14
Luggage (See vehicle loading information) . .9-12
M
Maintenance Generalmaintenance.............8-2
Insidethevehicle...............8-3
Maintenanceprecautions...........8-5
Outsidethevehicle..............8-2
Seat belt maintenance ............1-16
Under the hood and vehicle .........8-4
Malfunction indicator light ............2-17
Manual front seat adjustment ...........1-2
Manual windows .................2-31
Map pocket ....................2-27
Meters and gauges ................2-3
Instrument brightness control ........2-24
Mirror Inside mirror .................3-31
Outside mirrors ...............3-32
Vanity mirror .................3-31
N
NISSAN Intelligent Key® .........3-3,3-11
NISSAN vehicle immobilizer
system .............2-20,3-4,5-9,5-12 O
Octane rating (See fuel octane rating) ......9-4
Odometer .....................2-5
Oil Capacities and recommended
fuel/lubricants .................9-2
Changing engine oil .............8-10
Changing engine oil filter ..........8-11
Checking engine oil level ...........8-9
Engineoil ...................8-9
Engine oil and oil filter recommendation . . .9-5
Engine oil viscosity ..............9-5
Outside mirrors .................3-32
Overheat If your vehicle overheats ...........6-10
Owner’s manual order form ...........9-20
Owner’s manual/service manual order
information ....................9-20
P
Parking Parking brake operation ...........5-19
Parking/parking on hills ...........5-24
Phone, Bluetooth® hands-free system .....4-54
Power Power door locks ...............3-6
Power outlet .................2-26
Power rear windows .............2-30
Power steering system ...........5-25
Power windows ...............2-29
Rear power windows ............2-30 Precautions
Maintenanceprecautions...........8-5
Precautions on child
restraints .........1-19,1-24,1-29,1-32
Precautions on seat belt usage .......1-10
Precautions on supplemental restraint
system ....................1-36
Precautions when starting and driving ....5-2
Programmablefeatures..............4-5
Push starting ...................6-10
R
Radio CarphoneorCBradio...........4-53
FM/AM
radio with compact disc
(CD) player ..............4-31,4-34
FM/AM/SAT radio with compact disc (CD)
player .....................4-38
Steering wheel audio control switch ....4-52
Readiness for inspection maintenance
(I/M) test .....................9-19
Rear power windows ..............2-30
Rear seat ......................1-4
RearViewMonitor.................4-8
Rear window defroster switch .........2-22
Recorders Eventdata..................9-19
Refrigerant recommendation ...........9-6
Registering your vehicle in another country . . .9-9
Reporting safety defects (US only) .......9-18
10-4
