2013 NISSAN VERSA audio

Table of
ContentsIllustrated table of contents
Safety—Seats, seat belts and supplemental restraint system
Instruments and controls
Pre-driving checks and adjustments
Display screen, heater, air conditioner, audio and phone systems
Starting and driving
In case of emergency
Appearance and care
Maintenance and do-it-yourself
Technical and consumer information
Index
0
1
2
3
4
5
6
7
8
9
10

1. Headlight/turn signal switch (P. 2-22)
2. Driver’s supplemental air bag /horn(P. 1-36, 2-25)
3. Meters and gauges (P. 2-3)
4. Windshield wiper/washer switch
(P. 2-21) 5. Center vents (P. 4-13)
6. Rear window and outside mirror (if so
equipped) defroster switch (P. 2-22)
7. Hazard warning flasher switch (P. 6-2)
8. Climate controls (P. 4-14)
9. Audio system (P. 4-31, 4-34, 4-38) 10. Passenger’s supplemental air bag
(P. 1-36)
11. Side vents (P. 4-13)
12. Electronic outside rearview mirror
control switch (P.3-32)
13. Vehicle Dynamic Control (VDC) off
switch (P. 2-25)
14. Fuel-filler lid release lever (P. 3-27)
15. Hood release lever (P. 3-24)
16. Audio control switches (if so equipped)
(P.4-52)
17. Tilt steering (P. 3-30)
18. Ignition switch/Push button ignition
switch (if so equipped) (P. 5-7,
P. 5-9)
19. Cruise control (if so equipped) (P.5-20)
20. Cup holders (P. 2-28)
21. Shift selector (P. 5-15)
22. Glove box (P. 2-26)
See the page number indicated in paren-
theses for operating details.LIC2170
INSTRUMENT PANEL
0-6Illustrated table of contents

1. Headlight/turn signal switch (P. 2-22)
2. Driver’s supplemental air bag /horn(P. 1-36, 2-25)
3. Meters and gauges (P. 2-3)
4. Windshield wiper/washer switch
(P. 2-21) 5. Center vents (P. 4-13)
6. Rear window and outside mirror
(if so equipped) defroster switch
(P. 2-22)
7. Hazard warning flasher switch (P. 6-2)
8. Climate controls (P. 4-14) 9. Audio system (P. 4-31, 4-34, 4-38)
10. Passenger’s supplemental air bag
(P. 1-36)
11. Side vents (P. 4-13)
12. Electronic outside rearview mirror
control switch (P.3-32)
13. Vehicle Dynamic Control (VDC) off
switch (P. 2-25)
14. Fuel-filler lid release lever (P. 3-27)
15. Hood release lever (P. 3-24)
16. Audio control switches (if so equipped)
(P.4-52)
17. Tilt steering (P. 3-30)
18. Ignition switch/Push button ignition
switch (if so equipped) (P. 5-7, P. 5-9)
19. Cruise control (if so equipped) (P.5-20)
20. Cup holders (P. 2-28)
21. Shift selector (P. 5-15)
22. Glove box (P. 2-26)See the page number indicated in paren-
theses for operating details.LIC2170
INSTRUMENT PANEL
2-2Instruments and controls

●Wetting may damage the Intelligent
Key. If the Intelligent Key gets wet, im-
mediately wipe until it is completely dry.
● Do not place the Intelligent Key for an
extended period in an area where tem-
peratures exceed 140°F (60°C) .
● Do not attach the Intelligent Key with a
key holder that contains a magnet.
● Do not place the Intelligent Key near
equipment that produces a magnetic
field, such as a TV, audio equipment and
personal computers.
Mechanical key
The Intelligent Key contains the mechanical key.
To remove the mechanical key, release the lock
knob on the back of the Intelligent Key.
To install the mechanical key, firmly insert it into
the Intelligent Key until the lock knob returns to
the lock position.
Use the mechanical key to lock or unlock the
doors and trunk lid.
See “Doors” and “Trunk lid” later in this section.
CAUTION
Always carry the mechanical key installed
in the Intelligent Key slot.
NISSAN VEHICLE IMMOBILIZER
SYSTEM KEYS
You can only drive your vehicle using the master
keys which are registered to the NISSAN Vehicle
Immobilizer System components in your vehicle.
These keys have a transponder chip in the key
head.
The master key can be used for all the locks.
Never leave these keys in the vehicle.
Additional or replacement keys:
If you still have a key, the key number is not
necessary when you need extra NISSAN Vehicle
Immobilizer System keys. Your dealer can dupli-
cate your existing key. As many as 5 NISSAN
Vehicle Immobilizer System keys can be used
with one vehicle. You should bring all NISSAN
Vehicle Immobilizer System keys that you have to
your NISSAN dealer for registration. This is be-
cause the registration process will erase the
memory of all key codes previously registered
into the NISSAN Vehicle Immobilizer System.
After the registration process, these components
will only recognize keys coded into the NISSAN
SPA1951
3-4Pre-driving checks and adjustments

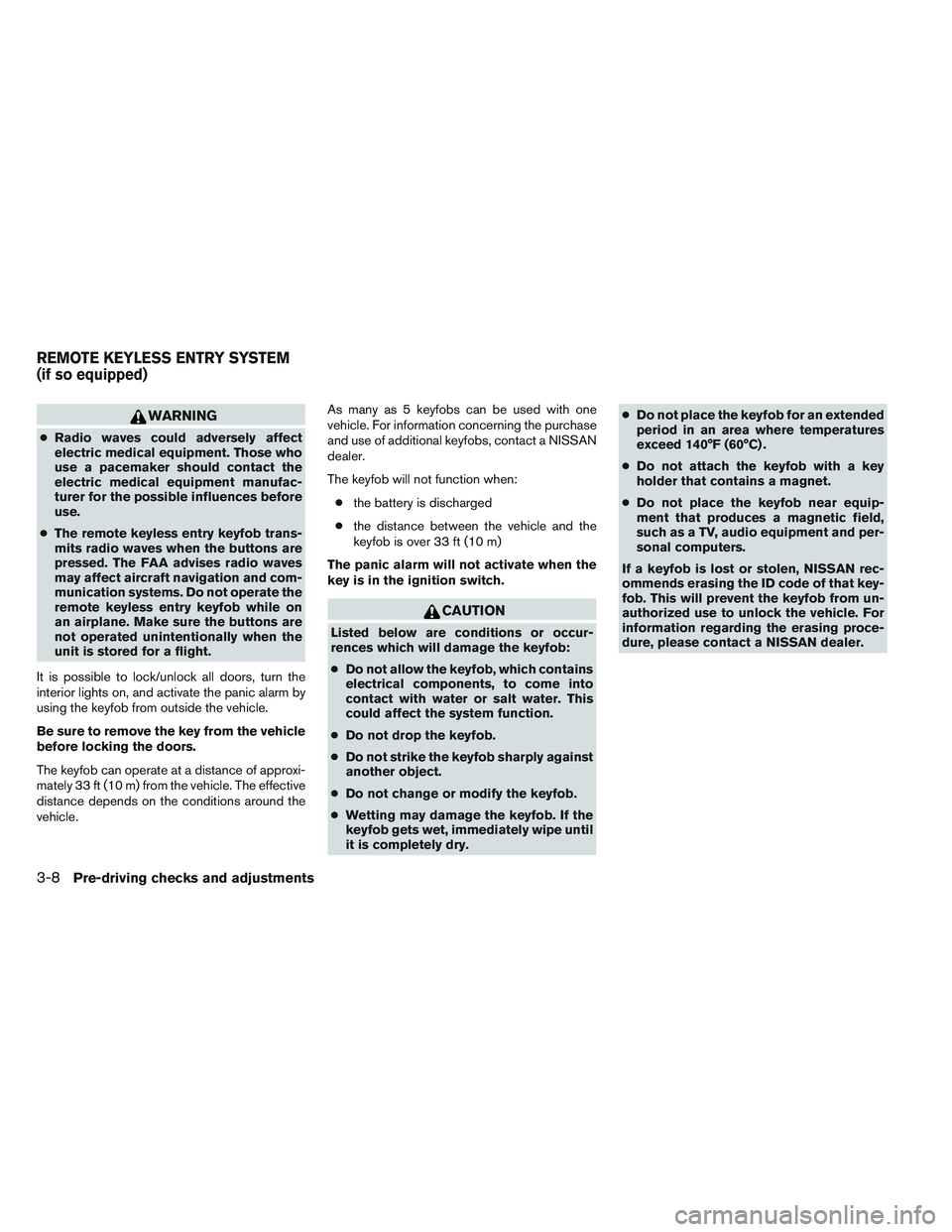

WARNING
●Radio waves could adversely affect
electric medical equipment. Those who
use a pacemaker should contact the
electric medical equipment manufac-
turer for the possible influences before
use.
● The remote keyless entry keyfob trans-
mits radio waves when the buttons are
pressed. The FAA advises radio waves
may affect aircraft navigation and com-
munication systems. Do not operate the
remote keyless entry keyfob while on
an airplane. Make sure the buttons are
not operated unintentionally when the
unit is stored for a flight.
It is possible to lock/unlock all doors, turn the
interior lights on, and activate the panic alarm by
using the keyfob from outside the vehicle.
Be sure to remove the key from the vehicle
before locking the doors.
The keyfob can operate at a distance of approxi-
mately 33 ft (10 m) from the vehicle. The effective
distance depends on the conditions around the
vehicle. As many as 5 keyfobs can be used with one
vehicle. For information concerning the purchase
and use of additional keyfobs, contact a NISSAN
dealer.
The keyfob will not function when:
● the battery is discharged
● the distance between the vehicle and the
keyfob is over 33 ft (10 m)
The panic alarm will not activate when the
key is in the ignition switch.
CAUTION
Listed below are conditions or occur-
rences which will damage the keyfob:
● Do not allow the keyfob, which contains
electrical components, to come into
contact with water or salt water. This
could affect the system function.
● Do not drop the keyfob.
● Do not strike the keyfob sharply against
another object.
● Do not change or modify the keyfob.
● Wetting may damage the keyfob. If the
keyfob gets wet, immediately wipe until
it is completely dry. ●
Do not place the keyfob for an extended
period in an area where temperatures
exceed 140°F (60°C) .
● Do not attach the keyfob with a key
holder that contains a magnet.
● Do not place the keyfob near equip-
ment that produces a magnetic field,
such as a TV, audio equipment and per-
sonal computers.
If a keyfob is lost or stolen, NISSAN rec-
ommends erasing the ID code of that key-
fob. This will prevent the keyfob from un-
authorized use to unlock the vehicle. For
information regarding the erasing proce-
dure, please contact a NISSAN dealer.
REMOTE KEYLESS ENTRY SYSTEM
(if so equipped)
3-8Pre-driving checks and adjustments

●Do not place the Intelligent Key for an
extended period in an area where tem-
peratures exceed 140°F (60°C) .
● Do not attach the Intelligent Key with a
key holder that contains a magnet.
● Do not place the Intelligent Key near
equipment that produces a magnetic
field, such as a TV, audio equipment and
personal computers.
If an Intelligent Key is lost or stolen, NISSAN
recommends erasing the ID code of that Intelli-
gent Key from the vehicle. This may prevent the
unauthorized use of the Intelligent Key to operate
the vehicle. For information regarding the erasing
procedure, contact a NISSAN dealer.
OPERATING RANGE
The Intelligent Key functions can only be used
when the Intelligent Key is within the specified
operating range from the request switch
1.
When the Intelligent Key battery is discharged or
strong radio waves are present near the operat-
ing location, the Intelligent Key operating range
becomes narrower, and the Intelligent Key may
not function properly.
The operating range is within 31.50 in (80 cm)
from each request switch
1. If the Intelligent Key is too close to the door glass,
handle or rear bumper, the request switches may
not function.
When the Intelligent Key is within the operating
range, it is possible for anyone, even someone
who does not carry the Intelligent Key, to push the
request switch to lock/unlock the doors.
LPD2095
Pre-driving checks and adjustments3-13

4 Display screen, heater, air conditioner,
audio and phone systems
Control panel buttons — color screen with
Navigation System (if so equipped)..................4-2
How to use the touch screen ....................4-3
How to use the BACK button ....................4-5
How to use the SETUP button ...................4-5
button...................................4-8
RearView Monitor (if so equipped) ...................4-8
How to read the displayed lines ..................4-9
Difference between predicted and actual
distances ......................................4-9
Adjusting the screen ........................... 4-12
Operating tips ................................. 4-12
Vents . .......................................... 4-13
Heater and air conditioner (manual)
(if so equipped) .................................. 4-14
Controls ...................................... 4-14
Heater operation .............................. 4-15
Air conditioner operation (if so equipped) ........4-16
Air flow charts ................................. 4-17
Servicing air conditioner (if so equipped) ............4-21
Audio system .................................... 4-21
Radio ........................................ 4-21
FM radio reception ............................ 4-21AM radio reception
............................ 4-22
Satellite radio reception (if so equipped) . . . ......4-22
Audio operation precautions ....................4-22
FM/AM radio with compact disc (CD) player
(Type A) (if so equipped) .......................4-31
FM/AM radio with compact disc (CD) player
(Type B) (if so equipped) .......................4-34
FM/AM/SAT radio with compact disc (CD)
player (if so equipped) ......................... 4-38
USB interface (models with Navigation
System) ...................................... 4-44
iPod®* player operation without Navigation
System (if so equipped) ........................ 4-46
iPod®* player operation with Navigation
System (if so equipped) ........................ 4-49
CD care and cleaning .......................... 4-51
Steering wheel switch for audio control
(if so equipped) ............................... 4-52
Antenna ...................................... 4-52
Car phone or CB radio ............................ 4-53
Bluetooth® Hands-Free Phone System
(if so equipped) .................................. 4-54
Regulatory Information ......................... 4-55
Using the system .............................. 4-56

WARNING
●Do not disassemble or modify this sys-
tem. If you do, it may result in accidents,
fire, or electrical shock.
● In case you notice any foreign object in
the system hardware, spill liquid on it,
or notice smoke or smell coming from
it, stop using the system immediately
and contact your nearest NISSAN
dealer. Ignoring such conditions may
lead to accidents, fire or electrical
shock.
CAUTION
Do not use this system if you notice any
abnormality, such as a frozen screen or
lack of sound. Continued use of the sys-
tem may result in accident, fire or electric
shock.
1.
(brightness control) button
2. Display screen
3. MAP button*
4. NAV button* 5. TRAF button*
6. SETUP button (P. 4-5)
7.
BACK button
8. TUNE/SCROLL knob
LHA1474
CONTROL PANEL BUTTONS —
COLOR SCREEN WITH NAVIGATION
SYSTEM (if so equipped)
4-2Display screen, heater, air conditioner, audio and phone systems
