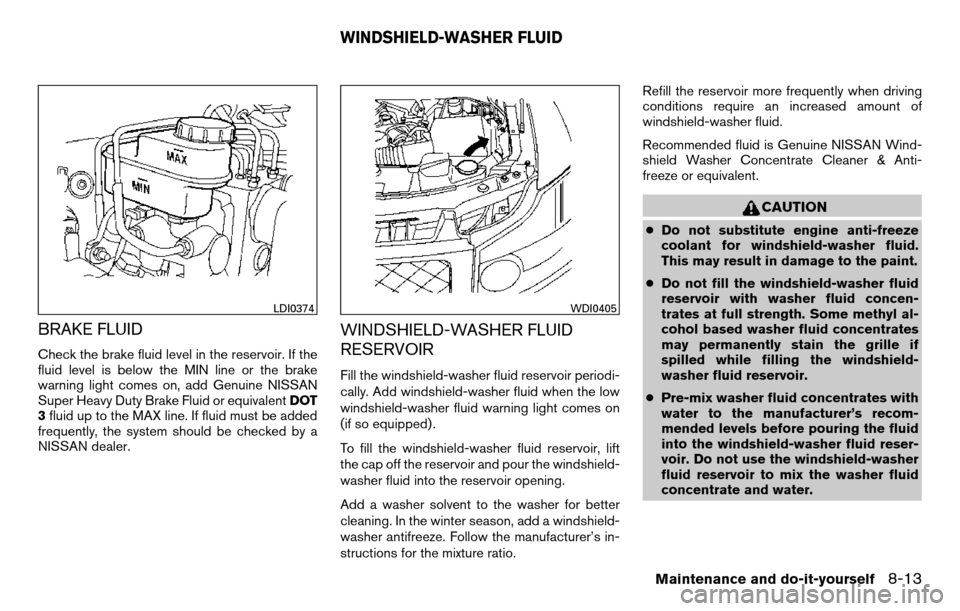

BRAKE FLUID
Check the brake fluid level in the reservoir. If the
fluid level is below the MIN line or the brake
warning light comes on, add Genuine NISSAN
Super Heavy Duty Brake Fluid or equivalentDOT
3 fluid up to the MAX line. If fluid must be added
frequently, the system should be checked by a
NISSAN dealer.
WINDSHIELD-WASHER FLUID
RESERVOIR
Fill the windshield-washer fluid reservoir periodi-
cally. Add windshield-washer fluid when the low
windshield-washer fluid warning light comes on
(if so equipped) .
To fill the windshield-washer fluid reservoir, lift
the cap off the reservoir and pour the windshield-
washer fluid into the reservoir opening.
Add a washer solvent to the washer for better
cleaning. In the winter season, add a windshield-
washer antifreeze. Follow the manufacturer’s in-
structions for the mixture ratio. Refill the reservoir more frequently when driving
conditions require an increased amount of
windshield-washer fluid.
Recommended fluid is Genuine NISSAN Wind-
shield Washer Concentrate Cleaner & Anti-
freeze or equivalent.
CAUTION
●
Do not substitute engine anti-freeze
coolant for windshield-washer fluid.
This may result in damage to the paint.
● Do not fill the windshield-washer fluid
reservoir with washer fluid concen-
trates at full strength. Some methyl al-
cohol based washer fluid concentrates
may permanently stain the grille if
spilled while filling the windshield-
washer fluid reservoir.
● Pre-mix washer fluid concentrates with
water to the manufacturer’s recom-
mended levels before pouring the fluid
into the windshield-washer fluid reser-
voir. Do not use the windshield-washer
fluid reservoir to mix the washer fluid
concentrate and water.
LDI0374WDI0405
WINDSHIELD-WASHER FLUID
Maintenance and do-it-yourself8-13

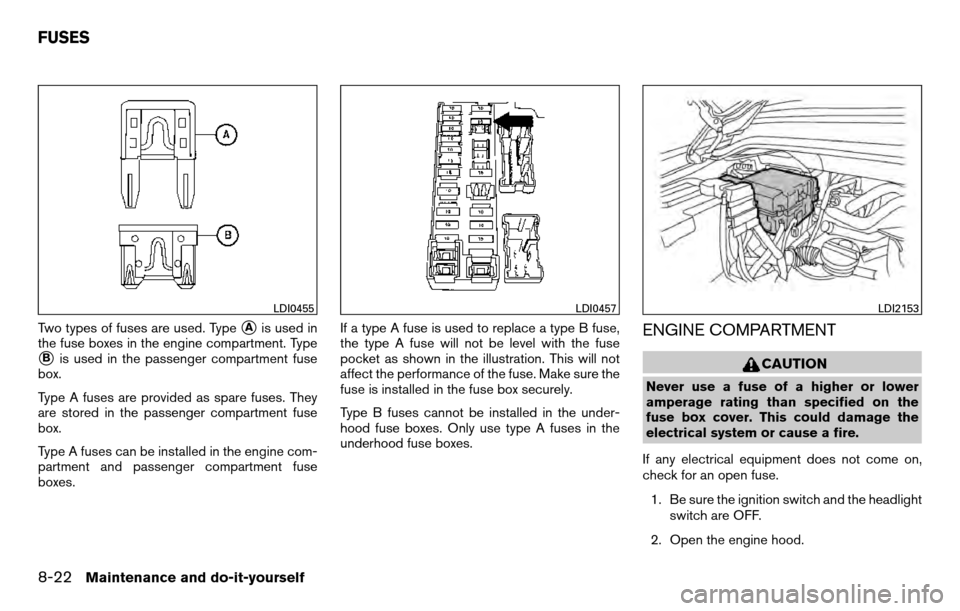

Two types of fuses are used. TypeAis used in
the fuse boxes in the engine compartment. Type
Bis used in the passenger compartment fuse
box.
Type A fuses are provided as spare fuses. They
are stored in the passenger compartment fuse
box.
Type A fuses can be installed in the engine com-
partment and passenger compartment fuse
boxes. If a type A fuse is used to replace a type B fuse,
the type A fuse will not be level with the fuse
pocket as shown in the illustration. This will not
affect the performance of the fuse. Make sure the
fuse is installed in the fuse box securely.
Type B fuses cannot be installed in the under-
hood fuse boxes. Only use type A fuses in the
underhood fuse boxes.
ENGINE COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than specified on the
fuse box cover. This could damage the
electrical system or cause a fire.
If any electrical equipment does not come on,
check for an open fuse. 1. Be sure the ignition switch and the headlight switch are OFF.
2. Open the engine hood.
LDI0455LDI0457LDI2153
FUSES
8-22Maintenance and do-it-yourself

●E-15 fuel contains more than 10% oxy-
genate. E-15 fuel will adversely affect
the emission control devices and sys-
tems of the vehicle and should not be
used. Damage caused by such fuel is
not covered by the NISSAN new ve-
hicle limited warranty.
● If a methanol blend is used, it should
contain no more than 5% methanol
(methyl alcohol, wood alcohol) . It
should also contain a suitable amount
of appropriate cosolvents and corro-
sion inhibitors. If not properly formu-
lated with appropriate cosolvents and
corrosion inhibitors, such methanol
blends may cause fuel system damage
and/or vehicle performance problems.
At this time, sufficient data is not avail-
able to ensure that all methanol blends
are suitable for use in NISSAN ve-
hicles.
If any driveability problems such as engine stall-
ing and difficult hot-starting are experienced after
using oxygenate-blend fuels, immediately
change to a non-oxygenate fuel or a fuel with a
low blend of MTBE.
Take care not to spill gasoline during refu-
eling. Gasoline containing oxygenates can
cause paint damage.E–15 fuel
E-15 fuel is a mixture of approximately 15% fuel
ethanol and 85% unleaded gasoline. E-15 can
only be used in vehicles designed to run on E-15
fuel. Do not use E-15 in your vehicle. U.S. gov-
ernment regulations require fuel ethanol dispens-
ing pumps to be identified with small, square,
orange and black label with the common abbre-
viation or the appropriate percentage for that
region.
E–85 fuel
E-85 fuel is a mixture of approximately 85% fuel
ethanol and 15% unleaded gasoline. E-85 can
only be used in a Flexible Fuel Vehicle (FFV) . Do
not use E-85 in your vehicle. U.S. government
regulations require fuel ethanol dispensing
pumps to be identified by a small, square, orange
and black label with the common abbreviation or
the appropriate percentage for that region.
Aftermarket fuel additives
NISSAN does not recommend the use of any
aftermarket fuel additives (for example, fuel injec-
tor cleaner, octane booster, intake valve deposit
removers, etc.) which are sold commercially.
Many of these additives intended for gum, varnish
or deposit removal may contain active solvents or
similar ingredients that can be harmful to the fuel
system and engine.
Octane rating tips
Using unleaded gasoline with an octane
rating lower than recommended can cause
persistent, heavy “spark knock.” (“Spark
knock” is a metallic rapping noise.) If se-
vere, this can lead to engine damage. If you
detect a persistent heavy spark knock even
when using gasoline of the stated octane
rating, or if you hear steady spark knock
while holding a steady speed on level
roads, have a NISSAN dealer correct the
condition. Failure to correct the condition
is misuse of the vehicle, for which NISSAN
is not responsible.
Incorrect ignition timing may result in spark
knock, after-run and/or overheating, which may
cause excessive fuel consumption or engine
damage. If any of the above symptoms are en-
countered, have your vehicle checked at a
NISSAN dealer.
However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is not a
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.
9-4Technical and consumer information

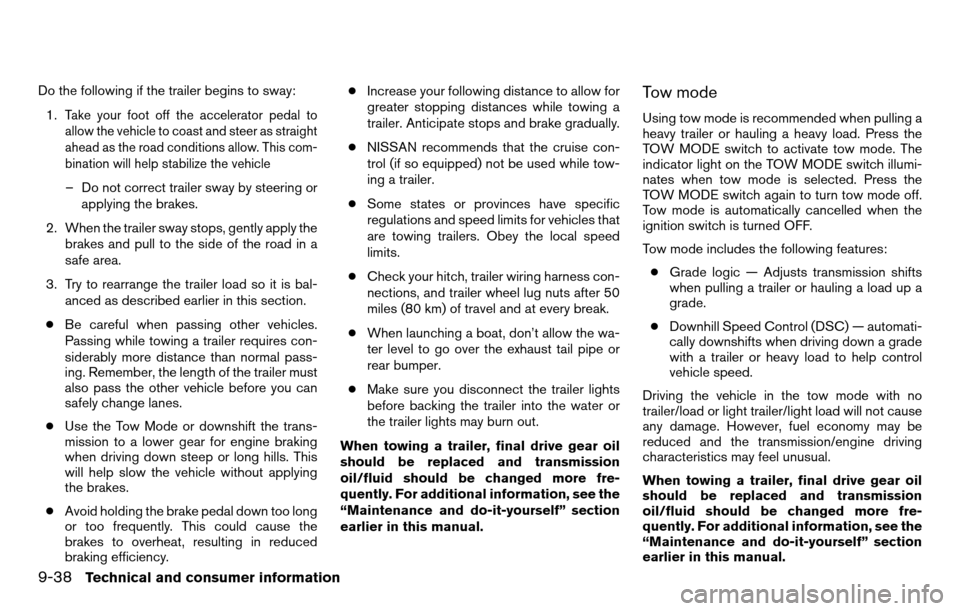

Do the following if the trailer begins to sway:1.
Take your foot off the accelerator pedal to
allow the vehicle to coast and steer as straight
ahead as the road conditions allow. This com-
bination will help stabilize the vehicle
– Do not correct trailer sway by steering or applying the brakes.
2. When the trailer sway stops, gently apply the brakes and pull to the side of the road in a
safe area.
3. Try to rearrange the trailer load so it is bal- anced as described earlier in this section.
● Be careful when passing other vehicles.
Passing while towing a trailer requires con-
siderably more distance than normal pass-
ing. Remember, the length of the trailer must
also pass the other vehicle before you can
safely change lanes.
● Use the Tow Mode or downshift the trans-
mission to a lower gear for engine braking
when driving down steep or long hills. This
will help slow the vehicle without applying
the brakes.
● Avoid holding the brake pedal down too long
or too frequently. This could cause the
brakes to overheat, resulting in reduced
braking efficiency. ●
Increase your following distance to allow for
greater stopping distances while towing a
trailer. Anticipate stops and brake gradually.
● NISSAN recommends that the cruise con-
trol (if so equipped) not be used while tow-
ing a trailer.
● Some states or provinces have specific
regulations and speed limits for vehicles that
are towing trailers. Obey the local speed
limits.
● Check your hitch, trailer wiring harness con-
nections, and trailer wheel lug nuts after 50
miles (80 km) of travel and at every break.
● When launching a boat, don’t allow the wa-
ter level to go over the exhaust tail pipe or
rear bumper.
● Make sure you disconnect the trailer lights
before backing the trailer into the water or
the trailer lights may burn out.
When towing a trailer, final drive gear oil
should be replaced and transmission
oil/fluid should be changed more fre-
quently. For additional information, see the
“Maintenance and do-it-yourself” section
earlier in this manual.
Tow mode
Using tow mode is recommended when pulling a
heavy trailer or hauling a heavy load. Press the
TOW MODE switch to activate tow mode. The
indicator light on the TOW MODE switch illumi-
nates when tow mode is selected. Press the
TOW MODE switch again to turn tow mode off.
Tow mode is automatically cancelled when the
ignition switch is turned OFF.
Tow mode includes the following features: ● Grade logic — Adjusts transmission shifts
when pulling a trailer or hauling a load up a
grade.
● Downhill Speed Control (DSC) — automati-
cally downshifts when driving down a grade
with a trailer or heavy load to help control
vehicle speed.
Driving the vehicle in the tow mode with no
trailer/load or light trailer/light load will not cause
any damage. However, fuel economy may be
reduced and the transmission/engine driving
characteristics may feel unusual.
When towing a trailer, final drive gear oil
should be replaced and transmission
oil/fluid should be changed more fre-
quently. For additional information, see the
“Maintenance and do-it-yourself” section
earlier in this manual.
9-38Technical and consumer information

Due to legal requirements in some states and
Canadian Provinces, your vehicle may be re-
quired to be in what is called the “ready condi-
tion” for an Inspection/Maintenance (I/M) test of
the emission control system.
The vehicle is set to the “ready condition” when it
is driven through certain driving patterns. Usually,
the ready condition can be obtained by ordinary
usage of the vehicle.
If a powertrain system component is repaired or the
battery is disconnected, the vehicle may be reset to
a “not ready” condition. Before taking the I/M test,
check the vehicle’s inspection/maintenance test
readiness condition. Place the ignition switch in the
ON position without starting the engine. If the
Malfunction Indicator Light (MIL) comes on steady
for 20 seconds and then blinks for 10 seconds , the
I/M test condition is “not ready”. If the MIL does not
blink after 20 seconds, the I/M test condition is
“ready”. Contact a NISSAN dealer to set the “ready
condition” or to prepare the vehicle for testing.
This vehicle is equipped with an Event Data Re-
corder (EDR) . The main purpose of an EDR is to
record, in certain crash or near crash-like situa-
tions, such as an air bag deployment or hitting a
road obstacle, data that will assist in understand-
ing how a vehicle’s systems performed. The EDR
is designed to record data related to vehicle
dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this
vehicle is designed to record such data as:● How various systems in your vehicle were
operating;
● Whether or not the driver and passenger
safety belts were buckled/fastened;
● How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
● How fast the vehicle was traveling.
● Sounds are not recorded. These data can help provide a better understand-
ing of the circumstances in which crashes and
injuries occur. NOTE: EDR data are recorded by
your vehicle only if a nontrivial crash situation
occurs; no data are recorded by the EDR under
normal driving conditions and no personal data
(e.g. name, gender, age and crash location) are
recorded. However, other parties, such as law
enforcement, could combine the EDR data with
the type of personally identifying data routinely
acquired during a crash investigation.
To read data recorded by an EDR, special equip-
ment is required and access to the vehicle or the
EDR is needed. In addition to the vehicle manu-
facturer and NISSAN dealer, other parties, such
as law enforcement, that have the special equip-
ment, can read the information if they have ac-
cess to the vehicle or the EDR. EDR data will only
be accessed with the consent of the vehicle
owner or lessee or as otherwise required or per-
mitted by law.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST
EVENT DATA RECORDERS (EDR)
9-42Technical and consumer information

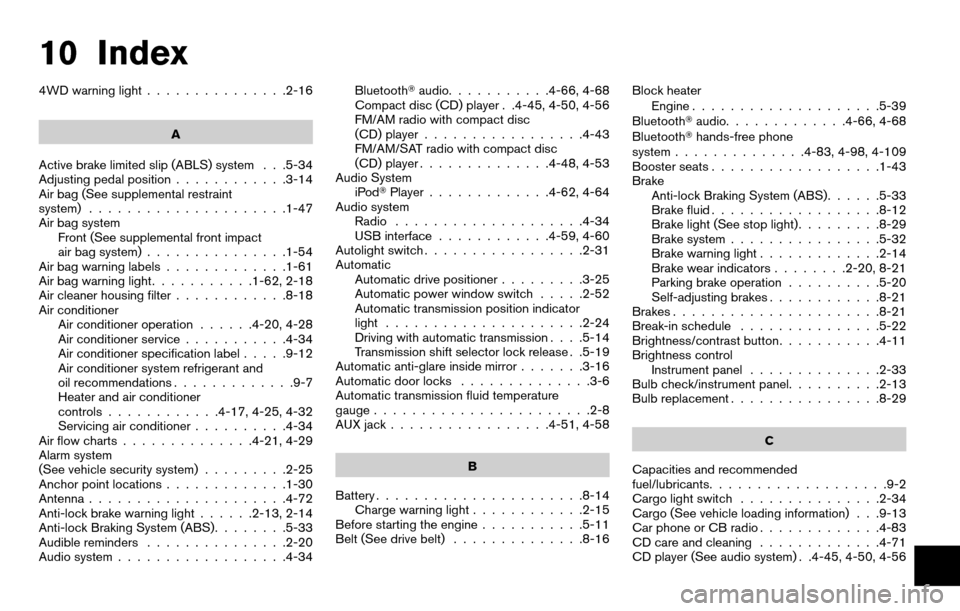

10 Index
4WD warning light...............2-16
A
Active brake limited slip (ABLS) system . . .5-34
Adjusting pedal position ............3-14
Air bag (See supplemental restraint
system) .....................1-47
Air bag system Front (See supplemental front impact
air bag system) ...............1-54
Air bag warning labels .............1-61
Air bag warning light ...........1-62, 2-18
Air cleaner housing filter ............8-18
Air conditioner Air conditioner operation ......4-20, 4-28
Air conditioner service ...........4-34
Air conditioner specification label .....9-12
Air conditioner system refrigerant and
oil recommendations .............9-7
Heater and air conditioner
controls ............4-17, 4-25, 4-32
Servicing air conditioner ..........4-34
Air flow charts ..............4-21, 4-29
Alarm system
(See vehicle security system) .........2-25
Anchor point locations .............1-30
Antenna .....................4-72
Anti-lock brake warning light ......2-13, 2-14
Anti-lock Braking System (ABS) ........5-33
Audible reminders ...............2-20
Audio system ..................4-34 Bluetooth
audio...........4-66, 4-68
Compact disc (CD) player . .4-45, 4-50, 4-56
FM/AM radio with compact disc
(CD) player .................4-43
FM/AM/SAT radio with compact disc
(CD) player ..............4-48, 4-53
Audio System iPod Player .............4-62, 4-64
Audio system Radio ....................4-34
USB interface ............4-59, 4-60
Autolight switch .................2-31
Automatic Automatic drive positioner .........3-25
Automatic power window switch .....2-52
Automatic transmission position indicator
light .....................2-24
Driving

with automatic transmission . . . .5-14
Transmission shift selector lock release . .5-19
Automatic anti-glare inside mirror .......3-16
Automatic door locks ..............3-6
Automatic transmission fluid temperature
gauge .......................2-8
AUX jack .................4-51, 4-58
B
Battery ......................8-14
Charge warning light ............2-15
Before starting the engine ...........5-11
Belt (See drive belt) ..............8-16 Block heater
Engine ....................5-39
Bluetooth audio.............4-66, 4-68
Bluetooth hands-free phone
system ..............4-83, 4-98, 4-109
Booster seats ..................1-43
Brake Anti-lock Braking System (ABS) ......5-33
Brake fluid ..................8-12
Brake light (See stop light) .........8-29
Brake system ................5-32
Brake warning light .............2-14
Brake wear indicators ........2-20, 8-21
Parking brake operation ..........5-20
Self-adjusting brakes ............8-21
Brakes ......................8-21
Break-in schedule ...............5-22
Brightness/contrast button ...........4-11
Brightness control Instrument panel ..............2-33
Bulb check/instrument panel ..........2-13
Bulb replacement ................8-29
C
Capacities and recommended
fuel/lubricants ...................9-2
Cargo light switch .............. .2-34
Cargo

(See vehicle loading information) . . .9-13
Car phone or CB radio .............4-83
CD care and cleaning .............4-71
CD player (See audio system) . .4-45, 4-50, 4-56

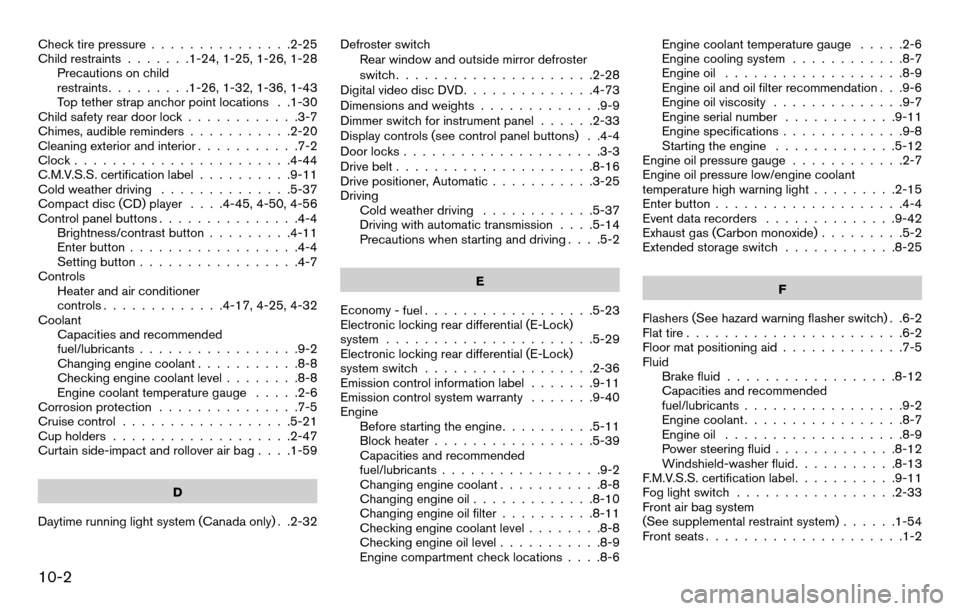

Check tire pressure...............2-25
Child restraints .......1-24, 1-25, 1-26, 1-28
Precautions on child
restraints .........1-26, 1-32, 1-36, 1-43
Top tether strap anchor point locations . .1-30
Child safety rear door lock ............3-7
Chimes, audible reminders ...........2-20
Cleaning exterior and interior ...........7-2
Clock .......................4-44
C.M.V.S.S. certification label ..........9-11
Cold weather driving ..............5-37
Compact disc (CD) player . . . .4-45, 4-50, 4-56
Control panel buttons ...............4-4
Brightness/contrast button .........4-11
Enter button ..................4-4
Setting button .................4-7
Controls Heater and air conditioner
controls .............4-17, 4-25, 4-32
Coolant Capacities and recommended
fuel/lubricants .................9-2
Changing engine coolant ...........8-8
Checking engine coolant level ........8-8
Engine coolant temperature gauge .....2-6
Corrosion protection ...............7-5
Cruise control ..................5-21
Cup holders ...................2-47
Curtain side-impact and rollover air bag . . . .1-59
D
Daytime running light system (Canada only) . .2-32 Defroster switch
Rear window and outside mirror defroster
switch .....................2-28
Digital video disc DVD ..............4-73
Dimensions and weights .............9-9
Dimmer switch for instrument panel ......2-33
Display controls (see control panel buttons) . .4-4
Door locks .....................3-3
Drive belt .....................8-16
Drive positioner, Automatic ...........3-25
Driving Cold weather driving ............5-37
Driving with automatic transmission . . . .5-14
Precautions when starting and driving . . . .5-2
E
Economy

- fuel ..................5-23
Electronic locking rear differential (E-Lock)
system ......................5-29
Electronic locking rear differential (E-Lock)
system switch ..................2-36
Emission control information label .......9-11
Emission control system warranty .......9-40
Engine Before starting the engine ..........5-11
Block heater .................5-39
Capacities and recommended
fuel/lubricants .................9-2
Changing engine coolant ...........8-8
Changing engine oil .............8-10
Changing engine oil filter ..........8-11
Checking engine coolant level ........8-8
Checking engine oil level ...........8-9
Engine compartment check locations . . . .8-6 Engine coolant temperature gauge
.....2-6
Engine cooling system ............8-7
Engine oil ...................8-9
Engine oil and oil filter recommendation . . .9-6
Engine oil viscosity ..............9-7
Engine serial number ............9-11
Engine specifications .............9-8
Starting the engine .............5-12
Engine oil pressure gauge ............2-7
Engine oil pressure low/engine coolant
temperature high warning light .........2-15
Enter button ....................4-4
Event data recorders ..............9-42
Exhaust gas (Carbon monoxide) .........5-2
Extended storage switch ............8-25
F
Flashers (See hazard warning flasher switch) . .6-2
Flat tire .......................6-2
Floor mat positioning aid .............7-5
Fluid Brake fluid ..................8-12
Capacities and recommended
fuel/lubricants .................9-2
Engine coolant .................8-7
Engine oil ...................8-9
P
ower steering fluid .............8-12
Windshield-washer fluid ...........8-13
F.M.V.S.S. certification label ...........9-11
Fog light switch .................2-33
Front air bag system
(See supplemental restraint system) ......1-54
Front seats .....................1-2
10-2

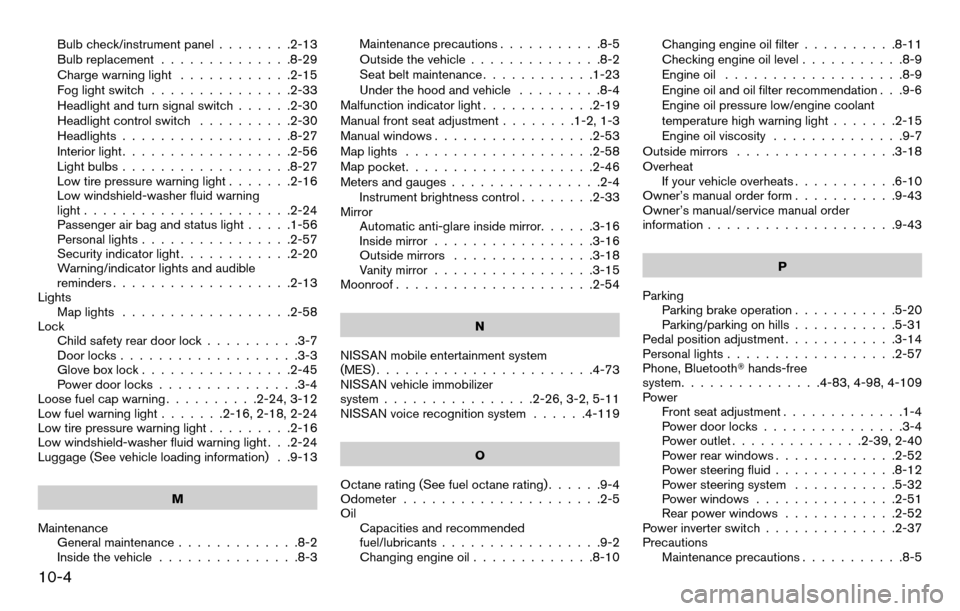

Bulb check/instrument panel........2-13
Bulb replacement ..............8-29
Charge warning light ............2-15
Fog light switch ...............2-33
Headlight and turn signal switch ......2-30
Headlight control switch ..........2-30
Headlights ..................8-27
Interior light ..................2-56
Light bulbs ..................8-27
Low tire pressure warning light .......2-16
Low windshield-washer fluid warning
light ......................2-24
Passenger air bag and status light .....1-56
Personal lights ................2-57
Security indicator light ............2-20
Warning/indicator lights and audible
reminders ...................2-13
Lights Map lights ..................2-58
Lock Child safety rear door lock ..........3-7
Door locks ...................3-3
Glove box lock ................2-45
Power door locks ...............3-4
Loose fuel cap warning ..........2-24, 3-12
Low fuel warning light .......2-16, 2-18, 2-24
Low tire pressure warning light .........2-16
Low windshield-washer fluid warning light . . .2-24
Luggage (See vehicle loading information) . .9-13
M
Maintenance General maintenance .............8-2
Inside the vehicle ...............8-3 Maintenance precautions
...........8-5
Outside the vehicle ..............8-2
Seat belt maintenance ............1-23
Under the hood and vehicle .........8-4
Malfunction indicator light ............2-19
Manual front seat adjustment ........1-2, 1-3
Manual windows .................2-53
Map lights ....................2-58
Map
pocket ....................2-46
Meters and gauges ................2-4
Instrument brightness control ........2-33
Mirror Automatic anti-glare inside mirror ......3-16
Inside mirror .................3-16
Outside mirrors ...............3-18
Vanity mirror .................3-15
Moonroof .....................2-54
N
NISSAN mobile entertainment system
(MES) .......................4-73
NISSAN vehicle immobilizer
system ................2-26, 3-2, 5-11
NISSAN voice recognition system ......4-119
O
Octane rating (See fuel octane rating) ......9-4
Odometer .....................2-5
Oil Capacities and recommended
fuel/lubricants .................9-2
Changing engine oil .............8-10 Changing engine oil filter
..........8-11
Checking engine oil level ...........8-9
Engine oil ...................8-9
Engine oil and oil filter recommendation . . .9-6
Engine oil pressure low/engine coolant
temperature high warning light .......2-15
Engine oil viscosity ..............9-7
Outside mirrors .................3-18
Overheat If your vehicle overheats ...........6-10
Owner’s manual order form ...........9-43
Owner’s manual/service manual order
information ....................9-43
P
Parking Parking brake operation ...........5-20
Parking/parking on hills ...........5-31
Pedal position adjustment ............3-14
Personal lights ..................2-57
Phone, Bluetooth hands-free
system ...............4-83, 4-98, 4-109
Power Front
seat adjustment .............1-4
Power door locks ...............3-4
Power outlet ..............2-39, 2-40
Power rear windows .............2-52
Power steering fluid .............8-12
Power steering system ...........5-32
Power windows ...............2-51
Rear power windows ............2-52
Power inverter switch ..............2-37
Precautions Maintenance precautions ...........8-5
10-4
