2013 NISSAN ROGUE automatic transmission fluid

Black plate (247,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

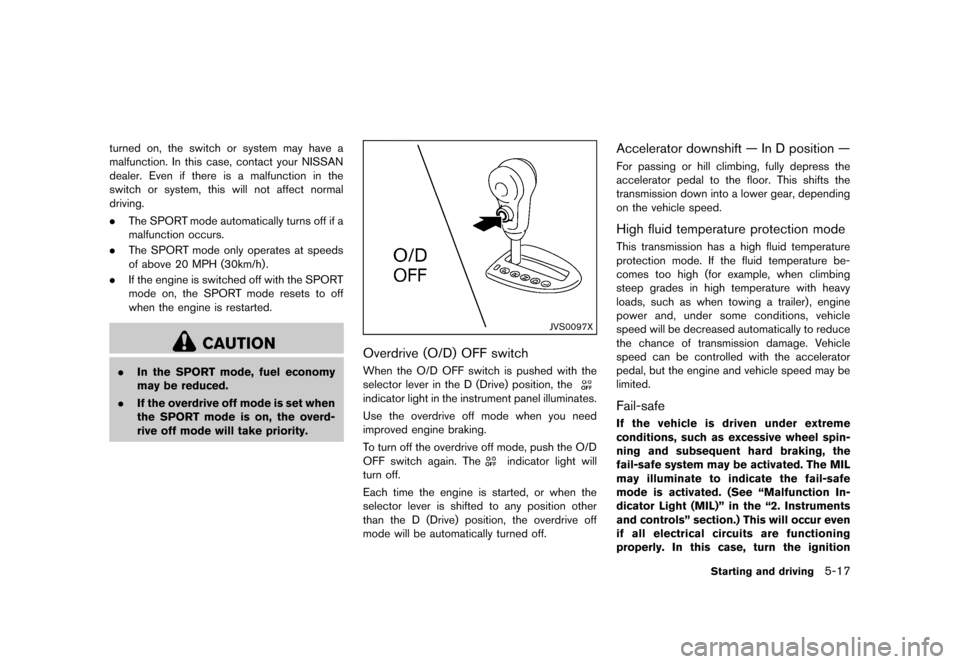

turned on, the switch or system may have a
malfunction. In this case, contact your NISSAN
dealer. Even if there is a malfunction in the
switch or system, this will not affect normal
driving.
.The SPORT mode automatically turns off if a
malfunction occurs.
. The SPORT mode only operates at speeds
of above 20 MPH (30km/h) .
. If the engine is switched off with the SPORT
mode on, the SPORT mode resets to off
when the engine is restarted.
CAUTION
.In the SPORT mode, fuel economy
may be reduced.
. If the overdrive off mode is set when
the SPORT mode is on, the overd-
rive off mode will take priority.
JVS0097X
Overdrive (O/D) OFF switchS35-D-110201-6B915A43-9062-4BFB-A3D9-25A6FE35E78CWhen the O/D OFF switch is pushed with the
selector lever in the D (Drive) position, the
indicator light in the instrument panel illuminates.
Use the overdrive off mode when you need
improved engine braking.
To turn off the overdrive off mode, push the O/D
OFF switch again. The
indicator light will
turn off.
Each time the engine is started, or when the
selector lever is shifted to any position other
than the D (Drive) position, the overdrive off
mode will be automatically turned off.
Accelerator downshift — In D position —S35-D-110201-F9EEE14F-5BF2-4256-B19A-D9E9E24F5809For passing or hill climbing, fully depress the
accelerator pedal to the floor. This shifts the
transmission down into a lower gear, depending
on the vehicle speed.
High fluid temperature protection modeS35-D-110201-481FB4B1-F6C4-49B8-8504-1DFAEEA834E0This transmission has a high fluid temperature
protection mode. If the fluid temperature be-
comes too high (for example, when climbing
steep grades in high temperature with heavy
loads, such as when towing a trailer), engine
power and, under some conditions, vehicle
speed will be decreased automatically to reduce
the chance of transmission damage. Vehicle
speed can be controlled with the accelerator
pedal, but the engine and vehicle speed may be
limited.
Fail-safeS35-D-110201-A143CA3E-686B-4C25-9A61-E13835FDD47CIf the vehicle is driven under extreme
conditions, such as excessive wheel spin-
ning and subsequent hard braking, the
fail-safe system may be activated. The MIL
may illuminate to indicate the fail-safe
mode is activated. (See “Malfunction In-
dicator Light (MIL)” in the “2. Instruments
and controls” section.) This will occur even
if all electrical circuits are functioning
properly. In this case, turn the ignition
Starting and driving5-17

Black plate (349,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]

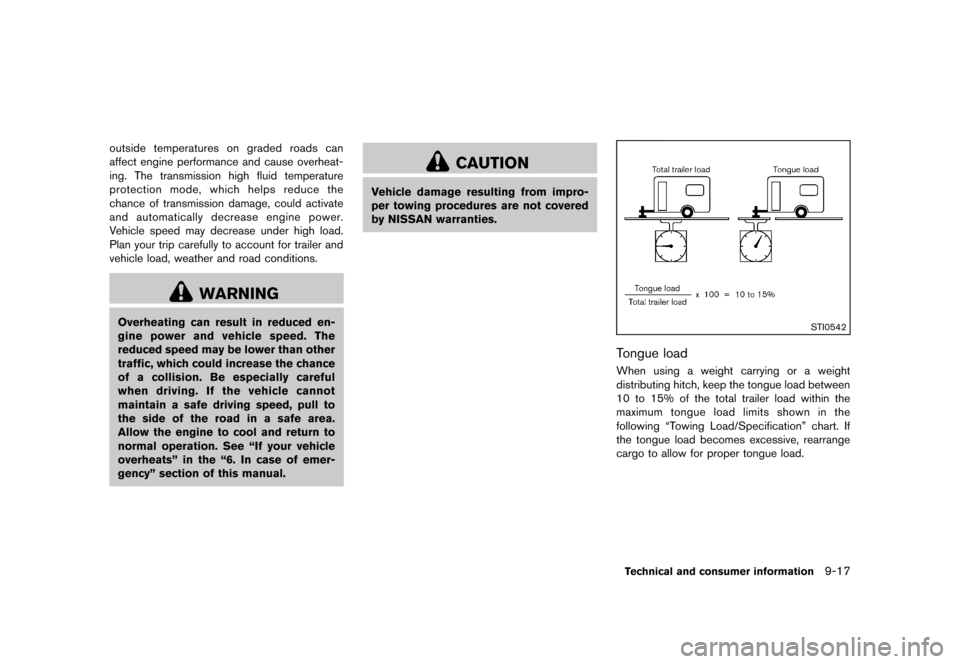

outside temperatures on graded roads can
affect engine performance and cause overheat-
ing. The transmission high fluid temperature
protection mode, which helps reduce the
chance of transmission damage, could activate
and automatically decrease engine power.
Vehicle speed may decrease under high load.
Plan your trip carefully to account for trailer and
vehicle load, weather and road conditions.
WARNING
Overheating can result in reduced en-
gine power and vehicle speed. The
reduced speed may be lower than other
traffic, which could increase the chance
of a collision. Be especially careful
when driving. If the vehicle cannot
maintain a safe driving speed, pull to
the side of the road in a safe area.
Allow the engine to cool and return to
normal operation. See “If your vehicle
overheats” in the “6. In case of emer-
gency” section of this manual.
CAUTION
Vehicle damage resulting from impro-
per towing procedures are not covered
by NISSAN warranties.
STI0542
Tongue loadGUID-C04C8C9B-DDE9-4EED-8127-6EE524310929When using a weight carrying or a weight
distributing hitch, keep the tongue load between
10 to 15% of the total trailer load within the
maximum tongue load limits shown in the
following “Towing Load/Specification” chart. If
the tongue load becomes excessive, rearrange
cargo to allow for proper tongue load.
Technical and consumer information9-17

Black plate (361,1)
[ Edit: 2012/ 5/ 18 Model: S35-D ]
10 Index
A
ABS (Anti-lock Braking System)...
............................ 5-28
Advanced air bag system ...
......................................... 1-45
Aiming control, Headlights ...
........................................ 2-33
Air bag system Advanced air bag system ...
.................................. 1-45
Front passenger air bag and status light ...
....... 1-46
Front-seat mounted side-impact
supplemental air bag system ...
............................ 1-49
Roof-mounted curtain side-impact and
rollover supplemental air bag system ...
............. 1-49
Air bag warning labels ...
............................................... 1-52
Air bag warning light ...
...................................... 1-52, 2-13
Air cleaner housing filter ...
........................................... 8-16
Air conditioner Air conditioner operation ...
.................................... 4-24
Air conditioner service ...
........................................ 4-29
Air conditioner specification label ...
.................... 9-10
Air conditioning system refrigerant and
lubricant recommendations ...
....................... 4-29, 9-6
Alarm, How to stop alarm (see vehicle
security system) ...
........................................................... 2-26
Alcohol, drugs and driving ...
.......................................... 5-7
All-wheel drive (AWD) ...
............................................... 5-23
All-wheel drive (AWD) warning light ...
........................ 2-9
Antenna ...
.......................................................................... 4-68
Anti-lock Braking System (ABS) ...
............................ 5-28
Anti-lock braking system (ABS) warning light ...
....... 2-9
Appearance care Exterior appearance care ...
...................................... 7-2
Interior appearance care ...
....................................... 7-4
Around view
TMmonitor ...
.............................................. 4-13
Audible reminders ...
....................................................... 2-15
Audio operation precautions ...
.................................... 4-30
Audio setup ...
.................................................................... 4-5 Audio system
...
................................................................ 4-30
Steering wheel audio controls ...
.......................... 4-67
Autolight system ...
.......................................................... 2-31
Automatic Air conditioner ...
....................................................... 4-27
Door locks ...
................................................................. 3-6
Average speed (MPH or km/h) ...
............................... 2-23
Avoiding collision and rollover ...
................................... 5-6
B
Back door (See lift gate) ...
.......................................... 3-20
Battery ...
............................................................................ 8-13
Battery replacement, Intelligent Key ...
................ 8-23
Battery replacement, Keyfob ...
............................. 8-22
Battery saver system ...
........................................... 2-33
Keyfob battery replacement ...
............................... 8-22
Before starting the engine ...
........................................ 5-13
Belts (See drive belts) ...
............................................... 8-15
Bluetooth
®Hands-Free Phone System ...
................ 4-69
Booster seats ...
............................................................... 1-36
Brake Anti-lock Braking System (ABS) ...
..................... 5-28
Brake fluid ...
.............................................................. 8-11
Brake system ...
......................................................... 5-27
Parking brake operation ...
..................................... 5-19
Warning light ...
......................................................... 2-10
Break-in schedule ...
....................................................... 5-21
Brightness control Display ON/OFF button ...
........................................ 4-5
Instrument panel ...
...................................................... 2-7
Bulb check/instrument panel ...
..................................... 2-9
Bulb replacement ...
........................................................ 8-25
C
Capacities and recommended fuel/lubricants ...
....... 9-2
Car phone or CB radio ...
............................................. 4-69
Cargo cover ...
.................................................................. 2-41
Cargo light ...
.................................................................... 2-51
Catalytic converter, Three way catalyst ...
................... 5-3
CD/CF/USB memory care and cleaning ...
.............. 4-66
Ceiling light ...
................................................................... 2-50
Child restraints ...
............................................................. 1-22
Booster seats ...
........................................................ 1-36
LATCH system ...
...................................................... 1-24
Precautions on child restraints ...
......................... 1-22
Child safety ...
................................................................... 1-20
Child safety rear door lock ...
......................................... 3-6
Chimes, Audible reminders ...
...................................... 2-15
Circuit breaker, Fusible link ...
...................................... 8-20
Cleaning exterior and interior ...
............................ 7-2, 7-4
Clock ...
...................................................... 2-23, 4-44, 4-52
Clock (models with navigation system) ...
................... 4-7
Coat hooks ...
................................................................... 2-43
Cold weather driving ...
.................................................. 5-31
Compact Disc (CD) player (See
audio system) ...
....................................... 4-46, 4-54, 4-61
Console box ...
................................................................. 2-40
Continuously Variable Transmission
(CVT) fluid ...
..................................................................... 8-11
Control panel buttons — color screen with
navigation system ...
.......................................................... 4-2
Controls, Steering wheel audio controls ...
............... 4-67
Coolant Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine coolant ...
...................................... 8-8
Checking engine coolant level ...
............................. 8-8
Corrosion protection ...
.................................................... 7-6
