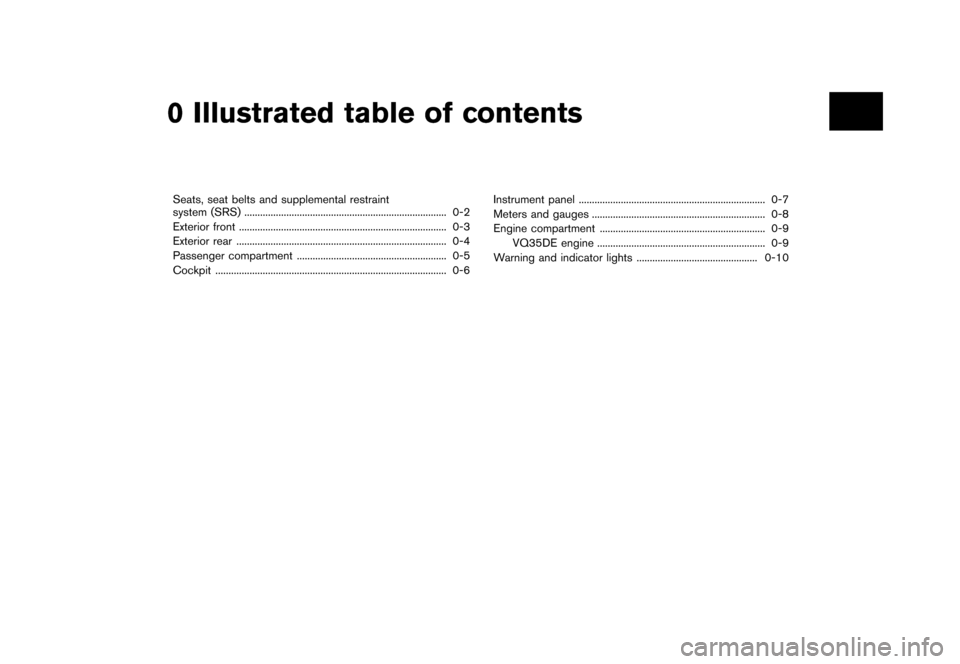

0 Illustrated table of contents
Seats, seat belts and supplemental restraint
system (SRS)...
........................................................................\
..... 0-2
Exterior front ...
........................................................................\
....... 0-3
Exterior rear ...
........................................................................\
........ 0-4
Passenger compartment ...
......................................................... 0-5
Cockpit ...
........................................................................\
................ 0-6 Instrument panel
...
....................................................................... 0-7
Meters and gauges ...
.................................................................. 0-8
Engine compartment ...
............................................................... 0-9
VQ35DE engine ...
................................................................ 0-9
Warning and indicator lights ...
.............................................. 0-10
Condition:

Black plate (12,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

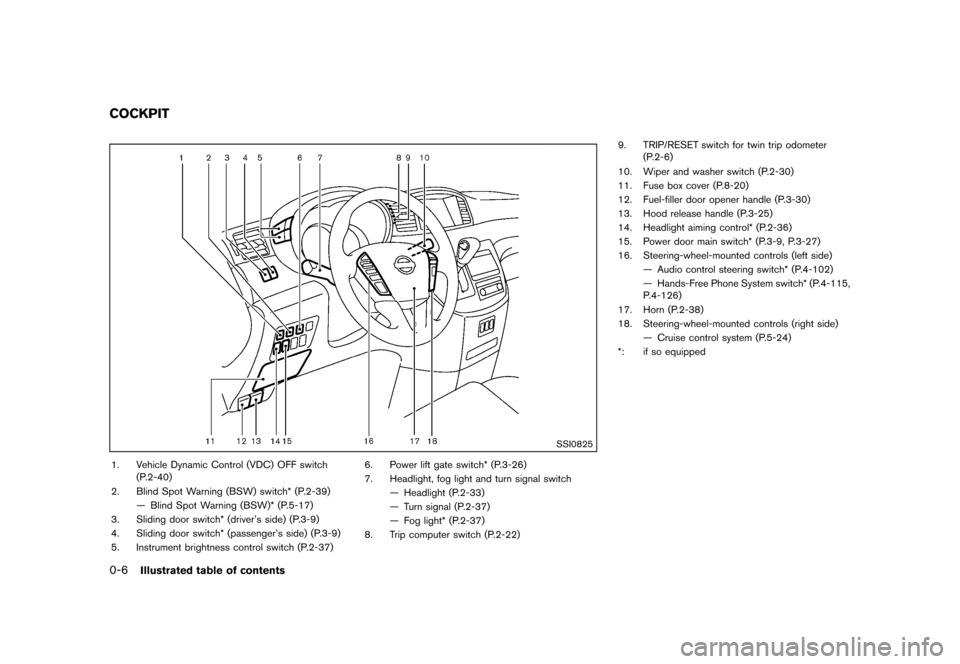

0-6Illustrated table of contents
GUID-F7B216D8-F960-48DA-8767-559E890BB396
SSI0825
1. Vehicle Dynamic Control (VDC) OFF switch(P.2-40)
2. Blind Spot Warning (BSW) switch* (P.2-39) — Blind Spot Warning (BSW)* (P.5-17)
3. Sliding door switch* (driver’s side) (P.3-9)
4. Sliding door switch* (passenger’s side) (P.3-9)
5. Instrument brightness control switch (P.2-37) 6. Power lift gate switch* (P.3-26)
7. Headlight, fog light and turn signal switch
— Headlight (P.2-33)
— Turn signal (P.2-37)
— Fog light* (P.2-37)
8. Trip computer switch (P.2-22) 9. TRIP/RESET switch for twin trip odometer
(P.2-6)
10. Wiper and washer switch (P.2-30)
11. Fuse box cover (P.8-20)
12. Fuel-filler door opener handle (P.3-30)
13. Hood release handle (P.3-25)
14. Headlight aiming control* (P.2-36)
15. Power door main switch* (P.3-9, P.3-27)
16. Steering-wheel-mounted controls (left side) — Audio control steering switch* (P.4-102)
— Hands-Free Phone System switch* (P.4-115,
P.4-126)
17. Horn (P.2-38)
18. Steering-wheel-mounted controls (right side) — Cruise control system (P.5-24)
*: if so equipped
COCKPIT
Condition:

Black plate (13,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
GUID-3F5BDD52-9AA5-463B-87CB-C132C6049CB4
SSI0824
1. Side ventilator (P.4-38)
2. Meters and gauges (P.2-5)
3. Push-button ignition switch (P.5-8)
4. Hazard warning flasher switch (P.6-2)
5. Selector lever (P.5-13)
6. Center display— Center color display* (P.4-3) — Navigation system**
7. Center multi-function control panel* (P.4-3) — Navigation system**
— Vehicle information and setting buttons*
(P.4-8)
— RearView Monitor* (P. 4-23)
— Around View Monitor* (P. 4-29) 8.
Rear window and outside mirror* defroster
switch (P.2-32)
9. Center ventilator (P.4-38)
10. Heater/air conditioner control (P.4-39) or audio system (P.4-53)
11. Parking brake (P.5-17)
12. Tilting telescopic steering wheel lever (P.3-32)
13. Front passenger air bag status light (P.1-54)
14. Heated seat switch* (P.2-38)
15. Cup holders (P.2-43)
16. Power outlet (P.2-40)
17. Instrument lower box (P.2-46) or CD/DVD slot (P.4-105)
18. Power outlet main switch* (P.2-40)
19. Audio system (P.4-53)
20. Glove box (P.2-45)
*: if so equipped
**: Refer to the separate Navigation System Own- er’s Manual (if so equipped) .
Illustrated table of contents0-7
INSTRUMENT PANEL
Condition:

Black plate (14,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
0-8Illustrated table of contents
GUID-073633CE-DDD1-43BA-93E3-2242C44257FC
JVC0210X
1. Instrument brightness control switch (P.2-37)
2. Tachometer (P.2-7)
3. Speedometer (P.2-6)
4. Fuel gauge (P.2-8)
5. Warning/indicator lights (P.2-11)
6. Trip computer switch (P.2-22)
7. Dot matrix liquid crystal display (P.2-18)— Trip computer (P.2-22)
8. Engine coolant temperature gauge (P.2-7)
9. Odometer/twin trip odometer (P.2-6)/Continu- ously Variable Transmission (CVT) position
indicator (P.2-16)
10. TRIP/RESET switch for twin trip odometer (P.2-6)
METERS AND GAUGES
Condition:

Black plate (16,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

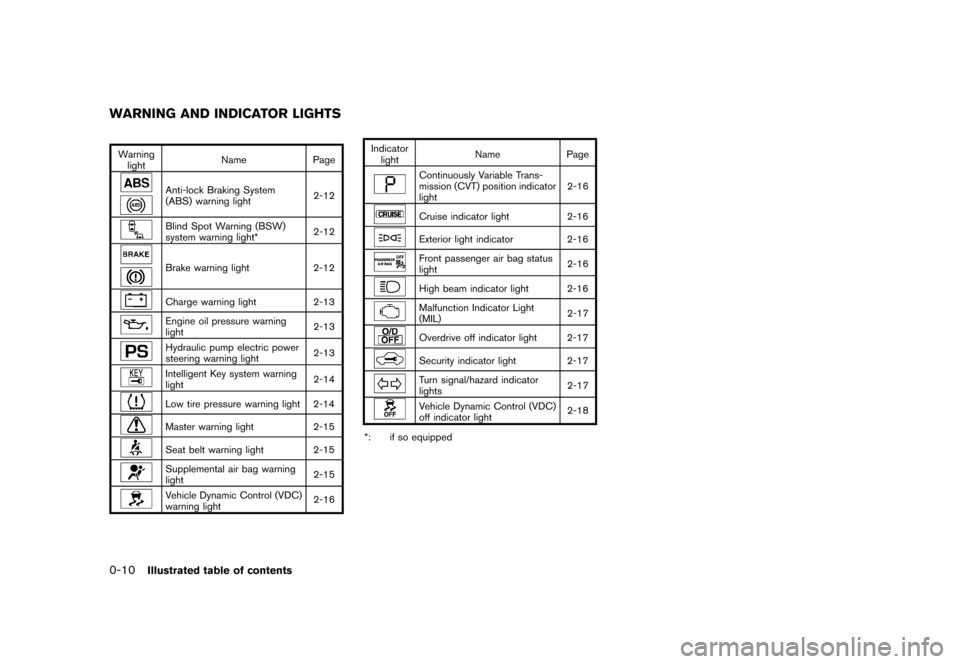

0-10Illustrated table of contents
GUID-6043B04C-5484-4ADB-BE61-405D49B73B56
Warninglight Name
Page
Anti-lock Braking System
(ABS) warning light 2-12
Blind Spot Warning (BSW)
system warning light*2-12
Brake warning light
2-12
Charge warning light2-13
Engine oil pressure warning
light 2-13
Hydraulic pump electric power
steering warning light2-13
Intelligent Key system warning
light2-14
Low tire pressure warning light 2-14
Master warning light
2-15
Seat belt warning light 2-15
Supplemental air bag warning
light 2-15
Vehicle Dynamic Control (VDC)
warning light2-16Indicator
light Name Page
Continuously Variable Trans-
mission (CVT) position indicator
light 2-16
Cruise indicator light
2-16
Exterior light indicator2-16
Front passenger air bag status
light 2-16
High beam indicator light 2-16
Malfunction Indicator Light
(MIL)2-17
Overdrive off indicator light 2-17
Security indicator light
2-17
Turn signal/hazard indicator
lights 2-17
Vehicle Dynamic Control (VDC)
off indicator light2-18
*: if so equipped
WARNING AND INDICATOR LIGHTS
Condition:

Black plate (17,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]

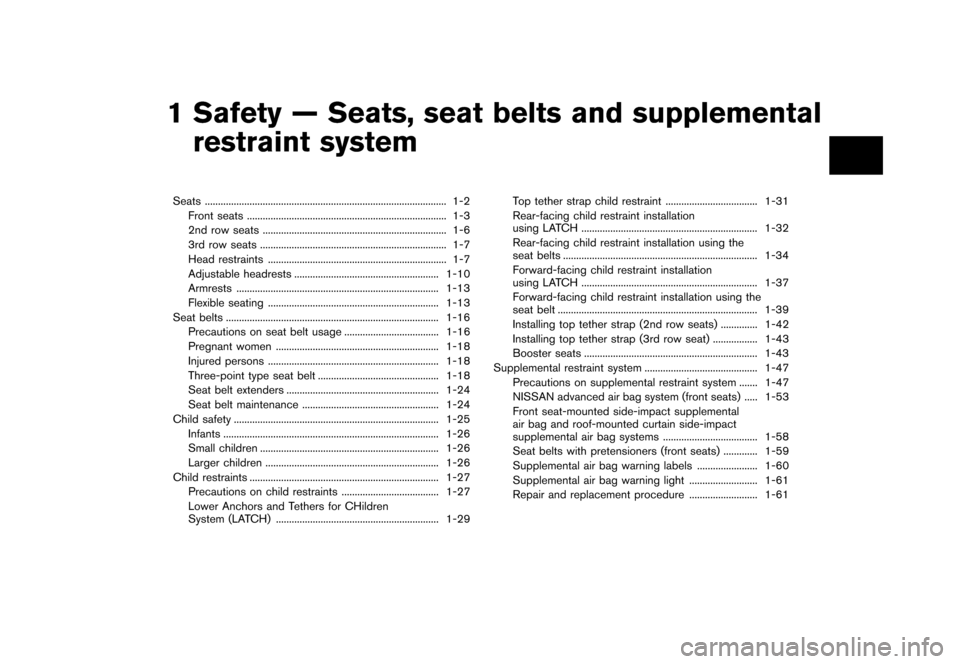

1 Safety — Seats, seat belts and supplementalrestraint system
Seats ...
........................................................................\
.................... 1-2
Front seats ...
........................................................................\
.... 1-3
2nd row seats ...
...................................................................... 1-6
3rd row seats ...
....................................................................... 1-7
Head restraints ...
.................................................................... 1-7
Adjustable headrests ...
....................................................... 1-10
Armrests ...
........................................................................\
..... 1-13
Flexible seating ...
................................................................. 1-13
Seat belts ...
........................................................................\
......... 1-16
Precautions on seat belt usage ...
.................................... 1-16
Pregnant women ...
.............................................................. 1-18
Injured persons ...
................................................................. 1-18
Three-point type seat belt ...
.............................................. 1-18
Seat belt extenders ...
.......................................................... 1-24
Seat belt maintenance ...
.................................................... 1-24
Child safety ...
........................................................................\
...... 1-25
Infants ...
........................................................................\
.......... 1-26
Small children ...
.................................................................... 1-26
Larger children ...
.................................................................. 1-26
Child restraints ...
........................................................................\
1-27
Precautions on child restraints ...
..................................... 1-27
Lower Anchors and Tethers for CHildren
System (LATCH) ...
.............................................................. 1-29 Top tether strap child restraint
...
................................... 1-31
Rear-facing child restraint installation
using LATCH ...
................................................................... 1-32
Rear-facing child restraint installation using the
seat belts ...
........................................................................\
.. 1-34
Forward-facing child restraint installation
using LATCH ...
................................................................... 1-37
Forward-facing child restraint installation using the
seat belt ...
........................................................................\
.... 1-39
Installing top tether strap (2nd row seats) ...
.............. 1-42
Installing top tether strap (3rd row seat) ...
................. 1-43
Booster seats ...
.................................................................. 1-43
Supplemental restraint system ...
........................................... 1-47
Precautions on supplemental restraint system ...
....... 1-47
NISSAN advanced air bag system (front seats) ...
..... 1-53
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
supplemental air bag systems ...
.................................... 1-58
Seat belts with pretensioners (front seats) ...
............. 1-59
Supplemental air bag warning labels ...
....................... 1-60
Supplemental air bag warning light ...
.......................... 1-61
Repair and replacement procedure ...
.......................... 1-61
Condition:

Black plate (33,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
WARNING
.Every person who drives or rides in
this vehicle should use a seat belt at
all times. Children should be prop-
erly restrained in the rear seat and,
if appropriate, in a child restraint.
. The seat belt should be properly
adjusted to a snug fit. Failure to do
so may reduce the effectiveness of
the entire restraint system and in-
crease the chance or severity of
injury in an accident. Serious injury
or death can occur if the seat belt is
not worn properly.
. Always route the shoulder belt over
your shoulder and across your
chest. Never put the belt behind
your back, under your arm or across
your neck. The belt should be away
from your face and neck, but not
falling off your shoulder.
. Position the lap belt as low and
snug as possible AROUND THE
HIPS, NOT THE WAIST. A lap belt
worn too high could increase the
risk of internal injuries in an acci-
dent. .
Be sure the seat belt tongue is
securely fastened to the proper
buckle.
. Do not wear the seat belt inside out
or twisted. Doing so may reduce its
effectiveness.
. Do not allow more than one person
to use the same seat belt.
. Never carry more people in the
vehicle than there are seat belts.
. If the seat belt warning light glows
continuously while the ignition is
turned ON with all doors closed and
all seat belts fastened, it may in-
dicate a malfunction in the system.
Have the system checked by a
NISSAN dealer.
. No changes should be made to the
seat belt system. For example, do
not modify the seat belt, add mate-
rial or install devices that may
change the seat belt routing or
tension. Doing so may affect the
operation of the seat belt system.
Modifying or tampering with the
seat belt system may result in
serious personal injury. .
Once a seat belt pretensioner has
activated, it cannot be reused and
must be replaced together with the
retractor. See a NISSAN dealer.
. Removal and installation of the
pretensioner seat belt system com-
ponents should be done by a
NISSAN dealer.
. All seat belt assemblies, including
retractors and attaching hardware,
should be inspected after any colli-
sion by a NISSAN dealer. NISSAN
recommends that all seat belt as-
semblies in use during a collision be
replaced unless the collision was
minor and the belts show no da-
mage and continue to operate prop-
erly.
Seat belt assemblies not in use
during a collision should also be
inspected and replaced if either
damage or improper operation is
noted.
. All child restraints and attaching
hardware should be inspected after
any collision. Always follow the
restraint manufacturer’s inspection
instructions and replacement re-
Safety — Seats, seat belts and supplemental restraint system1-17
Condition:

Black plate (62,1)
[ Edit: 2013/ 3/ 26 Model: E52-D ]
1-46Safety — Seats, seat belts and supplemental restraint system
is interfering with the proper booster seat fit,
try another seating position or a different
booster seat.
4. Position the lap portion of the seat belt low and snug on the child’s hips. Be sure to
follow the booster seat manufacturer’s
instructions for adjusting the seat belt
routing.
5. Pull the shoulder belt portion of the seat belt toward the retractor to take up extra slack.
Be sure the shoulder belt is positioned
across the top, middle portion of the child’s
shoulder. Be sure to follow the booster seat
manufacturer’s instructions for adjusting the
seat belt routing.
6. Follow the warnings, cautions and instruc- tions for properly fastening a seat belt
shown in “Seat belts” (P.1-16) .
SSS0676
7. If the booster seat is installed in the front
passenger seat, push the ignition switch to
the ON position. The front passenger air bag
status light
may or may not illuminate
depending on the size of the child and the
type of booster seat used. See “Front
passenger air bag and status light” (P.1-54) .
