Vehicle width guide lines5:
Indicate the vehicle width when backing up.
Predictive course lines
6:
Indicate the predictive course when backing up.
The predictive course lines will be displayed on
the monitor when the shift selector is in the R
(Reverse) position and the steering wheel is
turned. The predictive course lines will move de-
pending on how much the steering wheel is
turned and will not be displayed while the steer-
ing wheel is in the neutral position.
The vehicle width guide lines and the width of the
predictive course lines are wider than the actual
width and course.
HOW TO PARK WITH PREDICTIVE
COURSE LINES
WARNING
● Always turn and check that it is safe to
do so before backing up. Always back
up slowly.
● If the tires are replaced with different
sized tires, the predictive course lines
may be displayed incorrectly. ●
On a snow-covered or slippery road,
there may be a difference between the
predictive course line and the actual
course line.
● The distance guide line and the vehicle
width line should be used as a refer-
ence only when the vehicle is on a level
paved surface. The distance viewed on
the monitor is for reference only and
may be different than the actual dis-
tance between the vehicle and dis-
played objects.
● When backing up the vehicle up a hill,
objects viewed in the monitor are fur-
ther than they appear. When backing up
the vehicle down a hill, objects viewed
in the monitor are closer than they ap-
pear. Use the inside mirror or glance
over your shoulder to properly judge
distances to other objects.
1. Visually check that the parking space is safebefore parking your vehicle.
2. The rear view of the vehicle is displayed on the screen
Awhen the shift lever is moved
to the R (Reverse) position.
LHA1197
Monitor, climate, audio, phone and voice recognition systems4-35
There are some areas where the system will not
show objects. When in the front or rearview
display, an object below the bumper or on the
ground may not be viewed
1. When in the
bird-eye view, a tall object near the seam of the
camera viewing areas will not appear in the moni-
tor
2.
WARNING
● The Around View Monitor is a conve-
nience feature. It is not a substitute for
proper vehicle operation because it has
areas where objects cannot be viewed.
The four corners of the vehicle in par-
ticular are blind spots where objects do
not appear in the bird-eye, front or rear
views. Always look out the windows and
check with your own eyes to be sure
that it is safe to move before operating
the vehicle. Always operate the vehicle
slowly.
● The driver is always responsible for
safety during parking and other
maneuvers.
● Do not use the Around View Monitor
with the outside mirror in the stored
position, and make sure that the liftgate
is securely closed when operating the
vehicle using the Around View Monitor.
● The distance between objects viewed
on the Around View Monitor differs
from the actual distance.
● The cameras are installed on the front
grille, the outside mirrors and above the
rear license plate. Do not put anything
on the cameras. ●
When washing the vehicle with high-
pressure water, be sure not to spray it
around the cameras. Otherwise, water
may enter the camera unit causing wa-
ter condensation on the lens, a mal-
function, fire or an electric shock.
● Do not strike the cameras. They are
precision instruments. Doing so could
cause a malfunction or cause damage
resulting in a fire or an electric shock.
CAUTION
Do not scratch the camera lens when
cleaning dirt or snow from the front of the
camera.
AVAILABLE VIEWS
WARNING
● The distance guide line and the vehicle
width line should be used as a refer-
ence only when the vehicle is on a
paved, level surface. The distance
viewed on the monitor may be different
than the actual distance between the
vehicle and displayed objects.
LHA2471
4-40Monitor, climate, audio, phone and voice recognition systems
●If the tires are replaced with different
sized tires, the predictive course lines
and the bird-eye view may be displayed
incorrectly.
● When driving the vehicle up a hill, ob-
jects viewed in the monitor are further
than they appear. When driving the ve-
hicle down a hill, objects viewed in the
monitor are closer than they appear.
Use the mirrors or actually look to prop-
erly judge distances to other objects.
● Objects in the rearview will appear visu-
ally opposite than when viewed in the
rearview and outside mirrors.
● On a snow-covered or slippery road,
there may be a difference between the
predictive course lines and the actual
course line.
● The vehicle width and predictive course
lines are wider than the actual width
and course.
Front and rearview
Guiding lines, which indicate the vehicle width
and distance to objects with reference to the
vehicle body line
A, are displayed on the moni-
tor.
Distance guide lines:
Indicate distances from the vehicle body:
● Red line
1: approximately 1.5 ft (0.5 m)
● Yellow line
2: approximately 3 ft (1 m)
● Green line
3: approximately 7 ft (2 m)
● Green line
4: approximately 10 ft (3 m) Vehicle width guide lines
5:
Indicate the vehicle width when backing up.
Predictive course lines
6:
Indicate the predictive course when operating
the vehicle. The predictive course lines will be
displayed on the monitor when the steering
wheel is turned. The predictive course lines will
move depending on how much the steering
wheel is turned and will not be displayed while
the steering wheel is in the neutral position.
The front view will not be displayed when the
vehicle speed is above 6 mph (10 km/h).
Front view
SAA1840
Rearview
SAA1896
Monitor, climate, audio, phone and voice recognition systems4-41
NOTE:
When the monitor displays the front view
and the steering wheel turns about 90 de-
grees or less from the neutral position,
both the right and left predictive course
lines
6are displayed. When the steering
wheel turns about 90 degrees or more, a
line is displayed only on the opposite side
of the turn.
Bird-eye view
The bird-eye view shows the overhead view of
the vehicle, which helps confirm the vehicle po-
sition and the predicted course to a parking
space.
The vehicle icon
1shows the position of the
vehicle. Note that the distance between objects
viewed in the bird-eye view differs from the actual
distance.
The areas that the cameras cannot cover
2are
indicated in black.
After the ignition switch is placed in the ON
position, the non-viewable area
2is highlighted in yellow for three seconds after the bird-eye view
is displayed. In addition, the non-viewable cor-
ners are displayed in red and blink for the first
three seconds
3to remind the driver to be
cautious.
WARNING
● Objects in the bird-eye view will appear
further than the actual distance be-
cause the bird-eye view is a pseudo
view that is processed by combining the
views from the cameras on the outside
mirrors, the front and the rear of the
vehicle.
● Tall objects, such as a curb or vehicle,
may be misaligned or not displayed at
the seam of the views.
● Objects that are above the camera can-
not be displayed.
● The view of the bird-eye view may be
misaligned when the camera position
alters.
● A line on the ground may be misaligned
and is not seen as being straight at the
seam of the views. The misalignment
will increase as the line proceeds away
from the vehicle.
LHA2547
4-42Monitor, climate, audio, phone and voice recognition systems
Front-side view
Guiding lines:
Guiding lines that indicate the width and the front
end of the vehicle are displayed on the monitor.
The front-of-vehicle line
1shows the front part
of the vehicle.
The side-of-vehicle line
2shows the vehicle
width including the outside mirror.
The extensions
3of both the front1and side
2lines are shown with a green dotted line.
The rear sonar indicator will appear when the rear
of the vehicle moves closer to an object
4.
CAUTION
● The turn signal light may look like the
side-of-vehicle line. This is not a
malfunction.
● Do not scratch the camera lens when
cleaning dirt or snow from the lens.
DIFFERENCE BETWEEN
PREDICTIVE AND ACTUAL
DISTANCES
Backing up on a steep uphill
When backing up the vehicle up a hill, the dis-
tance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
For example, the display shows 3 ft (1.0 m) to the
place
A, but the actual 3 ft (1.0 m) distance on
SAA1842
LHA1199
Monitor, climate, audio, phone and voice recognition systems4-43
NISSAN VEHICLE IMMOBILIZER
SYSTEM
The NISSAN Vehicle Immobilizer system will not
allow the engine to start without the use of the
registered key.
If the engine fails to start using a registered key
(for example, when interference is caused by
another registered key, an automated toll road
device or automatic payment device on the key
ring) , restart the engine using the following pro-
cedure:1. Leave the ignition switch in the ON position for approximately 5 seconds.
2. Place the ignition switch in the OFF or LOCK position, and wait approximately
10 seconds.
3. Repeat steps 1 and 2.
4. Restart the engine while holding the device (which may have caused the interference)
separate from the registered key.
If the no start condition re-occurs, NISSAN rec-
ommends placing the registered key on a sepa-
rate key ring to avoid interference from other
devices. ●
Make sure the area around the vehicle is
clear.
● Check fluid levels such as engine oil, cool-
ant, brake fluid, and windshield-washer fluid
as frequently as possible, or at least when-
ever you refuel.
● Check that all windows and lights are clean.
● Visually inspect tires for their appearance
and condition. Also check tires for proper
inflation.
● Check that all doors are closed.
● Position seat and adjust head restraint.
● Adjust inside and outside mirrors.
● Fasten seat belts and ask all passengers to
do likewise.
● Check the operation of warning lights when
the ignition switch is placed in the ON posi-
tion. See “Warning/indicator lights and au-
dible reminders” in the “Instruments and
controls” section of this manual. 1. Apply the parking brake.
2. Move the shift selector to P (Park) or N
(Neutral) . P (Park) is recommended.
The starter is designed not to operate if
the shift selector is in any of the driving
positions.
3. Push the ignition switch to the ON position. Depress the brake pedal and push the igni-
tion switch to start the engine.
To start the engine immediately, push and
release the ignition switch while depressing
the brake pedal with the ignition switch in
any position.
● If the engine is very hard to start in ex-
tremely cold weather or when restarting,
depress the accelerator pedal a little (ap-
proximately 1/3 to the floor) and while
holding, crank the engine. Release the
accelerator pedal when the engine starts.
● If the engine is very hard to start because
it is flooded, depress the accelerator
pedal all the way to the floor and hold it.
Push the ignition switch to the ON posi-
tion to start cranking the engine. After 5 or
6 seconds, stop cranking by pushing the
ignition switch to LOCK. After cranking
the engine, release the accelerator pedal.
Crank the engine with your foot off the
BEFORE STARTING THE ENGINE STARTING THE ENGINE
Starting and driving5-13
Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is not
a malfunction. If large drops of water collect
inside the lens, contact a NISSAN dealer.
FOG LIGHTS (if so equipped)
Replacing the fog light bulb
If replacement is required, see your NISSAN
dealer.
CAUTION
●High pressure halogen gas is sealed
inside the halogen bulb. The bulb may
break if the glass envelope is scratched
or the bulb is dropped.
● When handling the bulb, do not touch
the glass envelope.
● Use the same number and wattage as
originally installed as shown in the
chart.
● Do not leave the bulb out of the fog light
for a long period of time as dust, mois-
ture and smoke may enter the fog light
body and affect the performance of the
fog light.
EXTERIOR AND INTERIOR LIGHTS
Item Wattage (W)Bulb No.
Headlight assembly* High 60HB3
Low 55H11
Park 5W5W
Turn 21WY21W
Sidemarker 5WY5W
Front fog lights (if so equipped) 55H11
Daytime running lights (Canada only) 19PS19W
Map light* ——
Footwell light 3.4158
Personal lights 8P1Y
Glove box light* 8158
Step light 3.4194
Courtesy light* ——
Vanity mirror light 2—
Cargo light —AL1X
High-mounted stop light* ——
Rear combination light Tail/Stop* 5/217443
Turn 21WY21W
Rear sidemarker 5W5W
Backup (reversing)* 12W16W
License plate light* 5W5W
* See a NISSAN dealer for replacement.
Always check with the Parts Department at a NISSAN dealer for the latest parts information.
Maintenance and do-it-yourself8-27

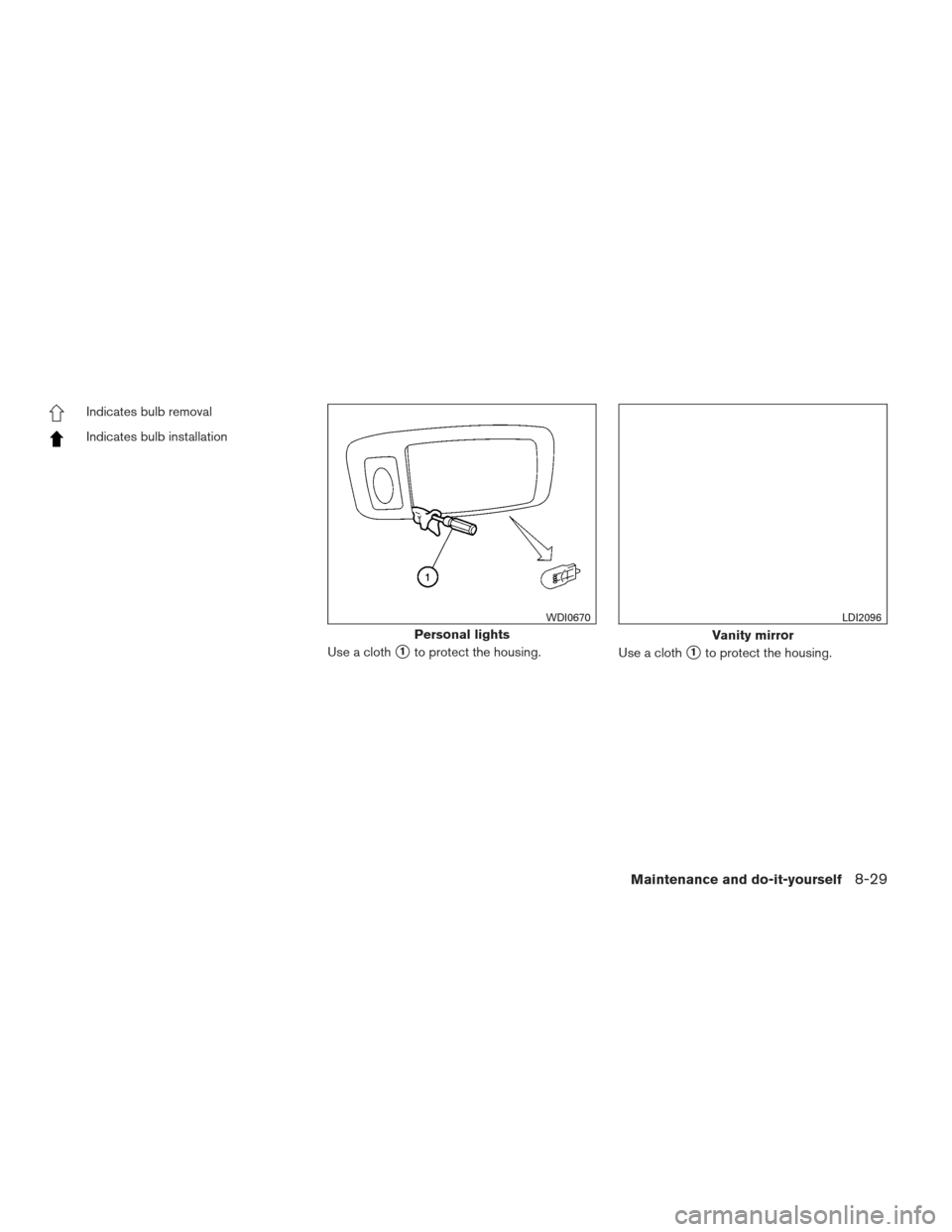

Indicates bulb removal
Indicates bulb installationUse a cloth
1to protect the housing.Use a cloth1to protect the housing.
Personal lights
WDI0670
Vanity mirror
LDI2096
Maintenance and do-it-yourself8-29
