2013 NISSAN PATHFINDER belt

Forward and backward
Pull the center of the bar up and hold it while you
slide the seat forward or backward to the desired
position. Release the bar to lock the seat in
position.
Reclining
To recline the seatback, pull the lever up and lean
back. To bring the seatback forward, pull the lever
up and lean your body forward. Release the lever
to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See “Precautions on seat belt usage” later
in this section. Also, the seatback can be reclined
to allow occupants to rest when the vehicle is
stopped and the transmission is in the P (Park)
position.
Seat lifter (if so equipped for driver’s
seat)
Pull up or push down the adjusting lever to adjust
the seat height until the desired position is
achieved.
LRS2160LRS2161LRS2202
Safety—Seats, seat belts and supplemental restraint system1-3

Lumbar support (driver’s seat)
The lumbar support feature provides lower back
support to the driver. Move the lever up or down
to adjust the seat lumbar area.
FRONT POWER SEAT ADJUSTMENT
(if so equipped)
Operating tips
●The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
● Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
See “Automatic drive positioner” in “Pre-driving
checks and adjustments” for automatic drive po-
sitioner operation.
Forward and backward
Moving the switch forward or backward will slide
the seat forward or backward to the desired
position.
Reclining
Move the recline switch backward until the de-
sired angle is obtained. To bring the seatback
forward again, move the switch forward and
move your body forward. The seatback will move
forward.
WRS0389LRS2130
1-4Safety—Seats, seat belts and supplemental restraint system

The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See “Precautions on seat belt usage” later
in this section. Also, the seatback can be reclined
to allow occupants to rest when the vehicle is
stopped and the shift selector is in P (Park) .
Seat lifter (driver’s seat)
Push the front or rear end of the switch up or
down to adjust the angle and height of the seat
cushion.Lumbar support (driver’s seat)
The lumbar support feature provides lower back
support to the driver. Move the lever up or down
(manual) or push the front or back end of the
switch (power) to adjust the seat lumbar area.
LRS2131
Manual (if so equipped)
LRS2132
Safety—Seats, seat belts and supplemental restraint system1-5

2ND ROW BENCH SEAT
ADJUSTMENT
Forward and backward
Pull the center of the bar1up and hold it while
you slide the seat forward or backward to the
desired position. Release the bar to lock the seat
in position.
Reclining
To recline the seatback, pull up on the lever2
and lean back. To bring the seatback forward, pull
the lever
2up and lean your body forward.
Release the lever to lock the seatback in position. The recline feature allows adjustment of the seat-
back for occupants of different sizes for added
comfort and to help obtain proper seat belt fit
(see “Precautions on seat belt usage” later in this
section) . Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the shift selector is in P (Park) .
WARNING
●
After adjustment, gently rock in the seat
to make sure it is securely locked.
● Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries.
● For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the
seat and adjust the seat belt properly.
See “Precautions on seat belt usage”
later in this section.
Power (if so equipped)
LRS2133
Outboard seats
LRS2143
1-6Safety—Seats, seat belts and supplemental restraint system

One touch walk-in function
The 3rd row can be accessed from outside the
vehicle by using the seatback release lever lo-
cated on the 2nd row seatback. If a child safety
seat is installed on the passenger’s side of the
2nd row seat, the 3rd row can be accessed
without removing the child safety seat.
Multi-mode
To enter the 3rd row from outside the vehicle, lift
up on the seatback lever located on the upper
outboard side of the seatback on the 2nd row
bench seat. This will release the back of the seat
and fold up the seat cushion. This will also re-lease the seat tracks so you will be able to slide
the seat forward or backward.
Slide the entire seat forward for access to the
rear seat.
To return the seat to a locked position,
push the
upper seatback rearward until the seatback and
tracks are locked. Push the seat cushion down.
CAUTION
● When returning the seat to its original
position, confirm that the seat and seat-
back are locked properly.
● Be careful not to pinch your hand or
foot or bump your head when operating
the walk-in seat.
● Do not drive with the 2nd row seat
tipped up.
● Be careful not to allow the 2nd row seat
to pinch, hit any part of your body or
other people when operating the 2nd
row seat. Make sure the seat path is
clear of all objects before moving the
seat. Child seat access mode
WARNING
Do not leave a child in the child safety seat
when operating the Child seat access
mode.
The passenger’s side of the 2nd row seat can be
slid forward for easy entry or exit from the 3rd row
bench seat without a child safety seat being
removed.
To enter the 3rd row from outside the vehicle, lift
up on the seatback lever located on the upper
outboard side of the seatback on the 2nd row
bench seat. This will release the seatback, tilt the
seat, and then release the tracks so you will be
able to slide the seat forward or backward.
Slide the entire seat forward for access to the
rear seat.
To return the seat to a locked position, push the
upper seatback rearward until the seatback and
track are locked.
LRS2142
Safety—Seats, seat belts and supplemental restraint system1-7

CAUTION
●When returning the seat to its original
position, confirm that the seat and seat-
back are locked properly.
● Be careful not to pinch your hand or
foot or bump your head when operating
the walk-in seat.
● Do not drive with the 2nd row seat
tipped up.
● Be careful not to allow the 2nd row seat
to pinch, hit any part of your body or
other people when operating the 2nd
row seat. Make sure the seat path is
clear of all objects before moving the
seat.
Exiting the 3rd row
To exit the 3rd row from either seating position, lift
the upper seatback release lever to the upper-
most position. This will release the back of the
seat, fold the seat cushion up and release the
tracks.
Slide the entire seat forward.
To return the seat to a locked position, push the
upper seatback rearward until the seatback and
track are locked.
CAUTION
● When returning the seat to its original
position, confirm that the seat and seat-
back are locked properly.
● Be careful not to pinch your hand or
foot or bump your head when operating
the walk-in seat.
3RD ROW BENCH SEAT
ADJUSTMENT
Reclining
To recline the seatback, pull up on the latch
located on the outside corner of each seatback.
Lean back until the desired angle is obtained.
To bring the seatback forward again, pull up on
the latch and pull the seatback upright until the
desired angle is obtained.
The recline feature allows adjustment of the seat-
back for occupants of different sizes for added
comfort and to help obtain proper seat belt fit.
Outboard seats
LRS2147
1-8Safety—Seats, seat belts and supplemental restraint system

See “Precautions on seat belt usage” later in this
section. Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the transmission is in P (Park) .
WARNING
●After adjustment, gently rock in the seat
to make sure it is securely locked.
● Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries.
● For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the
seat and adjust the seat belt properly.
See “Precautions on seat belt usage”
later in this section.
HEAD RESTRAINTS (1st row only)
WARNING
Head restraints supplement the other ve-
hicle safety systems. They may provide
additional protection against injury in cer-
tain rear end collisions. Adjust the head
restraints properly, as specified in this
section. Check the adjustment after
someone else uses the seat. Do not attach
anything to the head restraint stalks or
remove the head restraint. Do not use the
seat if the head restraint has been re-
moved. If the head restraint was removed,
reinstall and properly adjust the head re-
straint before an occupant uses the seat-
ing position. Failure to follow these in-
structions can reduce the effectiveness of
the head restraints. This may increase the
risk of serious injury or death in a
collision. The illustration shows the seating positions
equipped with head restraints. The first row head
restraints are adjustable.

Indicates the seating position is equipped with
a head restraint.
LRS2134
Safety—Seats, seat belts and supplemental restraint system1-9

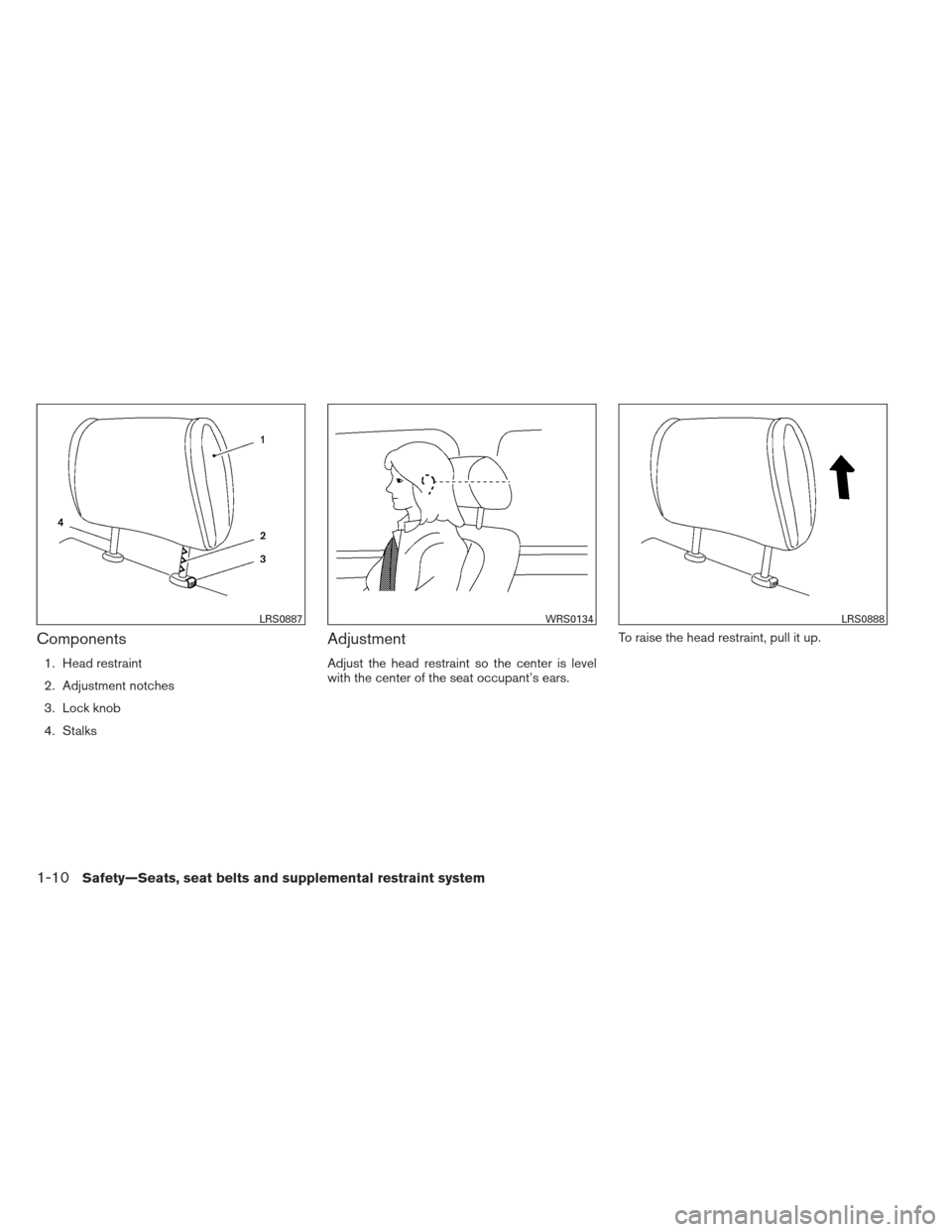

Components
1. Head restraint
2. Adjustment notches
3. Lock knob
4. Stalks
Adjustment
Adjust the head restraint so the center is level
with the center of the seat occupant’s ears.To raise the head restraint, pull it up.
LRS0887WRS0134LRS0888
