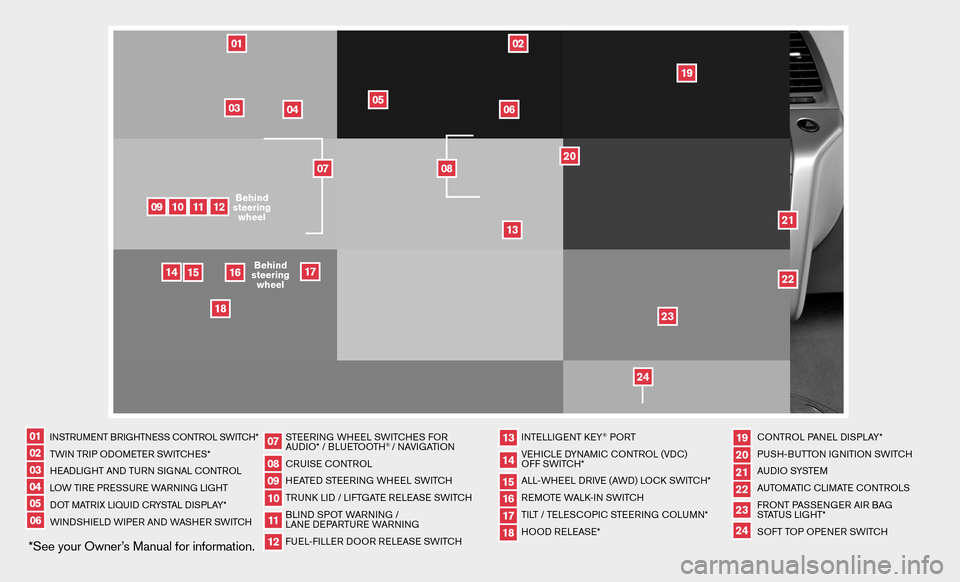

2013 NISSAN MURANO bluetooth

*See your Owner’s Manual for information.
INSTRUMENT BRIGHTNESS CONTROL SWITCH*TWIN TRIP ODOMETER SWITCHES*
HEADLIGHT AND TURN SIGNAL CONTROL
LOW TIRE PRESSURE WARNING LIGHT
DOT MATRIX LIQUID CRYSTAL DISPLAY*
WINDSHIELD WIPER AND WASHER SWITCH STEERING
WHEEL SWITCHES FOR
AUDIO* / BLUETOOTH
® / NAVIGATION
CRUISE CONTROL
HEATED STEERING WHEEL SWITCH
TRUNK LID / LIFTGATE RELEASE SWITCH
BLIND SPOT WARNING /
LANE DEPARTURE WARNING
FUEL-FILLER DOOR RELEASE SWITCH INTELLIGENT KEY
® PORT
VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH*
ALL-WHEEL DRIVE (AWD) LOCK SWITCH*
REMOTE WALK-IN SWITCH
TILT / TELESCOPIC STEERING COLUMN*
HOOD RELEASE* CONTROL
PANEL DISPLAY*
PUSH-BUTTON IGNITION SWITCH
AUDIO SYSTEM
AUTOMATIC CLIMATE CONTROLS
FRONT PASSENGER AIR BAG
STATUS LIGHT*
SOFT TOP OPENER SWITCH
010203040506
1011
17
0712
18
192021222324
08
1315
09
1416
2122
09
18
14
12
11
16
10
02
05
0613
20
08
0301
04
17
15
07
19
23
24
Behind
steering wheel
Behind
steering wheel

TABLE OF CONTENTS
y
NEW SYSTEM FEATURES
Heated Steering Wheel (if so equipped). . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Opening the Soft Top (CrossCabriolet models) . . . . . . . . . . . . . . . . . . . . . . 2
Moving Object Detection (MOD) (if so equipped) . . . . . . . . . . . . . . . . . . . . 2
Blind Spot Warning (BSW) System (if so equipped) . . . . . . . . . . . . . . . . . 3
Lane Departure Warning (LDW) System (if so equipped). . . . . . . . . . . . . . 3
ESSENTIAL INFORMATION
Loose Fuel Cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . 4
Tire Pressure Monitoring System (TPMS) . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Towing Your Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . 5
Automatic Power Windows (CrossCabriolet models) . . . . . . . . . . . . . . . . . 5
Before Operating the Soft Top (CrossCabriolet models) . . . . . . . . . . . . . . 5
FIRST DRIVE FEATURES
NISSAN Intelligent Key
® System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Power Liftgate Release (Hardtop models - if so equipped). . . . . . . . . . . . . 7
Trunk Lid Release (CrossCabriolet models) . . . . . . . . . . . . . . . . . . . . . . . . . 7
Soft Top Operation (CrossCabriolet models) . . . . . . . . . . . . . . . . . . . . . . . . 8
Front Seat Adjustments. . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . 8
Rear Seat Adjustments (Hardtop models) . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Rear Seat Entry/Exit (CrossCabriolet models) . . . . . . . . . . . . . . . . . . . . . . 10
Automatic Drive Positioner (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . 11
Outside Mirror Control Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Starting/Stopping the Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Headlight Control Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 12
Windshield Wiper and Washer Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Automatic Climate Controls (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 14
FM/AM/SiriusXM Satellite Radio with CD/DVD Player (if so equipped) . . 16
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . 17
Front Armrest/Center Console Storage Box. . . . . . . . . . . . . . . . . . . . . . . . 17
Fuel-Filler Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . 17
SYSTEM GUIDE
Trip Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . 18
Bluetooth
® Hands-free Phone System (if so equipped) . . . . . . . . . . . . . . 19
System Operating Tips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . 19
Bluetooth
® System with Navigation (if so equipped) . . . . . . . . . . . . . . . 20
Bluetooth® System without Navigation (if so equipped) . . . . . . . . . . . . . 21
Bluetooth® Streaming Audio (with Navigation System - if so equipped) . . . . 22
Navigation System (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
HomeLink
® Universal Transceiver (if so equipped) . . . . . . . . . . . . . . . . . . . 24
• A cellular telephone should not be used for any purpose while
driving so full attention may be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
• Children 12 and under should always ride in the rear seat
properly secured in child restraints or seat belts according to
their age and weight.
• Do not drink and drive.
For more information, refer to the “Safety –– Seats, seat belts and
supplemental restraint system (section 1)” , the “Monitor, heater, air
conditioner, audio, phone and voice recognition systems (section 4)”
and the “Starting and driving (section 5)” of your Owner’s Manual.
Additional information about your vehicle is also available in your Owner’s Manual, Navigation System Owner’s Manual and at www.nissanusa.com. To view detailed
instructional videos, go to
www.nissanownersinfo.mobi/2013/murano or snap this barcode with an appropriate barcode reader.

19

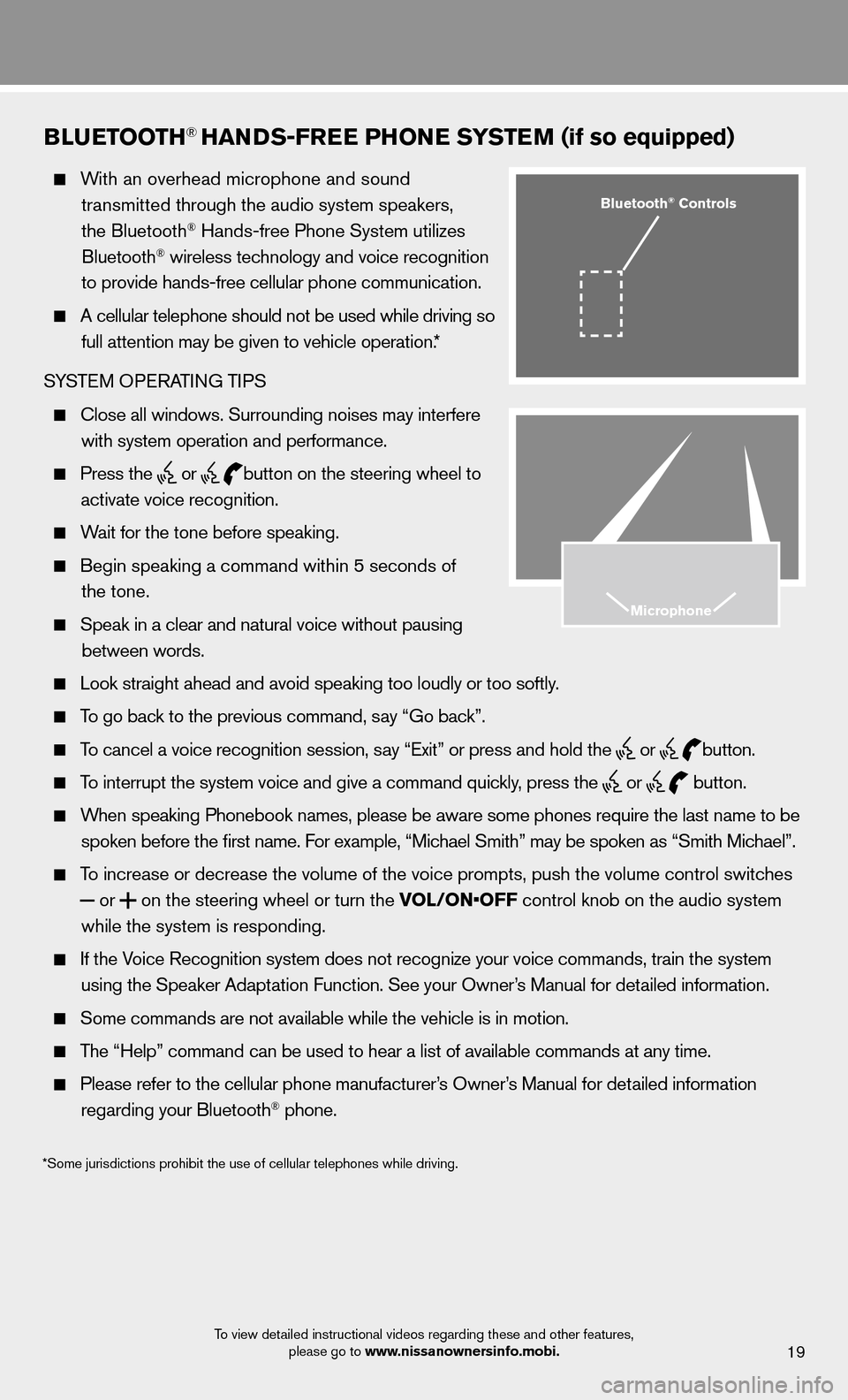

BLUETOOTH® HANDS-FREE PHONE SYSTEM (if so equipped)
With an overhead microphone and sound
transmitted through the audio system speakers,
the Bluetooth
® Hands-free Phone System utilizes
Bluetooth® wireless technology and voice recognition
to provide hands-free cellular phone communication.

A cellular telephone should not be used while driving so
full attention may be given to vehicle operation.*
SYSTEM OPERATING TIPS

Close all windows. Surrounding noises may interfere
with system operation and performance.

Press the
or
button on the steering wheel to
activate voice recognition.

Wait for the tone before speaking.

Begin speaking a command within 5 seconds of
the tone.

Speak in a clear and natural voice without pausing
between words.

Look straight ahead and avoid speaking too loudly or too softly.

To go back to the previous command, say “Go back”.

To cancel a voice recognition session, say “Exit” or press and hold the
or
button.

To interrupt the system voice and give a command quickly, press the
or
button.

When speaking Phonebook names, please be aware some phones require the la\
st name to be
spoken before the fi rst name. For example, “Michael Smith” may be spoken as “Smith Michael”.

To increase or decrease the volume of the voice prompts, push the volume \
control switches
or
on the steering wheel or turn the VOL/ON•OFF control knob on the audio system
while the system is responding.

If the Voice Recognition system does not recognize your voice commands, train th\
e system
using the Speaker Adaptation Function. See your Owner’s Manual for detailed information.

Some commands are not available while the vehicle is in motion.

The “Help” command can be used to hear a list of available commands\
at any time.

Please refer to the cellular phone manufacturer’s Owner’s Manual for detailed information
regarding your Bluetooth® phone.
Bluetooth® Controls
Microphone
*Some jurisdictions prohibit the use of cellular telephones while drivin\
g.
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

system guide
20
Bluetooth® System with Navigation (if so equipped)
Bluetooth® Streaming Audio allows you to use a
compatible Bluetooth® phone to play audio fi les on
your device. Your compatible cellular phone can be
connected to the vehicle’s audio system allowing audio fi les to play through the vehicle’s speakers.
CONNECTING PROCEDURE NOTE: The vehicle must be stationary when connecting
the phone.
1. Press the PHONE button on the instrument panel
or the
button on the steering wheel and select the
“Connect Phone” key.
2. Initiate connecting from the phone.
• The connecting procedure varies according to each
cellular phone model. For detailed connecting instructions and a list of compatible phones,
please visit www.nissanusa.com/bluetooth.
• When prompted for a PIN code, enter “1234”
from the handset. (The PIN code is assigned by NISSAN and cannot be changed.)
3. When the connecting is complete, the screen will
return to the Phone menu display.
PHONEBOOK SETUP

Depending on your cell phone, the system may automatically download your\
cell phone’s
entire phonebook to the vehicle’s Bluetooth® system.

If the phonebook does not download automatically, the vehicle phonebook may be set for
up to 1,000 entries.

To manually download entries:
1. Press the

button and select the “Vehicle
Phonebook” key.
2. Select the “Add New” key at the top of the display.
There are different methods to input a phone number. Select one of the following options:
• “Copy from Call History” to save a number from
the Outgoing, Incoming or Missed Calls lists.
• “Copy from the Handset” to save a number
that has been downloaded from your handset
to the vehicle.
• “Enter Number by Keypad” to input the
number and name manually.
T














To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

21
MAKING A CALL
To make a call, follow this procedure: 1. Press the PHONE button on the instrument panel
or the
button on the steering wheel. The “Phone”
menu will appear on the control panel display.
2. Select the “Vehicle Phonebook”, “Call History”,
“Handset Phonebook” or “Dial Number” key.
3. Select the desired entry from the list.
4. Select “Call” to start dialing the number.
RECEIVING/ENDING A CALL

To accept the call, press the PHONE button on
the instrument panel or the
button on the steering
wheel or touch the “Answer” key.

To reject the call, touch the “Reject Call” key
on the display or press the phone
button
on the steering wheel switch.

To hang up, press the PHONE button on the
instrument panel or the
button or touch the
“Hang up” key.
Bluetooth® System without Navigation
(if so equipped)
PAIRING PROCEDURE
1. Press the

button on the steering wheel. The
system announces the available commands.
2. Say “Connect Phone”. The system acknowledges
the command and announces the next set of
available commands.
3. Say “Add Phone”. The system acknowledges the
command and asks you to initiate connecting from the phone handset.
4. Initiate pairing from the phone.
• The connecting procedure varies according
to each cellular phone model. For detailed
connecting instructions and a list of compatible phones, please visit www.nissanusa.com/bluetooth.
• When prompted for a PIN code, enter “1234” from the handset. (The PIN code is
assigned by NISSAN and cannot be changed.)
5. The system asks for a name for the phone. Say “Yes”. The system acknowledges the command
and registers the cellular phone.
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

system guide
BLUETOOTH® STREAMING AUDIO
(with Navigation System - if so equipped)
If you have a compatible Bluetooth® device with
streaming audio (A2DP profi le), you can set up the
wireless connection between your Bluetooth
® device
and your vehicle’s audio system. This connection
allows you to listen to audio from the Bluetooth
®
device using your vehicle’s speakers.

A cellular phone should not be used while driving so full attention may \
be given to
vehicle operation.*
CONNECTING PROCEDURE
1. Press the SETTING button and select the “Bluetooth” key.
2. Select the “Connect Bluetooth” key.
3. A confi rmation screen will be displayed. Select “No”.
22
PHONEBOOK REGISTRATION

When the cellular phone is connected to the in-vehicle module, the data stored in the cellular
phone such as phonebook, outgoing call logs, incoming call logs and missed call l\
ogs is
automatically transferred and registered to the system.

The availability of this function depends on each cellular phone. The copying procedure
also varies according to each cellular phone. See your cellular phone Owner’s Manual for more information.

Up to 1,000 phone numbers per registered cellular phone can be stored in\
the phonebook.
MAKING A CALL
1. Push the
button on the steering wheel. A tone will sound.
2.
Say “Call”. The system acknowledges the command and announces the next set of
available commands.
3. Say the registered person’s name. The system acknowledges the command and announces
the next set of available commands.
4.
Say “Yes”. The system acknowledges the command and makes the call.
RECEIVING/ENDING A CALL


To accept the call, press the
button on the steering wheel.


To reject the call, press the button.


To hang up, press the button.
For more information, refer to the “Monitor, heater, air conditioner, audio, phone and voice recognition systems
(section 4)” of your Owner’s Manual or please visit www.nissanusa.com/bluetooth.
*Some jurisdictions prohibit the use of cellular telephones while drivin\
g.



o
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.

23
NAVIGATION SYSTEM (if so equipped)
01
STATUS - Press multiple times to display audio information, the air conditioner\
status, fuel
economy or navigation directions.
02 Destination (DEST ) - Press to enter a destination.
03 Multi-function controller - Turn to highlight an item on the screen, and push ENTER to select
the highlighted item. On the map screen, turn to adjust the map scale. T\
o scroll the map,
push the controller in the direction you want to scroll.
04 ROUTE - Press to access the guidance control functions such as guidance cancellation,
route priority, waypoint setting on the route.
05 Information (INFO ) - Press to display the vehicle, traffi c (if so equipped), weather (if so
equipped) or voice recognition information.
06 - Press to switch between the day screen (bright) and the night screen (dark).
Press and hold the button to turn the display off. Press again to turn t\
he display on.
07 ZOOM IN, ZOOM OUT - Push to adjust the map scale
08
MAP - Press to display the map. While following a programmed route, press multiple times
to change the type of route information.
09
SETTING - Press to access the system settings.
10 BACK - Press to return to the previous screen. In a settings screen, this bu\
tton can also
be used to apply the setting. In a character input screen, this button can also delete the
characters that have been entered.
11 VOICE - Press to hear the current voice guidance for a programmed route.
For more information, refer to your Navigation System Owner’s Manual.
4. Choose a PIN code to use with the compatible Bluetooth® audio device using the number
input screen. The PIN code will need to be entered into the Bluetooth® audio device after step
5. Select the “OK” key.
5. The standby message screen will appear. For the connecting procedure of your audio device,
see your device’s Bluetooth
® audio instructions.
6. When the connecting is completed, the screen will return to the Bluetooth\
® setup display.
For more information, refer to the “Monitor, heater, air conditioner, audio, phone and voice recognition systems (section 4)”
of your Owner’s Manual or please visit www.nissanusa.com/bluetooth.
010203
04
0809
1110
0506
07
To view detailed instructional videos regarding these and other features,
please go to www.nissanownersinfo.mobi.
