2013 NISSAN LEAF warning light

Security indicator light
The security indicator light is located on the me-
ter panel. It indicates the status of the NISSAN
Vehicle Immobilizer System.
The light blinks after the power switch was in the
ACC or OFF position. This function indicates the
security systems equipped on the vehicle are
operational.
If the NISSAN Vehicle Immobilizer System is mal-
functioning, this light will remain on while the
power switch is in the ON position.If the light still remains on and/or the
power switch cannot be placed in the
READY to drive position, see a NISSAN
certified LEAF dealer for a NISSAN Vehicle
Immobilizer System service as soon as
possible. Please bring all registered keys
that you have when visiting a NISSAN cer-
tified LEAF dealer for service.
WARNING
In freezing temperatures the washer so-
lution may freeze on the windshield and
obscure your vision which may lead to an
accident. Warm the windshield with the
defroster before you wash the wind-
shield.
CAUTION
Do not operate the washer continu- ously for more than 30 seconds.
Do not operate the washer if the reser- voir tank is empty.
Do not fill the window washer reservoir tank with washer fluid concentrates at
full strength. Some methyl alcohol
based washer fluid concentrates may
permanently stain the grille if spilled
while filling the window washer reser-
voir tank.
Pre-mix washer fluid concentrates with water to the manufacturer’s rec-
ommended levels before pouring the
fluid into the window washer reservoir
tank. Do not use the window washer
reservoir tank to mix the washer fluid
concentrate and water.
WINDSHIELD WIPER AND WASHER
SWITCH
2-38Instruments and controls

The heated steering wheel consumes less
power than the heater and can be used to
either help extend vehicle range by reduc-
ing heater use or to maximize comfort by
supplementing the heater.
To sound the horn, push the center pad area of
the steering wheel.
WARNING
Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system. Tam-
pering with the supplemental front air
bag system may result in serious per-
sonal injury. To activate the ECO mode, press the ECO
switch
1on the right side of the steering wheel.
The “ECO indicator light” on the instrument clus-
ter will illuminate.
To deactivate the ECO mode, press the ECO
switch
1again. The “ECO indicator light” on the
instrument cluster will go out.
See “Electronic Shift Control System” in the
“Starting and Driving” section.
HORN ECO SWITCH
2-46Instruments and controls

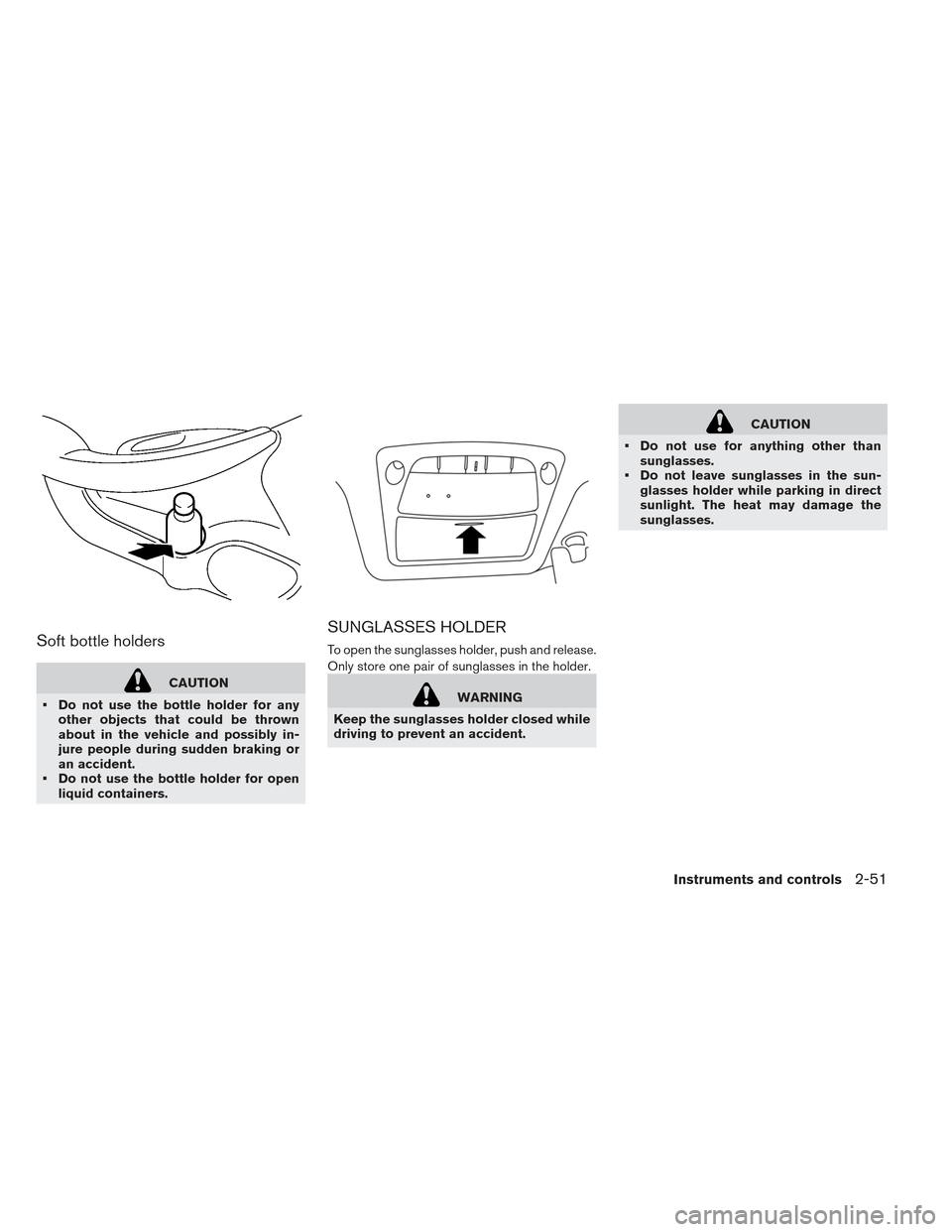

Soft bottle holders
CAUTION
Do not use the bottle holder for any other objects that could be thrown
about in the vehicle and possibly in-
jure people during sudden braking or
an accident.
Do not use the bottle holder for open liquid containers.
SUNGLASSES HOLDER
To open the sunglasses holder, push and release.
Only store one pair of sunglasses in the holder.
WARNING
Keep the sunglasses holder closed while
driving to prevent an accident.
CAUTION
Do not use for anything other than sunglasses.
Do not leave sunglasses in the sun- glasses holder while parking in direct
sunlight. The heat may damage the
sunglasses.
Instruments and controls2-51

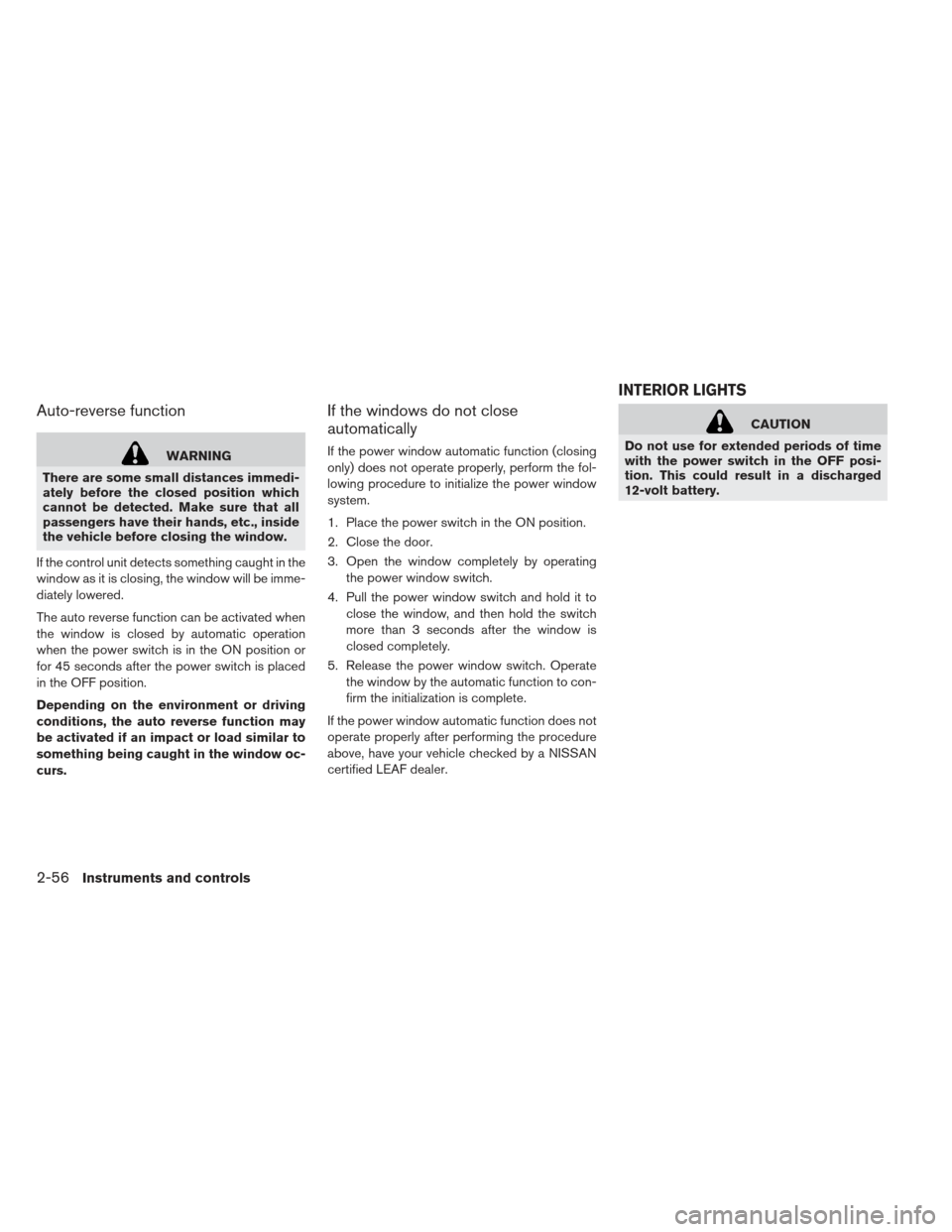

Auto-reverse function
WARNING
There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the window.
If the control unit detects something caught in the
window as it is closing, the window will be imme-
diately lowered.
The auto reverse function can be activated when
the window is closed by automatic operation
when the power switch is in the ON position or
for 45 seconds after the power switch is placed
in the OFF position.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the window oc-
curs.
If the windows do not close
automatically
If the power window automatic function (closing
only) does not operate properly, perform the fol-
lowing procedure to initialize the power window
system.
1. Place the power switch in the ON position.
2. Close the door.
3. Open the window completely by operating the power window switch.
4. Pull the power window switch and hold it to close the window, and then hold the switch
more than 3 seconds after the window is
closed completely.
5. Release the power window switch. Operate the window by the automatic function to con-
firm the initialization is complete.
If the power window automatic function does not
operate properly after performing the procedure
above, have your vehicle checked by a NISSAN
certified LEAF dealer.
CAUTION
Do not use for extended periods of time
with the power switch in the OFF posi-
tion. This could result in a discharged
12-volt battery.
INTERIOR LIGHTS
2-56Instruments and controls

The HomeLink® Universal Transceiver provides
a convenient way to consolidate the functions of
up to three individual hand-held transmitters into
one built-in device.
HomeLink® Universal Transceiver:
Will operate most Radio Frequency (RF) de-vices such as garage doors, gates, home and
office lighting, entry door locks and security
systems.
Is powered by the vehicle’s 12-volt battery. No separate batteries are required. If the vehicle’s
12-volt battery is discharged or is discon-
nected, HomeLink® will retain all programming.
Once the HomeLink® Universal Trans-
ceiver is programmed, retain the original
transmitter for future programming proce-
dures (for example, new vehicle pur-
chases) . Upon sale of the vehicle, the pro-
grammed HomeLink® Universal
Transceiver buttons should be erased for
security purposes. For additional informa-
tion, see “Programming HomeLink®” later
in this section.
WARNING
Do not use the HomeLink® Universal Transceiver with any garage door
opener that lacks safety stop and re-
verse features as required by federal
safety standards. (These standards be-
came effective for opener models
manufactured after April 1, 1982.) A
garage door opener that cannot detect
an object in the path of a closing ga-
rage door and then automatically stop
and reverse, does not meet current
federal safety standards. Using a ga-
rage door opener without these fea-
tures increases the risk of serious in-
jury or death.
During the programming procedure, your garage door or security gate will
open or close (if the transmitter is
within range) . Make sure that people
or objects are clear of the garage door,
gate, etc. that you are programming.
Place the power switch in the ACC or ON position while programming the
HomeLink® Universal Transceiver.
PROGRAMMING HOMELINK®
If you have any questions or are having difficulty
programming your HomeLink® buttons, refer to
the HomeLink® web site at: www.homelink.com
or call 1-800-355-3515.
NOTE:
Place the ignition switch in the ACC posi-
tion when programming HomeLink®. It is
also recommended that a new battery be
placed in the hand-held transmitter of the
device being programmed to HomeLink®
for quicker programming and accurate
transmission of the radio-frequency.
1. Position the end of your hand-held transmitter
1–3 inches (2–8 cm) away from the
HomeLink® surface, keeping the HomeLink®
indicator light
1in view.
HOMELINK® UNIVERSAL
TRANSCEIVER (IF SO EQUIPPED)
2-58Instruments and controls

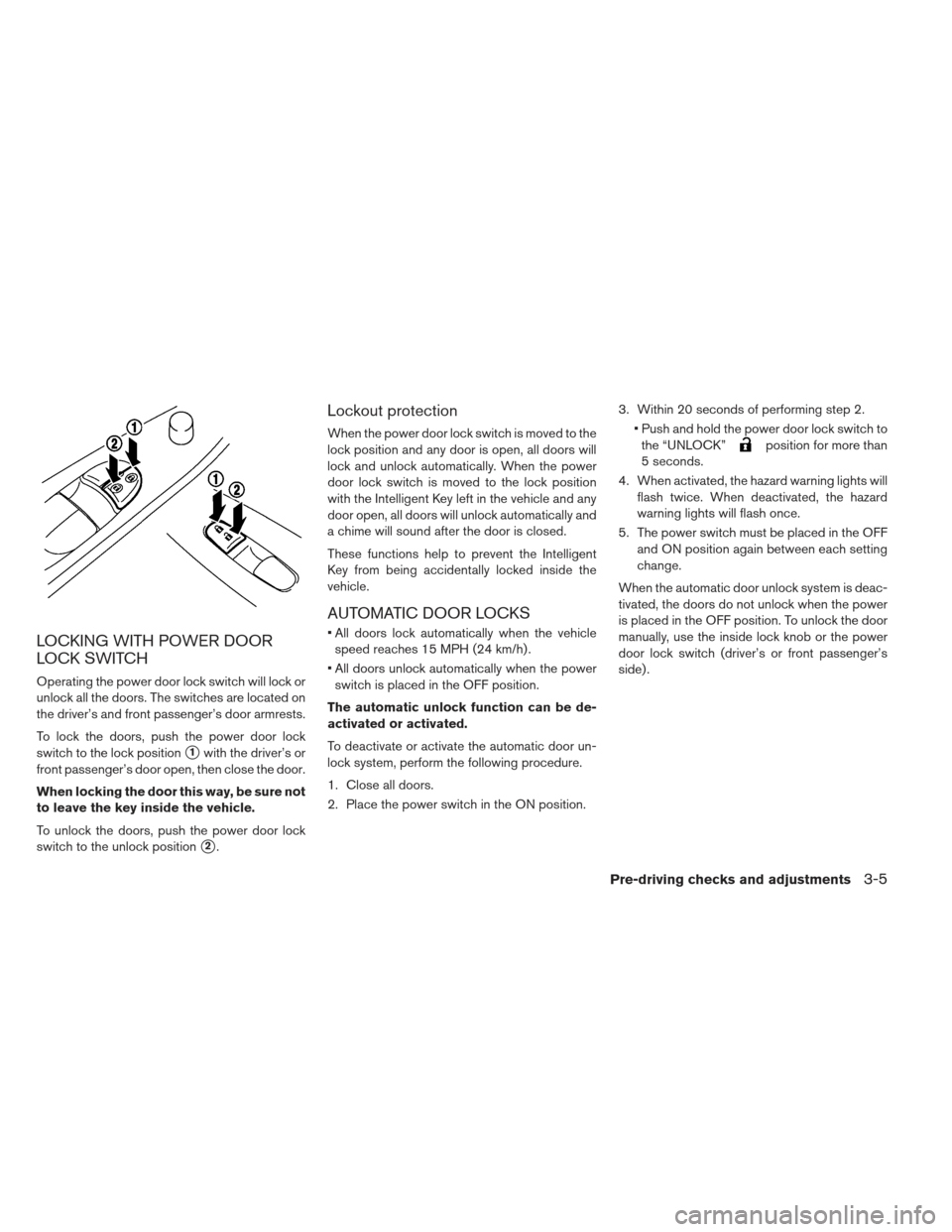

LOCKING WITH POWER DOOR
LOCK SWITCH
Operating the power door lock switch will lock or
unlock all the doors. The switches are located on
the driver’s and front passenger’s door armrests.
To lock the doors, push the power door lock
switch to the lock position
1with the driver’s or
front passenger’s door open, then close the door.
When locking the door this way, be sure not
to leave the key inside the vehicle.
To unlock the doors, push the power door lock
switch to the unlock position
2.
Lockout protection
When the power door lock switch is moved to the
lock position and any door is open, all doors will
lock and unlock automatically. When the power
door lock switch is moved to the lock position
with the Intelligent Key left in the vehicle and any
door open, all doors will unlock automatically and
a chime will sound after the door is closed.
These functions help to prevent the Intelligent
Key from being accidentally locked inside the
vehicle.
AUTOMATIC DOOR LOCKS
All doors lock automatically when the vehicle speed reaches 15 MPH (24 km/h) .
All doors unlock automatically when the power switch is placed in the OFF position.
The automatic unlock function can be de-
activated or activated.
To deactivate or activate the automatic door un-
lock system, perform the following procedure.
1. Close all doors.
2. Place the power switch in the ON position. 3. Within 20 seconds of performing step 2.
Push and hold the power door lock switch tothe “UNLOCK”
position for more than
5 seconds.
4. When activated, the hazard warning lights will flash twice. When deactivated, the hazard
warning lights will flash once.
5. The power switch must be placed in the OFF and ON position again between each setting
change.
When the automatic door unlock system is deac-
tivated, the doors do not unlock when the power
is placed in the OFF position. To unlock the door
manually, use the inside lock knob or the power
door lock switch (driver’s or front passenger’s
side) .
Pre-driving checks and adjustments3-5

CHILD SAFETY REAR DOOR LOCK
Child safety rear door locks help prevent the rear
doors from being opened accidentally, especially
when small children are in the vehicle.
When the levers are in the lock position
1,
the rear doors can be opened only from the
outside.
To disengage, move the levers to the unlock
position
2.
WARNING
Radio waves could adversely affect electric medical equipment. Those
who use a pacemaker should contact
the electric medical equipment manu-
facturer for the possible influences be-
fore use.
The Intelligent Key transmits radio waves when the buttons are pushed.
The FAA advises that the radio waves
may affect aircraft navigation and
communication systems. Do not oper-
ate the Intelligent Key while on an air-
plane. Make sure the buttons are not
operated unintentionally when the unit
is stored during a flight.
The Intelligent Key system can operate all the
door and the rear hatch locks by using the remote
controller function or pushing the request switch
on the vehicle without taking the key out from a
pocket or purse. The operating environment
and/or conditions may affect the Intelligent Key
system operation.
Be sure to read the following items before using
the Intelligent Key system.CAUTION
Be sure to carry the Intelligent Key with you when operating the vehicle.
Never leave the Intelligent Key in the vehicle when you leave the vehicle.
The Intelligent Key is always communicating with
the vehicle because it receives radio waves. The
Intelligent Key system transmits weak radio
waves. Environmental conditions may interfere
with the operation of the Intelligent Key system
under the following operating conditions.
When operating near a location where strong radio waves are transmitted, such as a TV tower,
power station or broadcasting station.
When in possession of wireless equipment, such as a cellular phone, transceiver or CB
radio.
When the Intelligent Key is in contact with or covered by metallic materials.
When any type of radio wave remote control is used nearby.
When the Intelligent Key is placed near an elec- tric appliance such as a personal computer.

When the vehicle is parked near a parking meter.
NISSAN INTELLIGENT KEY® SYSTEM
3-6Pre-driving checks and adjustments

HOW TO USE REMOTE KEYLESS
ENTRY FUNCTION
WARNING
Radio waves could adversely affect electric medical equipment. Those
who use a pacemaker should contact
the electric medical equipment manu-
facturer for the possible influences be-
fore use.
The Intelligent Key transmits radio waves when the buttons are pushed.
The FAA advises that the radio waves
may affect aircraft navigation and
communication systems. Do not oper-
ate the Intelligent Key while on an air-
plane. Make sure the buttons are not
operated unintentionally when the unit
is stored during a flight.
CAUTION
Do not allow the Intelligent Key, which contains electrical components, to
come into contact with water or salt
water. This could affect the system
function.
Do not drop the Intelligent Key. Do not strike the Intelligent Key
sharply against another object.
Do not change or modify the Intelli- gent Key.
Wetting may damage the Intelligent Key. If the Intelligent Key gets wet,
immediately wipe until it is completely
dry.
Do not place the Intelligent Key for an extended period in an area where tem-
peratures exceed 140°F (60°C) .
Do not attach the Intelligent Key with a key holder that contains a magnet.
Do not place the Intelligent Key near equipment that produces a magnetic
field, such as a TV, audio equipment,
personal computers or cellular phone.
The remote keyless entry function can operate all
door locks using the remote keyless entry func-
tion of the Intelligent Key. The remote keyless
entry function can operate at a distance of ap-
proximately 33 ft (10 m) from the vehicle. (The
operating distance depends upon the conditions
around the vehicle.)
The remote keyless entry function will not oper-
ate:
When the Intelligent Key is not within the opera- tional range. When the doors are open or not closed se-
curely.
When the Intelligent Key battery is discharged.
The remote keyless entry function can also oper-
ate the vehicle alarm.
Pre-driving checks and adjustments3-13
