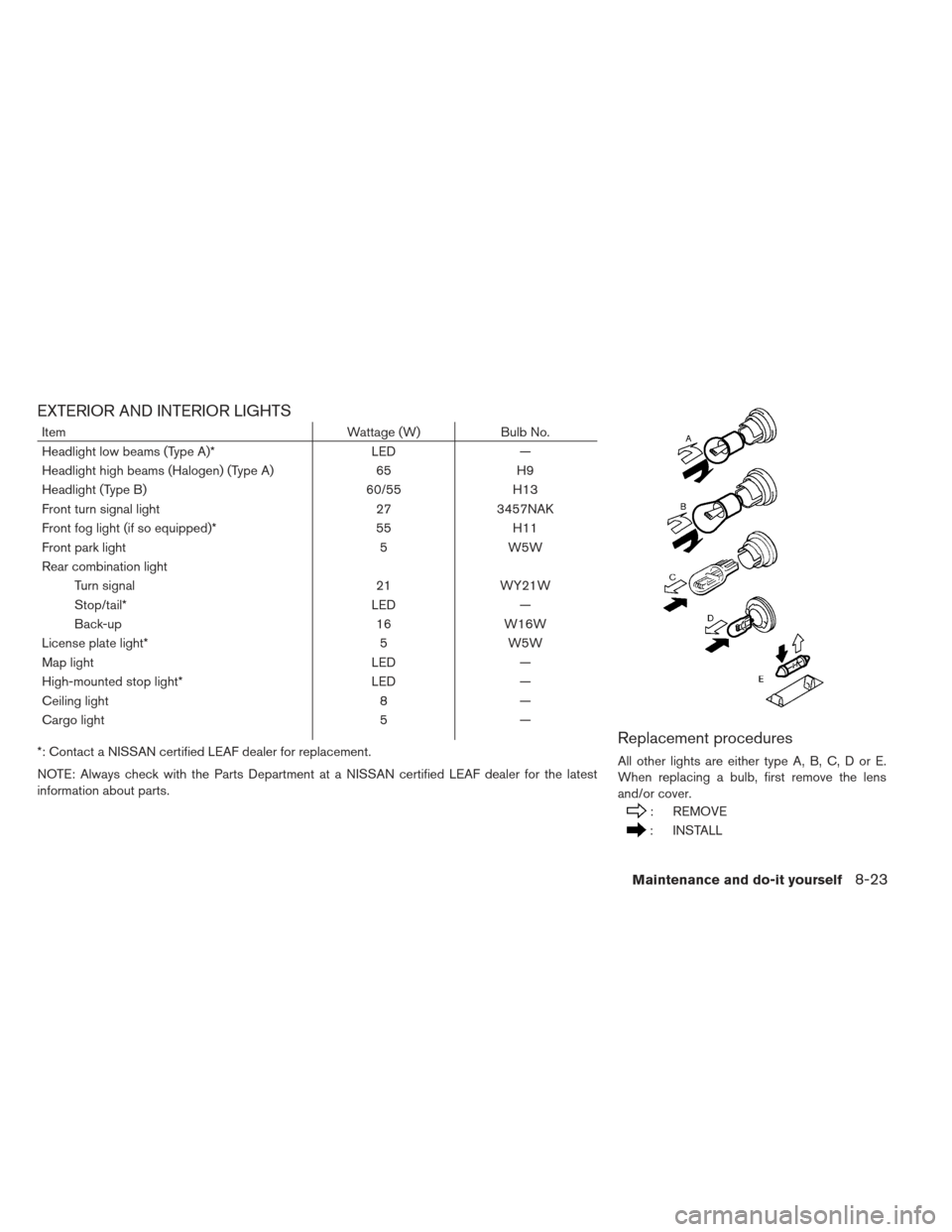

EXTERIOR AND INTERIOR LIGHTS
ItemWattage (W)Bulb No.
Headlight low beams (Type A)* LED—
Headlight high beams (Halogen) (Type A) 65H9
Headlight (Type B) 60/55H13
Front turn signal light 273457NAK
Front fog light (if so equipped)* 55H11
Front park light 5W5W
Rear combination light Turn signal 21WY21W
Stop/tail* LED—
Back-up 16W16W
License plate light* 5W5W
Map light LED—
High-mounted stop light* LED—
Ceiling light 8—
Cargo light 5—
*: Contact a NISSAN certified LEAF dealer for replacement.
NOTE: Always check with the Parts Department at a NISSAN certified LEAF dealer for the latest
information about parts.
Replacement procedures
All other lights are either type A, B, C, D or E.
When replacing a bulb, first remove the lens
and/or cover.
: REMOVE
: INSTALL
Maintenance and do-it yourself8-23
