2013 NISSAN JUKE spark plugs replace

Black plate (277,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

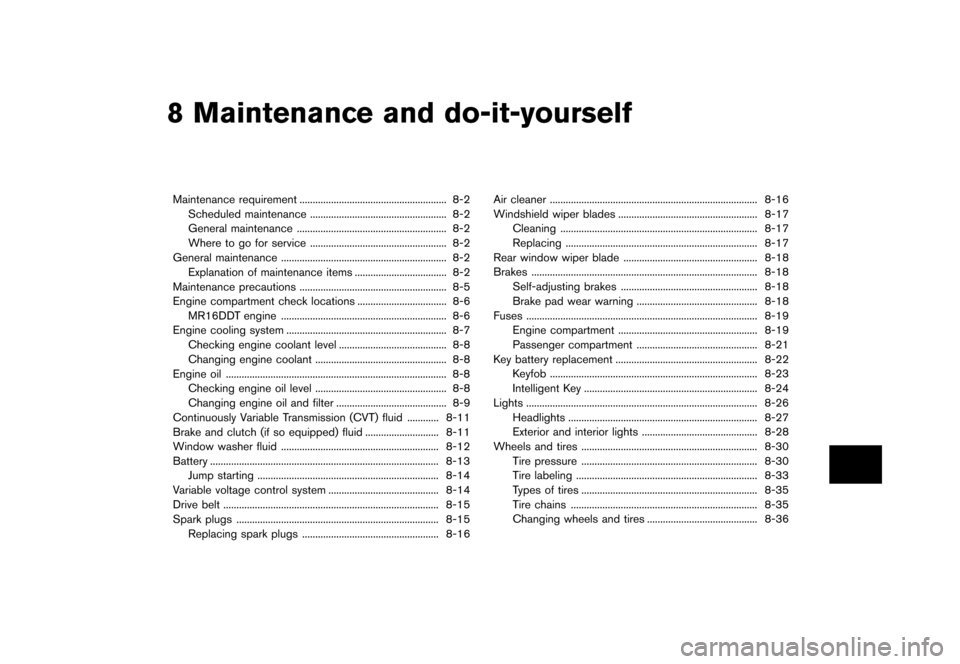

8 Maintenance and do-it-yourself
Maintenance requirement...
........................................................ 8-2
Scheduled maintenance ...
.................................................... 8-2
General maintenance ...
......................................................... 8-2
Where to go for service ...
.................................................... 8-2
General maintenance ...
............................................................... 8-2
Explanation of maintenance items ...
................................... 8-2
Maintenance precautions ...
........................................................ 8-5
Engine compartment check locations ...
.................................. 8-6
MR16DDT engine ...
............................................................... 8-6
Engine cooling system ...
............................................................. 8-7
Checking engine coolant level ...
......................................... 8-8
Changing engine coolant ...
.................................................. 8-8
Engine oil ...
........................................................................\
............ 8-8
Checking engine oil level ...
.................................................. 8-8
Changing engine oil and filter ...
.......................................... 8-9
Continuously Variable Transmission (CVT) fluid ...
............ 8-11
Brake and clutch (if so equipped) fluid ...
............................ 8-11
Window washer fluid ...
............................................................ 8-12
Battery ...
........................................................................\
............... 8-13
Jump starting ...
..................................................................... 8-14
Variable voltage control system ...
.......................................... 8-14
Drive belt ...
........................................................................\
.......... 8-15
Spark plugs ...
........................................................................\
..... 8-15
Replacing spark plugs ...
.................................................... 8-16 Air cleaner
...
........................................................................\
....... 8-16
Windshield wiper blades ...
..................................................... 8-17
Cleaning ...
........................................................................\
... 8-17
Replacing ...
........................................................................\
. 8-17
Rear window wiper blade ...
................................................... 8-18
Brakes ...
........................................................................\
.............. 8-18
Self-adjusting brakes ...
.................................................... 8-18
Brake pad wear warning ...
.............................................. 8-18
Fuses ...
........................................................................\
................ 8-19
Engine compartment ...
..................................................... 8-19
Passenger compartment ...
.............................................. 8-21
Key battery replacement ...
...................................................... 8-22
Keyfob ...
........................................................................\
....... 8-23
Intelligent Key ...
.................................................................. 8-24
Lights ...
........................................................................\
................ 8-26
Headlights ...
........................................................................\
8-27
Exterior and interior lights ...
............................................ 8-28
Wheels and tires ...
................................................................... 8-30
Tire pressure ...
................................................................... 8-30
Tire labeling ...
..................................................................... 8-33
Types of tires ...
................................................................... 8-35
Tire chains ...
....................................................................... 8-35
Changing wheels and tires ...
.......................................... 8-36
Condition:

Black plate (291,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
GUID-1AF74337-E578-4C98-A7ED-F2206E4170AC

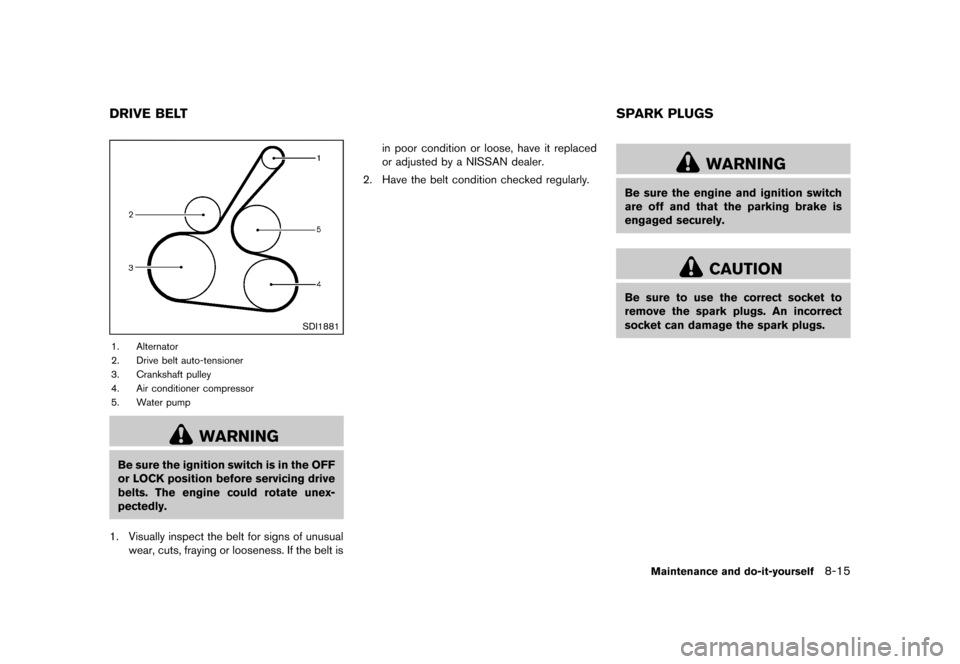

SDI1881
1. Alternator
2. Drive belt auto-tensioner
3. Crankshaft pulley
4. Air conditioner compressor
5. Water pump
WARNING
Be sure the ignition switch is in the OFF
or LOCK position before servicing drive
belts. The engine could rotate unex-
pectedly.
1. Visually inspect the belt for signs of unusual wear, cuts, fraying or looseness. If the belt is in poor condition or loose, have it replaced
or adjusted by a NISSAN dealer.
2. Have the belt condition checked regularly.
GUID-AAF18895-92AC-4601-BD68-201C81BA060E
WARNING
Be sure the engine and ignition switch
are off and that the parking brake is
engaged securely.
CAUTION
Be sure to use the correct socket to
remove the spark plugs. An incorrect
socket can damage the spark plugs.
Maintenance and do-it-yourself8-15
DRIVE BELT SPARK PLUGS
Condition:

Black plate (292,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
8-16Maintenance and do-it-yourself

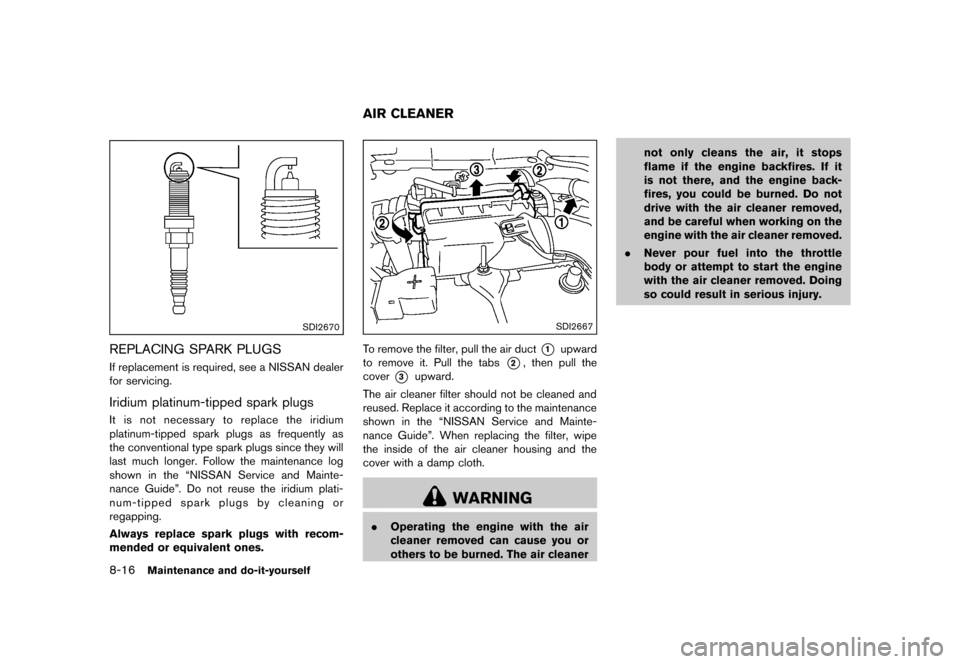

SDI2670
REPLACING SPARK PLUGSGUID-C62B4C9C-0259-481F-A5AB-DFBBB3D10B69If replacement is required, see a NISSAN dealer
for servicing.
Iridium platinum-tipped spark plugsGUID-E12E20CD-D386-439E-A361-43DA33D9C4A6It is not necessary to replace the iridium
platinum-tipped spark plugs as frequently as
the conventional type spark plugs since they will
last much longer. Follow the maintenance log
shown in the “NISSAN Service and Mainte-
nance Guide”. Do not reuse the iridium plati-
num-tipped spark plugs by cleaning or
regapping.
Always replace spark plugs with recom-
mended or equivalent ones.
GUID-A7EFD3D5-8983-4D24-A2FC-51D31347536E
SDI2667
To remove the filter, pull the air duct*1upward
to remove it. Pull the tabs
*2, then pull the
cover
*3upward.
The air cleaner filter should not be cleaned and
reused. Replace it according to the maintenance
shown in the “NISSAN Service and Mainte-
nance Guide”. When replacing the filter, wipe
the inside of the air cleaner housing and the
cover with a damp cloth.
WARNING
. Operating the engine with the air
cleaner removed can cause you or
others to be burned. The air cleaner not only cleans the air, it stops
flame if the engine backfires. If it
is not there, and the engine back-
fires, you could be burned. Do not
drive with the air cleaner removed,
and be careful when working on the
engine with the air cleaner removed.
. Never pour fuel into the throttle
body or attempt to start the engine
with the air cleaner removed. Doing
so could result in serious injury.
AIR CLEANER
Condition:
