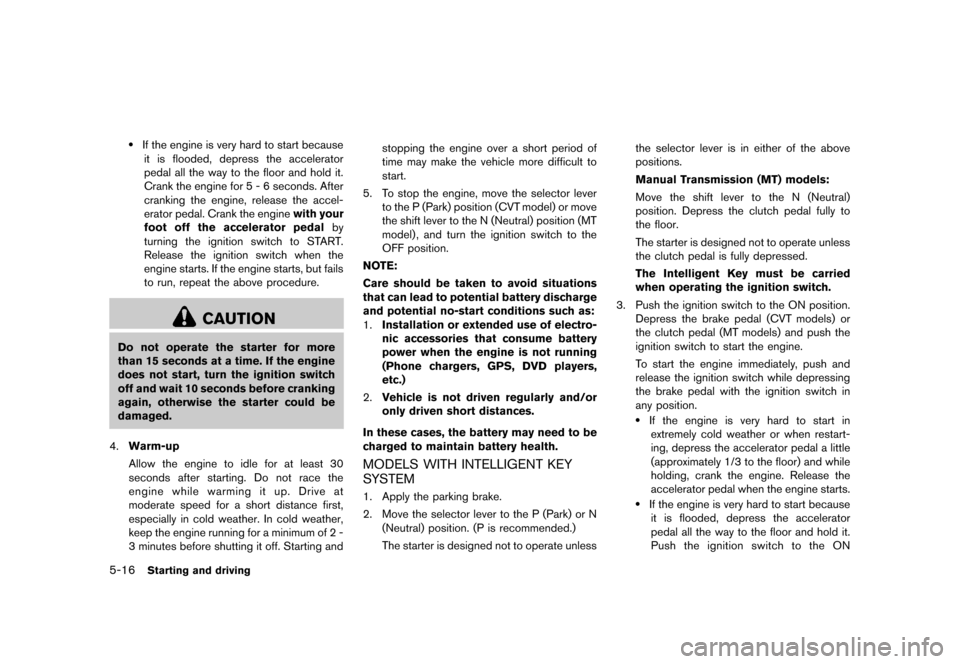

5-16Starting and driving
.If the engine is very hard to start becauseit is flooded, depress the accelerator
pedal all the way to the floor and hold it.
Crank the engine for 5 - 6 seconds. After
cranking the engine, release the accel-
erator pedal. Crank the engine with your
foot off the accelerator pedal by
turning the ignition switch to START.
Release the ignition switch when the
engine starts. If the engine starts, but fails
to run, repeat the above procedure.
CAUTION
Do not operate the starter for more
than 15 seconds at a time. If the engine
does not start, turn the ignition switch
off and wait 10 seconds before cranking
again, otherwise the starter could be
damaged.
4. Warm-up
Allow the engine to idle for at least 30
seconds after starting. Do not race the
engine while warming it up. Drive at
moderate speed for a short distance first,
especially in cold weather. In cold weather,
keep the engine running for a minimum of 2 -
3 minutes before shutting it off. Starting and stopping the engine over a short period of
time may make the vehicle more difficult to
start.
5. To stop the engine, move the selector lever to the P (Park) position (CVT model) or move
the shift lever to the N (Neutral) position (MT
model) , and turn the ignition switch to the
OFF position.
NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
1. Installation or extended use of electro-
nic accessories that consume battery
power when the engine is not running
(Phone chargers, GPS, DVD players,
etc.)
2. Vehicle is not driven regularly and/or
only driven short distances.
In these cases, the battery may need to be
charged to maintain battery health.
MODELS WITH INTELLIGENT KEY
SYSTEM
GUID-E356135D-DD51-41D0-A03B-9A92CA69AD8E1. Apply the parking brake.
2. Move the selector lever to the P (Park) or N (Neutral) position. (P is recommended.)
The starter is designed not to operate unless the selector lever is in either of the above
positions.
Manual Transmission (MT) models:
Move the shift lever to the N (Neutral)
position. Depress the clutch pedal fully to
the floor.
The starter is designed not to operate unless
the clutch pedal is fully depressed.
The Intelligent Key must be carried
when operating the ignition switch.
3. Push the ignition switch to the ON position. Depress the brake pedal (CVT models) or
the clutch pedal (MT models) and push the
ignition switch to start the engine.
To start the engine immediately, push and
release the ignition switch while depressing
the brake pedal with the ignition switch in
any position.
.If the engine is very hard to start inextremely cold weather or when restart-
ing, depress the accelerator pedal a little
(approximately 1/3 to the floor) and while
holding, crank the engine. Release the
accelerator pedal when the engine starts.
.If the engine is very hard to start becauseit is flooded, depress the accelerator
pedal all the way to the floor and hold it.
Push the ignition switch to the ON
Condition:

Black plate (223,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

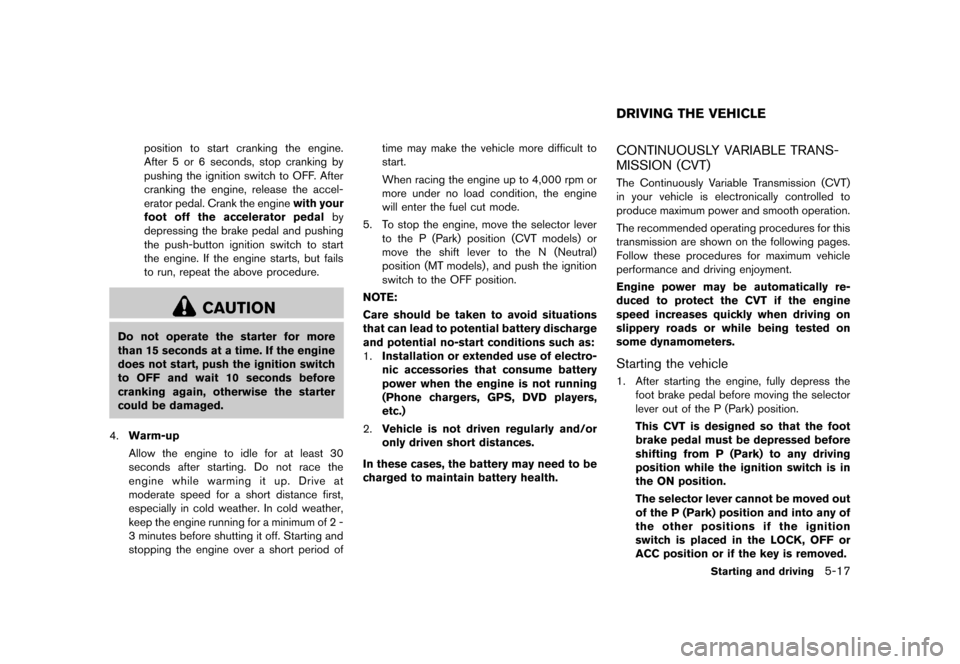

position to start cranking the engine.
After 5 or 6 seconds, stop cranking by
pushing the ignition switch to OFF. After
cranking the engine, release the accel-
erator pedal. Crank the enginewith your
foot off the accelerator pedal by
depressing the brake pedal and pushing
the push-button ignition switch to start
the engine. If the engine starts, but fails
to run, repeat the above procedure.
CAUTION
Do not operate the starter for more
than 15 seconds at a time. If the engine
does not start, push the ignition switch
to OFF and wait 10 seconds before
cranking again, otherwise the starter
could be damaged.
4. Warm-up
Allow the engine to idle for at least 30
seconds after starting. Do not race the
engine while warming it up. Drive at
moderate speed for a short distance first,
especially in cold weather. In cold weather,
keep the engine running for a minimum of 2 -
3 minutes before shutting it off. Starting and
stopping the engine over a short period of time may make the vehicle more difficult to
start.
When racing the engine up to 4,000 rpm or
more under no load condition, the engine
will enter the fuel cut mode.
5. To stop the engine, move the selector lever to the P (Park) position (CVT models) or
move the shift lever to the N (Neutral)
position (MT models) , and push the ignition
switch to the OFF position.
NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
1. Installation or extended use of electro-
nic accessories that consume battery
power when the engine is not running
(Phone chargers, GPS, DVD players,
etc.)
2. Vehicle is not driven regularly and/or
only driven short distances.
In these cases, the battery may need to be
charged to maintain battery health.
GUID-0099E665-725B-489E-B596-F5A3F4CD54DBCONTINUOUSLY VARIABLE TRANS-
MISSION (CVT)
GUID-C699DF0B-987D-4AD2-879E-72829424A200The Continuously Variable Transmission (CVT)
in your vehicle is electronically controlled to
produce maximum power and smooth operation.
The recommended operating procedures for this
transmission are shown on the following pages.
Follow these procedures for maximum vehicle
performance and driving enjoyment.
Engine power may be automatically re-
duced to protect the CVT if the engine
speed increases quickly when driving on
slippery roads or while being tested on
some dynamometers.
Starting the vehicleGUID-5D273D53-F49E-430A-9675-CA17371F1DFA1. After starting the engine, fully depress the foot brake pedal before moving the selector
lever out of the P (Park) position.
This CVT is designed so that the foot
brake pedal must be depressed before
shifting from P (Park) to any driving
position while the ignition switch is in
the ON position.
The selector lever cannot be moved out
of the P (Park) position and into any of
the other positions if the ignition
switch is placed in the LOCK, OFF or
ACC position or if the key is removed.
Starting and driving5-17
DRIVING THE VEHICLE
Condition:

Black plate (280,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
8-4Maintenance and do-it-yourself
comes out of the defroster outlets properly and
in sufficient quantity when operating the heater
or air conditioner.
Windshield wiper and washer*:Check that
the wipers and washers operate properly and
that the wipers do not streak.
Under the hood and vehicleGUID-597AB0E2-6F94-48AA-BED6-41A6FA4A8B49The maintenance items listed here should be
checked periodically (for example, each time you
check the engine oil or refuel) .
Battery*: Check the fluid level in each cell.
It should be between the MAX and MIN lines.
Vehicles operated in high temperatures or under
severe condition require frequent checks of the
battery fluid level.
NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
1. Installation or extended use of electro-
nic accessories that consume battery
power when the engine is not running
(Phone chargers, GPS, DVD players,
etc.)
2. Vehicle is not driven regularly and/or
only driven short distances.
In these cases, the battery may need to be charged to maintain battery health.
Brake and clutch fluid level*:
Make sure that
the brake and clutch fluid level is between the
MAX and MIN lines on the reservoir.
Engine coolant level*: Check the coolant level
when the engine is cold.
Engine drive belt*: Make sure that the drive
belt is not frayed, worn, cracked or oily.
Engine oil level*: Check the level after parking
the vehicle on a level surface and turning off the
engine. Wait more than 10 minutes for the oil to
drain back into the oil pan.
Exhaust system: Make sure there are no loose
supports, cracks or holes. If the sound of the
exhaust seems unusual or there is a smell of
exhaust fumes, immediately have the exhaust
system inspected by a NISSAN dealer. (See
“Precautions when starting and driving” (P.5-3)
for exhaust gas (carbon monoxide) .)
Fluid leaks: Check under the vehicle for fuel,
oil, water or other fluid leaks after the vehicle has
been parked for a while. Water dripping from the
air conditioner after use is normal. If you should
notice any leaks or if gasoline fumes are evident,
check for the cause and have it corrected
immediately.
Radiator and hoses: Check the front of the
radiator and clean off any dirt, insects, leaves, etc., that may have accumulated. Make sure the
hoses have no cracks, deformation, rot or loose
connections.
Underbody:
The underbody is frequently ex-
posed to corrosive substances such as those
used on icy roads or to control dust. It is very
important to remove these substances, other-
wise rust will form on the floor pan, frame, fuel
lines and around the exhaust system. At the end
of winter, the underbody should be thoroughly
flushed with plain water, being careful to clean
those areas where mud and dirt may accumu-
late. For additional information, see “Cleaning
exterior” (P.7-2).
Windshield washer fluid*: Check that there is
adequate fluid in the reservoir.
Condition:

Black plate (289,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
GUID-B29BEC73-37B3-4C87-9A9D-EA809C865599.Keep the battery surface clean and dry.
Clean the battery with a solution of baking
soda and water.
. Make certain the terminal connections are
clean and securely tightened.
. If the vehicle is not to be used for 30 days or
longer, disconnect the negative 7battery
terminal cable to prevent discharging it.
NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
1. Installation or extended use of electro-
nic accessories that consume battery
power when the engine is not running
(Phone chargers, GPS, DVD players,
etc.)
2. Vehicle is not driven regularly and/or
only driven short distances.
In these cases, the battery may need to be
charged to maintain battery health.
WARNING
. Do not expose the battery to flames
or electrical sparks. Hydrogen gas
generated by the battery is explo-
sive. Do not allow battery fluid to contact your skin, eyes, fabrics or
painted surfaces. After touching a
battery or battery cap, do not touch
or rub your eyes. Thoroughly wash
your hands. If the acid contacts your
eyes, skin or clothing, immediately
flush with water for at least 15
minutes and seek medical attention.
. Do not operate the vehicle if the
fluid in the battery is low. Low
battery fluid can cause a higher load
on the battery which can generate
heat, reduce battery life, and in
some cases lead to an explosion.
. When working on or near a battery,
always wear suitable eye protection
and remove all jewelry.
. Battery posts, terminals and related
accessories contain lead and lead
compounds. Wash hands after
handling.
. Keep the battery out of the reach of
children.
DI0137MA
Check the fluid level in each cell. It should be
between the UPPER LEVEL
*1and LOWER
LEVEL
*2lines.
If it is necessary to add fluid, add only distilled
water to bring the level to the indicator in each
filler opening. Do not overfill.
Maintenance and do-it-yourself8-13
BATTERY
Condition:

Black plate (337,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
10 Index
A
ABS (Anti-lock Braking System)...
............................ 5-39
Advanced air bag system ...
......................................... 1-41
Air bag system Advanced air bag system ...
.................................. 1-41
Front passenger air bag and status light ...
....... 1-43
Front-seat mounted side-impact
supplemental air bag system ...
............................ 1-46
Roof-mounted curtain side-impact
supplemental air bag system ...
............................ 1-46
Air bag warning labels ...
............................................... 1-49
Air bag warning light ...
...................................... 1-49, 2-17
Air cleaner housing filter ...
........................................... 8-16
Air conditioner Air conditioner operation ...
.................................... 4-13
Air conditioner service ...
........................................ 4-20
Air conditioner specification label ...
.................... 9-10
Air conditioning system refrigerant and
lubricant recommendations ...
....................... 4-20, 9-6
In-cabin microfilter ...
............................................... 4-19
Air conditioner operation ...
........................................... 4-15
Alarm, How to stop alarm (see vehicle
security system) ...
........................................................... 2-30
Alcohol, drugs and driving ...
.......................................... 5-8
All-wheel drive (AWD) ...
............................................... 5-32
Antenna ...
.......................................................................... 4-48
Anti-lock Braking System (ABS) ...
............................ 5-39
Anti-lock braking system (ABS) warning light ...
..... 2-13
Appearance care Exterior appearance care ...
...................................... 7-2
Interior appearance care ...
....................................... 7-4
Audible reminders ...
....................................................... 2-19
Audio operation precautions ...
.................................... 4-20
Audio setup ...
.................................................................... 4-5
Audio system ...
................................................................ 4-20 Steering wheel audio controls
...
.......................... 4-47
Autolight system ...
.......................................................... 2-35
Automatic Air conditioner ...
....................................................... 4-17
Door locks ...
................................................................. 3-6
Moonroof ...
................................................................ 2-47
AUX (Auxiliary) input ...
....................................... 4-38, 4-42
Average fuel consumption ...
........................................ 2-11
Avoiding collision and rollover ...
................................... 5-7
B
Back door (See lift gate) ...
.......................................... 3-21
Battery ...
............................................................................ 8-13
Battery replacement, Intelligent Key ...
................ 8-24
Battery replacement, Keyfob ...
............................. 8-23
Battery saver system ...
........................................... 2-36
Variable voltage control system ...
........................ 8-14
Before starting the engine ...
........................................ 5-15
Bluetooth
®Hands-Free Phone System ...
................ 4-49
Booster seats ...
............................................................... 1-31
Brake Anti-lock Braking System (ABS) ...
..................... 5-39
Brake and clutch fluid ...
......................................... 8-11
Brake system ...
......................................................... 5-38
Parking brake operation ...
..................................... 5-28
Warning light ...
......................................................... 2-13
Break-in schedule ...
....................................................... 5-30
Brightness control Display ON/OFF button ...
........................................ 4-5
Instrument panel ...
................................................... 2-37
Bulb check/instrument panel ...
................................... 2-13
Bulb replacement ...
........................................................ 8-26
C
Cabin air filter ...
............................................................... 4-19
Capacities and recommended fuel/lubricants ...
....... 9-2
Car phone or CB radio ...
............................................. 4-49
Cargo cover ...
.................................................................. 2-44
Cargo floor box ...
............................................................ 2-43
Catalytic converter, Three way catalyst ...
................... 5-4
CD/USB memory care and cleaning ...
..................... 4-47
Check tire pressure warning ...
...................................... 2-7
Child restraints ...
............................................................. 1-17
Booster seats ...
........................................................ 1-31
LATCH system ...
...................................................... 1-19
Precautions on child restraints ...
......................... 1-17
Child safety ...
................................................................... 1-15
Child safety rear door lock ...
......................................... 3-7
Chimes, Audible reminders ...
...................................... 2-19
Circuit breaker, Fusible link ...
...................................... 8-20
Cleaning exterior and interior ...
............................ 7-2, 7-4
Clock ...
.............................................................................. 2-40
Clock (models with navigation system) ...
................... 4-7
Clutch fluid ...
.................................................................... 8-11
Coat hook ...
..................................................................... 2-43
Cockpit ...
............................................................................ 2-3
Cold weather driving ...
.................................................. 5-42
Compact Disc (CD) player (See
audio system) ...
................................................... 4-34, 4-40
Continuously Variable Transmission
(CVT) fluid ...
..................................................................... 8-11
Control panel buttons — color screen with
navigation system ...
.......................................................... 4-2
Controls, Steering wheel audio controls ...
............... 4-47
Coolant Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine coolant ...
...................................... 8-8
Condition:

Black plate (338,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
10-2
Checking engine coolant level...
............................. 8-8
Corrosion protection ...
.................................................... 7-6
Cover, Cargo cover ...
.................................................... 2-44
Cruise control ...
............................................................... 5-29
Cup holders ...
.................................................................. 2-42
CVT, Driving with CVT (Continuously
Variable Transmission) ...
................................... 5-11, 5-17
D
Daytime running light system ...
................................... 2-37
Defroster switch, Rear window and outside
mirror defroster switch ...
............................................... 2-34
Dimensions and weights ...
............................................. 9-8
Displaying Climate control ...
........................................ 4-19
Door open warning light ...
............................................ 2-14
Drive belt ...
....................................................................... 8-15
Driving All-wheel drive (AWD) ...
........................................ 5-32
Cold weather driving ...
........................................... 5-42
Driving with CVT (Continuously
Variable Transmission) ...
............................. 5-11, 5-17
Driving with manual transmission ...
.......... 5-11, 5-22
Precautions when starting and driving ...
.............. 5-3
Safety precautions ...
.................................................. 5-8
E
Economy, Fuel ...
.............................................................. 5-32
Elapsed time ...
..................................................... 2-11, 2-26
Electric power steering system ...
............................... 5-37
Electric power steering warning light ...
.................... 2-14
Emission control information label ...
.......................... 9-10
Emission control system warranty ...
........................... 9-17
Engine Before starting the engine ...
................................. 5-15
Break-in schedule ...
................................................ 5-30 Capacities and
recommended fuel/lubricants
...
............................... 9-2
Changing engine coolant ...
...................................... 8-8
Changing engine oil and filter ...
.............................. 8-9
Checking engine coolant level ...
............................. 8-8
Checking engine oil level ...
...................................... 8-8
Coolant temperature gauge ...
................................. 2-8
Emergency engine shut off ...
....................... 5-14, 6-2
Engine block heater ...
............................................. 5-43
Engine compartment check locations ...
................ 8-6
Engine cooling system ...
........................................... 8-7
Engine oil ...
................................................................... 8-8
Engine oil and oil filter recommendation ...
........... 9-5
Engine oil viscosity ...
.................................................. 9-5
Engine serial number ...
.............................................. 9-9
Engine specifications ...
............................................. 9-7
If your vehicle overheats ...
..................................... 6-10
Starting the engine ...
.............................................. 5-15
Event Data Recorders (EDR) ...
................................... 9-19
Exhaust gas (carbon monoxide) ...
................................ 5-3
Extended storage fuse warning ...
................................. 2-7
F
F.M.V.S.S./C.M.V.S.S. certification label ...
................. 9-9
Filter Air cleaner housing filter ...
.................................... 8-16
Changing engine oil and filter ...
.............................. 8-9
Flashers (See hazard warning flasher switch) ...
....... 6-2
Flat tire ...
............................................................................. 6-3
Flat towing ...
.................................................................... 9-15
Floor mat cleaning ...
........................................................ 7-5
Fluid Brake and clutch fluid ...
......................................... 8-11
Capacities and
recommended fuel/lubricants ...
............................... 9-2 Continuously Variable Transmission
(CVT) fluid
...
.............................................................. 8-11
Engine coolant ...
......................................................... 8-7
Engine oil ...
................................................................... 8-8
Window washer fluid ...
.......................................... 8-12
FM-AM-SAT radio with Compact Disc
(CD) player ...
....................................................... 4-31, 4-39
Fog light switch ...
........................................................... 2-38
Front manual seat adjustment ...
.................................... 1-3
Front passenger air bag and status light ...
.............. 1-43
Front seat, Front seat adjustment ...
............................. 1-3
Front-seat active head restraints ...
.............................. 1-8
Fuel Capacities and
recommended fuel/lubricants ...
............................... 9-2
Distance to empty ...
................................................ 2-10
Fuel economy ...
........................................................ 5-32
Fuel octane rating ...
................................................... 9-3
Fuel recommendation ...
............................................. 9-3
Fuel-filler cap ...
......................................................... 3-21
Fuel-filler door ...
....................................................... 3-21
Gauge ...
........................................................................ 2-9
Fuel Efficient Driving Tips ...
......................................... 5-31
Fuses ...
.............................................................................. 8-19
Fusible links ...
.................................................................. 8-20
G
Gas cap ...
......................................................................... 3-21
Gauge ...
.............................................................................. 2-5
Engine coolant temperature gauge ...
.................... 2-8
Fuel gauge ...
................................................................ 2-9
Odometer ...
.................................................................. 2-6
Speedometer ...
............................................................ 2-6
Tachometer ...
............................................................... 2-8
Trip computer ...
........................................................ 2-10
General maintenance ...
................................................... 8-2
Condition:

Black plate (339,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

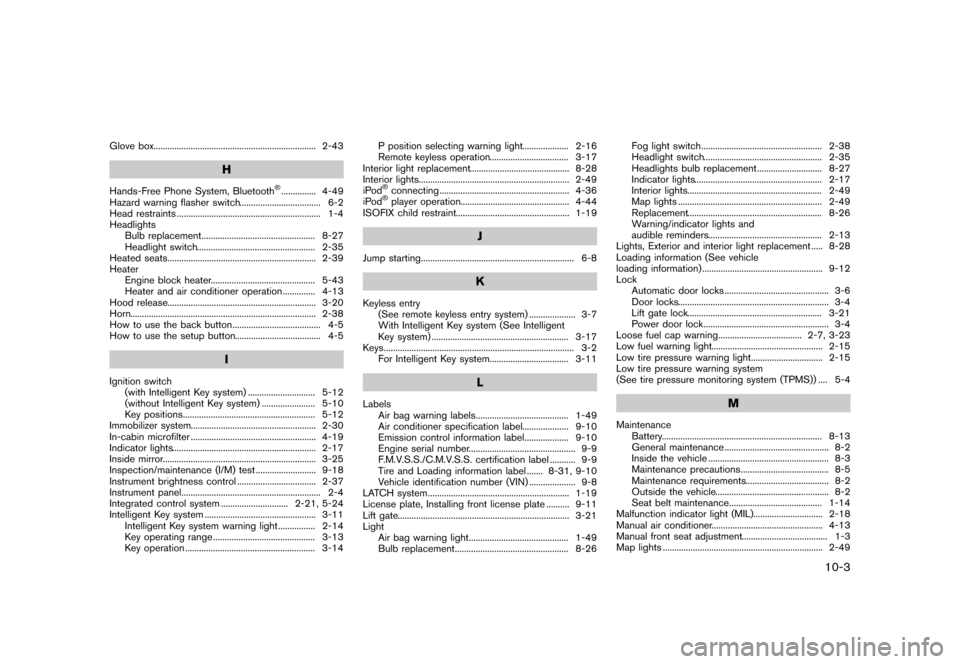

Glove box...
...................................................................... 2-43
H
Hands-Free Phone System, Bluetooth®...
............... 4-49
Hazard warning flasher switch ...
................................... 6-2
Head restraints ...
.............................................................. 1-4
Headlights Bulb replacement ...
................................................. 8-27
Headlight switch ...
................................................... 2-35
Heated seats ...
................................................................ 2-39
Heater Engine block heater ...
............................................. 5-43
Heater and air conditioner operation ...
.............. 4-13
Hood release ...
................................................................ 3-20
Horn ...
................................................................................ 2-38
How to use the back button ...
...................................... 4-5
How to use the setup button ...
..................................... 4-5
I
Ignition switch
(with Intelligent Key system) ...
............................. 5-12
(without Intelligent Key system) ...
....................... 5-10
Key positions ...
......................................................... 5-12
Immobilizer system ...
...................................................... 2-30
In-cabin microfilter ...
...................................................... 4-19
Indicator lights ...
.............................................................. 2-17
Inside mirror ...
.................................................................. 3-25
Inspection/maintenance (I/M) test ...
.......................... 9-18
Instrument brightness control ...
.................................. 2-37
Instrument panel ...
............................................................ 2-4
Integrated control system ...
............................. 2-21, 5-24
Intelligent Key system ...
................................................ 3-11
Intelligent Key system warning light ...
................ 2-14
Key operating range ...
............................................ 3-13
Key operation ...
........................................................ 3-14 P position selecting warning light
...
.................... 2-16
Remote keyless operation ...
.................................. 3-17
Interior light replacement ...
........................................... 8-28
Interior lights ...
................................................................. 2-49
iPod
®connecting ...
........................................................ 4-36
iPod®player operation ...
............................................... 4-44
ISOFIX child restraint ...
................................................. 1-19
J
Jump starting ...
.................................................................. 6-8
K
Keyless entry
(See remote keyless entry system) ...
.................... 3-7
With Intelligent Key system (See Intelligent
Key system) ...
........................................................... 3-17
Keys ...
.................................................................................. 3-2
For Intelligent Key system ...
.................................. 3-11
L
Labels
Air bag warning labels ...
........................................ 1-49
Air conditioner specification label ...
.................... 9-10
Emission control information label ...
................... 9-10
Engine serial number ...
.............................................. 9-9
F.M.V.S.S./C.M.V.S.S. certification label ...
........... 9-9
Tire and Loading information label ...
....... 8-31, 9-10
Vehicle identification number (VIN) ...
.................... 9-8
LATCH system ...
............................................................. 1-19
License plate, Installing front license plate ...
.......... 9-11
Lift gate ...
.......................................................................... 3-21
Light Air bag warning light ...
........................................... 1-49
Bulb replacement ...
................................................. 8-26 Fog light switch
...
.................................................... 2-38
Headlight switch ...
................................................... 2-35
Headlights bulb replacement ...
............................ 8-27
Indicator lights ...
....................................................... 2-17
Interior lights ...
.......................................................... 2-49
Map lights ...
.............................................................. 2-49
Replacement ...
.......................................................... 8-26
Warning/indicator lights and
audible reminders ...
................................................. 2-13
Lights, Exterior and interior light replacement ...
..... 8-28
Loading information (See vehicle
loading information) ...
.................................................... 9-12
Lock Automatic door locks ...
............................................. 3-6
Door locks ...
................................................................. 3-4
Lift gate lock ...
.......................................................... 3-21
Power door lock ...
...................................................... 3-4
Loose fuel cap warning ...
.................................... 2-7, 3-23
Low fuel warning light ...
................................................ 2-15
Low tire pressure warning light ...
............................... 2-15
Low tire pressure warning system
(See tire pressure monitoring system (TPMS)) ...
.... 5-4M
Maintenance
Battery ...
..................................................................... 8-13
General maintenance ...
............................................. 8-2
Inside the vehicle ...
.................................................... 8-3
Maintenance precautions ...
...................................... 8-5
Maintenance requirements ...
.................................... 8-2
Outside the vehicle ...
................................................. 8-2
Seat belt maintenance ...
........................................ 1-14
Malfunction indicator light (MIL) ...
.............................. 2-18
Manual air conditioner ...
................................................ 4-13
Manual front seat adjustment ...
..................................... 1-3
Map lights ...
..................................................................... 2-49
10-3
Condition:
