8-34Maintenance and do-it-yourself
SDI1607

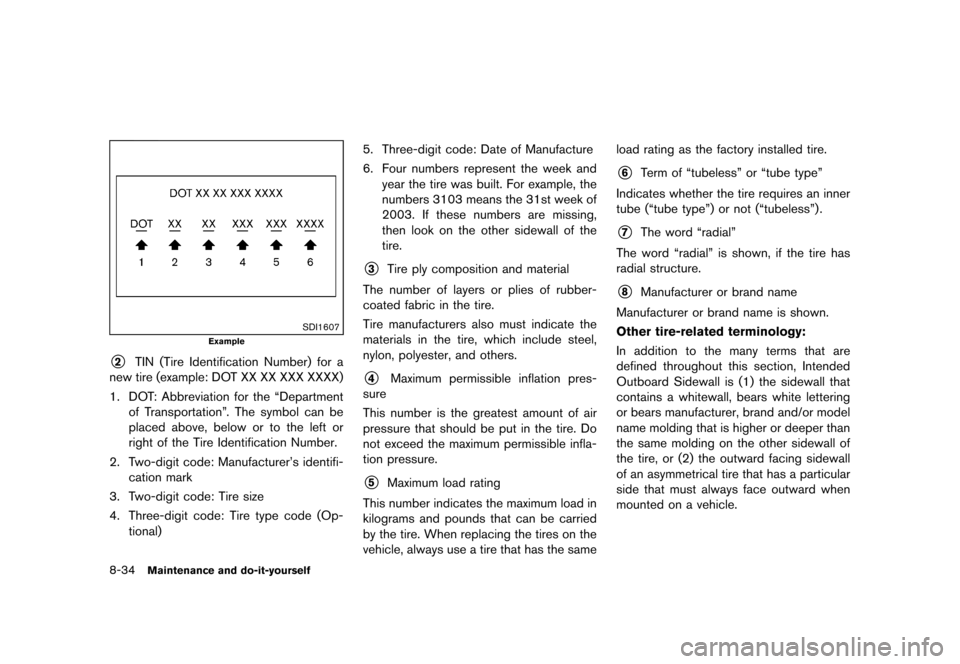

Example
*2TIN (Tire Identification Number) for a
new tire (example: DOT XX XX XXX XXXX)
1. DOT: Abbreviation for the “Department
of Transportation”. The symbol can be
placed above, below or to the left or
right of the Tire Identification Number.
2. Two-digit code: Manufacturer’s identifi- cation mark
3. Two-digit code: Tire size
4. Three-digit code: Tire type code (Op- tional) 5. Three-digit code: Date of Manufacture
6. Four numbers represent the week and
year the tire was built. For example, the
numbers 3103 means the 31st week of
2003. If these numbers are missing,
then look on the other sidewall of the
tire.
*3Tire ply composition and material
The number of layers or plies of rubber-
coated fabric in the tire.
Tire manufacturers also must indicate the
materials in the tire, which include steel,
nylon, polyester, and others.
*4Maximum permissible inflation pres-
sure
This number is the greatest amount of air
pressure that should be put in the tire. Do
not exceed the maximum permissible infla-
tion pressure.
*5Maximum load rating
This number indicates the maximum load in
kilograms and pounds that can be carried
by the tire. When replacing the tires on the
vehicle, always use a tire that has the same load rating as the factory installed tire.
*6Term of “tubeless” or “tube type”
Indicates whether the tire requires an inner
tube (“tube type”) or not (“tubeless”).
*7The word “radial”
The word “radial” is shown, if the tire has
radial structure.
*8Manufacturer or brand name
Manufacturer or brand name is shown.
Other tire-related terminology:
In addition to the many terms that are
defined throughout this section, Intended
Outboard Sidewall is (1) the sidewall that
contains a whitewall, bears white lettering
or bears manufacturer, brand and/or model
name molding that is higher or deeper than
the same molding on the other sidewall of
the tire, or (2) the outward facing sidewall
of an asymmetrical tire that has a particular
side that must always face outward when
mounted on a vehicle.
Condition:

Black plate (311,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
TYPES OF TIRESGUID-14B1EE5B-969F-4D42-8FEC-234497556FC0
WARNING
.When changing or replacing tires,
be sure all four tires are of the same
type (Example: Summer, All Season
or Snow) and construction. A
NISSAN dealer may be able to help
you with information about tire type,
size, speed rating and availability.
. Replacement tires may have a lower
speed rating than the factory
equipped tires, and may not match
the potential maximum vehicle
speed. Never exceed the maximum
speed rating of the tire.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
. For additional information regard-
ing tires, refer to “Important Tire
Safety Information” (US) or “Tire
Safety Information” (Canada) in the
Warranty Information Booklet.
All season tiresGUID-416D8104-CC7B-46FA-B4CA-B537AF5AE9CENISSAN specifies all season tires on some
models to provide good performance all year,
including snowy and icy road conditions. All
Season tires are identified by ALL SEASON
and/or M&S (Mud and Snow) on the tire
sidewall. Snow tires have better snow traction
than All Season tires and may be more appro-
priate in some areas.
Summer tiresGUID-0788A270-69FF-49A1-ACEC-39C92FC91344NISSAN specifies summer tires on some
models to provide superior performance on dry
roads. Summer tire performance is substantially
reduced in snow and ice. Summer tires do not
have the tire traction rating M&S on the tire
sidewall.
If you plan to operate your vehicle in snowy or
icy conditions, NISSAN recommends the use of
SNOW tires or ALL SEASON tires on all four
wheels.
Snow tiresGUID-7DBD9178-687B-4889-BA79-417F594D0842If snow tires are needed, it is necessary to select
tires equivalent in size and load rating to the
original equipment tires. If you do not, it can
adversely affect the safety and handling of your
vehicle.
Generally, snow tires will have lower speed
ratings than factory equipped tires and may not match the potential maximum vehicle speed.
Never exceed the maximum speed rating of the
tire.
If you install snow tires, they must be the same
size, brand, construction and tread pattern on all
four wheels.
For additional traction on icy roads, studded
tires may be used. However, some U.S. states
and Canadian provinces prohibit their use.
Check local, state and provincial laws before
installing studded tires. Skid and traction cap-
abilities of studded snow tires, on wet or dry
surfaces, may be poorer than that of non-
studded snow tires.
TIRE CHAINSGUID-74141916-7668-4C78-8B9E-6B18B49D3DE7Use of tire chains may be prohibited according
to location. Check the local laws before instal-
ling tire chains. When installing tire chains, make
sure they are the proper size for the tires on your
vehicle and are installed according to the chain
manufacturer’s suggestions.
Use only SAE
Class S chains. Class “S” chains are used on
vehicles with restricted tire to vehicle clearance.
Vehicles that can use Class “S” chains are
designed to meet the SAE standard minimum
clearances between the tire and the closest
vehicle suspension or body component required
to accommodate the use of a winter traction
device (tire chains or cables) . The minimum
Maintenance and do-it-yourself8-35
Condition:

Black plate (312,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
8-36Maintenance and do-it-yourself
clearances are determined using the factory
equipped tire size. Other types may damage
your vehicle. Use chain tensioners when re-
commended by the tire chain manufacturer to
ensure a tight fit. Loose end links of the tire
chain must be secured or removed to prevent
the possibility of whipping action damage to the
fenders or underbody. If possible, avoid fully
loading your vehicle when using tire chains. In
addition, drive at a reduced speed. Otherwise,
your vehicle may be damaged and/or vehicle
handling and performance may be adversely
affected.
Tire chains must be installed only on the
front wheels and not on the rear wheels.
Never install tire chains on a TEMPORARY USE
ONLY spare tire.
Do not use tire chains on dry roads. Driving with
tire chains in such conditions can cause damage
to the various mechanisms of the vehicle due to
some overstress.
SDI1662
CHANGING WHEELS AND TIRESGUID-41BC763C-419B-45A4-AD0E-D41987D9B9CC
Tire rotationGUID-F5986E33-082B-45E2-BD27-0D11FB4C108FNISSAN recommends rotating the tires
every 7,500 miles (12,000 km) . (See “Flat
tire” (P.6-3) for tire replacing procedures.)
As soon as possible, tighten the wheel
nuts to the specified torque with a
torque wrench.Wheel nut tightening torque:
80 ft-lb (108 N·m) The wheel nuts must be kept tigh-
tened to the specification at all times.
It is recommended that wheel nuts be
tightened to the specification at each
tire rotation interval.
WARNING
.After rotating the tires, check
and adjust the tire pressure.
.Retighten the wheel nuts when
the vehicle has been driven for
600 miles (1,000 km) (also in
cases of a flat tire, etc.) .
.Do not include the spare tire or
any other small size spare tire in
the tire rotation.
.For additional information re-
garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information” (Cana-
da) in the Warranty Information
Booklet.
Condition:

Black plate (313,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
SDI1663

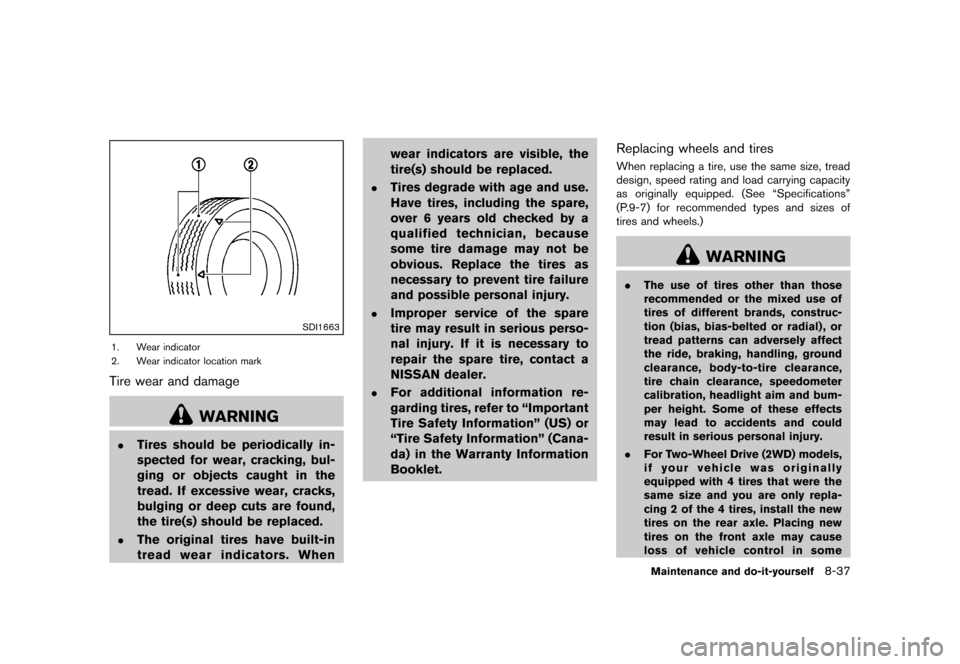

1. Wear indicator
2. Wear indicator location mark
Tire wear and damageGUID-31749D32-974E-4A82-89B7-A06D0BF3E07F
WARNING
.Tires should be periodically in-
spected for wear, cracking, bul-
ging or objects caught in the
tread. If excessive wear, cracks,
bulging or deep cuts are found,
the tire(s) should be replaced.
.The original tires have built-in
tread wear indicators. Whenwear indicators are visible, the
tire(s) should be replaced.
.Tires degrade with age and use.
Have tires, including the spare,
over 6 years old checked by a
qualified technician, because
some tire damage may not be
obvious. Replace the tires as
necessary to prevent tire failure
and possible personal injury.
.Improper service of the spare
tire may result in serious perso-
nal injury. If it is necessary to
repair the spare tire, contact a
NISSAN dealer.
.For additional information re-
garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information” (Cana-
da) in the Warranty Information
Booklet.
Replacing wheels and tiresGUID-23095086-9B18-4E25-B69C-85FAB59BB518When replacing a tire, use the same size, tread
design, speed rating and load carrying capacity
as originally equipped. (See “Specifications”
(P.9-7) for recommended types and sizes of
tires and wheels.)
WARNING
.
The use of tires other than those
recommended or the mixed use of
tires of different brands, construc-
tion (bias, bias-belted or radial) , or
tread patterns can adversely affect
the ride, braking, handling, ground
clearance, body-to-tire clearance,
tire chain clearance, speedometer
calibration, headlight aim and bum-
per height. Some of these effects
may lead to accidents and could
result in serious personal injury.
. For Two-Wheel Drive (2WD) models,
if your vehicle was originally
equipped with 4 tires that were the
same size and you are only repla-
cing 2 of the 4 tires, install the new
tires on the rear axle. Placing new
tires on the front axle may cause
loss of vehicle control in some
Maintenance and do-it-yourself8-37
Condition:

Black plate (323,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
GUID-97AFAA0D-AD60-4E30-8FA5-71FDAC240A23ENGINEGUID-AE21A076-32B5-4B2D-A90C-9E8E2CAEAF23
ModelMR16DDT
Type Gasoline, 4-cycle, DOHC
Cylinder arrangement 4-cylinder, in-line
Bore 6Stroke in (mm) 3.138
63.193 (79.7 681.1)
Displacement cu in (cm
3)98.78 (1,618)
Firing order 1-3-4-2
Idle speed rpm
No adjustment is necessary.
Ignition timing (B.T.D.C.) degree/rpm
Spark plug StandardDILKAR7C9H
Spark plug gap (Normal) in (mm)0.035 (0.9)
Camshaft operation Timing chain
This spark ignition system complies with the Canadian standard ICES-002.
WHEELS AND TIRESGUID-C40ED7DF-56C5-45AC-9C3D-F18536F863C6
Road wheelGUID-AC6F8AA2-8645-4DD5-8993-69495FB20C39
TypeSize Offset in (mm)
Aluminum
Spare 17
67J
16 64T 1.85 (47)
1.18 (30)
TireGUID-59C084C1-8B9D-4172-8B2F-4D8AD61565D7
Type
Size Pressure PSI
(kPa) [Cold]
Conventional P215/55R17
93V 33 (230)*1
36 (250)*2
34 (240)*3
Spare T135/80D16
101M*1*2
60 (420)
T135/90D16
102M*3
*1: 2WD MT model
*2: 2WD CVT model
*3: AWD model
Technical and consumer information9-7
SPECIFICATIONS
Condition:

Black plate (341,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
Seat belts with pretensioners...
........................... 1-47
Shoulder belt height adjustment ...
...................... 1-13
Small children ...
........................................................ 1-16
Three-point type ...
................................................... 1-11
Seat(s) Heated seats ...
......................................................... 2-39
Seats ...
.......................................................................... 1-2
Security system (NISSAN Vehicle Immobilizer
System) , Engine start ...
................................................. 2-30
Security system, Vehicle security system ...
............. 2-29
Selector lever Shift lock release ...
.................................................. 5-21
Servicing air conditioner ...
............................................ 4-20
Setting climate eco ...
..................................................... 4-19
Shift lock release Transmission ...
.......................................................... 5-21
Shifting
CVT (Continuously
Variable Transmission) ...
............................. 5-11, 5-17
Manual transmission ...
................................. 5-11, 5-22
Shoulder belt height adjustment, For
front seats ...
..................................................................... 1-13
SOURCE select switch ...
............................................. 4-47
Spare tire ...
.............................................................. 8-39, 9-7
Spark plugs ...
.................................................................. 8-15
Speedometer ...
.................................................................. 2-6
Starting Before starting the engine ...
................................. 5-15
Jump starting ...
............................................................ 6-8
Precautions when starting and driving ...
.............. 5-3
Push starting ...
......................................................... 6-10
Starting the engine ...
.............................................. 5-15
Status light, Front passenger air bag ...
.................... 1-43
Steering Electric power steering system ...
........................ 5-37
Steering wheel switch for audio controls ...
...... 4-47
Tilting steering column ...
........................................ 3-24 Storage
...
.......................................................................... 2-42
Sun visors ...
..................................................................... 3-24
Supplemental air bag warning labels ...
..................... 1-49
Supplemental air bag warning light ...
............ 1-49, 2-17
Supplemental restraint system ...
................................. 1-35
Precautions on supplemental
restraint system ...
..................................................... 1-35
Switch Audio control steering wheel switch ...
............... 4-47
Autolight switch ...
.................................................... 2-35
Fog light switch ...
.................................................... 2-38
Hazard warning flasher switch ...
............................. 6-2
Headlight switch ...
................................................... 2-35
Power door lock switch ...
......................................... 3-6
Rear window and outside mirror
defroster switch ...
.................................................... 2-34
Turn signal switch ...
................................................ 2-38
Vehicle dynamic control (VDC) off switch ...
..... 2-39
System setup ...
................................................................. 4-6
T
Tachometer ...
..................................................................... 2-8
Temperature display ...
.................................................... 2-10
Temperature gauge, Engine coolant
temperature gauge ...
........................................................ 2-8
Theft (NISSAN Vehicle Immobilizer System) ,
Engine start ...
................................................................... 2-30
Three-way catalyst ...
........................................................ 5-4
Tilt steering column ...
.................................................... 3-24
Tire pressure, Low tire pressure warning light ...
.... 2-15
Tires Flat tire ...
....................................................................... 6-3
Low tire pressure warning system ...
...................... 5-4
Tire and Loading information label ...
....... 8-31, 9-10
Tire chains ...
.............................................................. 8-35
Tire dressing ...
............................................................. 7-4 Tire pressure
...
......................................................... 8-30
Tire pressure monitoring
system (TPMS) ...
............................................... 5-4, 6-3
Tire rotation ...
............................................................ 8-36
Types of tires ...
......................................................... 8-35
Uniform tire quality grading ...
............................... 9-16
Wheel/tire size ...
......................................................... 9-7
Wheels and tires ...
.................................................. 8-30
Tonneau cover (see cargo cover) ...
........................... 2-44
Touch screen ...
.................................................................. 4-3
Towing Flat towing ...
............................................................. 9-15
Tow truck towing ...
.................................................. 6-12
Towing a trailer ...
..................................................... 9-15
TPMS, Tire pressure monitoring system ...
................. 5-4
TPMS, Tire pressure warning system ...
...................... 6-3
Traffic info setup ...
............................................................ 4-8
Trailer towing ...
................................................................ 9-15
Transmission Continuously Variable Transmission
(CVT) fluid ...
.............................................................. 8-11
Driving with CVT (Continuously
Variable Transmission) ...
............................. 5-11, 5-17
Driving with manual transmission ...
.......... 5-11, 5-22
Transmission selector lever lock release ...
........ 5-21
Transmitter (See remote keyless entry system) ...
.... 3-7
Transmitter, With Intelligent Key system
(See Intelligent Key system) ...
..................................... 3-17
Traveling or registering your vehicle in
another country ...
.............................................................. 9-8
Trip computer ...
............................................................... 2-10
Turn signal switch ...
....................................................... 2-38
U
Underbody cleaning ...
..................................................... 7-3
Uniform tire quality grading ...
...................................... 9-16
10-5
Condition:
