2013 NISSAN ARMADA garage door opener

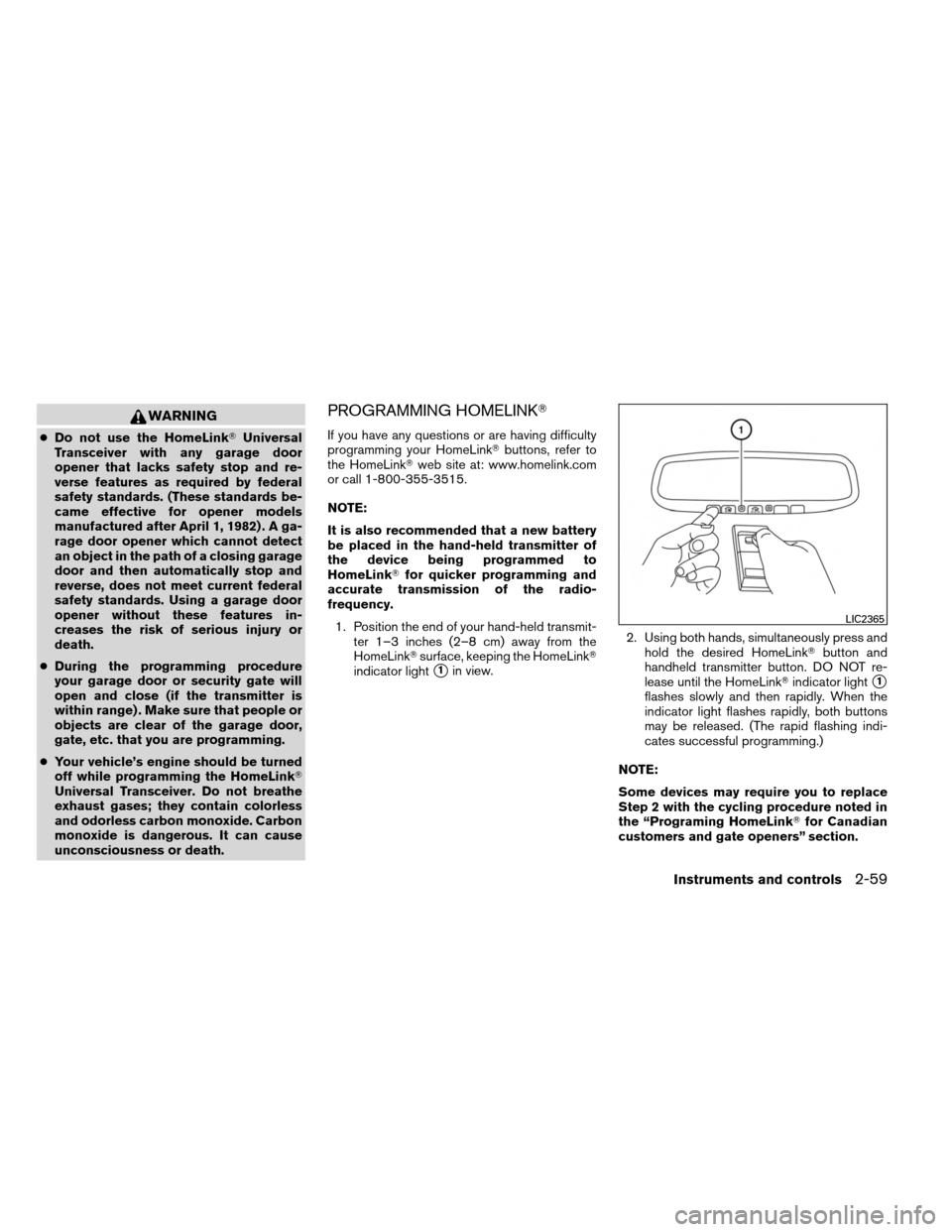

WARNING
●Do not use the HomeLink Universal
Transceiver with any garage door
opener that lacks safety stop and re-
verse features as required by federal
safety standards. (These standards be-
came effective for opener models
manufactured after April 1, 1982) . A ga-
rage door opener which cannot detect
an object in the path of a closing garage
door and then automatically stop and
reverse, does not meet current federal
safety standards. Using a garage door
opener without these features in-
creases the risk of serious injury or
death.
● During the programming procedure
your garage door or security gate will
open and close (if the transmitter is
within range) . Make sure that people or
objects are clear of the garage door,
gate, etc. that you are programming.
● Your vehicle’s engine should be turned
off while programming the HomeLink
Universal Transceiver. Do not breathe
exhaust gases; they contain colorless
and odorless carbon monoxide. Carbon
monoxide is dangerous. It can cause
unconsciousness or death.
PROGRAMMING HOMELINK
If you have any questions or are having difficulty
programming your HomeLink buttons, refer to
the HomeLink web site at: www.homelink.com
or call 1-800-355-3515.
NOTE:
It is also recommended that a new battery
be placed in the hand-held transmitter of
the device being programmed to
HomeLink for quicker programming and
accurate transmission of the radio-
frequency.
1. Position the end of your hand-held transmit- ter 1–3 inches (2–8 cm) away from the
HomeLink surface, keeping the HomeLink
indicator light
1in view. 2. Using both hands, simultaneously press and
hold the desired HomeLink button and
handheld transmitter button. DO NOT re-
lease until the HomeLink indicator light1
flashes slowly and then rapidly. When the
indicator light flashes rapidly, both buttons
may be released. (The rapid flashing indi-
cates successful programming.)
NOTE:
Some devices may require you to replace
Step 2 with the cycling procedure noted in
the “Programing HomeLink for Canadian
customers and gate openers” section.
LIC2365
Instruments and controls2-59

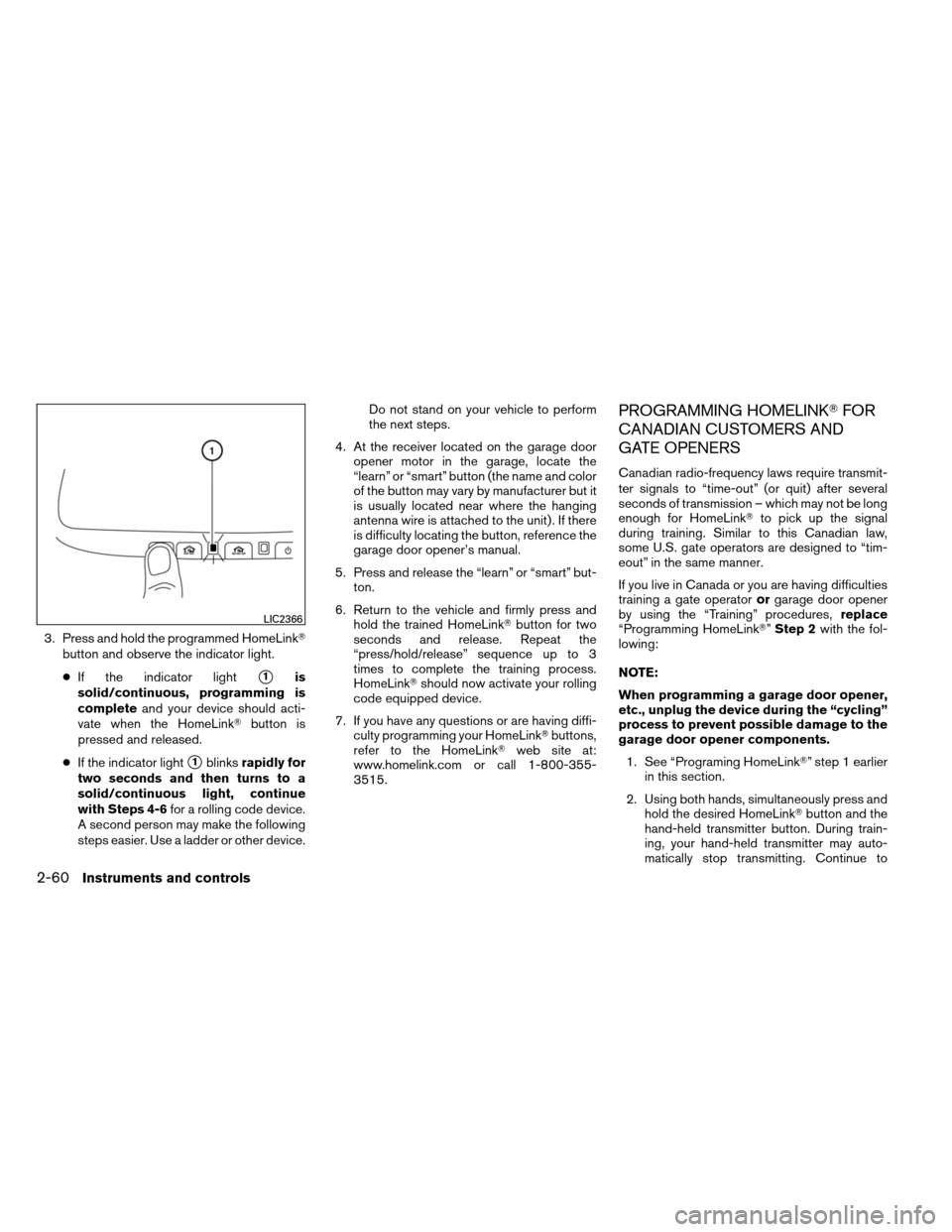

3. Press and hold the programmed HomeLinkbutton and observe the indicator light.
● If the indicator light
1is
solid/continuous, programming is
complete and your device should acti-
vate when the HomeLink button is
pressed and released.
● If the indicator light
1blinks rapidly for
two seconds and then turns to a
solid/continuous light, continue
with Steps 4-6 for a rolling code device.
A second person may make the following
steps easier. Use a ladder or other device. Do not stand on your vehicle to perform
the next steps.
4. At the receiver located on the garage door opener motor in the garage, locate the
“learn” or “smart” button (the name and color
of the button may vary by manufacturer but it
is usually located near where the hanging
antenna wire is attached to the unit) . If there
is difficulty locating the button, reference the
garage door opener’s manual.
5. Press and release the “learn” or “smart” but- ton.
6. Return to the vehicle and firmly press and hold the trained HomeLink button for two
seconds and release. Repeat the
“press/hold/release” sequence up to 3
times to complete the training process.
HomeLink should now activate your rolling
code equipped device.
7. If you have any questions or are having diffi- culty programming your HomeLink buttons,
refer to the HomeLink web site at:
www.homelink.com or call 1-800-355-
3515.
PROGRAMMING HOMELINK FOR
CANADIAN CUSTOMERS AND
GATE OPENERS
Canadian radio-frequency laws require transmit-
ter signals to “time-out” (or quit) after several
seconds of transmission – which may not be long
enough for HomeLink to pick up the signal
during training. Similar to this Canadian law,
some U.S. gate operators are designed to “tim-
eout” in the same manner.
If you live in Canada or you are having difficulties
training a gate operator orgarage door opener
by using the “Training” procedures, replace
“Programming HomeLink” Step 2with the fol-
lowing:
NOTE:
When programming a garage door opener,
etc., unplug the device during the “cycling”
process to prevent possible damage to the
garage door opener components.
1. See “Programing HomeLink” step 1 earlier in this section.
2. Using both hands, simultaneously press and hold the desired HomeLink button and the
hand-held transmitter button. During train-
ing, your hand-held transmitter may auto-
matically stop transmitting. Continue to
LIC2366
2-60Instruments and controls

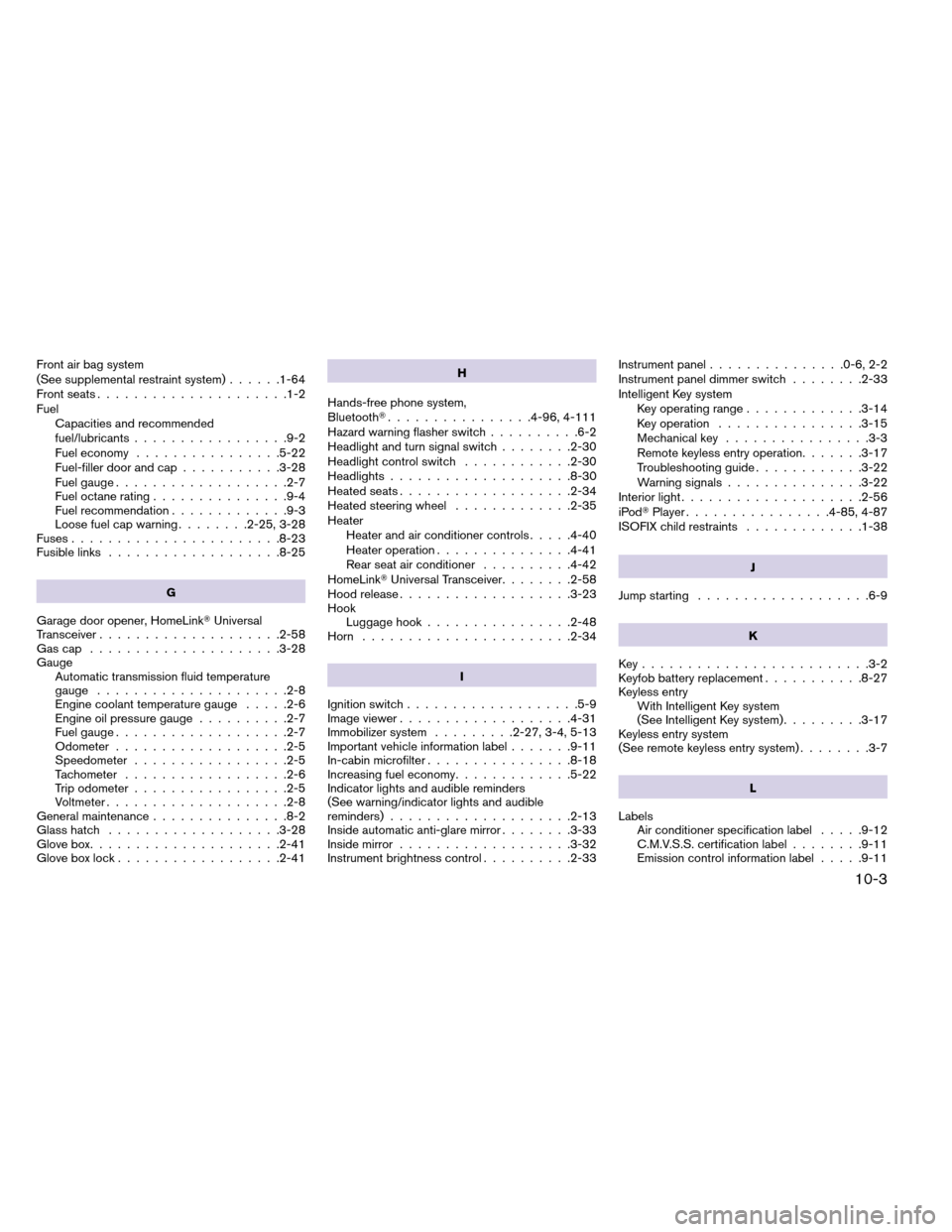

Front air bag system
(See supplemental restraint system)......1-64
Front seats .....................1-2
Fuel Capacities and recommended
fuel/lubricants .................9-2
Fuel economy ................5-22
Fuel-filler door and cap ...........3-28
Fuel gauge ...................2-7
Fuel octane rating ...............9-4
Fuel recommendation .............9-3
Loose fuel cap warning ........2-25, 3-28
Fuses .......................8-23
Fusible links ...................8-25
G
Garage door opener, HomeLink Universal
Transceiver ....................2-58
Gascap .....................3-28
Gauge Automatic transmission fluid temperature
gauge .....................2-8
Engine coolant temperature gauge .....2-6
Engine oil pressure gauge ..........2-7
Fuel gauge ...................2-7
Odometer ...................2-5
Speedometer .................2-5
Tachometer ..................2-6
Trip odometer .................2-5
Voltmeter ....................2-8
General maintenance ...............8-2
Glass hatch ...................3-28
Glove box .....................2-41
Glove box lock ..................2-41 H
Hands-free phone system,
Bluetooth ................4-96, 4-111
Hazard warning flasher switch ..........6-2
Headlight and turn signal switch ........2-30
Headlight control switch ............2-30
Headlights ................... .8-30
Heated

seats ...................2-34
Heated steering wheel .............2-35
Heater Heater and air conditioner controls .....4-40
Heater operation ...............4-41
Rear seat air conditioner ..........4-42
HomeLink Universal Transceiver ........2-58
Hood release ...................3-23
Hook Luggage hook ................2-48
Horn .......................2-34
I
Ignition switch ...................5-9
Image viewer ...................4-31
Immobilizer system .........2-27, 3-4, 5-13
Important vehicle information label .......9-11
In-cabin microfilter ................8-18
Increasing fuel economy .............5-22
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders) ....................2-13
Inside automatic anti-glare mirror ........3-33
Inside mirror ...................3-32
Instrument brightness control ..........2-33Instrument panel
...............0-6, 2-2
Instrument panel dimmer switch ........2-33
Intelligent Key system Key operating range .............3-14
Key operation ................3-15
Mechanical key ................3-3
Remote keyless entry operation .......3-17
Troubleshooting guide ............3-22
Warning signals ...............3-22
Interior light ....................2-56
iPod Player................4-85, 4-87
ISOFIX child restraints .............1-38
J
Jump starting ...................6-9
K
K

ey.........................3-2
Keyfob battery replacement ...........8-27
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-17
Keyless entry system
(See remote keyless entry system) ........3-7
L
Labels Air conditioner specification label .....9-12
C.M.V.S.S. certification label ........9-11
Emission control information label .....9-11
10-3
