2013 NISSAN ALTIMA COUPE engine

TABLe Of cOnTenTS
ESSENTIAL INFORMATION
Loose fuel cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . 2
Tire Pressure Monitoring System (TPMS) ...........................2
FIRST DRIVE FEATURES
ni SSAn intelligent k ey
® System.................................. 3
Trunk Lid Release ............................................... 4
Power Seat Adjustments (if so equipped) ...........................4
Passenger Rear Seat entry/ exit................................... 5
Outside Mirror control Switch .................................... 5
Starting/Stopping the engine ..................................... 5
Headlight control Switch ........................................ 6
Windshield Wiper/Washer Switch ................................. 7
Automatic climate controls (if so equipped) ........................ 7
f M/AM/SiriusXM
™ Satellite Radio with cd/ dVd Player (if so equipped) ..... 9
u SB/iPod® interface (if so equipped) ............................. 10
cruise control ................................................ 10
fuel-filler door ................................................ 11
SYSTEM GUIDE
Vehicle information display ...................................... 12
Bluetooth
® Hands-free Phone System (if so equipped) ...............12
System Operating Tips ....................................... 12
Bluetooth
® System without navigation (if so equipped) ............ 13
Bluetooth® System with navigation (if so equipped) ...............15
navigation System (if so equipped) ...............................17
d Vd Player (if so equipped) ..................................... 18
HomeLink
® universal Transceiver (if so equipped) ...................18
• A cellular telephone should not be used for any purpose while
driving so full attention may be given to vehicle operation.
• Always wear your seat belt.
• Supplemental air bags do not replace proper seat belt usage.
• Children 12 and under should always ride in the rear seat
properly secured in child restraints or seat belts according to
their age and weight.
• Do not drink and drive.
f or more information, refer to the “Safety –– Seats, seat belts and
supplemental restraint system (section 1)” , the “Monitor, climate,
audio, phone and voice recognition systems (section 4)” and the
“Starting and driving (section 5)” of your Owner’s Manual.
Additional information about your vehicle is also available in your Owner’s Manual, navigation System Owner’s Manual and at www.nissanusa.com.
To view detailed
instructional videos, go to
www.nissanownersinfo.mobi/2013/ altimacoupe
or snap this barcode with an appropriate barcode reader.

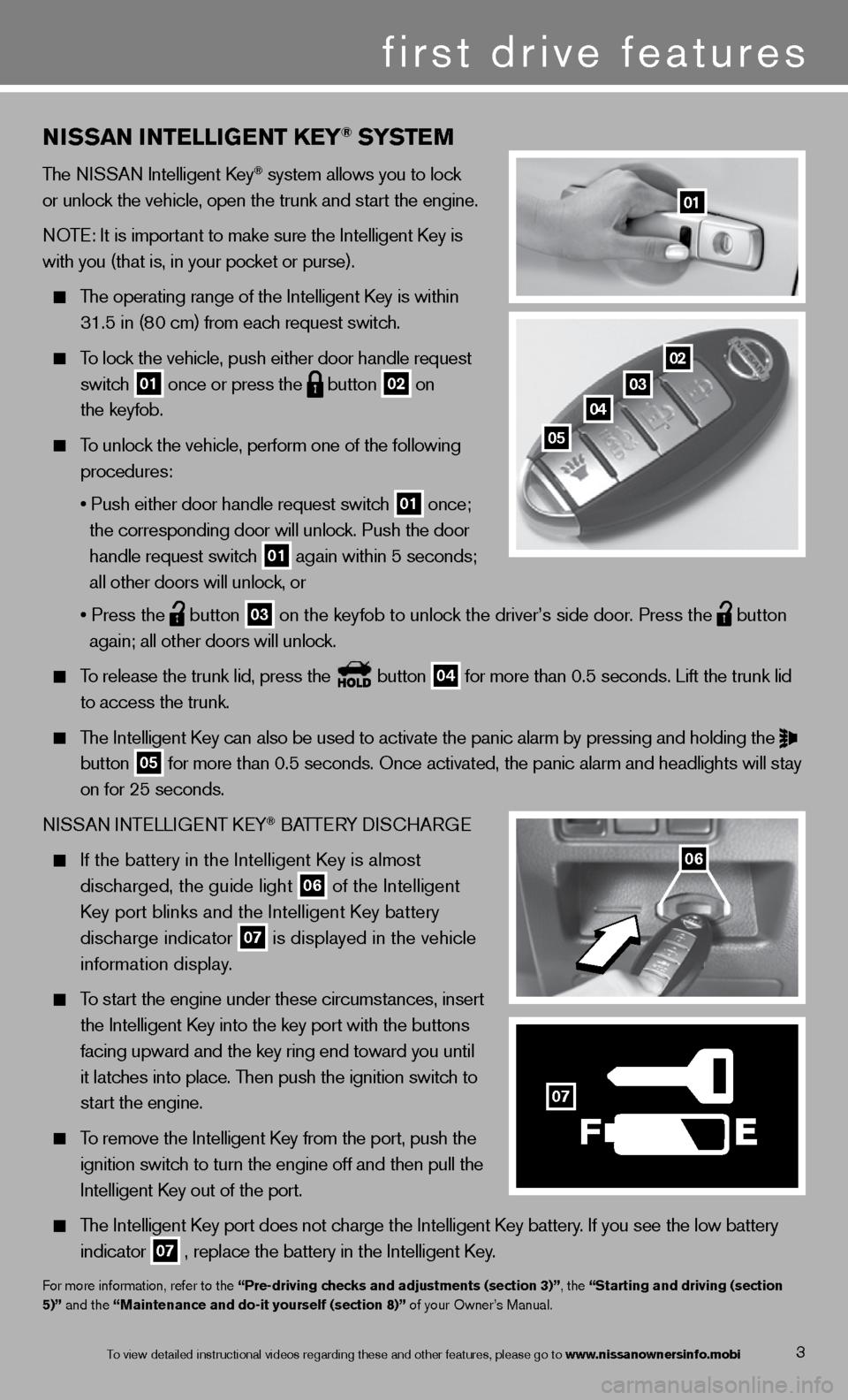

NISSAN INTELLIGENT kEY® SYSTE M
The niSSAn intelligent k ey® system allows you to lock
or unlock the vehicle, open the trunk and start the engine.
n OTe: it is important to make sure the intelligent k ey is
with you (that is, in your pocket or purse).

The operating range of the intelligent k ey is within
31.5 in (80 cm) from each request switch.

To lock the vehicle, push either door handle request
switch

01 once or press the
button
02 on
the keyfob.

To unlock the vehicle, perform one of the following
procedures:
• Push either door handle request switch

01 once;
the corresponding door will unlock. Push the door
handle request switch

01 again within 5 seconds;
all other doors will unlock, or
• Press the

button
03 on the keyfob to unlock the driver’s side door. Press the
button

again; all other doors will unlock.

To release the trunk lid, press the button
04 for more than 0.5 seconds. Lift the trunk lid
to access the trunk.

The Intelligent Key can also be used to activate the panic alarm by pressing and holding the

button
05 for more than 0.5 seconds. Once activated, the panic alarm and headlight\
s will stay
on for 25 seconds.
ni SSAn inTe LLiGenT keY
® BATTe RY diSc HARG e

If the battery in the Intelligent Key is almost
discharged, the guide light

06 of the intelligent
Key port blinks and the Intelligent Key battery
discharge indicator

07 is displayed in the vehicle
information display.

To start the engine under these circumstances, insert
the Intelligent Key into the key port with the buttons
facing upward and the key ring end toward you until
it latches into place. Then push the ignition switch to
start the engine.

To remove the intelligent k ey from the port, push the
ignition switch to turn the engine off and then pull the
intelligent k ey out of the port.

The Intelligent Key port does not charge the Intelligent Key battery. If you see the low battery
indicator

07 , replace the battery in the Intelligent Key.
f
or more information, refer to the “Pre-driving checks and adjustments (section 3)”, the “Starting and driving (section
5)” and the “Maintenance and do-it yourself (section 8)” of your Owner’s Manual.
01
3
first drive features
02
03
04
05
06
F
07
To view detailed in\fstructional videos\f regarding these a\fnd other features\f \fplease go to www.nissanownersin\hfo.mobi

OUTSIDE MIRROR CONTROL SWITCh
To select the right or left side mirror , turn the control
switch

01 right or left.

To adjust the mirror angle, move the control switch
up, down, right or left.

To prevent accidentally moving the mirror, turn and
set the switch to the middle “neutral” position.
for more information, refer to the “Pre-driving checks and adjustments (section 3)” of your Owner’s Manual.
P ASSENGER REAR SEAT ENTRY/EXIT
enTRY f ROM O uTSide TH e VeHic Le

Pull the seat recliner lever 01 to the uppermost
position pushing the seatback forward. Slide the
entire seat forward to access the rear seat.
eXi TinG fROM inSide TH e VeH icL e

Pull the upper seatback release lever 02 to the
uppermost position, pushing the seatback forward.
Slide the entire seat forward to exit from the rear seat.
for more information, refer to the “Safety –– Seats, seat belts and
supplemental restraint system (section 1)” of your Owner’s Manual.
01
02
5
01
To view detailed in\fstructional videos\f regarding these a\fnd other features\f \fplease go to www.nissanownersin\hfo.mobi
STARTING/STOPPING Th E ENGINE
nOTe: it is important to make sure the ni SSAn intelligent
key® is with you (that is, in your pocket or purse).

Depress the brake pedal.
• If the brake pedal is not depressed, pushing the
ignition switch once enters the ACC mode.
• If the ignition is pushed a second time, the vehicle
will enter the ON mode.

Move the shift lever to P (PAR k).

Push the ignition switch to start the engine.
T uRnin G THe enGine Off

Move the shift lever to the P (PAR k) position and apply the parking brake.

Press the ignition switch START/STOP button to turn the engine off
for more information, refer to the “Starting and driving (section 5)” of your Owner’s Manual.
