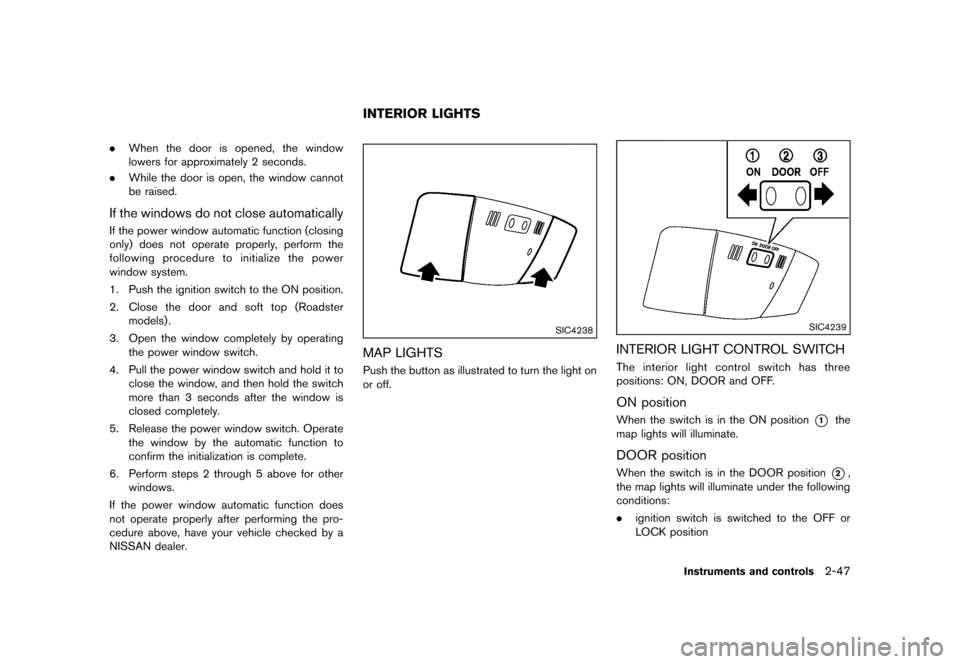

MAP LIGHTSGUID-63E0140B-AB30-4F26-B607-6D71FF432844Push the button as illustrated to turn the light on
or off.
SIC4239
INTERIOR LIGHT CONTROL SWITCHGUID-B369A0F1-3593-452D-A9AB-AB457EB2CCB7The interior light control switch has three
positions: ON, DOOR and OFF.
ON positionGUID-CF6B68D4-BB47-4735-AA45-9104BC2F2DA7When the switch is in the ON position*1the
map lights will illuminate.
DOOR positionGUID-B190F75C-E5A5-446F-BA74-B3DDEFFB9DBAWhen the switch is in the DOOR position*2,
the map lights will illuminate under the following
conditions:
. ignition switch is switched to the OFF or
LOCK position
Instruments and controls2-47
INTERIOR LIGHTS
Page 112 of 427
![NISSAN 370Z ROADSTER 2013 Z34 Owners Manual Black plate (110,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
2-48Instruments and controls

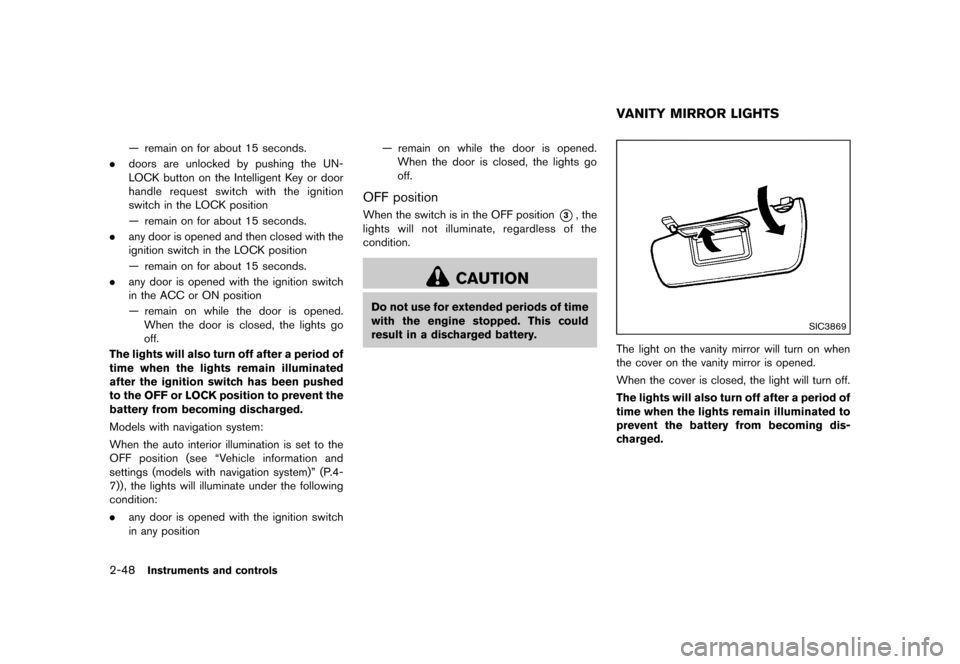

— remain on for about 15 seconds.
. doors are unlocked by pushing the UN-
LOCK button on the Intelligent Key or do](/manual-img/5/306/w960_306-111.png "NISSAN 370Z ROADSTER 2013 Z34 Owners Manual Black plate (110,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
2-48Instruments and controls
— remain on for about 15 seconds.
. doors are unlocked by pushing the UN-
LOCK button on the Intelligent Key or do")
Black plate (110,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
2-48Instruments and controls
— remain on for about 15 seconds.
. doors are unlocked by pushing the UN-
LOCK button on the Intelligent Key or door
handle request switch with the ignition
switch in the LOCK position
— remain on for about 15 seconds.
. any door is opened and then closed with the
ignition switch in the LOCK position
— remain on for about 15 seconds.
. any door is opened with the ignition switch
in the ACC or ON position
— remain on while the door is opened.
When the door is closed, the lights go
off.
The lights will also turn off after a period of
time when the lights remain illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
battery from becoming discharged.
Models with navigation system:
When the auto interior illumination is set to the
OFF position (see “Vehicle information and
settings (models with navigation system)” (P.4-
7)), the lights will illuminate under the following
condition:
. any door is opened with the ignition switch
in any position — remain on while the door is opened.
When the door is closed, the lights go
off.
OFF positionGUID-1E5AD799-C9B5-4BE9-AD45-ADF123B00735When the switch is in the OFF position*3, the
lights will not illuminate, regardless of the
condition.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could
result in a discharged battery.
GUID-B346630C-75B9-46AE-B61E-18B063DCA5D2
SIC3869
The light on the vanity mirror will turn on when
the cover on the vanity mirror is opened.
When the cover is closed, the light will turn off.
The lights will also turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged.
VANITY MIRROR LIGHTS
Page 113 of 427
![NISSAN 370Z ROADSTER 2013 Z34 Owners Manual Black plate (111,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
GUID-6447FE90-98AB-45D1-B72B-E25AAC29F10BThe light illuminates simultaneously with the map
light. See “Interior lights” (P.2-47).GUID-59FB4F3](/manual-img/5/306/w960_306-112.png "NISSAN 370Z ROADSTER 2013 Z34 Owners Manual Black plate (111,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
GUID-6447FE90-98AB-45D1-B72B-E25AAC29F10BThe light illuminates simultaneously with the map
light. See “Interior lights” (P.2-47).GUID-59FB4F3")
Black plate (111,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
GUID-6447FE90-98AB-45D1-B72B-E25AAC29F10BThe light illuminates simultaneously with the map
light. See “Interior lights” (P.2-47).GUID-59FB4F32-C095-499C-B3B5-1B79C5899138The light illuminates when the rear hatch is
opened. When the rear hatch is closed, the light
will turn off.
The light will also turn off after a period of
time when the light remains illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
battery from becoming discharged.GUID-000A2C5B-945E-4FD8-9BA6-2AB1B7CB6758The light illuminates when the trunk lid is
opened. When the trunk lid is closed, the light
turns off.
Instruments and controls2-49

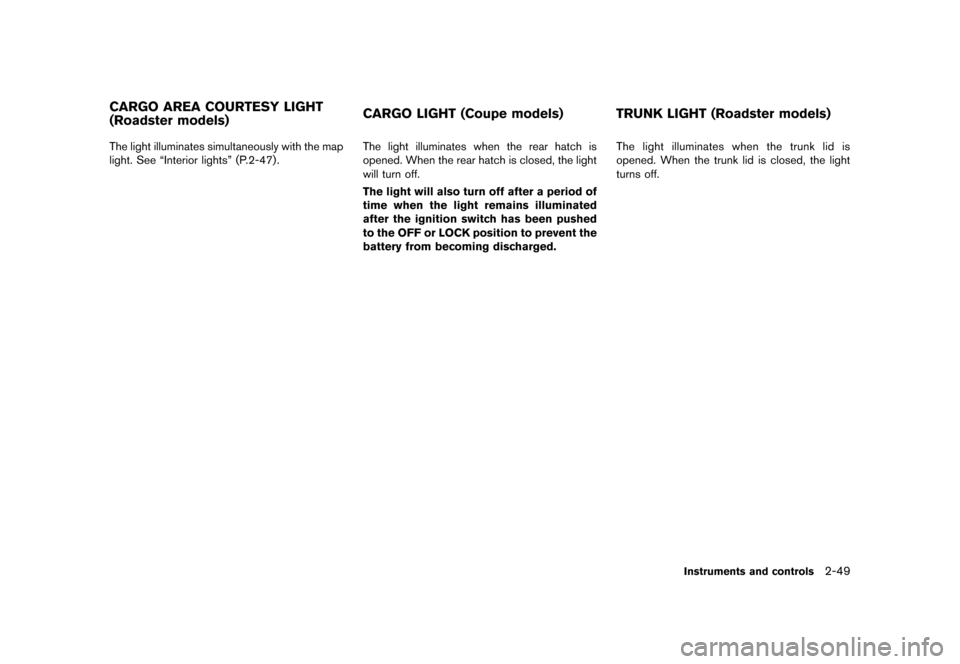

CARGO AREA COURTESY LIGHT
(Roadster models)CARGO LIGHT (Coupe models) TRUNK LIGHT (Roadster models)
Page 176 of 427
![NISSAN 370Z ROADSTER 2013 Z34 Owners Manual Black plate (174,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
4-14Center display, heater, air conditioner, audio, phone and voice recognition systems
system.
Clock Format (24h):
GUID-D73A39BF-43C8-459F-9C24-](/manual-img/5/306/w960_306-175.png "NISSAN 370Z ROADSTER 2013 Z34 Owners Manual Black plate (174,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
4-14Center display, heater, air conditioner, audio, phone and voice recognition systems
system.
Clock Format (24h):
GUID-D73A39BF-43C8-459F-9C24-")
Black plate (174,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
4-14Center display, heater, air conditioner, audio, phone and voice recognition systems
system.
Clock Format (24h):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, the 24-hour
clock is displayed. When this item is not turned
to ON, the 12-hour clock is displayed.
Offset (hour)/(min):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Adjust the time by increasing or decreasing per
hour or per minute.
Daylight Saving Time:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Turn this item to ON for daylight saving time
application.
Time Zone:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the time zone from the following
.Pacific
. Mountain
. Central
. Eastern
. Atlantic
. Newfoundland
. Hawaii
. Alaska
JVH0308M
Others settingsGUID-C261960E-CF67-4E55-8E50-328C98F1ABB5The Others settings display will appear when
pushing the SETTING button and selecting the
“Others” key.
The following items are available:
.Comfort
. Language & Units
. Voice Recognition
. Camera
. Image Viewer
SAA2488
Example
Comfort settingsGUID-EC638585-73FC-41A8-BFD6-B3ECBC976953The display as illustrated will appear when
pushing the SETTING button and selecting the
“Others” key, and then selecting the “Comfort”
key. This key does not appear on the display until
the ignition switch is pushed to the ON position.
Auto Interior Illumination:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, the interior
lights will illuminate if any door is unlocked.
Light Sensitivity:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Adjust the sensitivity of the automatic headlights
higher (right) or lower (left).
Page 189 of 427
![NISSAN 370Z ROADSTER 2013 Z34 Owners Manual Black plate (187,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

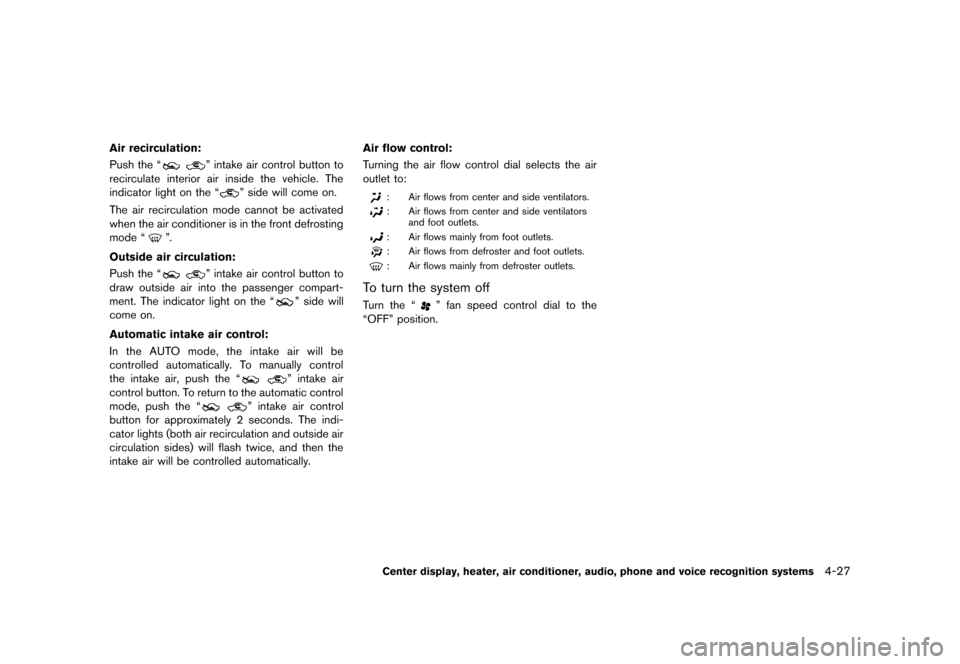

Air recirculation:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the “” intake air control button to
recirculate interior air inside the vehic](/manual-img/5/306/w960_306-188.png "NISSAN 370Z ROADSTER 2013 Z34 Owners Manual Black plate (187,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
Air recirculation:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the “” intake air control button to
recirculate interior air inside the vehic")
Black plate (187,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
Air recirculation:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the “” intake air control button to
recirculate interior air inside the vehicle. The
indicator light on the “
” side will come on.
The air recirculation mode cannot be activated
when the air conditioner is in the front defrosting
mode “
”.
Outside air circulation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the “” intake air control button to
draw outside air into the passenger compart-
ment. The indicator light on the “
” side will
come on.
Automatic intake air control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407In the AUTO mode, the intake air will be
controlled automatically. To manually control
the intake air, push the “
” intake air
control button. To return to the automatic control
mode, push the “
” intake air control
button for approximately 2 seconds. The indi-
cator lights (both air recirculation and outside air
circulation sides) will flash twice, and then the
intake air will be controlled automatically. Air flow control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Turning the air flow control dial selects the air
outlet to:
: Air flows from center and side ventilators.
: Air flows from center and side ventilators
and foot outlets.
: Air flows mainly from foot outlets.
: Air flows from defroster and foot outlets.
: Air flows mainly from defroster outlets.
To turn the system offGUID-9960B75D-133E-4A51-AD59-9BF285804F38Turn the “” fan speed control dial to the
“OFF” position.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-27
Page 191 of 427
![NISSAN 370Z ROADSTER 2013 Z34 Owners Manual Black plate (189,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

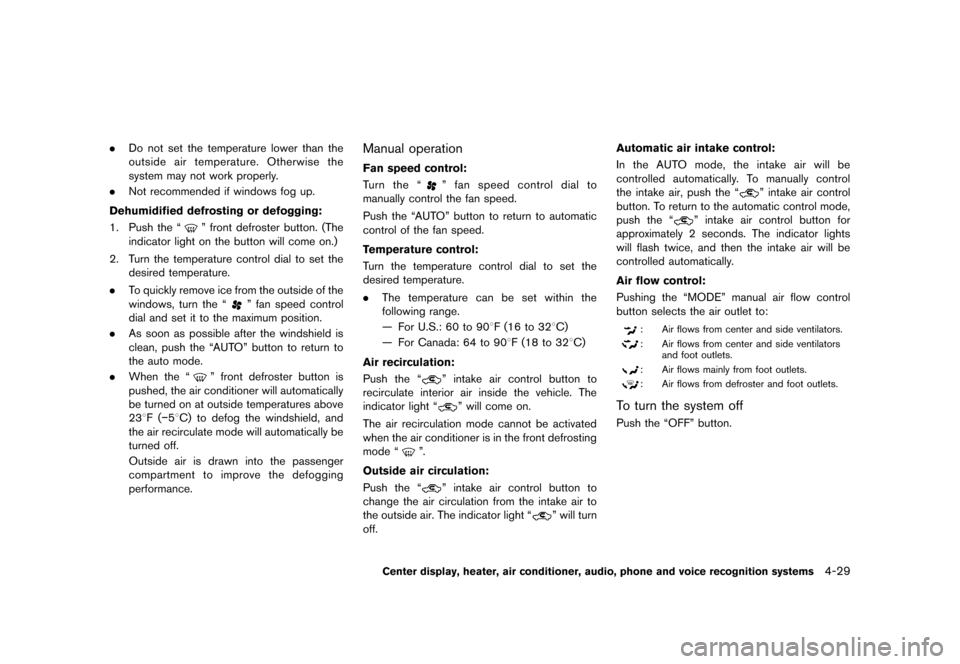

.Do not set the temperature lower than the
outside air temperature. Otherwise the
system may not work properly.
. Not recommended if windows fog](/manual-img/5/306/w960_306-190.png "NISSAN 370Z ROADSTER 2013 Z34 Owners Manual Black plate (189,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
.Do not set the temperature lower than the
outside air temperature. Otherwise the
system may not work properly.
. Not recommended if windows fog")
Black plate (189,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
.Do not set the temperature lower than the
outside air temperature. Otherwise the
system may not work properly.
. Not recommended if windows fog up.
Dehumidified defrosting or defogging:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Push the “” front defroster button. (The
indicator light on the button will come on.)
2. Turn the temperature control dial to set the desired temperature.
. To quickly remove ice from the outside of the
windows, turn the “
” fan speed control
dial and set it to the maximum position.
. As soon as possible after the windshield is
clean, push the “AUTO” button to return to
the auto mode.
. When the “
” front defroster button is
pushed, the air conditioner will automatically
be turned on at outside temperatures above
238F (−58C) to defog the windshield, and
the air recirculate mode will automatically be
turned off.
Outside air is drawn into the passenger
compartment to improve the defogging
performance.
Manual operationGUID-AB6C634C-5C4F-4896-8C14-E275496D712C
Fan speed control:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Turn the “” fan speed control dial to
manually control the fan speed.
Push the “AUTO” button to return to automatic
control of the fan speed.
Temperature control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Turn the temperature control dial to set the
desired temperature.
. The temperature can be set within the
following range.
— For U.S.: 60 to 908F (16 to 328C)
— For Canada: 64 to 908F (18 to 328C)
Air recirculation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the “” intake air control button to
recirculate interior air inside the vehicle. The
indicator light “
” will come on.
The air recirculation mode cannot be activated
when the air conditioner is in the front defrosting
mode “
”.
Outside air circulation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the “” intake air control button to
change the air circulation from the intake air to
the outside air. The indicator light “
” will turn
off. Automatic air intake control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407In the AUTO mode, the intake air will be
controlled automatically. To manually control
the intake air, push the “
” intake air control
button. To return to the automatic control mode,
push the “
” intake air control button for
approximately 2 seconds. The indicator lights
will flash twice, and then the intake air will be
controlled automatically.
Air flow control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the “MODE” manual air flow control
button selects the air outlet to:
: Air flows from center and side ventilators.
: Air flows from center and side ventilators and foot outlets.
: Air flows mainly from foot outlets.
: Air flows from defroster and foot outlets.
To turn the system offGUID-D9E45AE4-F01E-499A-B47F-6F4D1FDF476BPush the “OFF” button.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-29
Page 351 of 427
![NISSAN 370Z ROADSTER 2013 Z34 Owners Manual Black plate (349,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

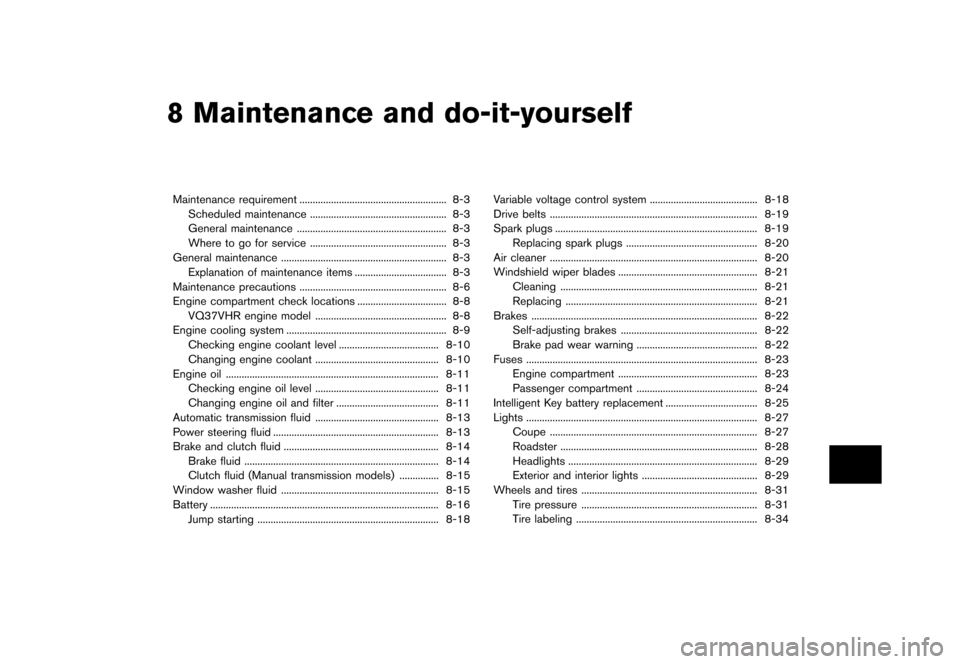

8 Maintenance and do-it-yourself
Maintenance requirement...
........................................................ 8-3
Scheduled maintenance ..](/manual-img/5/306/w960_306-350.png "NISSAN 370Z ROADSTER 2013 Z34 Owners Manual Black plate (349,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
8 Maintenance and do-it-yourself
Maintenance requirement...
........................................................ 8-3
Scheduled maintenance ..")
Black plate (349,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
8 Maintenance and do-it-yourself
Maintenance requirement...
........................................................ 8-3
Scheduled maintenance ...
.................................................... 8-3
General maintenance ...
......................................................... 8-3
Where to go for service ...
.................................................... 8-3
General maintenance ...
............................................................... 8-3
Explanation of maintenance items ...
................................... 8-3
Maintenance precautions ...
........................................................ 8-6
Engine compartment check locations ...
.................................. 8-8
VQ37VHR engine model ...
.................................................. 8-8
Engine cooling system ...
............................................................. 8-9
Checking engine coolant level ...
...................................... 8-10
Changing engine coolant ...
............................................... 8-10
Engine oil ...
........................................................................\
......... 8-11
Checking engine oil level ...
............................................... 8-11
Changing engine oil and filter ...
....................................... 8-11
Automatic transmission fluid ...
............................................... 8-13
Power steering fluid ...
............................................................... 8-13
Brake and clutch fluid ...
........................................................... 8-14
Brake fluid ...
........................................................................\
.. 8-14
Clutch fluid (Manual transmission models) ...
............... 8-15
Window washer fluid ...
............................................................ 8-15
Battery ...
........................................................................\
............... 8-16
Jump starting ...
..................................................................... 8-18 Variable voltage control system
...
......................................... 8-18
Drive belts ...
........................................................................\
....... 8-19
Spark plugs ...
........................................................................\
..... 8-19
Replacing spark plugs ...
.................................................. 8-20
Air cleaner ...
........................................................................\
....... 8-20
Windshield wiper blades ...
..................................................... 8-21
Cleaning ...
........................................................................\
... 8-21
Replacing ...
........................................................................\
. 8-21
Brakes ...
........................................................................\
.............. 8-22
Self-adjusting brakes ...
.................................................... 8-22
Brake pad wear warning ...
.............................................. 8-22
Fuses ...
........................................................................\
................ 8-23
Engine compartment ...
..................................................... 8-23
Passenger compartment ...
.............................................. 8-24
Intelligent Key battery replacement ...
................................... 8-25
Lights ...
........................................................................\
................ 8-27
Coupe ...
........................................................................\
....... 8-27
Roadster ...
........................................................................\
... 8-28
Headlights ...
........................................................................\
8-29
Exterior and interior lights ...
............................................ 8-29
Wheels and tires ...
................................................................... 8-31
Tire pressure ...
................................................................... 8-31
Tire labeling ...
..................................................................... 8-34
