2013 NISSAN 370Z ROADSTER charging

Black plate (366,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
8-18Maintenance and do-it-yourself

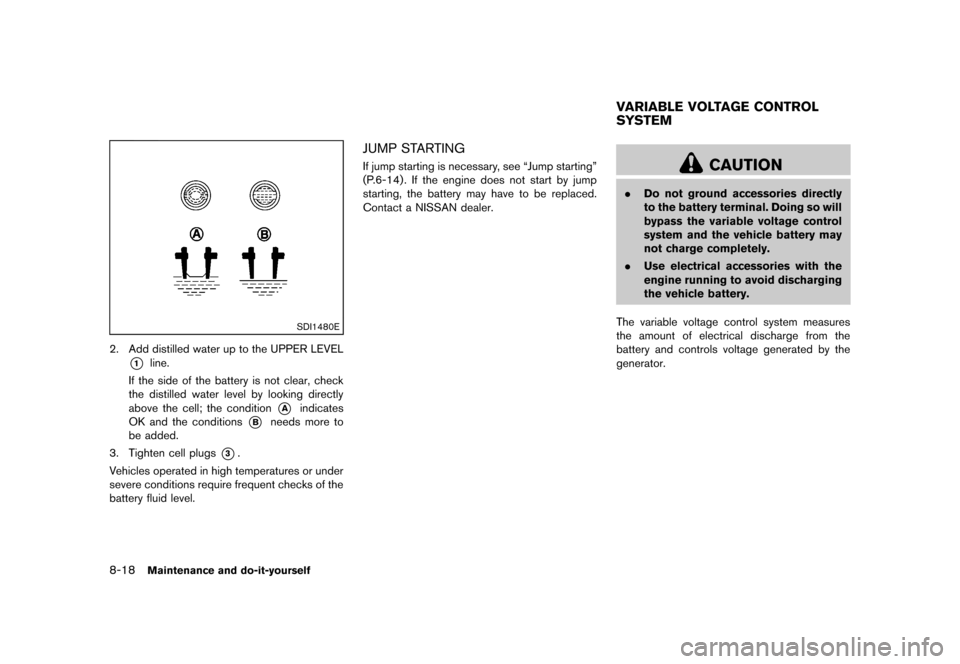

SDI1480E
2. Add distilled water up to the UPPER LEVEL
*1line.
If the side of the battery is not clear, check
the distilled water level by looking directly
above the cell; the condition
*Aindicates
OK and the conditions
*Bneeds more to
be added.
3. Tighten cell plugs
*3.
Vehicles operated in high temperatures or under
severe conditions require frequent checks of the
battery fluid level.
JUMP STARTINGGUID-06FBEC53-7C13-4B82-AE54-CAF12DA1697CIf jump starting is necessary, see “Jump starting”
(P.6-14) . If the engine does not start by jump
starting, the battery may have to be replaced.
Contact a NISSAN dealer.
GUID-2C67D41A-0B80-48E8-860B-DAF57B0553FA
CAUTION
. Do not ground accessories directly
to the battery terminal. Doing so will
bypass the variable voltage control
system and the vehicle battery may
not charge completely.
. Use electrical accessories with the
engine running to avoid discharging
the vehicle battery.
The variable voltage control system measures
the amount of electrical discharge from the
battery and controls voltage generated by the
generator.
VARIABLE VOLTAGE CONTROL
SYSTEM
