6-20In case of emergency
ing to prevent damage to the
drivetrain.
SCE0836
TOWING RECOMMENDED BY
NISSAN (NISMO models)
GUID-D35E8580-C905-4BC9-A219-DEB36E5F9ACA
CAUTION
Do not tow NISMO models with any
wheel on the ground, or with the front
or rear wheels raised, because this may
cause damage to the front bumper with
an aerodynamic splitter, rear bumper
with an aerodynamic diffuser or ex-
haust pipes.
NISSAN recommends that you place the vehicle
on a flatbed truck as illustrated.

Black plate (340,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

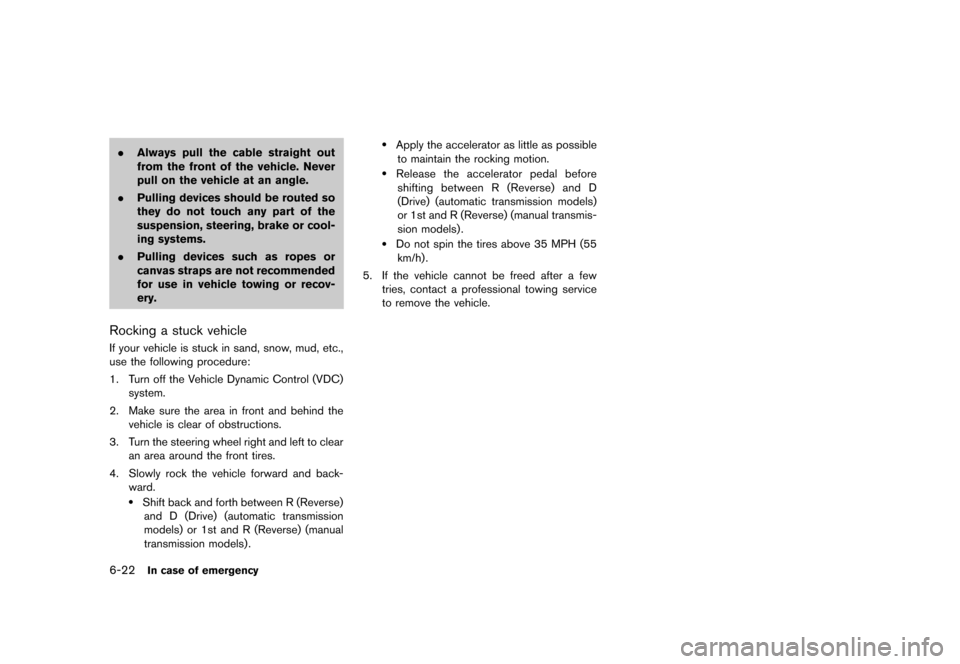

6-22In case of emergency
.Always pull the cable straight out
from the front of the vehicle. Never
pull on the vehicle at an angle.
. Pulling devices should be routed so
they do not touch any part of the
suspension, steering, brake or cool-
ing systems.
. Pulling devices such as ropes or
canvas straps are not recommended
for use in vehicle towing or recov-
ery.
Rocking a stuck vehicleGUID-1F515541-8096-42B5-BC89-49A51BF43A3CIf your vehicle is stuck in sand, snow, mud, etc.,
use the following procedure:
1. Turn off the Vehicle Dynamic Control (VDC)
system.
2. Make sure the area in front and behind the vehicle is clear of obstructions.
3. Turn the steering wheel right and left to clear an area around the front tires.
4. Slowly rock the vehicle forward and back- ward.
.Shift back and forth between R (Reverse)
and D (Drive) (automatic transmission
models) or 1st and R (Reverse) (manual
transmission models) .
.Apply the accelerator as little as possibleto maintain the rocking motion.
.Release the accelerator pedal beforeshifting between R (Reverse) and D
(Drive) (automatic transmission models)
or 1st and R (Reverse) (manual transmis-
sion models) .
.Do not spin the tires above 35 MPH (55 km/h).
5. If the vehicle cannot be freed after a few tries, contact a professional towing service
to remove the vehicle.

Black plate (341,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

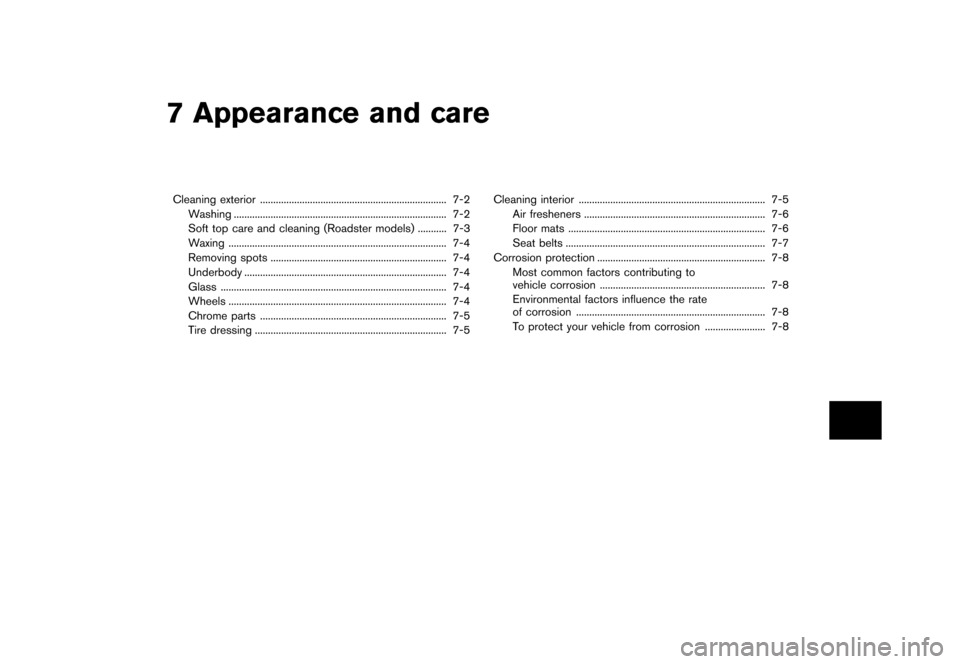

7 Appearance and care
Cleaning exterior...
....................................................................... 7-2
Washing ...
........................................................................\
......... 7-2
Soft top care and cleaning (Roadster models) ...
........... 7-3
Waxing ...
........................................................................\
........... 7-4
Removing spots ...
................................................................... 7-4
Underbody ...
........................................................................\
..... 7-4
Glass ...
........................................................................\
.............. 7-4
Wheels ...
........................................................................\
........... 7-4
Chrome parts ...
....................................................................... 7-5
Tire dressing ...
........................................................................\
. 7-5 Cleaning interior
...
....................................................................... 7-5
Air fresheners ...
..................................................................... 7-6
Floor mats ...
........................................................................\
... 7-6
Seat belts ...
........................................................................\
.... 7-7
Corrosion protection ...
................................................................ 7-8
Most common factors contributing to
vehicle corrosion ...
............................................................... 7-8
Environmental factors influence the rate
of corrosion ...
........................................................................\
7-8
To protect your vehicle from corrosion ...
....................... 7-8

Black plate (343,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
must be regularly cleaned. Make sure that the
drain holes in the lower edge of the door are
open. Spray water under the body and in the
wheel wells to loosen the dirt and wash away
road salt.
Avoid leaving water spots on the paint surface
by using a damp chamois to dry the vehicle.
SAI0046
NISMO modelsGUID-E3BDAA99-6FEC-4DED-B908-DD7C69B14912
CAUTION
Do not use an automatic car wash for
NISMO models. The rear spoiler may be
damaged.
SOFT TOP CARE AND CLEANING
(Roadster models)
GUID-BFB1C149-B6AF-40AC-A770-DA5BD6CCB9D9Proper care and handling should be observed to
maintain a good appearance of the soft top.
Improper care may cause the top cloth’s surface
to stiffen, stain, or mat. Follow the instructions
shown in this section.
It is not necessary to wash the soft top every
time you wash the vehicle body, but clean the
top regularly before it becomes quite dirty.
Leaving the soft top dirty or soiled for a long
period will cause deterioration to the quality of
the top material.
Remove dust or dirt on the soft top with a soft
brush or sponge, then rinse it with plenty of
clean water. When the top is quite dirty, wash
using a mild detergent, such as a general
cleaner especially made for a cloth top or a
general purpose dish-washing liquid, mixed with
clean, lukewarm (never hot) water. Rinse the top
again with plenty of clean water to remove all
traces of soap.
CAUTION
.Do not use strong household soap,
strong chemical detergents, gaso-
line or solvents.
Appearance and care7-3

Black plate (344,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

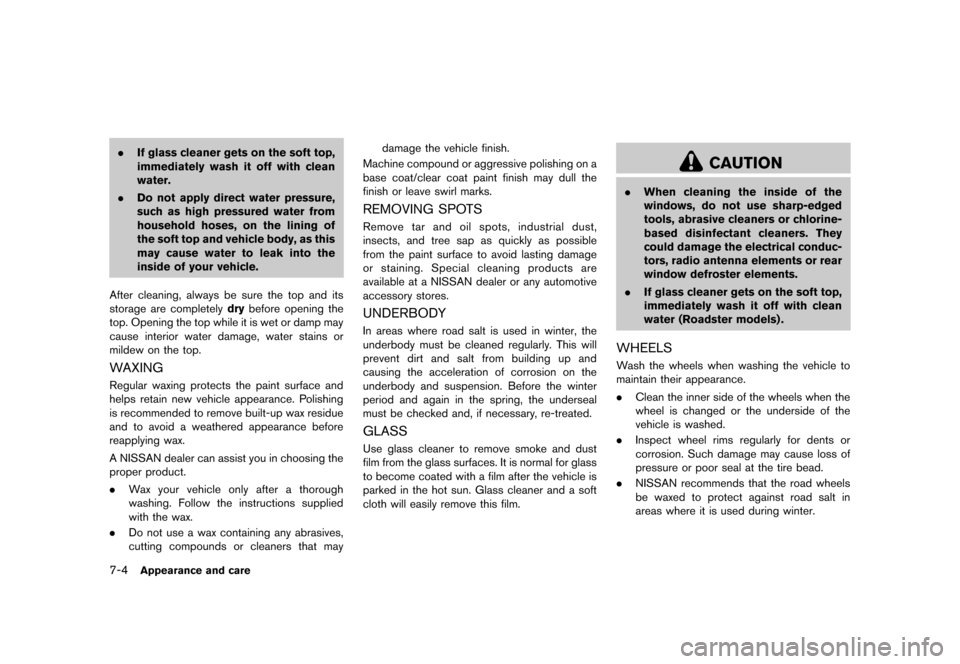

7-4Appearance and care
.If glass cleaner gets on the soft top,
immediately wash it off with clean
water.
. Do not apply direct water pressure,
such as high pressured water from
household hoses, on the lining of
the soft top and vehicle body, as this
may cause water to leak into the
inside of your vehicle.
After cleaning, always be sure the top and its
storage are completely drybefore opening the
top. Opening the top while it is wet or damp may
cause interior water damage, water stains or
mildew on the top.
WAXINGGUID-4848C5FA-C612-45BB-B7C8-2820764D534BRegular waxing protects the paint surface and
helps retain new vehicle appearance. Polishing
is recommended to remove built-up wax residue
and to avoid a weathered appearance before
reapplying wax.
A NISSAN dealer can assist you in choosing the
proper product.
. Wax your vehicle only after a thorough
washing. Follow the instructions supplied
with the wax.
. Do not use a wax containing any abrasives,
cutting compounds or cleaners that may damage the vehicle finish.
Machine compound or aggressive polishing on a
base coat/clear coat paint finish may dull the
finish or leave swirl marks.
REMOVING SPOTSGUID-1D190F5C-DDE4-443D-84F6-02902047619ARemove tar and oil spots, industrial dust,
insects, and tree sap as quickly as possible
from the paint surface to avoid lasting damage
or staining. Special cleaning products are
available at a NISSAN dealer or any automotive
accessory stores.
UNDERBODYGUID-B4A3FC99-8342-414A-ACE0-C7B9B855D13EIn areas where road salt is used in winter, the
underbody must be cleaned regularly. This will
prevent dirt and salt from building up and
causing the acceleration of corrosion on the
underbody and suspension. Before the winter
period and again in the spring, the underseal
must be checked and, if necessary, re-treated.
GLASSGUID-C42DFAFC-9E05-4F03-9AC2-1BC6EC075C12Use glass cleaner to remove smoke and dust
film from the glass surfaces. It is normal for glass
to become coated with a film after the vehicle is
parked in the hot sun. Glass cleaner and a soft
cloth will easily remove this film.
CAUTION
. When cleaning the inside of the
windows, do not use sharp-edged
tools, abrasive cleaners or chlorine-
based disinfectant cleaners. They
could damage the electrical conduc-
tors, radio antenna elements or rear
window defroster elements.
. If glass cleaner gets on the soft top,
immediately wash it off with clean
water (Roadster models) .
WHEELSGUID-FB4B77F8-E020-4111-875C-746F1B0EDEE1Wash the wheels when washing the vehicle to
maintain their appearance.
.Clean the inner side of the wheels when the
wheel is changed or the underside of the
vehicle is washed.
. Inspect wheel rims regularly for dents or
corrosion. Such damage may cause loss of
pressure or poor seal at the tire bead.
. NISSAN recommends that the road wheels
be waxed to protect against road salt in
areas where it is used during winter.

Black plate (345,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
CAUTION
Do not use abrasive cleaners when
washing the wheels.
Aluminum alloy wheelsGUID-F067E84F-FE8D-4C96-ADE0-559A71AFAE46Wash regularly with a sponge dampened in a
mild soap solution, especially during winter
months in areas where road salt is used. Salt
could discolor the wheels if not removed.
CAUTION
Follow the directions below to avoid
staining or discoloring the wheels:
.Do not use a cleaner that uses
strong acid or alkali contents to
clean the wheels.
. Do not apply wheel cleaners to the
wheels when they are hot. The
wheel temperature should be the
same as ambient temperature.
. Rinse the wheel to completely re-
move the cleaner within 15 minutes
after the cleaner is applied.
CHROME PARTSGUID-DFE79010-03B4-48D8-8365-C6E55AA358EFClean chrome parts regularly with a non-
abrasive chrome polish to maintain the finish.
TIRE DRESSINGGUID-E2268C54-2157-4EB4-A599-D414B210C5B8NISSAN does not recommend the use of tire
dressings. Tire manufacturers apply a coating to
the tires to help reduce discoloration of the
rubber. If a tire dressing is applied to the tires, it
may react with the coating and form a com-
pound. This compound may come off the tire
while driving and stain the vehicle paint.
If you choose to use a tire dressing, take the
following precautions:
.Use a water-based tire dressing. The coat-
ing on the tire dissolves more easily with an
oil-based tire dressing.
. Apply a light coat of tire dressing to help
prevent it from entering the tire tread/
grooves (where it would be difficult to
remove) .
. Wipe off excess tire dressing using a dry
towel. Make sure the tire dressing is
completely removed from the tire tread/
grooves.
. Allow the tire dressing to dry as recom-
mended by tire dressing manufacturer.
GUID-7DE8D5B9-10B7-466F-BFBC-EB1B135163B1Occasionally remove loose dust from the interior
trim, plastic parts and seats using a vacuum
cleaner or soft bristled brush. Wipe the vinyl and
leather surfaces with a clean, soft cloth dam-
pened in mild soap solution, then wipe clean
with a dry soft cloth.
Regular care and cleaning is required in order to
maintain the appearance of the leather.
Before using any fabric protector, read the
manufacturer’s recommendations. Some fabric
protectors contain chemicals that may stain or
bleach the seat material.
Use a cloth dampened only with water, to clean
the meter and gauge lens.
WARNING
Do not use water or acidic cleaners (hot
steam cleaners) on the seat. This can
damage the seat or occupant classifica-
tion sensor. This can also affect the
operation of the air bag system and
result in serious personal injury.
Appearance and care7-5
CLEANING INTERIOR

Black plate (349,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
8 Maintenance and do-it-yourself
Maintenance requirement...
........................................................ 8-3
Scheduled maintenance ...
.................................................... 8-3
General maintenance ...
......................................................... 8-3
Where to go for service ...
.................................................... 8-3
General maintenance ...
............................................................... 8-3
Explanation of maintenance items ...
................................... 8-3
Maintenance precautions ...
........................................................ 8-6
Engine compartment check locations ...
.................................. 8-8
VQ37VHR engine model ...
.................................................. 8-8
Engine cooling system ...
............................................................. 8-9
Checking engine coolant level ...
...................................... 8-10
Changing engine coolant ...
............................................... 8-10
Engine oil ...
........................................................................\
......... 8-11
Checking engine oil level ...
............................................... 8-11
Changing engine oil and filter ...
....................................... 8-11
Automatic transmission fluid ...
............................................... 8-13
Power steering fluid ...
............................................................... 8-13
Brake and clutch fluid ...
........................................................... 8-14
Brake fluid ...
........................................................................\
.. 8-14
Clutch fluid (Manual transmission models) ...
............... 8-15
Window washer fluid ...
............................................................ 8-15
Battery ...
........................................................................\
............... 8-16
Jump starting ...
..................................................................... 8-18 Variable voltage control system
...
......................................... 8-18
Drive belts ...
........................................................................\
....... 8-19
Spark plugs ...
........................................................................\
..... 8-19
Replacing spark plugs ...
.................................................. 8-20
Air cleaner ...
........................................................................\
....... 8-20
Windshield wiper blades ...
..................................................... 8-21
Cleaning ...
........................................................................\
... 8-21
Replacing ...
........................................................................\
. 8-21
Brakes ...
........................................................................\
.............. 8-22
Self-adjusting brakes ...
.................................................... 8-22
Brake pad wear warning ...
.............................................. 8-22
Fuses ...
........................................................................\
................ 8-23
Engine compartment ...
..................................................... 8-23
Passenger compartment ...
.............................................. 8-24
Intelligent Key battery replacement ...
................................... 8-25
Lights ...
........................................................................\
................ 8-27
Coupe ...
........................................................................\
....... 8-27
Roadster ...
........................................................................\
... 8-28
Headlights ...
........................................................................\
8-29
Exterior and interior lights ...
............................................ 8-29
Wheels and tires ...
................................................................... 8-31
Tire pressure ...
................................................................... 8-31
Tire labeling ...
..................................................................... 8-34

Black plate (350,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

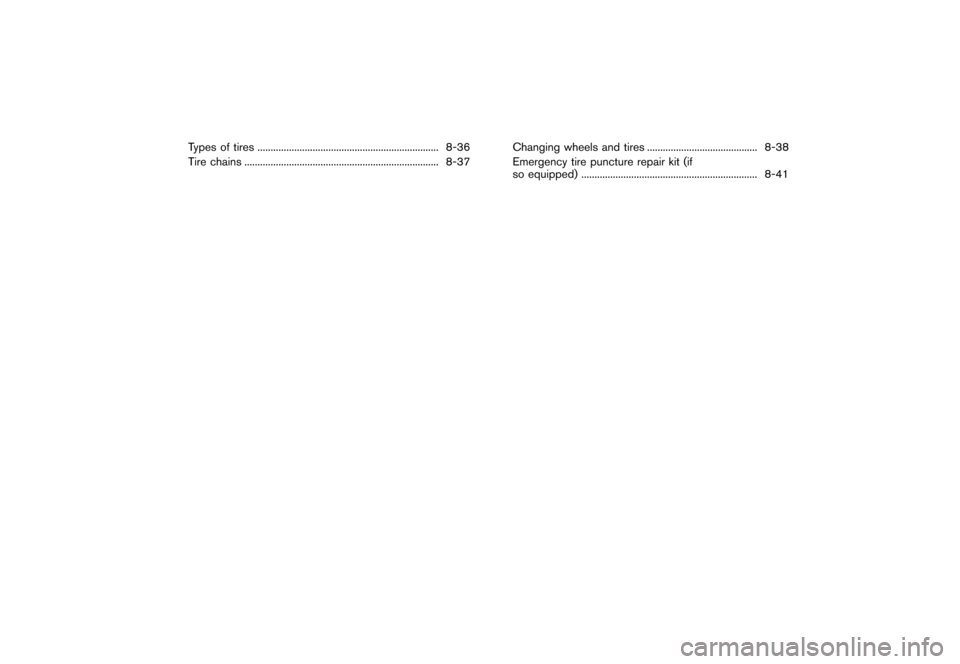

Types of tires...
..................................................................... 8-36
Tire chains ...
........................................................................\
.. 8-37 Changing wheels and tires
...
.......................................... 8-38
Emergency tire puncture repair kit (if
so equipped) ...
................................................................... 8-41
