Black plate (132,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
3-12Pre-driving checks and adjustments
TROUBLESHOOTING GUIDEGUID-9C429A4C-EFBF-40ED-8F11-BD7DE804332C
SymptomPossible causeAction to take
When pushing the ignition switch
to stop the engine The SHIFT P warning appears on the display
and the inside warning chime sounds con-
tinuously (Automatic Transmission models) .
The selector lever is not in the P (Park)
position.
Shift the selector lever to the P (Park)
position.
When opening the driver’s door
to get out of the vehicle The inside warning chime sounds continuously. The ignition switch is in the ACC
position.
Push the ignition switch to the OFF posi-
tion.
The Intelligent Key is in the Intelligent
Key port. Remove the Intelligent Key from the Intelli-
gent Key port.
When closing the door after get-
ting out of the vehicle The NO KEY warning appears on the display,
the outside chime sounds 3 times and the
inside warning chime sounds for approximately
a few seconds.
The ignition switch is in the ACC or ON
position.
Push the ignition switch to the OFF posi-
tion.
The SHIFT P warning appears on the display
and the outside chime sounds continuously
(Automatic Transmission models) . The ignition switch is in the ACC or OFF
position and the selector lever is not in
the P (Park) position.Move the selector lever to the P (Park)
position and push the ignition switch to the
OFF position.
When closing the door with the
inside lock knob turned to LOCK The outside chime sounds for a few seconds
and all the doors unlock. The Intelligent Key is inside the vehicle
and cargo/trunk room area.
Carry the Intelligent Key with you.
When pushing the door handle
request switch to lock the door The outside chime sounds for a few seconds. The Intelligent Key is inside the vehicle
and cargo/trunk room area.
Carry the Intelligent Key with you.
A door is not closed securely. Close the door securely.
When closing the trunk lid
(Roadster models) The outside chime sounds for a few seconds
and all doors unlock. The Intelligent Key is inside the trunk. Carry the Intelligent Key with you.
When shifting the selector lever
to the P (Park) position The inside warning chime sounds continuously. The ignition switch is in the ON position.
The ignition switch is in the OFF position.

Black plate (155,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

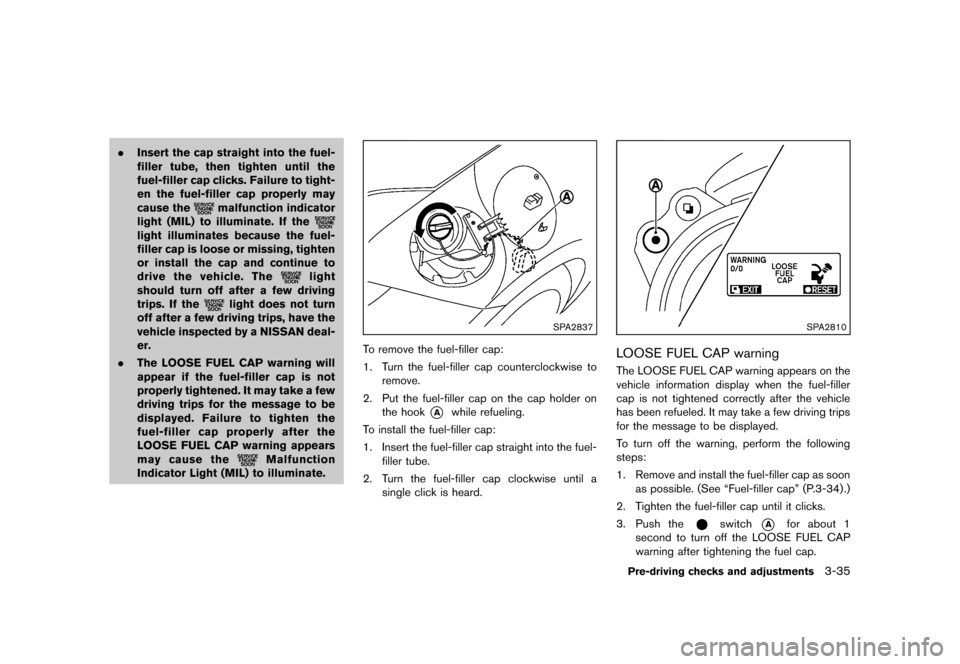

.Insert the cap straight into the fuel-
filler tube, then tighten until the
fuel-filler cap clicks. Failure to tight-
en the fuel-filler cap properly may
cause the
malfunction indicator
light (MIL) to illuminate. If the
light illuminates because the fuel-
filler cap is loose or missing, tighten
or install the cap and continue to
drive the vehicle. The
light
should turn off after a few driving
trips. If the
light does not turn
off after a few driving trips, have the
vehicle inspected by a NISSAN deal-
er.
. The LOOSE FUEL CAP warning will
appear if the fuel-filler cap is not
properly tightened. It may take a few
driving trips for the message to be
displayed. Failure to tighten the
fuel-filler cap properly after the
LOOSE FUEL CAP warning appears
may cause the
Malfunction
Indicator Light (MIL) to illuminate.
SPA2837
To remove the fuel-filler cap:
1. Turn the fuel-filler cap counterclockwise to remove.
2. Put the fuel-filler cap on the cap holder on the hook
*Awhile refueling.
To install the fuel-filler cap:
1. Insert the fuel-filler cap straight into the fuel- filler tube.
2. Turn the fuel-filler cap clockwise until a single click is heard.
SPA2810
LOOSE FUEL CAP warningGUID-70CE73BB-66D0-4B83-9B44-278897F832F1The LOOSE FUEL CAP warning appears on the
vehicle information display when the fuel-filler
cap is not tightened correctly after the vehicle
has been refueled. It may take a few driving trips
for the message to be displayed.
To turn off the warning, perform the following
steps:
1. Remove and install the fuel-filler cap as soonas possible. (See “Fuel-filler cap” (P.3-34) .)
2. Tighten the fuel-filler cap until it clicks.
3. Push the
switch*Afor about 1
second to turn off the LOOSE FUEL CAP
warning after tightening the fuel cap.
Pre-driving checks and adjustments3-35

Black plate (161,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

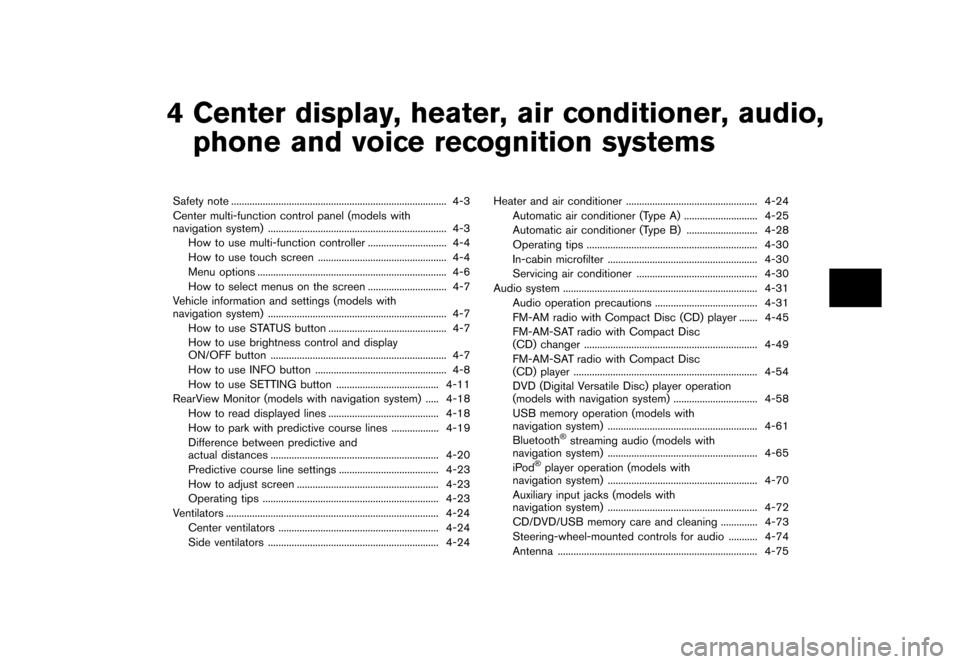

4 Center display, heater, air conditioner, audio,phone and voice recognition systems
Safety note ...
........................................................................\
.......... 4-3
Center multi-function control panel (models with
navigation system) ...
.................................................................... 4-3
How to use multi-function controller ...
.............................. 4-4
How to use touch screen ...
................................................. 4-4
Menu options ...
........................................................................\
4-6

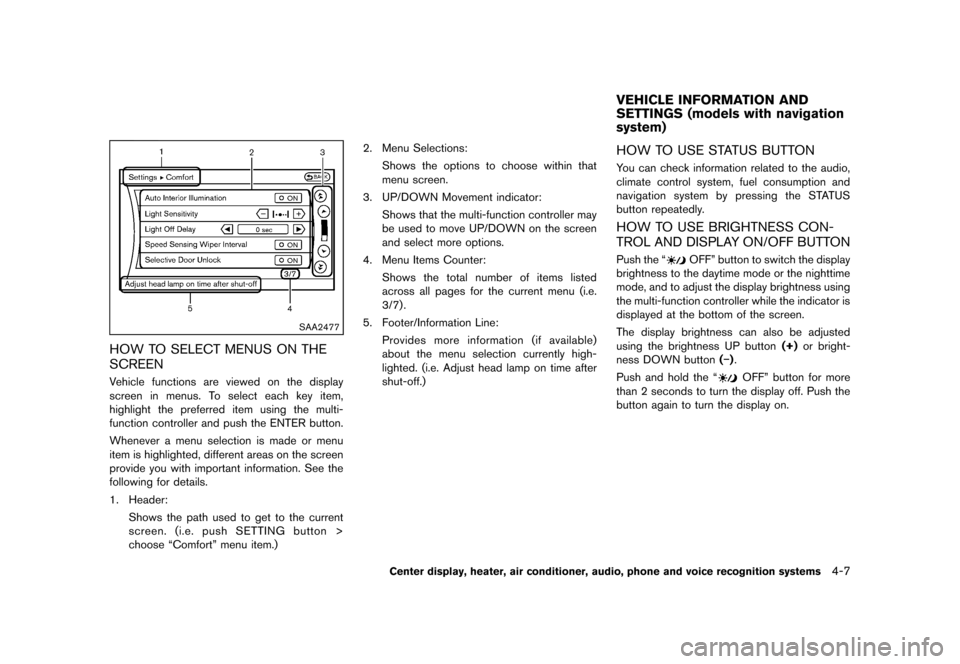

How to select menus on the screen ...
.............................. 4-7
Vehicle information and settings (models with
navigation system) ...
.................................................................... 4-7
How to use STATUS button ...
............................................. 4-7
How to use brightness control and display
ON/OFF button ...
................................................................... 4-7
How to use INFO button ...
.................................................. 4-8
How to use SETTING button ...
....................................... 4-11
RearView Monitor (models with navigation system) ...
..... 4-18
How to read displayed lines ...
.......................................... 4-18
How to park with predictive course lines ...
.................. 4-19
Difference between predictive and
actual distances ...
................................................................ 4-20
Predictive course line settings ...
...................................... 4-23
How to adjust screen ...
...................................................... 4-23
Operating tips ...
................................................................... 4-23
Ventilators ...
........................................................................\
......... 4-24
Center ventilators ...
............................................................. 4-24
Side ventilators ...
................................................................. 4-24 Heater and air conditioner
...
.................................................. 4-24
Automatic air conditioner (Type A) ...
............................ 4-25
Automatic air conditioner (Type B) ...
........................... 4-28
Operating tips ...
................................................................. 4-30
In-cabin microfilter ...
......................................................... 4-30
Servicing air conditioner ...
.............................................. 4-30
Audio system ...
........................................................................\
.. 4-31
Audio operation precautions ...
....................................... 4-31
FM-AM radio with Compact Disc (CD) player ...
....... 4-45
FM-AM-SAT radio with Compact Disc
(CD) changer ...
.................................................................. 4-49
FM-AM-SAT radio with Compact Disc
(CD) player ...
...................................................................... 4-54
DVD (Digital Versatile Disc) player operation
(models with navigation system) ...
................................ 4-58
USB memory operation (models with
navigation system) ...
......................................................... 4-61
Bluetooth
®streaming audio (models with
navigation system) ...
......................................................... 4-65
iPod
®player operation (models with
navigation system) ...
......................................................... 4-70
Auxiliary input jacks (models with
navigation system) ...
......................................................... 4-72
CD/DVD/USB memory care and cleaning ...
.............. 4-73
Steering-wheel-mounted controls for audio ...
........... 4-74
Antenna ...
........................................................................\
.... 4-75

Black plate (163,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
GUID-15C1CD10-4271-48AA-8811-D9BDDF26B26E
WARNING
.Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.
. Do not use this system if you notice
any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in
accident, fire or electric shock.
. In case you notice any foreign
object in the system hardware, spill
liquid on it, or notice smoke or smell
coming from it, stop using the
system immediately and contact
your nearest NISSAN dealer. Ignor-
ing such conditions may lead to
accidents, fire, or electric shock.
. Park the vehicle in a safe location
and apply the parking brake to view
the images on the front center dis-
play screen.
Do not attempt to operate the system in
extreme temperature conditions [below
−48F (−208C) and above 1588F (708C)].
Operating this system under these condi-
tions may result in system malfunctions.
GUID-31E22E02-D69E-4C69-8490-23F0291D8FF8
SAA2273
1. “STATUS” status display button (P.4-7)
2, 3, 7, 8, 9. For navigation system control buttons (Refer to
the separate Navigation System Owner’s Man-
ual.)
4. Multi-function controller (P.4-4)
5. “PHONE” Bluetooth
®Hands-Free Phone Sys-
tem button (P.4-77)
6. “
OFF” brightness control and display ON/
OFF button (P.4-7)
10. “INFO” vehicle and navigation information button (P.4-8)
11. “SETTING” button (P.4-11)
Center display, heater, air conditioner, audio, phone and voice recognition systems4-3

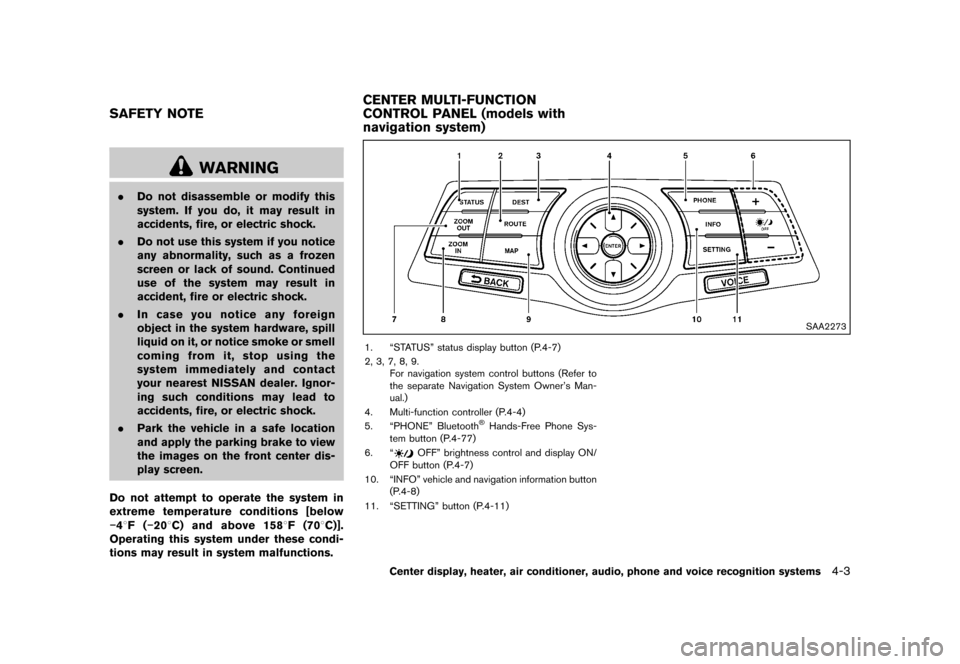

SAFETY NOTE CENTER MULTI-FUNCTION
CONTROL PANEL (models with
navigation system)

Black plate (164,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
4-4Center display, heater, air conditioner, audio, phone and voice recognition systems
SAA2274

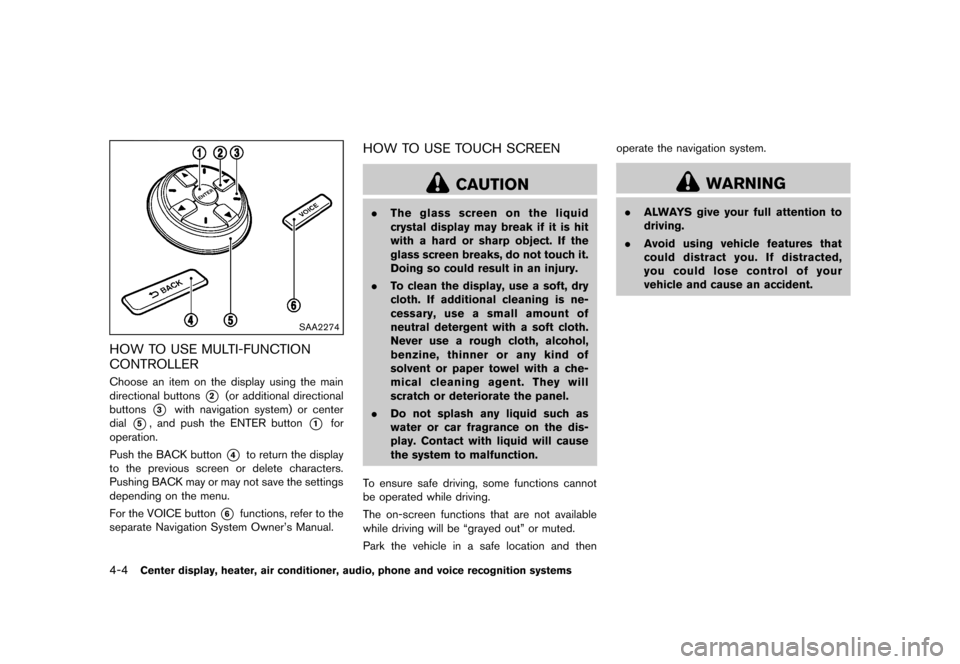

HOW TO USE MULTI-FUNCTION
CONTROLLER
GUID-AE64BCF1-714A-4BD6-BBBB-45BCC99AE297Choose an item on the display using the main
directional buttons
*2(or additional directional
buttons
*3with navigation system) or center
dial
*5, and push the ENTER button*1for
operation.
Push the BACK button
*4to return the display
to the previous screen or delete characters.
Pushing BACK may or may not save the settings
depending on the menu.
For the VOICE button
*6functions, refer to the
separate Navigation System Owner’s Manual.
HOW TO USE TOUCH SCREENGUID-7BDC2B44-A42D-44B7-9342-FEC4371E6C0F
CAUTION
. The glass screen on the liquid
crystal display may break if it is hit
with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.
. To clean the display, use a soft, dry
cloth. If additional cleaning is ne-
cessary, use a small amount of
neutral detergent with a soft cloth.
Never use a rough cloth, alcohol,
benzine, thinner or any kind of
solvent or paper towel with a che-
mical cleaning agent. They will
scratch or deteriorate the panel.
. Do not splash any liquid such as
water or car fragrance on the dis-
play. Contact with liquid will cause
the system to malfunction.
To ensure safe driving, some functions cannot
be operated while driving.
The on-screen functions that are not available
while driving will be “grayed out” or muted.
Park the vehicle in a safe location and then operate the navigation system.
WARNING
.
ALWAYS give your full attention to
driving.
. Avoid using vehicle features that
could distract you. If distracted,
you could lose control of your
vehicle and cause an accident.

Black plate (165,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
SAA2473
Touch screen operationGUID-A8D29382-F80A-407F-BB0D-54E0203E135CWith this system, the same operations as those
for the multi-function controller are possible
using the touch screen operation.
Selecting the item:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch an item to select it. To select the “Audio”
settings, touch the “Audio” area
*1on the
screen.
Touch the BACK
*2button to return to the
previous screen.
SAA2474
Adjusting an item:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch the +*1or−*2button to adjust the
settings.
Touch the
*3or*4button to move
to the previous or next item.
Touch the
*5or*6button to move
to the previous or next page.
SAA2475
Inputting characters:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch the letter or number*1.
There are some options available when inputting
characters.
. Uppercase:
Shows uppercase characters.
. Lowercase:
Shows lowercase characters.
. Symbols:
Shows symbols such as the question mark
(?) .
. Space:
Inserts a space.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-5

Black plate (166,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
4-6Center display, heater, air conditioner, audio, phone and voice recognition systems
.Delete:
Deletes the last character that has been
input with one touch. Push and hold the
button to delete all of the characters.
. OK:
Completes character inputs.
Touch screen maintenanceGUID-C3F61A56-7B6A-4CBA-AEA3-9EEB5497B563If you clean the display screen, use a dry, soft
cloth. If additional cleaning is necessary, use a
small amount of neutral detergent with a soft
cloth. Never spray the screen with water or
detergent. Dampen the cloth first, and then wipe
the screen.
SAA2143

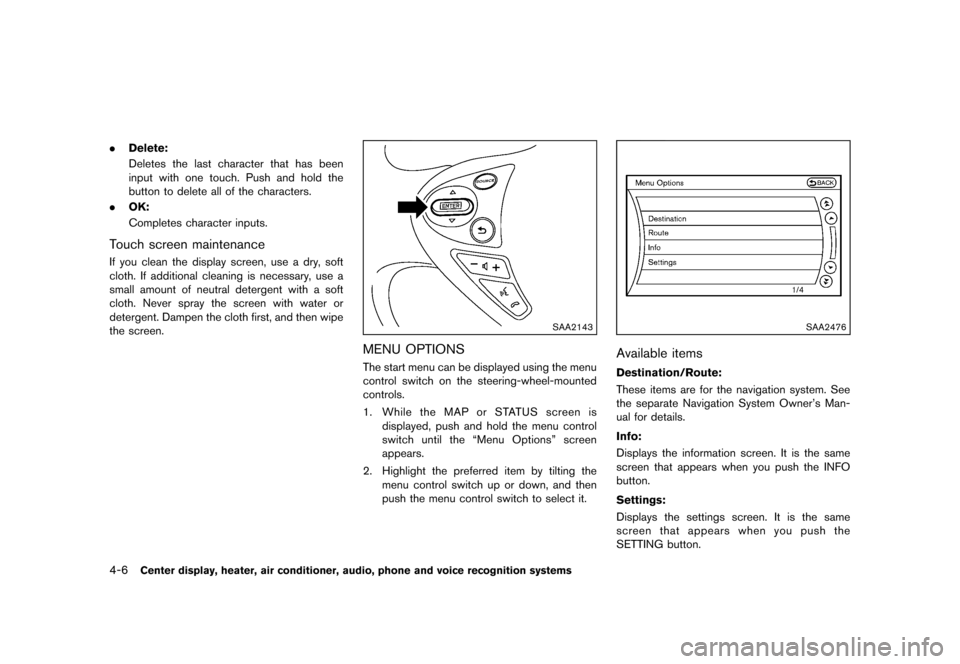

MENU OPTIONSGUID-F0D47342-E539-4A34-A32F-3CC02A22DEF3The start menu can be displayed using the menu
control switch on the steering-wheel-mounted
controls.
1.While the MAP or STATUS screen is
displayed, push and hold the menu control
switch until the “Menu Options” screen
appears.
2. Highlight the preferred item by tilting the menu control switch up or down, and then
push the menu control switch to select it.
SAA2476
Available itemsGUID-AA78AE73-5181-4235-9F62-8F622DB5EE87
Destination/Route:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407These items are for the navigation system. See
the separate Navigation System Owner’s Man-
ual for details.
Info:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Displays the information screen. It is the same
screen that appears when you push the INFO
button.
Settings:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Displays the settings screen. It is the same
screen that appears when you push the
SETTING button.

Black plate (167,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
SAA2477
HOW TO SELECT MENUS ON THE
SCREEN
GUID-971A50BB-99E3-49FF-93FC-8115615E85A0Vehicle functions are viewed on the display
screen in menus. To select each key item,
highlight the preferred item using the multi-
function controller and push the ENTER button.
Whenever a menu selection is made or menu
item is highlighted, different areas on the screen
provide you with important information. See the
following for details.
1. Header:Shows the path used to get to the current
screen. (i.e. push SETTING button >
choose “Comfort” menu item.) 2. Menu Selections:
Shows the options to choose within that
menu screen.
3. UP/DOWN Movement indicator: Shows that the multi-function controller may
be used to move UP/DOWN on the screen
and select more options.
4. Menu Items Counter: Shows the total number of items listed
across all pages for the current menu (i.e.
3/7) .
5. Footer/Information Line: Provides more information (if available)
about the menu selection currently high-
lighted. (i.e. Adjust head lamp on time after
shut-off.)
GUID-1E8011D4-3695-404E-93CF-8F50DBA72472HOW TO USE STATUS BUTTONGUID-668201AC-867A-448C-9421-28170B799009You can check information related to the audio,
climate control system, fuel consumption and
navigation system by pressing the STATUS
button repeatedly.
HOW TO USE BRIGHTNESS CON-
TROL AND DISPLAY ON/OFF BUTTON
GUID-A5BA766E-74EF-4431-8E3D-BC70BE50C9EDPush the “OFF” button to switch the display
brightness to the daytime mode or the nighttime
mode, and to adjust the display brightness using
the multi-function controller while the indicator is
displayed at the bottom of the screen.
The display brightness can also be adjusted
using the brightness UP button (+)or bright-
ness DOWN button (−).
Push and hold the “
OFF” button for more
than 2 seconds to turn the display off. Push the
button again to turn the display on.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-7
VEHICLE INFORMATION AND
SETTINGS (models with navigation
system)
