2013 NISSAN 370Z COUPE key

Black plate (104,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

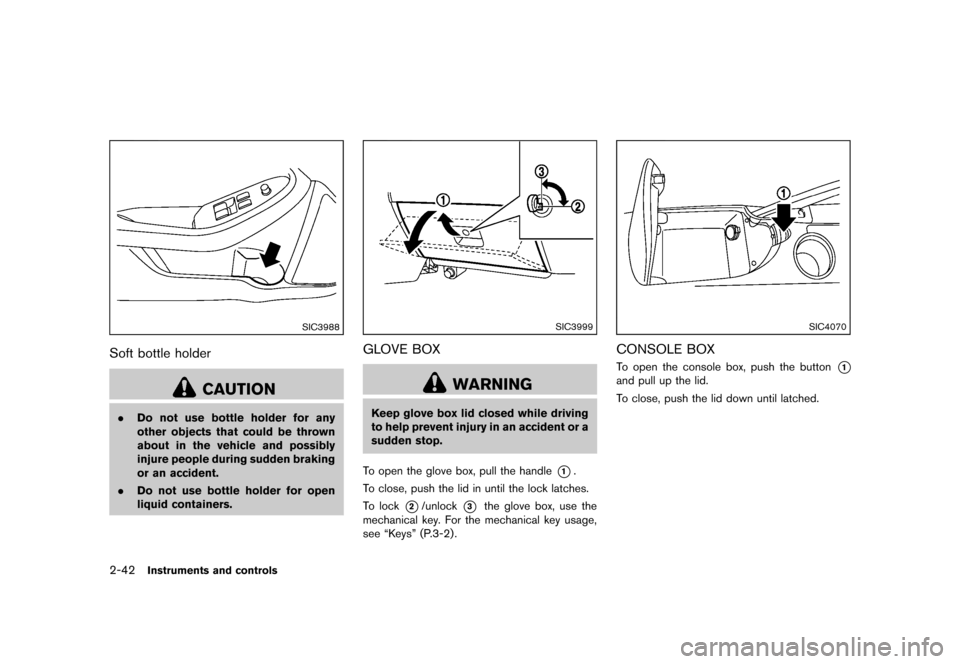

2-42Instruments and controls
SIC3988
Soft bottle holderGUID-F4814257-41A0-4BAC-96BA-7D68DD1370A9
CAUTION
.Do not use bottle holder for any
other objects that could be thrown
about in the vehicle and possibly
injure people during sudden braking
or an accident.
. Do not use bottle holder for open
liquid containers.
SIC3999
GLOVE BOXGUID-903FAAE2-7938-465D-960E-2B78D3575CDD
WARNING
Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.
To open the glove box, pull the handle
*1.
To close, push the lid in until the lock latches.
To lock
*2/unlock*3the glove box, use the
mechanical key. For the mechanical key usage,
see “Keys” (P.3-2) .
SIC4070
CONSOLE BOXGUID-C291F686-F38F-4722-9E4B-C2349892D885To open the console box, push the button*1
and pull up the lid.
To close, push the lid down until latched.

Black plate (110,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
2-48Instruments and controls
— remain on for about 15 seconds.
. doors are unlocked by pushing the UN-
LOCK button on the Intelligent Key or door
handle request switch with the ignition
switch in the LOCK position
— remain on for about 15 seconds.
. any door is opened and then closed with the
ignition switch in the LOCK position
— remain on for about 15 seconds.
. any door is opened with the ignition switch
in the ACC or ON position
— remain on while the door is opened.
When the door is closed, the lights go
off.
The lights will also turn off after a period of
time when the lights remain illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
battery from becoming discharged.
Models with navigation system:
When the auto interior illumination is set to the
OFF position (see “Vehicle information and
settings (models with navigation system)” (P.4-
7)), the lights will illuminate under the following
condition:
. any door is opened with the ignition switch
in any position — remain on while the door is opened.
When the door is closed, the lights go
off.
OFF positionGUID-1E5AD799-C9B5-4BE9-AD45-ADF123B00735When the switch is in the OFF position*3, the
lights will not illuminate, regardless of the
condition.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could
result in a discharged battery.
GUID-B346630C-75B9-46AE-B61E-18B063DCA5D2
SIC3869
The light on the vanity mirror will turn on when
the cover on the vanity mirror is opened.
When the cover is closed, the light will turn off.
The lights will also turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged.
VANITY MIRROR LIGHTS

Black plate (121,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
3 Pre-driving checks and adjustments
Keys...
........................................................................\
...................... 3-2
Intelligent Key ...
....................................................................... 3-2
Valet hand-off ...
....................................................................... 3-3
Doors ...
........................................................................\
.................... 3-4
Locking with mechanical key ...
............................................ 3-4
Opening and closing windows with the
mechanical key ...
..................................................................... 3-4

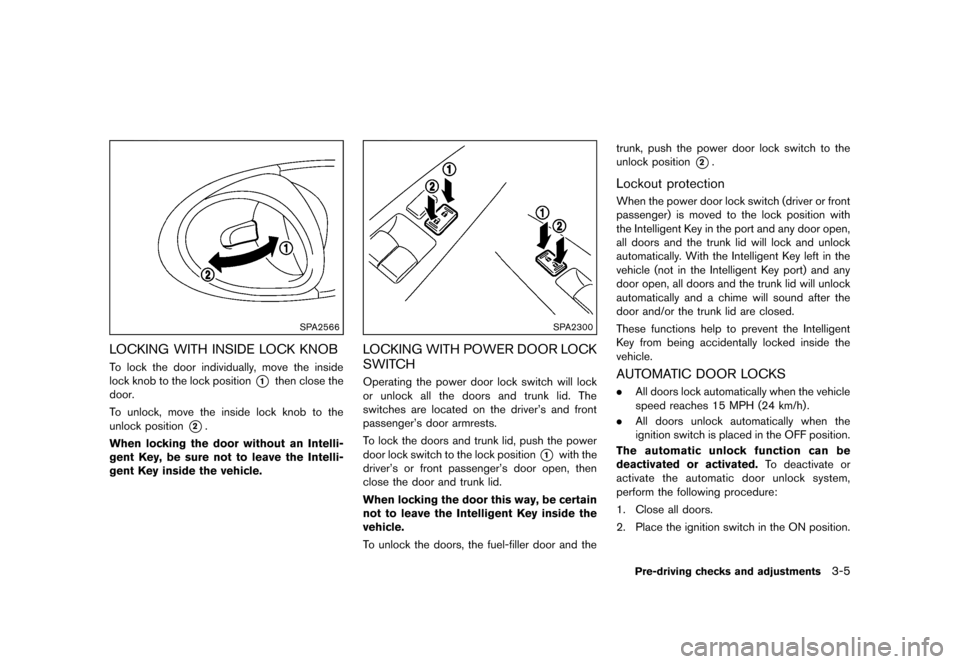

Locking with inside lock knob ...
.......................................... 3-5
Locking with power door lock switch ...
............................ 3-5
Automatic door locks ...
......................................................... 3-5

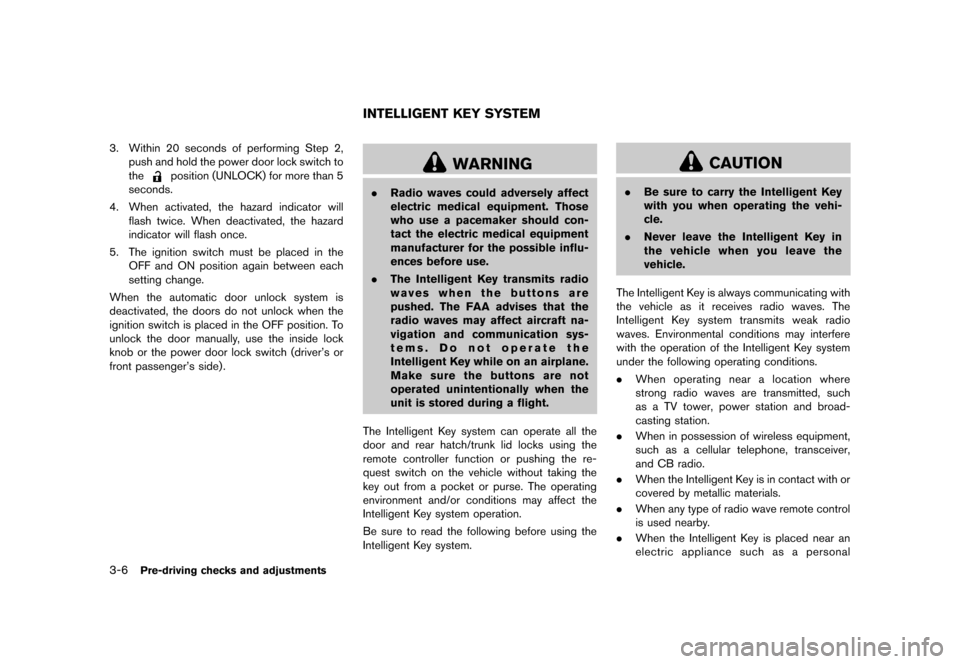

Intelligent Key system ...
.............................................................. 3-6
Intelligent Key operating range ...
....................................... 3-8
Door locks/unlocks precaution ...
....................................... 3-8
Intelligent Key operation ...
.................................................... 3-9
Battery saver system ...
....................................................... 3-11
Warning signals ...
................................................................ 3-11
Troubleshooting guide ...
..................................................... 3-12
Remote keyless entry system ...
............................................. 3-13
How to use remote keyless entry system ...
.................. 3-13
Hood ...
........................................................................\
.................. 3-16
Rear hatch (Coupe models) ...
............................................... 3-16
Rear hatch opener switch ...
.............................................. 3-17
Secondary rear hatch release ...
....................................... 3-18
Trunk lid (Roadster models) ...
................................................ 3-18
Trunk lid opener switch ...
.................................................. 3-19 Trunk release power cancel switch
...
........................... 3-19
Interior trunk lid release ...
................................................ 3-19
Secondary trunk lid release ...
......................................... 3-20
Soft top (Roadster models) ...
................................................ 3-21
Before operating the top ...
.............................................. 3-21
When operating the top ...
............................................... 3-23
Opening the top ...
............................................................. 3-25
Closing the top ...
............................................................... 3-25
Opening the top using the Intelligent Key ...
............... 3-26
Troubleshooting guide ...
.................................................. 3-27
If the top does not open or close electrically ...
......... 3-28
Care of the soft top and the vehicle body ...
.............. 3-32
Front, side and rear unique parts (NISMO models) ...
..... 3-32
Fuel-filler door ...
........................................................................\
3-34
Opening the fuel-filler door ...
......................................... 3-34
Fuel-filler cap ...
.................................................................. 3-34
Tilt steering ...
........................................................................\
..... 3-36
Manual operation ...
............................................................ 3-36
Sun visors ...
........................................................................\
........ 3-36
Mirrors ...
........................................................................\
.............. 3-37
Inside mirror ...
..................................................................... 3-37
Outside mirrors ...
............................................................... 3-38
Vanity mirror ...
..................................................................... 3-39

Black plate (122,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

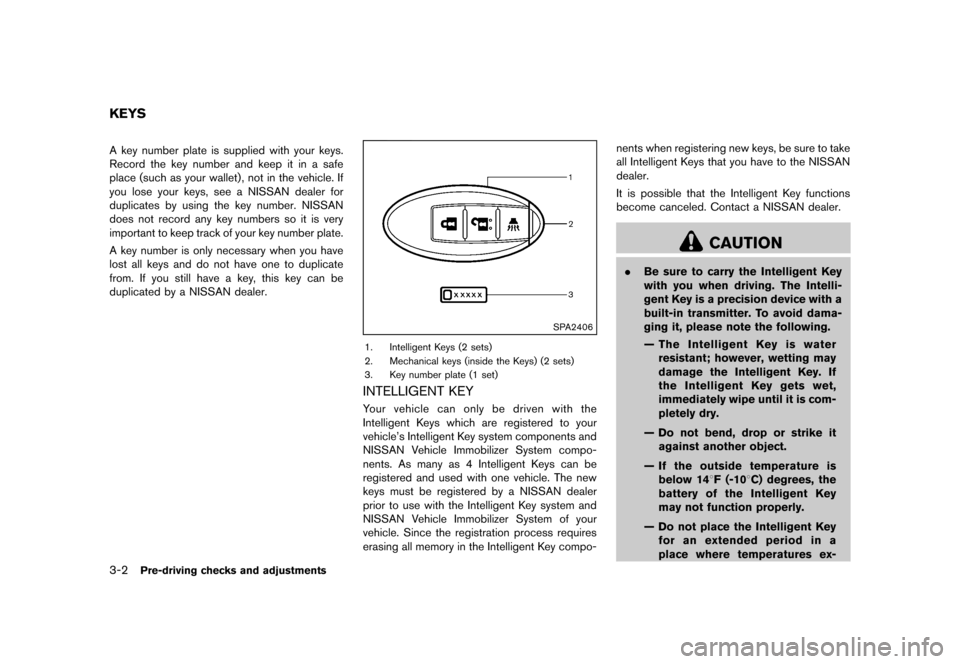

3-2Pre-driving checks and adjustments
GUID-1AB4EDEC-0989-4EEA-BD62-9CEAF4A2249EA key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet), not in the vehicle. If
you lose your keys, see a NISSAN dealer for
duplicates by using the key number. NISSAN
does not record any key numbers so it is very
important to keep track of your key number plate.
A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, this key can be
duplicated by a NISSAN dealer.
SPA2406
1. Intelligent Keys (2 sets)
2. Mechanical keys (inside the Keys) (2 sets)
3. Key number plate (1 set)
INTELLIGENT KEYGUID-3DC5AAE4-F953-49C3-B2F5-C9070439F430Your vehicle can only be driven with the
Intelligent Keys which are registered to your
vehicle’s Intelligent Key system components and
NISSAN Vehicle Immobilizer System compo-
nents. As many as 4 Intelligent Keys can be
registered and used with one vehicle. The new
keys must be registered by a NISSAN dealer
prior to use with the Intelligent Key system and
NISSAN Vehicle Immobilizer System of your
vehicle. Since the registration process requires
erasing all memory in the Intelligent Key compo-nents when registering new keys, be sure to take
all Intelligent Keys that you have to the NISSAN
dealer.
It is possible that the Intelligent Key functions
become canceled. Contact a NISSAN dealer.
CAUTION
.
Be sure to carry the Intelligent Key
with you when driving. The Intelli-
gent Key is a precision device with a
built-in transmitter. To avoid dama-
ging it, please note the following.
— The Intelligent Key is water
resistant; however, wetting may
damage the Intelligent Key. If
the Intelligent Key gets wet,
immediately wipe until it is com-
pletely dry.
— Do not bend, drop or strike it against another object.
— If the outside temperature is below 148F (-108C) degrees, the
battery of the Intelligent Key
may not function properly.
— Do not place the Intelligent Key for an extended period in a
place where temperatures ex-
KEYS

Black plate (123,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
ceed 1408F (608C) .
— Do not change or modify the Intelligent Key.
— Do not use a magnet key holder.
— Do not place the Intelligent Key near an electric appliance such
as a television set, personal
computer or cellular phone.
— Do not allow the Intelligent Key to come into contact with water
or salt water, and do not wash it
in a washing machine. This
could affect the system function.
. If an Intelligent Key is lost or stolen,
NISSAN recommends erasing the ID
code of that Intelligent Key. This will
prevent the Intelligent Key from
unauthorized use to unlock the
vehicle. For information regarding
the erasing procedure, please con-
tact a NISSAN dealer.
SPA2033
Mechanical keyGUID-5BD1CD9D-6882-4C81-9074-9797CCE9B69ATo remove the mechanical key, release the lock
knob at the back of the Intelligent Key.
To install the mechanical key, firmly insert it into
the Intelligent Key until the lock knob returns to
the lock position.
Use the mechanical key to lock or unlock the
doors, and glove box.
See “Doors” (P.3-4) and “Storage” (P.2-41) .
CAUTION
Always carry the mechanical key in-
stalled in the Key.
VALET HAND-OFFGUID-D355DB4D-AEBA-433C-9218-4E70381D89AFWhen you have to leave a key with a valet, give
them the Intelligent Key itself and keep the
mechanical key with you to protect your
belongings.
To prevent the glove box from being opened
during valet hand-off, follow the procedures
below.
1. Push the trunk release power cancel switch
to the OFF side (Roadster models) .
2. Remove the mechanical key from the In- telligent Key.
3. Lock the glove box with the mechanical key.
4. Hand the Intelligent Key to the valet, keeping the mechanical key in your pocket or bag for
insertion into the Intelligent Key when you
retrieve your vehicle.
See “Storage” (P.2-41) .
Pre-driving checks and adjustments3-3

Black plate (124,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

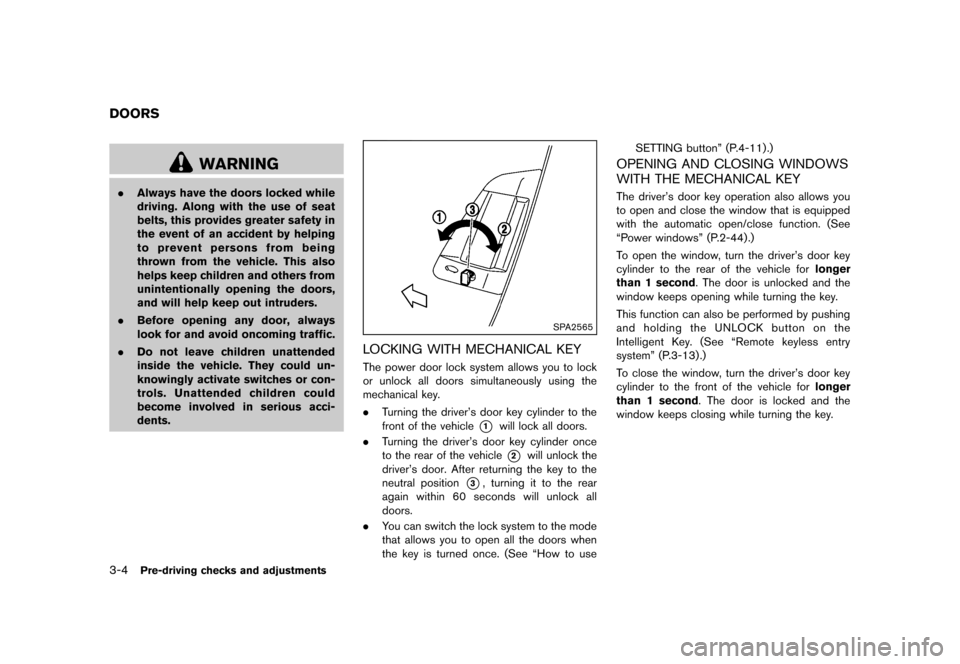

3-4Pre-driving checks and adjustments
GUID-A40C45B0-33F0-4A4E-B428-2BA20F7811B5
WARNING
.Always have the doors locked while
driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping
to prevent persons from being
thrown from the vehicle. This also
helps keep children and others from
unintentionally opening the doors,
and will help keep out intruders.
. Before opening any door, always
look for and avoid oncoming traffic.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents.
SPA2565
LOCKING WITH MECHANICAL KEYGUID-EB20B156-1BEC-44BE-9738-F25EE727ABF7The power door lock system allows you to lock
or unlock all doors simultaneously using the
mechanical key.
.Turning the driver’s door key cylinder to the
front of the vehicle
*1will lock all doors.
. Turning the driver’s door key cylinder once
to the rear of the vehicle
*2will unlock the
driver’s door. After returning the key to the
neutral position
*3, turning it to the rear
again within 60 seconds will unlock all
doors.
. You can switch the lock system to the mode
that allows you to open all the doors when
the key is turned once. (See “How to use SETTING button” (P.4-11).)
OPENING AND CLOSING WINDOWS
WITH THE MECHANICAL KEY
GUID-841CC463-9273-456A-BD47-F768854EC39FThe driver’s door key operation also allows you
to open and close the window that is equipped
with the automatic open/close function. (See
“Power windows” (P.2-44).)
To open the window, turn the driver’s door key
cylinder to the rear of the vehicle for
longer
than 1 second. The door is unlocked and the
window keeps opening while turning the key.
This function can also be performed by pushing
and holding the UNLOCK button on the
Intelligent Key. (See “Remote keyless entry
system” (P.3-13) .)
To close the window, turn the driver’s door key
cylinder to the front of the vehicle for longer
than 1 second. The door is locked and the
window keeps closing while turning the key.
DOORS

Black plate (125,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
SPA2566
LOCKING WITH INSIDE LOCK KNOBGUID-831F5257-DB65-43F1-A3E7-BD78F2AE55D5To lock the door individually, move the inside
lock knob to the lock position
*1then close the
door.
To unlock, move the inside lock knob to the
unlock position
*2.
When locking the door without an Intelli-
gent Key, be sure not to leave the Intelli-
gent Key inside the vehicle.
SPA2300
LOCKING WITH POWER DOOR LOCK
SWITCH
GUID-7005E888-D0BA-4B2B-85B8-4590F0E63E98Operating the power door lock switch will lock
or unlock all the doors and trunk lid. The
switches are located on the driver’s and front
passenger’s door armrests.
To lock the doors and trunk lid, push the power
door lock switch to the lock position
*1with the
driver’s or front passenger’s door open, then
close the door and trunk lid.
When locking the door this way, be certain
not to leave the Intelligent Key inside the
vehicle.
To unlock the doors, the fuel-filler door and the trunk, push the power door lock switch to the
unlock position
*2.
Lockout protectionGUID-25B8A16E-7E15-4495-B051-1B18A0BC9C30When the power door lock switch (driver or front
passenger) is moved to the lock position with
the Intelligent Key in the port and any door open,
all doors and the trunk lid will lock and unlock
automatically. With the Intelligent Key left in the
vehicle (not in the Intelligent Key port) and any
door open, all doors and the trunk lid will unlock
automatically and a chime will sound after the
door and/or the trunk lid are closed.
These functions help to prevent the Intelligent
Key from being accidentally locked inside the
vehicle.
AUTOMATIC DOOR LOCKSGUID-3DEBC1CF-554B-425D-AD42-66BFA0515C85.
All doors lock automatically when the vehicle
speed reaches 15 MPH (24 km/h) .
. All doors unlock automatically when the
ignition switch is placed in the OFF position.
The automatic unlock function can be
deactivated or activated. To deactivate or
activate the automatic door unlock system,
perform the following procedure:
1. Close all doors.
2. Place the ignition switch in the ON position.
Pre-driving checks and adjustments3-5

Black plate (126,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
3-6Pre-driving checks and adjustments
3. Within 20 seconds of performing Step 2,push and hold the power door lock switch to
the
position (UNLOCK) for more than 5
seconds.
4. When activated, the hazard indicator will flash twice. When deactivated, the hazard
indicator will flash once.
5. The ignition switch must be placed in the OFF and ON position again between each
setting change.
When the automatic door unlock system is
deactivated, the doors do not unlock when the
ignition switch is placed in the OFF position. To
unlock the door manually, use the inside lock
knob or the power door lock switch (driver’s or
front passenger’s side).
GUID-C793050E-839B-4BDF-97D2-330479797AC1
WARNING
. Radio waves could adversely affect
electric medical equipment. Those
who use a pacemaker should con-
tact the electric medical equipment
manufacturer for the possible influ-
ences before use.
. The Intelligent Key transmits radio
waves when the buttons are
pushed. The FAA advises that the
radio waves may affect aircraft na-
vigation and communication sys-
tems. Do not operate the
Intelligent Key while on an airplane.
Make sure the buttons are not
operated unintentionally when the
unit is stored during a flight.
The Intelligent Key system can operate all the
door and rear hatch/trunk lid locks using the
remote controller function or pushing the re-
quest switch on the vehicle without taking the
key out from a pocket or purse. The operating
environment and/or conditions may affect the
Intelligent Key system operation.
Be sure to read the following before using the
Intelligent Key system.
CAUTION
. Be sure to carry the Intelligent Key
with you when operating the vehi-
cle.
. Never leave the Intelligent Key in
the vehicle when you leave the
vehicle.
The Intelligent Key is always communicating with
the vehicle as it receives radio waves. The
Intelligent Key system transmits weak radio
waves. Environmental conditions may interfere
with the operation of the Intelligent Key system
under the following operating conditions.
. When operating near a location where
strong radio waves are transmitted, such
as a TV tower, power station and broad-
casting station.
. When in possession of wireless equipment,
such as a cellular telephone, transceiver,
and CB radio.
. When the Intelligent Key is in contact with or
covered by metallic materials.
. When any type of radio wave remote control
is used nearby.
. When the Intelligent Key is placed near an
electric appliance such as a personal
INTELLIGENT KEY SYSTEM
