2013 NISSAN 370Z COUPE engine coolant

Black plate (357,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

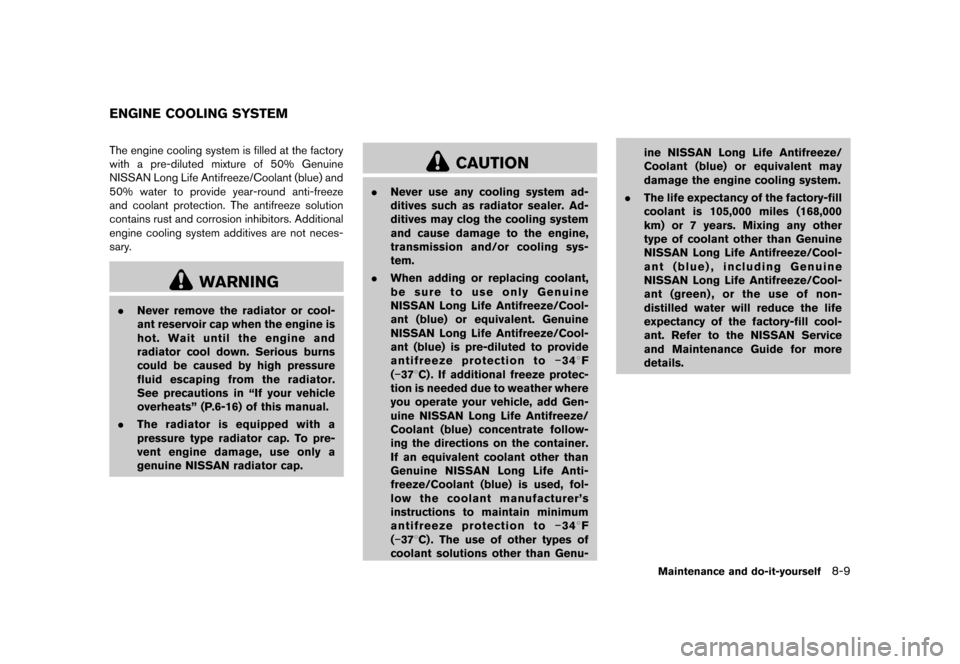

GUID-7C2A5D55-3270-45C4-9FE4-8875ED1488BFThe engine cooling system is filled at the factory
with a pre-diluted mixture of 50% Genuine
NISSAN Long Life Antifreeze/Coolant (blue) and
50% water to provide year-round anti-freeze
and coolant protection. The antifreeze solution
contains rust and corrosion inhibitors. Additional
engine cooling system additives are not neces-
sary.
WARNING
.Never remove the radiator or cool-
ant reservoir cap when the engine is
hot. Wait until the engine and
radiator cool down. Serious burns
could be caused by high pressure
fluid escaping from the radiator.
See precautions in “If your vehicle
overheats” (P.6-16) of this manual.
. The radiator is equipped with a
pressure type radiator cap. To pre-
vent engine damage, use only a
genuine NISSAN radiator cap.
CAUTION
.Never use any cooling system ad-
ditives such as radiator sealer. Ad-
ditives may clog the cooling system
and cause damage to the engine,
transmission and/or cooling sys-
tem.
. When adding or replacing coolant,
be sure to use only Genuine
NISSAN Long Life Antifreeze/Cool-
ant (blue) or equivalent. Genuine
NISSAN Long Life Antifreeze/Cool-
ant (blue) is pre-diluted to provide
antifreeze protection to −348F
(−378C) . If additional freeze protec-
tion is needed due to weather where
you operate your vehicle, add Gen-
uine NISSAN Long Life Antifreeze/
Coolant (blue) concentrate follow-
ing the directions on the container.
If an equivalent coolant other than
Genuine NISSAN Long Life Anti-
freeze/Coolant (blue) is used, fol-
low the coolant manufacturer’s
instructions to maintain minimum
antifreeze protection to −348F
(−378C) . The use of other types of
coolant solutions other than Genu- ine NISSAN Long Life Antifreeze/
Coolant (blue) or equivalent may
damage the engine cooling system.
. The life expectancy of the factory-fill
coolant is 105,000 miles (168,000
km) or 7 years. Mixing any other
type of coolant other than Genuine
NISSAN Long Life Antifreeze/Cool-
ant (blue) , including Genuine
NISSAN Long Life Antifreeze/Cool-
ant (green) , or the use of non-
distilled water will reduce the life
expectancy of the factory-fill cool-
ant. Refer to the NISSAN Service
and Maintenance Guide for more
details.
Maintenance and do-it-yourself8-9
ENGINE COOLING SYSTEM

Black plate (358,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
8-10Maintenance and do-it-yourself
JVM0087X
CHECKING ENGINE COOLANT LEVELGUID-8D88E26B-6554-4240-9753-2F3C8FB26D07Check the coolant levelin the reservoir when
the engine is running and after it reaches
normal operating temperature. If the coolant
level is below the MIN level
*2, add coolant up
to the MAX level
*1. If the reservoir is empty,
check the coolant level in the radiator when
the engine is cold. If there is insufficient
coolant in the radiator, fill the radiator with
coolant up to the radiator filler cap above the
radiator upper hose opening and also add it to
the reservoir up to the MAX level
*1. Put on the
filler cap above the radiator upper hose and with
the reservoir cap open, start the engine. Run the
engine until it reaches normal operating tem- perature. Add coolant up to the MAX level
*1.
Tighten the cap securely after adding engine
coolant.
If the cooling system requires coolant
frequently, have it checked by a NISSAN
dealer.
CHANGING ENGINE COOLANTGUID-7F6F3245-7935-4F2B-B499-406A6E070196Major cooling system repairs should be per-
formed by a NISSAN dealer. The service
procedures can be found in the appropriate
NISSAN Service Manual.
Improper servicing can result in reduced
heater performance and engine overheat-
ing.
WARNING
. To avoid the danger of being
scalded, never change the coolant
when the engine is hot.
. Never remove the radiator cap when
the engine is hot. Serious burns
could be caused by high pressure
fluid escaping from the radiator.
. Avoid direct skin contact with used
coolant. If skin contact is made,
wash thoroughly with soap or hand
cleaner as soon as possible. .
Keep coolant out of reach of chil-
dren and pets.
Engine coolant must be disposed of properly.
Check your local regulations.

Black plate (364,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
8-16Maintenance and do-it-yourself
shield Washer Concentrate Cleaner & Anti-
freeze or equivalent.
CAUTION
.Do not substitute engine anti-freeze
coolant for window washer solution.
This may result in damage to the
paint.
. Do not fill the window washer
reservoir tank with washer fluid
concentrates at full strength. Some
methyl alcohol based washer fluid
concentrates may permanently stain
the grille if spilled while filling the
window washer reservoir tank.
. Pre-mix washer fluid concentrates
with water to the manufacturer’s
recommended levels before pouring
the fluid into the window washer
reservoir tank. Do not use the
window washer reservoir tank to
mix the washer fluid concentrate
and water.
GUID-8E5361A3-97FF-4C39-A959-F887903F7576.Keep the battery surface clean and dry.
Clean the battery with a solution of baking
soda and water.
. Make certain the terminal connections are
clean and securely tightened.
. If the vehicle is not to be used for 30 days or
longer, disconnect the negative (−) battery
terminal cable to prevent discharging it.
NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
1. Installation or extended use of electro-
nic accessories that consume battery
power when the engine is not running
(Phone chargers, GPS, DVD players,
etc.)
2. Vehicle is not driven regularly and/or
only driven short distances.
In these cases, the battery may need to be
charged to maintain battery health.
CAUTION
When the battery cable is removed from
the battery terminal, do not close either
of front doors. The automatic window
adjusting function will not work, and the side roof panel may be damaged.
To disconnect the negative (−) battery terminal,
perform the procedure in the following order.
Otherwise, the window and the side roof panel
may contact and be damaged.
1. Close the windows.
2. Open the hood.
3. Close and lock all the doors.
4. Disconnect the negative (−) battery terminal.
5. Securely close the hood.
To connect the negative (−) battery terminal,
perform the procedure in the following order.
Otherwise, the window and the side roof panel
may contact and be damaged.
1. Unlock and open the driver side door. Do not close the door.
2. Open the hood.
3. Connect the negative (−) battery terminal. Then close the hood.
4. Fully open the driver side door window.
5. Close the driver side door and the window.
BATTERY

Black plate (392,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
9-2Technical and consumer information
GUID-80082F43-58D6-4C2E-8F86-1E99B1A7B004The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
instructed in the “8. Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)Recommended specifications
US measure Imp measure Liter
Fuel 19 gal 15-7/8 gal71.9 See “Fuel recommendation” (P.9-4).
Engine oil*1
Drain and refill With oil filter change 5-1/8 qt 4-3/8 qt 4.9 .Engine oil with API Certification Mark*2, *3
. Viscosity SAE 5W-30*2, *3
Without oil filter change 4-7/8 qt4 qt 4.6
Cooling system
Automatic transmission model With reservoir
9-5/8 qt8 qt 9.1
Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or
equivalent
Reservoir
7/8 qt3/4 qt 0.8
Manual transmission model With reservoir
9-3/4 qt8-1/8 qt 9.2
Reservoir 7/8 qt3/4 qt 0.8
Automatic transmission fluid —— —Genuine NISSAN Matic S ATF*4
Manual transmission gear oil —— —Genuine NISSAN Manual Transmission Fluid (MTF)
HQ Multi 75W-85 or API GL-4, Viscosity SAE 75W-85
Differential gear oil —— —For AT models:
API GL-5 Synthetic Gear Oil, Viscosity SAE 75W-90*5
For MT models:
Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or API GL-5,
Viscosity SAE 80W-90*9
Power steering fluid (PSF)
Refill to the proper oil level according to the instructions in the “8.
Maintenance and do-it-yourself” section.Genuine NISSAN PSF or equivalent*6
Brake fluid Except for NISMO models:
Genuine NISSAN Super Heavy Duty Brake Fluid*7 or equivalent DOT 3
For NISMO models:
Genuine NISSAN Brake Fluid R35 Special ll *10 *11
Clutch fluid Genuine NISSAN Super Heavy Duty Brake Fluid*7 or equivalent DOT 3
Multi-purpose grease NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant —— —HFC-134a (R-134a)*8
Air conditioning system lubricants —— —NISSAN UV Luminous Oil Type S or exact equivalent
Window washer fluid 4-3/444.5Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze or
equivalent
*1: For additional information, see “Engine oil” (P.8-11) for changing engine oil.
*2: For additional information, see “Engine oil and oil filter recommendation” (P.9-6).
CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS

Black plate (418,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
10-2
Console box...
................................................................. 2-42
Coolant Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine coolant ...
................................... 8-10
Checking engine coolant level ...
.......................... 8-10
Corrosion protection ...
.................................................... 7-8
Cover, Cargo cover ...
.................................................... 2-43
Cruise control ...
............................................................... 5-21
Cup holders ...
.................................................................. 2-41
D
Dampers, Performance dampers ...
............................ 5-30
Daytime running light system ...
................................... 2-34
Defroster switch, Rear window
defroster switch ...
........................................................... 2-31
Dimensions ...
................................................................... 9-10
Drive belts ...
..................................................................... 8-19
Driving Cold weather driving ...
........................................... 5-31
Driving with automatic transmission ...
................ 5-12
Driving with manual transmission ...
..................... 5-16
Precautions when starting and driving ...
.............. 5-2
DVD player operation ...
................................................. 4-58
E
Economy, Fuel ...
.............................................................. 5-23
Elapsed time ...
................................................................. 2-24
Emergency tire puncture repair kit ...
........................... 6-8
Emission control information label ...
.......................... 9-12
Emission control system warranty ...
........................... 9-22
Engine Before starting the engine ...
................................. 5-11
Break-in schedule ...
................................................ 5-23 Capacities and
recommended fuel/lubricants
...
............................... 9-2
Changing engine coolant ...
................................... 8-10
Changing engine oil and filter ...
........................... 8-11
Checking engine coolant level ...
.......................... 8-10
Checking engine oil level ...
................................... 8-11
Coolant temperature gauge ...
................................. 2-7
Emergency engine shut off ...
................................ 5-10
Engine block heater ...
............................................. 5-32
Engine compartment check locations ...
................ 8-8
Engine cooling system ...
........................................... 8-9
Engine oil ...
................................................................ 8-11
Engine oil and oil filter recommendation ...
........... 9-6
Engine oil replacement indicator ...
...................... 2-21
Engine oil temperature gauge ...
.............................. 2-8
Engine oil viscosity ...
.................................................. 9-6
Engine serial number ...
........................................... 9-12
Engine specifications ...
............................................. 9-8
Engine start operation indicator ...
....................... 2-18
Engine start operation indicator (Manual
Transmission models) ...
......................................... 2-19
If your vehicle overheats ...
..................................... 6-16
Starting the engine ...
.............................................. 5-11
Event Data Recorders (EDR) ...
................................... 9-24
Exhaust gas (carbon monoxide) ...
................................ 5-2
Exterior light indicator ...
................................................ 2-14F
F.M.V.S.S./C.M.V.S.S. certification label ...
............... 9-12
Filter Air cleaner housing filter ...
.................................... 8-20
Changing engine oil and filter ...
........................... 8-11
Flashers (See hazard warning flasher switch) ...
..... 2-36
Flat tire ...
............................................................................. 6-2
Repairing flat tire (with emergency tire
puncture repair kit) ...
................................................. 6-8 Flat towing
...
.................................................................... 9-21
Floor mat cleaning ...
........................................................ 7-6
Fluid Automatic transmission fluid (ATF) ...
.................. 8-13
Brake and clutch fluid ...
......................................... 8-14
Brake fluid ...
.............................................................. 8-14
Capacities and
recommended fuel/lubricants ...
............................... 9-2
Engine coolant ...
......................................................... 8-9
Engine oil ...
................................................................ 8-11
Power steering fluid ...
............................................. 8-13
Window washer fluid ...
.......................................... 8-15
FM-AM radio with Compact Disc (CD) player ...
.... 4-45
FM-AM-SAT radio with compact disc (CD)
changer (models without navigation system) ...
...... 4-49
FM-AM-SAT radio with compact disc
(CD) player ...
................................................................... 4-54
Fog light switch ...
........................................................... 2-35
Front manual seat adjustment ...
.................................... 1-4
Front passenger air bag and status light ...
.............. 1-35
Front power seat adjustment ...
..................................... 1-2
Front seat, Front seat adjustment ...
............................. 1-2
Fuel Capacities and
recommended fuel/lubricants ...
............................... 9-2
Fuel economy ...
........................................................ 5-23
Fuel economy information (display) ...
.................... 4-9
Fuel octane rating ...
................................................... 9-4
Fuel recommendation ...
............................................. 9-4
Fuel-filler cap ...
......................................................... 3-34
Fuel-filler door ...
....................................................... 3-34
Gauge ...
........................................................................ 2-7
LOOSE FUEL CAP warning ...
............................. 3-35
Fuses ...
.............................................................................. 8-23
Fusible links ...
.................................................................. 8-23

Black plate (419,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
G
Garage door opener, HomeLink®
Universal Transceiver...
...................................... 2-50, 2-54
Gas cap ...
......................................................................... 3-34
Gauge ...
.............................................................................. 2-5
Engine coolant temperature gauge ...
.................... 2-7
Fuel gauge ...
................................................................ 2-7
Odometer ...
.................................................................. 2-6
Speedometer ...
............................................................ 2-6
Tachometer ...
............................................................... 2-6
Trip computer ...
........................................................ 2-22
General maintenance ...
................................................... 8-3
Glove box ...
...................................................................... 2-42
H
Hands-free phone system, Bluetooth®
(models with navigation system) ...
............................. 4-77
Hands-free phone system, Bluetooth®
(models without navigation system) ...
....................... 4-88
Hatch, Rear hatch ...
....................................................... 3-16
Hazard warning flasher switch ...
................................. 2-36
Head restraints ...
.............................................................. 1-5
Headlights Bulb replacement ...
................................................. 8-29
Headlight switch ...
................................................... 2-32
Xenon headlights ...
.................................................. 2-32
Heated seats ...
................................................................ 2-37
Heater Engine block heater ...
............................................. 5-32
Heater and air conditioner operation ...
.............. 4-24
HomeLink
®Universal Transceiver ...
............... 2-50, 2-54
Hood release ...
................................................................ 3-16
Horn ...
................................................................................ 2-36
I
Ignition switch
(Push-button) ...
........................................................... 5-8
Manual transmission models ...
............................. 5-16
Immobilizer system ...
...................................................... 2-28
In-cabin microfilter ...
...................................................... 4-30
Indicator lights ...
.............................................................. 2-14
INFO button ...
.................................................................... 4-8
Inside mirror ...
.................................................................. 3-37
Inspection/maintenance (I/M) test ...
.......................... 9-24
Instrument brightness control ...
.................................. 2-35
Instrument panel ...
............................................................ 2-4
Instrument pocket ...
....................................................... 2-41
Intelligent Key ...
................................................................. 3-2
Intelligent Key battery discharge indicator ...
............ 2-19
Intelligent Key removal indicator ...
.............................. 2-18
Intelligent Key system ...
.................................................. 3-6
Battery replacement ...
............................................ 8-25
Intelligent Key system warning light ...
................ 2-11
Key operating range ...
............................................... 3-8
Key operation ...
........................................................... 3-9
Warning signals ...
.................................................... 3-11
Interior light control switch ...
....................................... 2-47
Interior light replacement ...
........................................... 8-29
Interior lights ...
................................................................. 2-47
Interior trunk lid release ...
............................................. 3-19
iPod
®player operation ...
............................................... 4-70
J
Jump starting ...
................................................................ 6-14
K
Keyless entry (See remote keyless
entry system) ...
................................................................ 3-13
Keys ...
.................................................................................. 3-2
For Intelligent Key system ...
..................................... 3-6
L
Labels
Air bag warning labels ...
........................................ 1-40
Air conditioner specification label ...
.................... 9-13
Emission control information label ...
................... 9-12
Engine serial number ...
........................................... 9-12
F.M.V.S.S./C.M.V.S.S. certification label ...
........ 9-12
Tire and Loading information label ...
....... 8-32, 9-13
Vehicle identification number (VIN) ...
................. 9-11
License plate, Installing front license plate ...
.......... 9-14
Light Air bag warning light ...
........................................... 1-40
Bulb replacement ...
................................................. 8-27
Cargo area courtesy light ...
.................................. 2-49
Cargo light ...
............................................................. 2-49
Fog light switch ...
.................................................... 2-35
Headlight switch ...
................................................... 2-32
Headlights bulb replacement ...
............................ 8-29
Indicator lights ...
....................................................... 2-14
Interior light control switch ...
................................ 2-47
Interior lights ...
.......................................................... 2-47
Map lights ...
.............................................................. 2-47
Replacement ...
.......................................................... 8-27
Trunk light ...
............................................................... 2-49
Vanity mirror lights ...
............................................... 2-48
Warning/indicator lights and
audible reminders ...
................................................. 2-10
Xenon headlights ...
.................................................. 2-32
Lights, Exterior and interior light replacement ...
..... 8-29
10-3

Black plate (421,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
Rapid air pressure loss...
................................................ 5-6
Readiness for inspection/maintenance
(I/M) test ...
........................................................................ 9-24
Rear hatch ...
..................................................................... 3-16
Rear hatch opener ...
...................................................... 3-16
Rear hatch opener switch ...
......................................... 3-17
Rear parcel box ...
........................................................... 2-43
Rear window defroster switch ...
................................. 2-31
RearView monitor (models with
navigation system) ...
...................................................... 4-18
Recorders, Event data ...
............................................... 9-24
Registering your vehicle in another country ...
......... 9-11
Remote keyless entry system ...
................................... 3-13
Repairing flat tire (with emergency tire puncture
repair kit) ...
......................................................................... 6-8
Reporting safety defects ...
........................................... 9-23
Rollover ...
............................................................................ 5-6
Roof, Soft top ...
.............................................................. 3-21
S
Safety, Child seat belts ...
............................................. 1-15
Satellite radio operation ...
................................ 4-50, 4-55
Seat adjustment Front manual seat adjustment ...
.............................. 1-4
Front power seat adjustment ...
............................... 1-2
Front seats ...
................................................................ 1-2
Seat belt(s) Child safety ...
............................................................ 1-15
Infants ...
...................................................................... 1-15
Injured persons ...
..................................................... 1-11
Larger children ...
...................................................... 1-16
Precautions on seat belt usage ...
........................... 1-9
Pregnant women ...
.................................................. 1-11
Seat belt cleaning ...
................................................... 7-7
Seat belt extenders ...
.............................................. 1-14
Seat belt maintenance ...
........................................ 1-14 Seat belt warning light and chime
...
................... 2-13
Seat belts ...
.................................................................. 1-9
Seat belts with pretensioners ...
........................... 1-39
Three-point type ...
................................................... 1-11
Seat(s) Climate controlled seats ...
..................................... 2-38
Heated seats ...
......................................................... 2-37
Seats ...
.......................................................................... 1-2
Secondary rear hatch release ...
.................................. 3-18
Secondary trunk lid release ...
...................................... 3-20
Security system (NISSAN Vehicle Immobilizer
System) , Engine start ...
................................................. 2-28
Security system, Vehicle security system ...
............. 2-27
Selector lever, Shift lock release ...
............................ 5-16
Servicing air conditioner ...
............................................ 4-30
SETTING button ...
.......................................................... 4-11
Shift lock release, Transmission ...
.............................. 5-16
Shift “P” warning (Automatic
Transmission models) ...
................................................ 2-19
Shifting Automatic transmission ...
....................................... 5-12
Manual transmission ...
............................................ 5-16
Soft top Care and cleaning ...
................................................... 7-3
If the top does not open or close ...
.................... 3-28
Opening using the Intelligent Key ...
.................... 3-26
Soft top indicator light ...
............................. 2-15, 3-24
Soft top operation ...
................................................ 3-21
Spare tire ...
......................................................................... 9-9
Spark plugs ...
.................................................................. 8-19
Speedometer ...
.................................................................. 2-6
Starting Before starting the engine ...
................................. 5-11
Jump starting ...
......................................................... 6-14
Precautions when starting and driving ...
.............. 5-2
Push starting ...
......................................................... 6-16
Starting the engine ...
.............................................. 5-11 STATUS button
...
.............................................................. 4-7
Status light, Front passenger air bag ...
.................... 1-35
Steering Power steering fluid ...
............................................. 8-13
Power steering system ...
....................................... 5-25
Steering-wheel-mounted controls
for audio ...
................................................................. 4-74
Storage ...
.......................................................................... 2-41
Sun visors ...
..................................................................... 3-36
Supplemental air bag warning labels ...
..................... 1-40
Supplemental air bag warning light ...
............ 1-40, 2-13
Supplemental restraint system ...
................................. 1-28
Precautions on supplemental
restraint system ...
..................................................... 1-28
Switch Autolight switch ...
.................................................... 2-33
Fog light switch ...
.................................................... 2-35
Hazard warning flasher switch ...
.......................... 2-36
Headlight switch ...
................................................... 2-32
Ignition switch ...
....................................................... 5-12
Ignition switch manual
transmission models ...
............................................ 5-16
Power door lock switch ...
......................................... 3-5
Rear window defroster switch ...
.......................... 2-31
Turn signal switch ...
................................................ 2-35
Vehicle dynamic control (VDC) off switch ...
..... 2-39
SynchroRev Match mode (S-MODE) ...
.................... 5-17
T
Tachometer ...
..................................................................... 2-6
Temperature gauge, Engine coolant
temperature gauge ...
........................................................ 2-7
Theft (NISSAN Vehicle Immobilizer System) ,
Engine start ...
................................................................... 2-28
Three-way catalyst ...
........................................................ 5-3
Tilt steering ...
................................................................... 3-36
10-5
