2013 NISSAN 370Z COUPE mirror

Black plate (121,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]

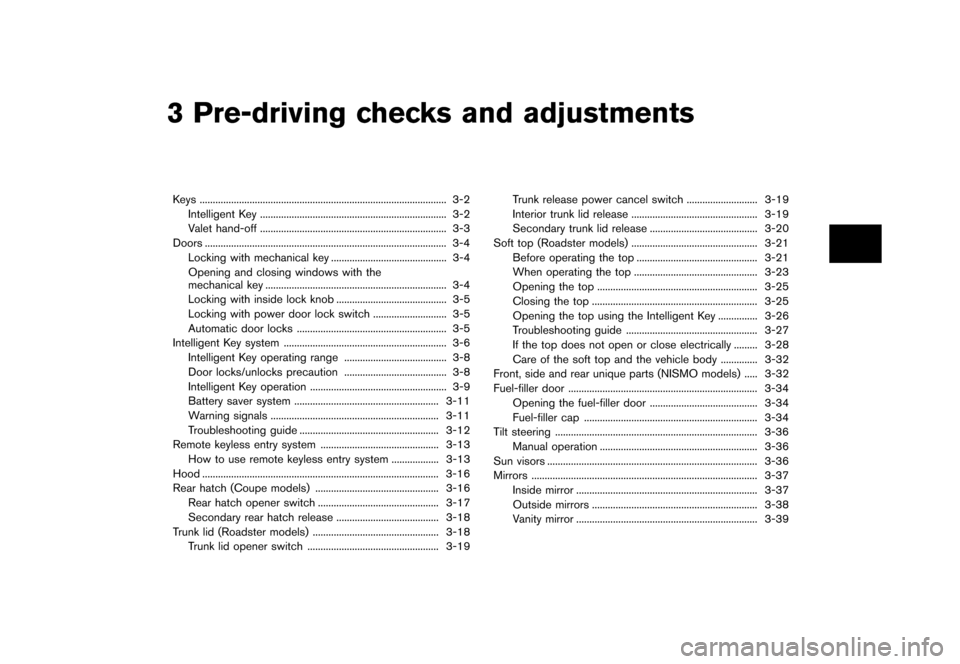

3 Pre-driving checks and adjustments
Keys...
........................................................................\
...................... 3-2
Intelligent Key ...
....................................................................... 3-2
Valet hand-off ...
....................................................................... 3-3
Doors ...
........................................................................\
.................... 3-4
Locking with mechanical key ...
............................................ 3-4
Opening and closing windows with the
mechanical key ...
..................................................................... 3-4
Locking with inside lock knob ...
.......................................... 3-5
Locking with power door lock switch ...
............................ 3-5
Automatic door locks ...
......................................................... 3-5
Intelligent Key system ...
.............................................................. 3-6
Intelligent Key operating range ...
....................................... 3-8
Door locks/unlocks precaution ...
....................................... 3-8
Intelligent Key operation ...
.................................................... 3-9
Battery saver system ...
....................................................... 3-11
Warning signals ...
................................................................ 3-11
Troubleshooting guide ...
..................................................... 3-12
Remote keyless entry system ...
............................................. 3-13
How to use remote keyless entry system ...
.................. 3-13
Hood ...
........................................................................\
.................. 3-16
Rear hatch (Coupe models) ...
............................................... 3-16
Rear hatch opener switch ...
.............................................. 3-17
Secondary rear hatch release ...
....................................... 3-18
Trunk lid (Roadster models) ...
................................................ 3-18
Trunk lid opener switch ...
.................................................. 3-19 Trunk release power cancel switch
...
........................... 3-19
Interior trunk lid release ...
................................................ 3-19
Secondary trunk lid release ...
......................................... 3-20
Soft top (Roadster models) ...
................................................ 3-21
Before operating the top ...
.............................................. 3-21
When operating the top ...
............................................... 3-23
Opening the top ...
............................................................. 3-25
Closing the top ...
............................................................... 3-25
Opening the top using the Intelligent Key ...
............... 3-26
Troubleshooting guide ...
.................................................. 3-27
If the top does not open or close electrically ...
......... 3-28
Care of the soft top and the vehicle body ...
.............. 3-32
Front, side and rear unique parts (NISMO models) ...
..... 3-32
Fuel-filler door ...
........................................................................\
3-34
Opening the fuel-filler door ...
......................................... 3-34
Fuel-filler cap ...
.................................................................. 3-34
Tilt steering ...
........................................................................\
..... 3-36
Manual operation ...
............................................................ 3-36
Sun visors ...
........................................................................\
........ 3-36
Mirrors ...
........................................................................\
.............. 3-37
Inside mirror ...
..................................................................... 3-37
Outside mirrors ...
............................................................... 3-38
Vanity mirror ...
..................................................................... 3-39

Black plate (157,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
GUID-67C77E38-3B6C-4157-8718-7D042F48BFEA
SPA2447
INSIDE MIRRORGUID-7190F975-2909-4F79-AFDC-B28AE6D3CC82Adjust the height and the angle of the inside
mirror to the desired position.
SPA2143
Manual anti-glare typeGUID-D305CFE2-A329-4695-B49B-EAFF25D4D082The night position*1will reduce glare from the
headlights of vehicles behind you at night.
Use the day position
*2when driving in daylight
hours.
WARNING
Use the night position only when ne-
cessary, because it reduces rear view
clarity.
SPA2450
Automatic anti-glare typeGUID-19DC64A6-67BD-481F-BAB1-0D06BE7C5D4EThe inside mirror is designed so that it
automatically changes reflection according to
the intensity of the headlights of the following
vehicle.
The anti-glare system will be automatically
turned on when the ignition switch is pushed
to the ON position.
When the anti-glare system is turned on, the
indicator light
*Awill illuminate and excessive
glare from the headlights of the vehicle behind
you will be reduced.
Push the “*” switch
*Cto make the inside
rearview mirror operate normally. The indicator
Pre-driving checks and adjustments3-37
MIRRORS

Black plate (158,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
3-38Pre-driving checks and adjustments

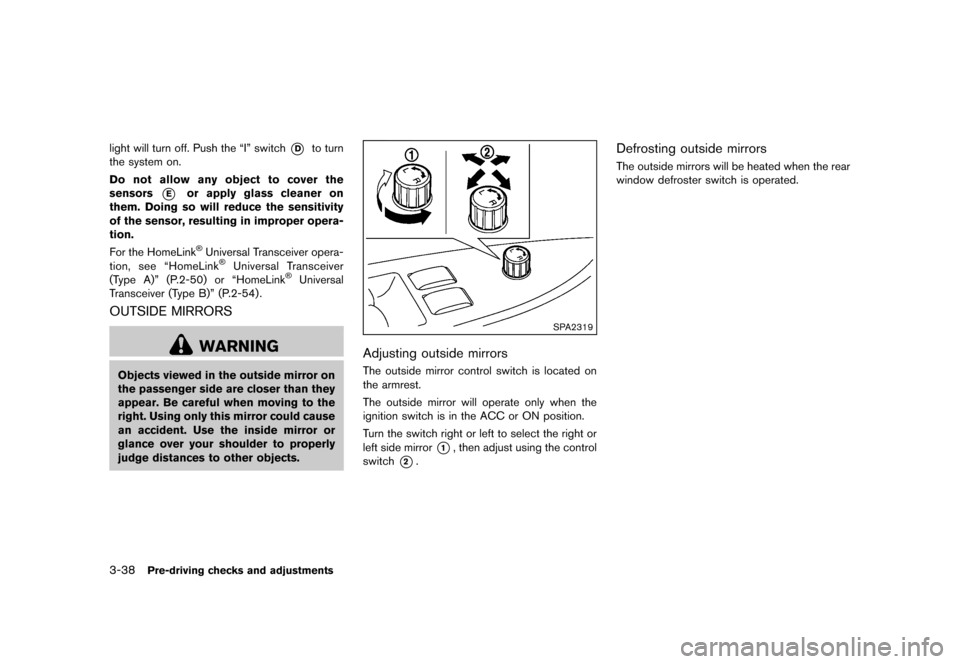

light will turn off. Push the “I” switch*Dto turn
the system on.
Do not allow any object to cover the
sensors
*Eor apply glass cleaner on
them. Doing so will reduce the sensitivity
of the sensor, resulting in improper opera-
tion.
For the HomeLink
®Universal Transceiver opera-
tion, see “HomeLink®Universal Transceiver
(Type A)” (P.2-50) or “HomeLink®Universal
Transceiver (Type B)” (P.2-54) .
OUTSIDE MIRRORSGUID-4179789E-2111-462D-BD90-4183570BC7B6
WARNING
Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
SPA2319
Adjusting outside mirrorsGUID-636D557F-5E6D-4FA0-B6BA-9004356DE2A0The outside mirror control switch is located on
the armrest.
The outside mirror will operate only when the
ignition switch is in the ACC or ON position.
Turn the switch right or left to select the right or
left side mirror
*1, then adjust using the control
switch
*2.
Defrosting outside mirrorsGUID-4D5D3A44-0E2D-46BF-95C5-C8D8BD23C98DThe outside mirrors will be heated when the rear
window defroster switch is operated.

Black plate (159,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
SPA1829

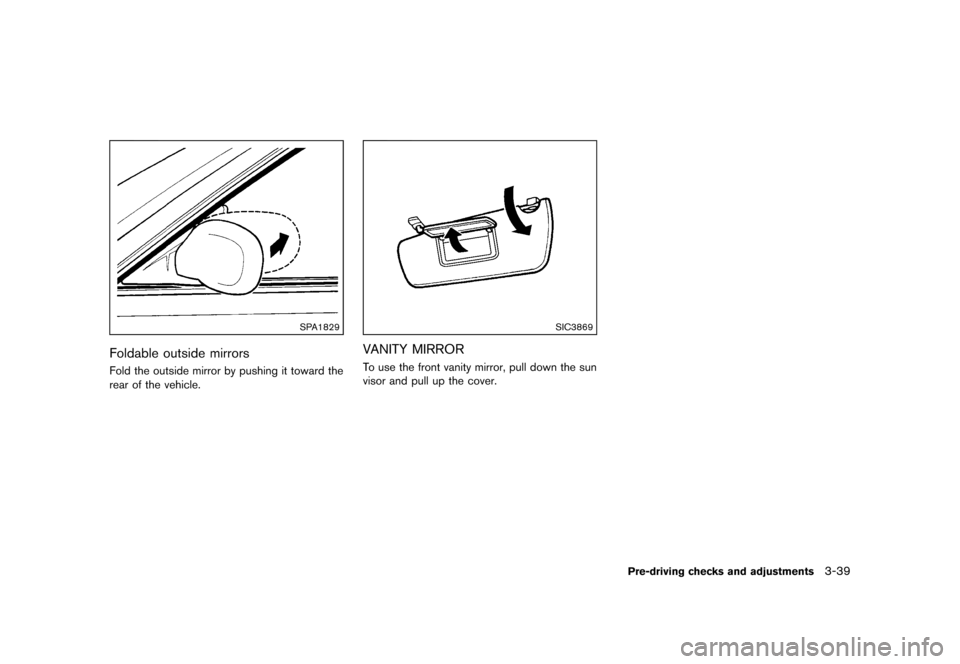

Foldable outside mirrorsGUID-04D17BAA-A19D-410B-8EBE-9A888C9CD553Fold the outside mirror by pushing it toward the
rear of the vehicle.
SIC3869
VANITY MIRRORGUID-38DA8E6D-FED6-40B3-8A3A-839D89CFEFDBTo use the front vanity mirror, pull down the sun
visor and pull up the cover.
Pre-driving checks and adjustments3-39

Black plate (178,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
4-18Center display, heater, air conditioner, audio, phone and voice recognition systems
GUID-1540451A-299B-4D2F-A4B8-92CD293DC8E7The system isdesigned as an aid to the driver in
situations such as slot parking or parallel
parking.
When the selector/shift lever is shifted into the R
(Reverse) position, the monitor display shows
view to the rear of the vehicle.
WARNING
.The RearView camera is a conveni-
ence but it is not a substitute to
check behind the vehicle when
backing up.
. The driver is always responsible for
safety during parking and other
maneuvers.
. Objects viewed in the RearView
Monitor differ from actual distance
because a wide-angle lens is used.
Objects in the RearView Monitor
will appear visually opposite like
ones viewed in the inside and out-
side mirrors.
. Make sure that the trunk is securely
closed when backing up.
. Underneath the bumper and the
corner areas of the bumper cannot
be viewed on the RearView monitor because of its monitoring range
limitation.
. Do not put anything on the Rear-
View camera. The RearView camera
is installed above the license plate.
. When washing the vehicle with
high-pressure water, be sure not to
spray it around the camera. Other-
wise, water may enter the camera
unit causing water condensation on
the lens, a malfunction, fire or an
electric shock.
. Do not strike the camera. It is a
precision instrument. Otherwise, it
may malfunction or cause damage
resulting in a fire or an electric
shock.
CAUTION
Do not scratch the camera lens when
cleaning dirt or snow from the lens.
SAA1896
HOW TO READ DISPLAYED LINESGUID-2A4D5879-402C-4479-AB64-74B1CEBEB2DAGuiding lines which indicate the vehicle width
and distances to objects with reference to the
bumper line
*Aare displayed on the monitor.
Distance guide lines:
Indicate distances from the bumper.
. Red line
*1: approx. 1.5 ft (0.5 m)
. Yellow line
*2: approx. 3 ft (1 m)
. Green line
*3: approx. 7 ft (2 m)
. Green line
*4: approx. 10 ft (3 m)
Vehicle width guide lines
*5:
Indicate the vehicle width when backing up.
REARVIEW MONITOR (models with
navigation system)

Black plate (179,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
Predictive course lines*6:
Indicate the predictive course when backing up.
The predictive course lines will be displayed on
the monitor when the selector/shift lever is in the
R (Reverse) position and the steering wheel is
turned. The predictive course lines will move
depending on how much the steering wheel is
turned and will not be displayed while the
steering wheel is in the neutral position.
HOW TO PARK WITH PREDICTIVE
COURSE LINES
GUID-E553930F-FF31-4E97-94EA-691A1691E761
WARNING
. Always turn and check that it is safe
to park your car before backing up.
Always back up slowly.
. If the tires are replaced with differ-
ent sized tires, the predictive course
line may not be displayed correctly.
. On a snow-covered or slippery road,
there may be a difference between
the predictive course line and the
actual course line.
. The displayed lines will appear
slightly off to the right because the
RearView camera is not installed in
the rear center of the vehicle. .
The distance guide line and the
vehicle width guide line should be
used as a reference only when the
vehicle is on a level paved surface.
The distance viewed on the monitor
is for reference only and may be
different than the actual distance
between the vehicle and displayed
objects.
. When backing up the vehicle up a
hill, objects viewed in the monitor
are further than they appear. When
backing up the vehicle down a hill,
objects viewed in the monitor are
closer than they appear. Use the
inside mirror or glance over your
shoulder to properly judge dis-
tances to other objects.
The vehicle width and predictive course
lines are wider than the actual width and
course.
SAA1897
1. Visually check that the parking space is safe before parking your vehicle.
2. The RearView of the vehicle is displayed on the screen
*Aas illustrated when the
selector/shift lever is moved to the R
(Reverse) position.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-19

Black plate (297,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
GUID-C6B42399-76C7-4110-95FB-5AA51B59B2C1.Make sure the area around the vehicle is
clear.
. Check fluid levels such as engine oil, cool-
ant, brake fluid and window washer fluid as
frequently as possible, or at least whenever
you refuel.
. Check that all windows and lights are clean.
. Visually inspect tires for their appearance
and condition. Also check tires for proper
inflation.
. Lock all doors.
. Position seat and adjust head restraints.
. Adjust inside and outside mirrors.
. Fasten seat belts and ask all passengers to
do likewise.
. Check the operation of warning lights when
the ignition switch is pushed to the ON
position. (See “Warning/indicator lights and
audible reminders” (P.2-9) .)GUID-24615BF4-CF94-4B41-80B7-9F4B04D434581. Apply the parking brake.
2.Automatic Transmission (AT) model:
Move the selector lever to the P (Park) or N
(Neutral) position. (P is recommended.)
The starter is designed not to operate unless
the selector lever is in either of the above
positions.
Manual Transmission (MT) model:
Move the shift lever to the N (Neutral)
position. Depress the clutch pedal fully to
the floor.
The starter is designed not to operate unless
the clutch pedal is fully depressed.
The Intelligent Key must be carried
when operating the ignition switch.
3. Push the ignition switch to the ON position. Depress the brake pedal (AT model) or the
clutch pedal (MT model) and push the
ignition switch to start the engine.
To start the engine immediately, push and
release the ignition switch while depressing
the brake pedal with the ignition switch in
any position.
.If the engine is very hard to start inextremely cold weather or when restart-
ing, depress the accelerator pedal a little
(approximately 1/3 to the floor) and while
holding, crank the engine. Release the accelerator pedal when the engine starts.
.If the engine is very hard to start because
it is flooded, depress the accelerator
pedal all the way to the floor and hold it.
Push the ignition switch to the ON
position to start cranking the engine.
After 5 or 6 seconds, stop cranking by
pushing the ignition switch to OFF. After
cranking the engine, release the accel-
erator pedal. Crank the engine with your
foot off the accelerator pedal by
depressing the brake pedal and pushing
the push-button ignition switch to start
the engine. If the engine starts, but fails
to run, repeat the above procedure.
CAUTION
Do not operate the starter for more
than 15 seconds at a time. If the engine
does not start, push the ignition switch
to OFF and wait 10 seconds before
cranking again, otherwise the starter
could be damaged.
4. Warm-up
Allow the engine to idle for at least 30
seconds after starting. Do not race the
engine while warming it up. Drive at
Starting and driving5-11
BEFORE STARTING THE ENGINE STARTING THE ENGINE

Black plate (377,1)
[ Edit: 2012/ 4/ 11 Model: Z34-D ]
HEADLIGHTSGUID-68508CC1-7E92-42CD-BC8E-938EDC02B062Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is
not a malfunction. If large drops of water collect
inside the lens, contact a NISSAN dealer.
ReplacingGUID-105F3D6B-9444-472D-BFB1-087774285E30
WARNING
HIGH VOLTAGE
When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble. Always have your xe-
non headlights replaced at a NISSAN
dealer. For additional information, see
“Headlight and turn signal switch” (P.2-
32) .
Use the same number and wattage shown in the
following chart as originally installed.
If replacement is required, see a NISSAN dealer.
EXTERIOR AND INTERIOR LIGHTSGUID-17A30D44-BE09-4C34-ABD1-5E9AA886DA61
Item Wattage (W)Bulb No.
Headlight*
High/Low beams (Xenon) 35 D2S
Front turn signal light* 28/8 7444NA
Front parking light* 5 W5W
Front side marker light* LED —
Side turn signal light* LED —
Daytime running light (except for NISMO models)* LED —
Rear combination light* back-up 16 W16W
turn signal 21WY21W
stop/tail/side marker LED—
Rear fog light (if so equipped)* 21 W21W
License plate light* 5 W5W
Map light 8 —
Vanity mirror light 2 —
Cargo area courtesy light (Roadster)* 5 —
Cargo light (Coupe)* 3.4 —
Trunk light (Roadster)* 3.4 —
High-mounted stop light* LED —
*: See a NISSAN dealer for replacement.
NOTE: Always check with the Parts Department at a NISSAN dealer for the latest information about parts.
Maintenance and do-it-yourself8-29
