2013 MITSUBISHI OUTLANDER SPORT Owners Handbook

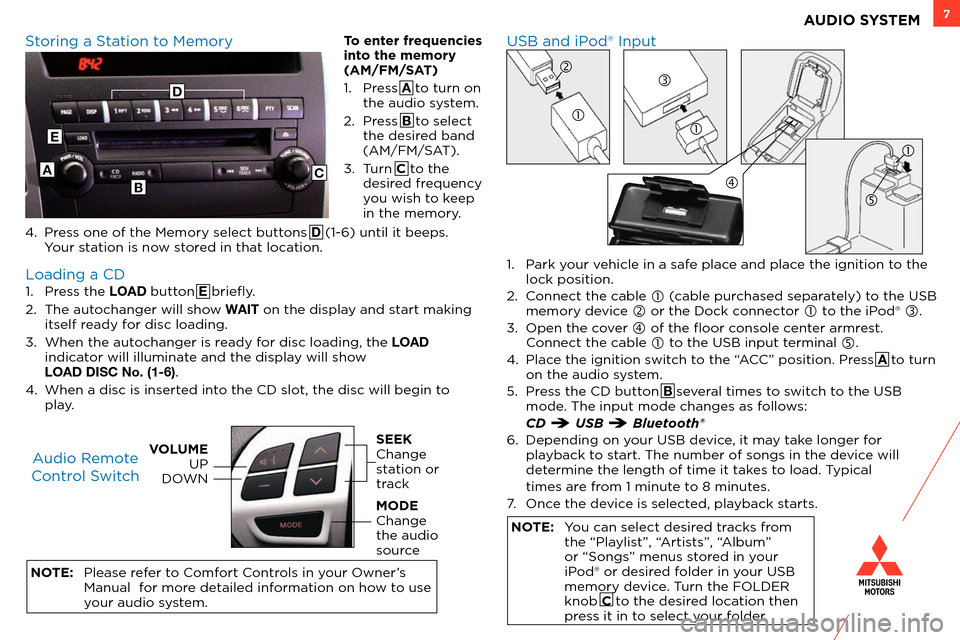

7AUDIO SYSTEM
1. Press the LOAD button E briefly.
2.
T
he autochanger will show WAIT on the display and start making
itself ready for disc loading.
3.

W
hen the autochanger is ready for disc loading, the LOAD
indicator will illuminate and the display will show
LOAD DISC No. (1-6)

.
4.

W
hen a disc is inserted into the CD slot, the disc will begin to
play.
NOTE:

Please r
efer to Comfort Controls in your Owner’s
Manual for more detailed information on how to use
your audio system.
USB and iPod® Input
Storing a Station to Memory
Loading a CD Audio Remote
Control Switch
VOLUME UP
DOWNSEEK
Change
station or
track
MODE
Change
the audio
source
1. Park your vehicle in a safe place and place the ignition to the lock position.
2.

C
onnect the cable
 (cable purchased separately) to the USB
memory device
 or the Dock connector  to the iPod® .
3.

Open the c

over
 of the floor console center armrest. C
onnect the cable
 to the USB input terminal .
4.

Plac

e the ignition switch to the “ACC” position. Press A to turn
on the audio system.
5.

Pr

ess the CD button B several times to switch to the USB
mode. The input mode changes as follows:
CD  USB  Bluetooth®
6.

Depending on y
our USB device, it may take longer for
playback to start. The number of songs in the device will
determine the length of time it takes to load. Typical
times ar

e from 1 minute to 8 minutes.
7.

Onc

e the device is selected, playback starts.
NOTE: You can select desired tracks from the “Playlist”, “Artists”, “Album”
or “Songs” menus stored in your
iPod® or desired folder in your USB
memory device. Turn the FOLDER
knob C to the desired location then
press it in to select your folder.
A
E
BC
To enter frequencies
into the memory
(AM/FM/SAT)
1.

Pr
ess A to turn on
the audio system.
2.

Pr
ess B to select
the desired band
(AM/FM/SAT).
3.

T
urn C to the
desired frequency
you wish to keep
in the memory.
4.

Pr

ess one of the Memory select buttons D (1-6) until it beeps.
Your station is now stored in that location.
D








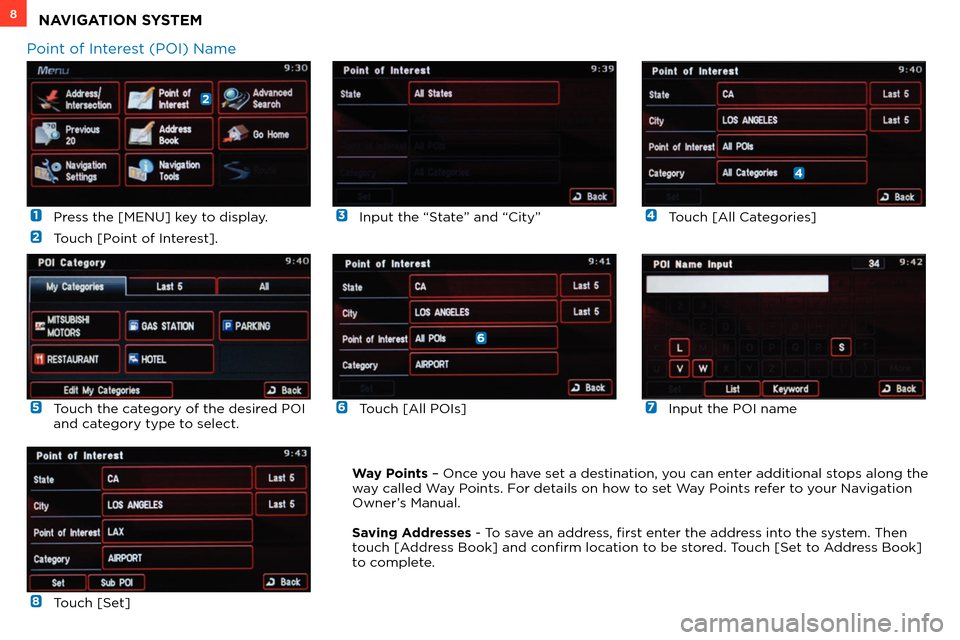

1 Press the [MENU] key to display.

2 Touch [Point of Interest].

6 Touch [All POIs]

3 Input the “S
tate” and “City”

7 Input the POI name

4 Touch [All Categories]

8 Touch [Set]

5 Touch the category of the desired POI
and category type to select.
Point of Interest (POI) Name
8NAVIGATION SYSTEM
6
4
2
Way Points – Once you have set a destination, you can enter additional stops along the
way called Way Points. For details on how to set Way Points refer to your Navigation
Owner’s Manual.
Saving Addresses - To save an address, first enter the address into the system. Then
touch [Address Book] and confirm location to be stored. Touch [Set to Address Book]
to complete.

9NAVIGATION SYSTEM

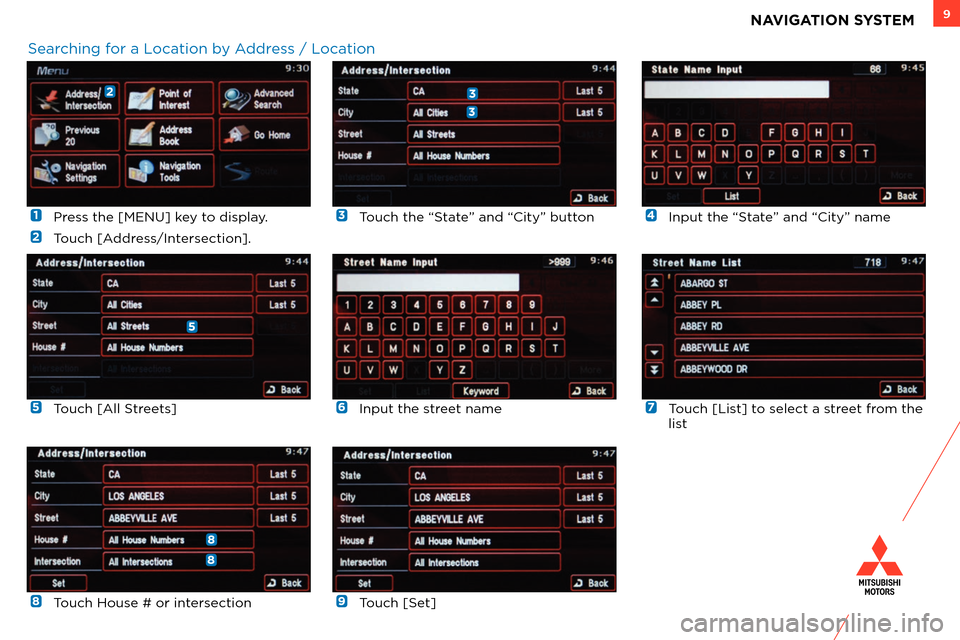

1 Press the [MENU] key to display.

2 Touch [Address/Intersection].

6 Input the street name

3 Touch the “State” and “City” button

7 Touch [List] to select a street from the list

4 Input the “S
tate” and “City” name

8 Touch House # or intersection 9 Touch [Set]

5 Touch [All Streets]
5
8
8
2 3
3
Searching for a Location by Address / Location

10

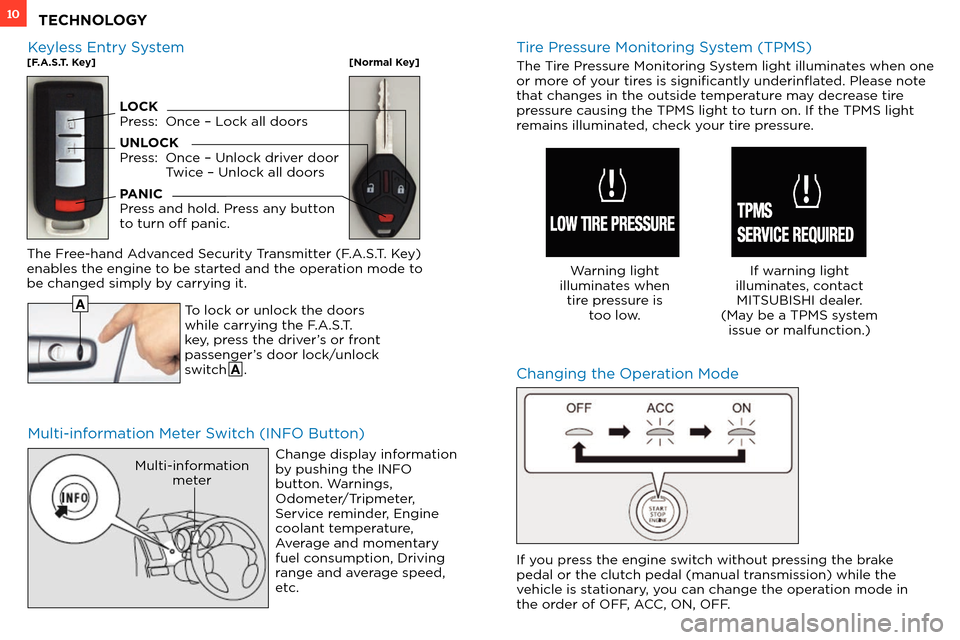

Multi-information Meter Switch (INFO Button)Changing the Operation Mode
To lock or unlock the doors
while carrying the F.A.S.T.
key, press the driver’s or front
passenger’s door lock/unlock
switch A .
The Free-hand Advanced Security Transmitter (F.A.S.T. Key)
enables the engine to be started and the operation mode to
be changed simply by carrying it.
Change display information
by pushing the INFO
button. Warnings,
Odometer/Tripmeter,
Service reminder, Engine
coolant temperature,
Average and momentary
fuel consumption, Driving
range and average speed,
etc.
Multi-informationmeter
A
Tire Pressure Monitoring System (TPMS)
The Tire Pressure Monitoring System light illuminates when one
or more of your tires is significantly underinflated. Please note
tha

t changes in the outside temperature may decrease tire
pressure causing the TPMS light to turn on. If the TPMS light
remains illuminated, check your tire pressure.
Warning light
illuminates when tire pressure is too low. If warning light
illuminates, contact MITSUBISHI dealer.
(May be a TPMS system issue or malfunction.)
Keyless Entry System[F.A.S.T. Key][Normal Key]
LOCK
Press: Onc e – Lock all doors
UNLOCK
Press:

Onc
e – Unlock driver door
T

wice – Unlock all doors
PANIC
Press and hold. Press any button
to turn off panic.
If you press the engine switch without pressing the brake
pedal or the clutch pedal (manual transmission) while the
vehicle is stationary, you can change the operation mode in
the order of OFF, ACC, ON, OFF.
TECHNOLOGY

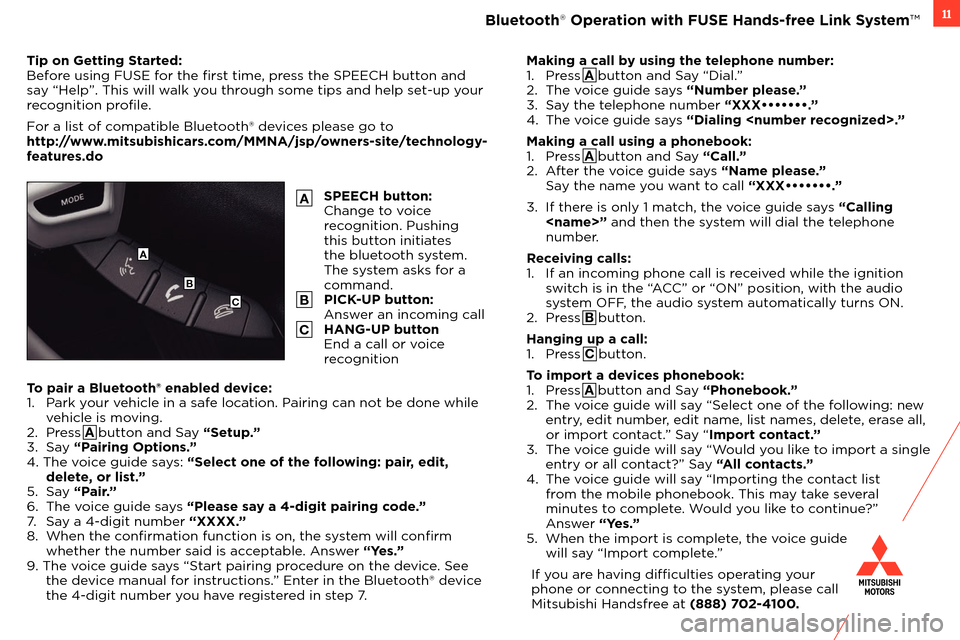

11Bluetooth® Operation with FUSE Hands-free Link System™
Making a call by using the telephone number:
1. Pr ess A button and Say “Dial.”
2.

T
he voice guide says “Number please.”
3.

Sa
y the telephone number “XXX•••••••.”
4.

T
he voice guide says “Dialing .”
Making a call using a phonebook:
1.

Pr
ess A button and Say “Call.”
2.

A
fter the voice guide says “Name please.”
Sa

y the name you want to call “XXX•••••••.”
3.

If ther
e is only 1 match, the voice guide says “Calling
” and then the system will dial the telephone
number.
Receiving calls:
1.

If an inc
oming phone call is received while the ignition
switch is in the “ACC” or “ON” position, with the audio
system OFF, the audio system automatically turns ON.
2.

Pr
ess B button.
Hanging up a call:
1.

Pr
ess C button.
To import a devices phonebook:
1.

Pr
ess A button and Say “Phonebook.”
2.

T
he voice guide will say “Select one of the following: new
entry, edit number, edit name, list names, delete, erase all,
or import contact.” Say “Import contact.”
3.

T
he voice guide will say “Would you like to import a single
entry or all contact?” Say “All contacts.”
4.

T
he voice guide will say “Importing the contact list
fr

om the mobile phonebook. This may take several
minutes to complete. Would you like to continue?”


Answer “Yes.”
5.

W
hen the import is complete, the voice guide
will sa

y “Import complete.”
Tip on Getting Started:
Before using FUSE for the first time, press the SPEECH button and
say “Help”. This will walk you through some tips and help set-up your
recognition profile.
For a list of compatible Bluetooth® devices please go to
http://www.mitsubishicars.com/MMNA/jsp/owners-site/technology-
features.do
If you are having difficulties operating your
phone or connecting to the system, please call
Mitsubishi Handsfree at (888) 702-4100.
SPEECH button:
Change to voice
recognition. Pushing
this button initiates
the bluetooth system.
The system asks for a
command.
PICK-UP button:
Answer an incoming call
HANG-UP button
End a call or voice
recognition
A
B
C
A
B
C
To pair a Bluetooth® enabled device:
1.
P ark your vehicle in a safe location. Pairing can not be done while
vehicle is moving.
2.
Press A button and Say “Setup.”
3.


Say “Pairing Options.”
4. The voice guide says: “Select one of the following: pair, edit, delete, or list.”
5.
Say “Pair.”
6.

T
he voice guide says “Please say a 4-digit pairing code.”
7.

Sa
y a 4-digit number “XXXX.”
8.

W
hen the confirmation function is on, the system will confirm
whether the number said is acceptable. Answer “Yes.”
9. The voice guide says “Start pairing procedure on the device. See the device manual for instructions.” Enter in the Bluetooth® device
the 4-digit number you have registered in step 7.

12FAQ ’ s
Q: What should I do when my engine is hard to start?
A: Pr essing on the accelerator pedal about half way down while cranking the engine may make it easier to start. When the engine
starts, release your foot from the accelerator pedal.
Q:

Is m
y phone compatible with the factory Mitsubishi Bluetooth® Hands Free System?
A:

Check the phone appr
oval list, www.mitsubishicars.com/owners to see if the phone is Bluetooth® approved.
Q.

W
hy doesn’t my device (USB, iPhone, Bluetooth® Audio, etc.) work?
A:

Y
ou need to press the Mode button to select the appropriate device you want to use.
Q:

Ho
w do I use Bluetooth® Audio (if equipped)?
A:

T
urn the Audio System power on. Press the CD button several times until BT Audio (Bluetooth®) is shown. Make sure your Bluetooth®
device is paired and set to Bluetooth On mode. Playback will start automatically.
Q:

Ho
w do I transfer calls from Bluetooth® back to my mobile phone’s handset?
A:

W
hile on the call, press the speech button on your steering wheel and, once prompted, say “Transfer Call.”
Q:

W
hy does the FUSE Hands-free Link System™ take so long to upload my music from my audio music device?
A:

T
he Mitsubishi system can read multiple device structures in order to catalog the music files for easy playing and listening.
Depending on the amount of music you have on your device, this may take a few minutes.
Q:

W
hat are the different ways of playing music from my portable music player through the stereo system in my vehicle, when
equipped with the FUSE Hands-free Link System™?
A:

T
here are two ways of playing music through your vehicle’s sound system.
• USB
port - The FUSE system will find the songs in your device and categorize them according to Artist, Album, and Genre. Then
y

ou can have the FUSE system find and play the song in your device that you prefer without physically searching your device.
This is done via voice commands. Note: In this mode the storage device will also be charged.
• Bluetooth® Streaming - Once your device is paired to the FUSE system, you can stream music from your device through the FUSE system to your vehicle’s sound system. No wires or cords. Your music stops and restarts at the same song when you exit
and when you re-enter the vehicle. Voice commands are not available.
Q:

W
hy can’t I control the music track selection via voice commands while Bluetooth® streaming?
A:

T
he Mitsubishi system is not configured to support this functionality.
Q:

My Outlander Sport is equipped with “Micr
on Air Filtration”. Where is the filter located and does it need servicing?
A:

T
he micron air filter is a small filter element which is located in the HVAC box just behind the glove box. The filter should be
inspected frequently for debris. The filter works well at filtering incoming air however the filter will clog and lead to reduced outlet
air volume if not serviced on a regular basis.
Q:

My Outlander Sport has tw
o 12V accessory outlets. What devices can be plugged into these outlets?
A:

Both of these outlets ar
e protected with 15 amp fuses. Always check the current draw rating of any device prior to use in the vehicle.
If
the device is rated above 12 amps, this could lead to circuit overload and the electrical fuse opening (no current flow).

13

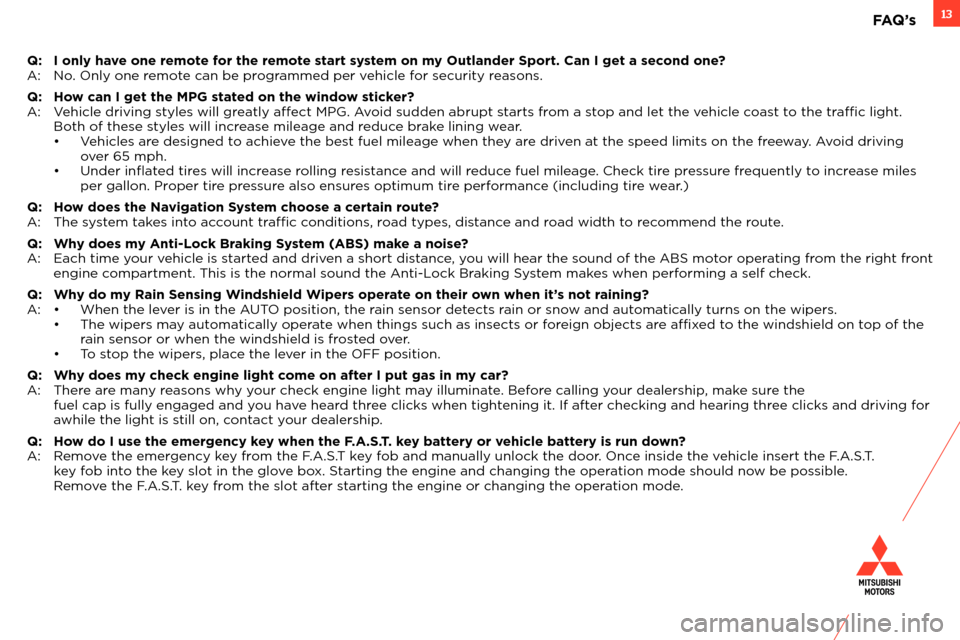

Q: I only have one remote for the remote start system on my Outlander Sport. Can I get a second one?
A: No . Only one remote can be programmed per vehicle for security reasons.
Q:

Ho
w can I get the MPG stated on the window sticker?
A: Vehicle
driving styles will greatly affect MPG. Avoid sudden abrupt starts from a stop and let the vehicle coast to the traffic light.
Both of these s

tyles will increase mileage and reduce brake lining wear.
• Vehicles
are designed to achieve the best fuel mileage when they are driven at the speed limits on the freeway. Avoid driving
o

ver 65 mph.
• Under
inflated tires will increase rolling resistance and will reduce fuel mileage. Check tire pressure frequently to increase miles
per gallon. Pr

oper tire pressure also ensures optimum tire performance (including tire wear.)
Q:

Ho
w does the Navigation System choose a certain route?
A:

T
he system takes into account traffic conditions, road types, distance and road width to recommend the route.
Q:

W
hy does my Anti-Lock Braking System (ABS) make a noise?
A:

Each time y
our vehicle is started and driven a short distance, you will hear the sound of the ABS motor operating from the right front
engine compartment. This is the normal sound the Anti-Lock Braking System makes when performing a self check.
Q:

W
hy do my Rain Sensing Windshield Wipers operate on their own when it’s not raining?
A: • When
the lever is in the AUTO position, the rain sensor detects rain or snow and automatically turns on the wipers.
• The
wipers may automatically operate when things such as insects or foreign objects are affixed to the windshield on top of the
r

ain sensor or when the windshield is frosted over.
• To
stop the wipers, place the lever in the OFF position.
Q:

W
hy does my check engine light come on after I put gas in my car?
A:

T
here are many reasons why your check engine light may illuminate. Before calling your dealership, make sure the
fuel cap is fully engaged and y

ou have heard three clicks when tightening it. If after checking and hearing three clicks and driving for
awhile the light is still on, contact your dealership.
Q:

Ho
w do I use the emergency key when the F.A.S.T. key battery or vehicle battery is run down?
A:

R
emove the emergency key from the F.A.S.T key fob and manually unlock the door. Once inside the vehicle insert the F.A.S.T.
k

ey fob into the key slot in the glove box. Starting the engine and changing the operation mode should now be possible.
R

emove the F.A.S.T. key from the slot after starting the engine or changing the operation mode.
FAQ ’ s

OUTLANDER SPORT
Owner’s Handbook
(6/12)
www.mitsubishicars.com
