Features and controls
3-161
3
NOTE
Mirror image is displayed on the screen.

Monitor brightness is adjusted automatically by sensors.

It is possible to change the display language of the screen.
For details, please refer to the separated owner’s manual
for “Mitsubishi Multi-Communication System” or
“Change language or turn off the inside rearview mirror
screen : To change the language of warning text (3)” on
page 3-161.

Under certain circumstances, it may become difficult to
see an image on the screen, even when the system is func-
tioning correctly.
• In a dark area, such as at night.
• When water drops or condensation are on the lens.
• When sun light or headlights shine directly into the lens.
Change language or turn off the inside rearview
mirror screen
N00568900037
It is possible to turn off the screen of the inside rearview mirror
and change the language of the warning messages on the
screen.To temporarily set the non-display modeIf you press the switch (1) while the image appears on the
screen, it goes off temporarily.
To return to display mode, press the switch again or turn the
ignition switch to the “ON” position after turning to “LOCK”
or “ACC” position.
BK0150600US.book 161 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

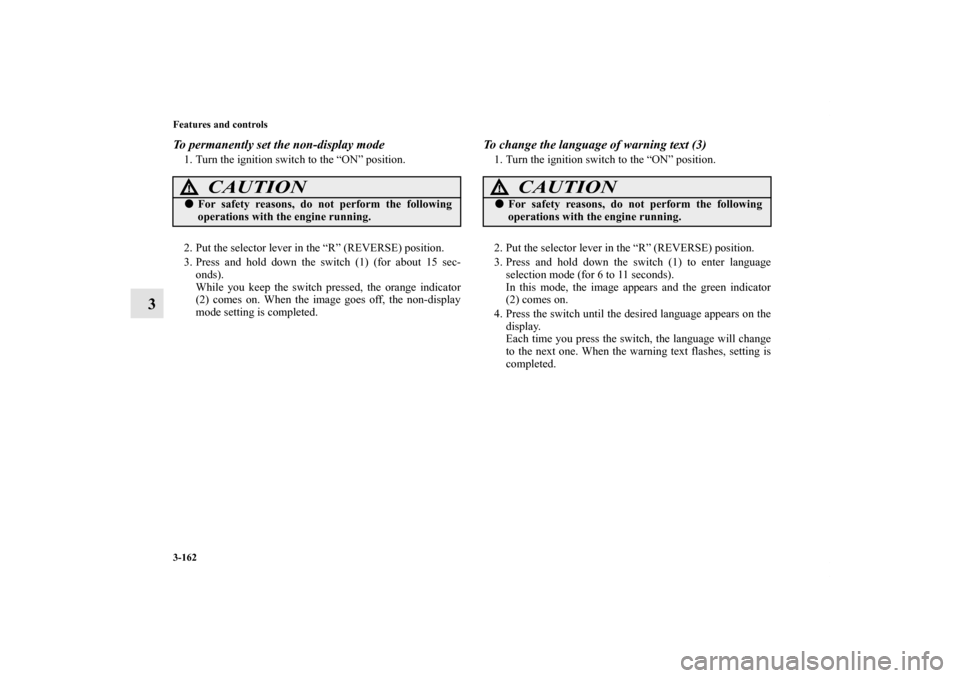

3-162 Features and controls
3
To permanently set the non-display mode1. Turn the ignition switch to the “ON” position.
2. Put the selector lever in the “R” (REVERSE) position.
3. Press and hold down the switch (1) (for about 15 sec-
onds).
While you keep the switch pressed, the orange indicator
(2) comes on. When the image goes off, the non-display
mode setting is completed.
To change the language of warning text (3)1. Turn the ignition switch to the “ON” position.
2. Put the selector lever in the “R” (REVERSE) position.
3. Press and hold down the switch (1) to enter language
selection mode (for 6 to 11 seconds).
In this mode, the image appears and the green indicator
(2) comes on.
4. Press the switch until the desired language appears on the
display.
Each time you press the switch, the language will change
to the next one. When the warning text flashes, setting is
completed.
CAUTION
!
For safety reasons, do not perform the following
operations with the engine running.
CAUTION
!
For safety reasons, do not perform the following
operations with the engine running.
BK0150600US.book 162 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

3-166 Features and controls
3Multi-information display
N00555000223
The multi-information display displays warnings, the odometer, trip odometer, service reminder, engine coolant temperature, fuel
remaining, outside temperature, selector lever position, all-wheel drive operation status, average and momentary fuel consumption,
driving range, average speed, instrument brightness, etc.
It is also possible to change elements such as the language and units used on the multi-information display.
With ignition switch in the “OFF” position With ignition switch in the “ON” position
Type 1 Type 2 Type 1 Type 2
1- “!” Warning display screen (With ignition switch in the
“OFF” position) →P.3-168
2- Information screen (With ignition switch in the “OFF” posi-
tion) → P.3-168
Interrupt display screen (With ignition switch in the “OFF”
position) → P.3-170
3- Door ajar warning display screen (With ignition switch in
the “OFF” position) → P.3-1724- Drive mode indicator display screen (if so equipped)
→ P.3-173
S-AWC control mode display screen (if so equipped)
→ P.3-173
5- “!” Warning display screen (With ignition switch in the
“ON” position) → P.3-173
6- Active stability control (ASC) OFF display screen (if so
equipped) → P.3-174
7- Outside temperature display screen → P.3-180
8- ECO mode indicator (if so equipped) → P.3-181
BK0150600US.book 166 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

Features and controls
3-167
3
NOTE
The fuel units, temperature units, display language, and
other settings can be changed.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.

The display screen is different depending on whether the
ignition switch in the “OFF” or “ON” position.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-168.
Refer to “Warning display list (With ignition switch in the
“OFF” position)” on page 3-200.
Refer to “Information screen (With ignition switch turned
from “OFF” to “ON”)” on page 3-172.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-174.
Refer to “Warning display list (With ignition switch in the
“ON” position)” on page 3-203.Multi-information meter switch
N00555100152
The multi-information meter switch is a button marked
“INFO” on the left side of the dash.Each time the multi-information meter switch is operated, a
sound is emitted and the multi-information display changes
between information such as warnings, odometer (Type1), trip
odometer, service reminder, engine coolant temperature (Type
1), average and momentary fuel consumption, driving range,
and average speed.
It is also possible to change elements such as the language and
units used on the multi-information display by operating the
multi-information meter switch.9- Information screen (With ignition switch in the “ON” posi-
tion) → P.3-174
Interrupt display screen (With ignition switch in the “ON”
position) → P.3-178
10- Fuel remaining display screen → P.3-180
11- Selector lever position display screen → P.3-179
12- Engine coolant temperature display (if so equipped)
→ P.3-174
BK0150600US.book 167 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

3-178 Features and controls
3
NOTE
When the momentary fuel consumption cannot be mea-
sured, a bar graph is not shown.

The display setting can be changed to the preferred units
{mpg(US), mpg(UK), L/100km or km/L}.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.

It is possible to cancel the green bar graph.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.Function setting screenThe “Display language”, “Temperature unit”, “Fuel consump-
tion unit”, and “Average fuel consumption and speed reset
method” settings can be modified as desired.
For further details, refer to “Changing the function settings
(With ignition switch in the “ON” position)” on page 3-184.
Interrupt display screen (With ignition switch in
the “ON” position)
N00556300151
Warning displayWhen there is information to be announced, such as a system
fault, a tone sounds and the information screen is switched to
the warning display screen.
Refer to the warning list and take the necessary measures.
Refer to “Warning display list (With ignition switch in the
“ON” position)” on page 3-203.
When the cause of the warning display is eliminated, the warn-
ing display goes out automatically.
Returning to the display screen from before the warning
display
Even if the cause of the warning display is not eliminated, you
can return to the screen that was displayed before the warning
display.
If you press the multi-information meter switch, the display
screen switches to the previous screen display (before the
warning and the “!” warning (A) were displayed).
BK0150600US.book 178 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

Features and controls
3-185
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
NOTE
To return the menu screen to the function setting screen,
press and hold the multi-information meter switch (for
about 2 seconds or more).

If no operations are made within about 15 seconds of the
menu screen being displayed, the display returns to the
function setting screen.
4. Select the item to change on the menu screen and change
to the desired setting. For further details on the operation
methods, refer to the following sections .
Refer to “Changing the reset mode for average fuel con-
sumption and average speed” on page 3-186.
Refer to “Changing the fuel consumption display unit” on
page 3-187.
Refer to “Changing the temperature unit” on page 3-189.
Refer to “Changing the display language” on page 3-190.
Refer to “Changing the language on Mitsubishi Multi-
Communication System or Bluetooth
® 2.0 interface to
match the multi-information display (if so equipped)” on
page 3-191.
Refer to “Operation sound setting” on page 3-192.
Refer to “Changing the time until “REST REMINDER” is
displayed” on page 3-193.
Refer to “Changing the turn signal sound” on page 3-194.
Refer to “Changing the momentary fuel consumption dis-
play (Type 2)” on page 3-195.
Refer to “Returning to the factory settings” on page 3-
196.
CAUTION
!
For safety, stop the vehicle before operating.
While driving, even if you operate the multi-infor-
mation meter switch, the function setting screen is
not displayed.Type 1
Type 2
BK0150600US.book 185 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

3-190 Features and controls
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change in sequence from °F
→ °C → °F.
The setting is changed to the selected temperature unit.NOTE
If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to °F (°C).
Changing the display language
N00557300132
The language of the multi-information display can be changed.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-184.
2. Lightly press the multi-information meter switch to select
“LANGUAGE” (language setting).Type 1
Type 2
BK0150600US.book 190 ページ ２０１２年３月３０日　金曜日　午前１０時４３分

Features and controls
3-191
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “LANGUAGE” (lan-
guage setting).
4. Lightly press the multi-information meter switch to select
the desired language.
5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected language.NOTE
If the battery is disconnected, the memory of the language
setting is erased and is automatically set to ENGLISH.

If “---” is selected in the language setting, a warning mes-
sage is not displayed when there is a warning display or
interrupt display.Changing the language on Mitsubishi Multi-Communi-
cation System or Bluetooth
® 2.0 interface to match the
multi-information display
(if so equipped)
N00529800259
The language used in Mitsubishi Multi-Communication Sys-
tem (if so equipped) or Bluetooth
® 2.0 interface (if so
equipped) can be changed automatically to the same language
as that shown in the multi-information display.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen. Refer to “Changing the func-
tion settings (With ignition switch in the “ON” position)”
on page 3-184. 2. Lightly press the multi-information meter switch to select
“ ” (language cooperative control).
3. Every time the multi-information meter switch is pressed
for about 2 seconds or more, the setting will change as fol-
lows: A or 1 (language cooperation: enabled) → M, 2 or
P (language cooperation: disabled) → A or 1 (language
cooperation: enabled). The setting is changed to the
selected condition.
Type 1
Type 2
