Overview
Instruments and controls (Driver’s area)
N00100201286
Combination headlights and dimmer
switch P.3-235
Turn signal lever P.3-244
Front fog light switch (if so
equipped) P.3-246
Supplemental restraint sys-
tem - airbag (for driver’s
seat) P.2-35
Horn switch P.3-256 Instrument cluster P.3-179
Cruise control switches (if so
equipped) P.3-158 Wiper and washer switch
P. 3 - 2 4 7
Fuses P.7-45
Engine hood release lever
P. 7 - 4Sportronic steering wheel paddle
shifter (if so equipped) P.3-107
Ignition switch P.3-86
Steering wheel tilt lock
lever P.3-80
Supplemental restraint system - driver’s
knee airbag P.2-35
Bluetooth
® 2.0 interface (if so equipped) P.3-257 Steering wheel audio remote
control switches (if so
equipped) P.5-134 Multi-information meter switch P.3-183 Except for RALLIART
Headlight leveling switch
(if so equipped) P.3-243
Active stability control
(ASC) OFF switch (if so
equipped) P.3-152
BK0150800US.book 1 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Overview
Sportronic steering wheel paddle
shifter P.3-126
Wiper and washer switch
P.3-247
Cruise control switches
P.3-158
Ignition switch P.3-86
Supplemental restraint
system - airbag (for
driver’s seat) P.2-35
Horn switch P.3-256
Steering wheel tilt lock lever
P. 3 - 8 0
Supplemental restraint system - driver’s
knee airbag P.2-35
Bluetooth
® 2.0 interface (if so equipped) P.3-257 Steering wheel audio remote
control switches P.5-134
Engine hood release lever
P. 7 - 4Fuses P.7-45 Combination headlights and dimmer
switch P.3-235
Turn signal lever P.3-244
Front fog light switch P.3-246Multi-information meter switch P.3-183Instrument cluster P.3-179 RALLIART
Headlight leveling switch
(if so equipped)
P. 3 - 2 4 3
Active stability control
(ASC) OFF switch P.3-152
BK0150800US.book 2 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Overview

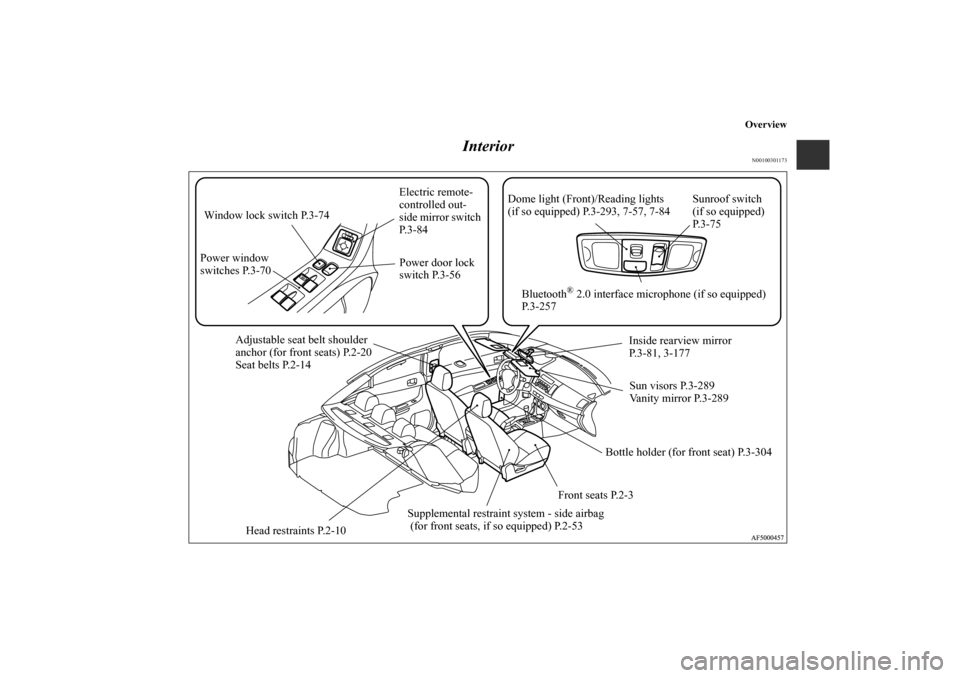

Interior
N00100301173
Adjustable seat belt shoulder
anchor (for front seats) P.2-20
Seat belts P.2-14
Supplemental restraint system - side airbag
(for front seats, if so equipped) P.2-53Front seats P.2-3Sun visors P.3-289
Vanity mirror P.3-289 Inside rearview mirror
P.3-81, 3-177
Head restraints P.2-10 Window lock switch P.3-74
Power window
switches P.3-70Power door lock
switch P.3-56 Electric remote-
controlled out-
side mirror switch
P. 3 - 8 4Dome light (Front)/Reading lights
(if so equipped) P.3-293, 7-57, 7-84Sunroof switch
(if so equipped)
P. 3 - 7 5
Bluetooth
® 2.0 interface microphone (if so equipped)
P. 3 - 2 5 7
Bottle holder (for front seat) P.3-304
BK0150800US.book 6 ページ ２０１２年３月２９日　木曜日　午後２時３８分

3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Electronic immobilizer (Anti-theft starting system) . . . . . . . . . . . . . . . . . 3- 5
Keyless entry system (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 9
Free-hand Advanced Security Transmitter (F.A.S.T.-key)
(if so equipped). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 17
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 52
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 56
“Child safety locks” for rear door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 59
Trunk lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 60
Inside emergency trunk lid release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 63
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 64
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 70
Sunroof (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 75
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 78
Steering wheel tilt lock lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 80
Inside day/night rearview mirror. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 81
Outside rearview mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 84
Ignition switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 86
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 89
Starting and stopping the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 90
Turbocharger operation (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 95
Manual transaxle (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 96
Continuously variable transmission (CVT) (if so equipped) . . . . . . . . . . 3- 99
Twin Clutch SST (Sportronic Shift Transmission) (if so equipped) . . . . . 3- 113
ACD (Active center differential system) (if so equipped) . . . . . . . . . . . . 3- 133
Electronically controlled 4WD system (if so equipped) . . . . . . . . . . . . . . 3- 136
All-wheel driving operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 140
Cautions on handling of all-wheel drive vehicles . . . . . . . . . . . . . . . . . . . 3- 142
Limited-slip differential (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 3- 144
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 144
Brake assist system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 146Hill start assist (vehicles with Twin Clutch SST) . . . . . . . . . . . . . . . . . . 3- 147
Anti-lock braking system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 148
Active Stability Control (ASC) (if so equipped) . . . . . . . . . . . . . . . . . . . 3- 152
Power steering system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 157
Cruise control (if so equipped). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 158
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 167
Rear-view camera (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 174
Instrument cluster. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 179
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 182
Indicator light, warning light, and information screen display list . . . . . 3- 216
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 229
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 229
Information screen display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 232
Combination headlights and dimmer switch . . . . . . . . . . . . . . . . . . . . . . 3- 235
Headlight leveling switch (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 243
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 244
Hazard warning flasher switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 245
Front fog light switch (if so equipped). . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 246
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 247
Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 255
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 256
Link System (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 257
Bluetooth® 2.0 interface (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . 3- 257
USB input terminal (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 284
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 289
12 V power outlet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 291
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 293
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 297
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 303
Bottle holder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 304
Assist grip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 305
Coat hook (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 305
BK0150800US.book 1 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-203
3
NOTE
To return the menu screen to the function setting screen,
press and hold the multi-information meter switch (for
about 2 seconds or more).

If no operations are made within about 15 seconds of the
menu screen being displayed, the display returns to the
function setting screen.
4. Select the item to change on the menu screen and change
to the desired setting. For further details on the operation
methods, refer to the following sections.
Refer to “Changing the reset mode for average fuel con-
sumption and average speed” on page 3-203.
Refer to “Changing the fuel consumption display unit” on
page 3-205.
Refer to “Changing the temperature unit” on page 3-207.
Refer to “Changing the display language” on page 3-207.
Refer to “Changing the language on Mitsubishi Multi-
Communication System or Bluetooth
® 2.0 interface to
match the multi-information display (if so equipped)” on
page 3-208.
Refer to “Operation sound setting” on page 3-210.
Refer to “Changing the amount of time until “REST
REMINDER” is displayed” on page 3-211.
Refer to “Changing the turn signal sound” on page 3-212.
Refer to “Changing the momentary fuel consumption dis-
play (Type 2)” on page 3-213.
Refer to “Returning to the factory settings” on page 3-
214.
Changing the reset mode for average fuel consumption
and average speed
N00557000184
You can change the mode condition for the average fuel con-
sumption and average speed display to “Auto reset” or “Man-
ual reset”.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-202.
2. Lightly press the multi-information meter switch to select
“AVG” (average fuel consumption and average speed set-
ting).
BK0150800US.book 203 ページ ２０１２年３月２９日　木曜日　午後２時３８分

3-208 Features and controls
3
2. Lightly press the multi-information meter switch to select
“LANGUAGE” (language setting).
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “LANGUAGE” (lan-
guage setting).
4. Lightly press the multi-information meter switch to select
the desired language.5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected language.
NOTE
If the battery is disconnected, the memory of the language
setting is erased and is automatically set to ENGLISH.

If “---” is selected in the language setting, a warning mes-
sage is not displayed when there is a warning display or
interrupt display.Changing the language on Mitsubishi Multi-Communi-
cation System or Bluetooth
® 2.0 interface to match the
multi-information display
(if so equipped)
N00529800262
The language used in Mitsubishi Multi-Communication Sys-
tem (if so equipped) or Bluetooth
® 2.0 interface (if so
equipped) can be changed automatically to the same language
as that shown in the multi-information display.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-202.
Ty p e 1
Ty p e 2BK0150800US.book 208 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-209
3
2. Lightly press the multi-information meter switch to select
“ ” (language cooperative control).
3. Every time the multi-information meter switch is pressed
for about 2 seconds or more the setting will change as fol-
lows: A or 1 (language cooperation: enabled) → M, 2 or P
(language cooperation: disabled) → A or 1 (language
cooperation: enabled). The setting is changed to the
selected condition.
NOTE
If the battery is disconnected, the language cooperative
control is automatically set to “A or 1” (language coopera-
tion: enabled).

The language cooperation setting can be switched in the
following manner.
• When “A or 1” (language cooperation: enabled) has
been selected, the language for the Mitsubishi Multi-
Communication System (if so equipped) or the
Bluetooth
® 2.0 interface (if so equipped) is automati-
cally changed to the language selected for the multi-
information display.
• When “M, 2 or P” (language cooperation: disabled) has
been selected, the language for the Mitsubishi Multi-
Communication System (if so equipped) or the
Bluetooth® 2.0 interface (if so equipped) is not automat-
ically changed to match the language selected for the
multi-information display.

On vehicles equipped with the audio system, the language
on the display of the audio system is not switched even if
you select A or 1 of the language cooperation control.
Ty p e 1
Ty p e 2
BK0150800US.book 209 ページ ２０１２年３月２９日　木曜日　午後２時３８分

Features and controls
3-257
3 Link System
(if so equipped)
N00563700027
The Link System takes overall control of the devices connected
via the USB input terminal or the Bluetooth
® 2.0 interface
allowing the connected devices to be operated by using the
switches in the vehicle or voice commands.
See the following section for details on how to operate.
Refer to “Bluetooth
® 2.0 interface” on page 3-257.
Refer to “USB input terminal” on page 3-284.
Refer to “To play tracks from USB device” on page 5-111.
Refer to “To play tracks from a Bluetooth
® device” on page 5-
128.
Refer to “To use the external audio input function” on page 5-
132.
Bluetooth
® is a registered trademark of BLUETOOTH SIG,
INC.
Link System End User License Agreement
N00563800015
You have acquired a device that includes software licensed by
Mitsubishi Motors Corporation from JOHNSON CONTROLS
Inc (the automotive experience business unit), and their subse-
quent 3rd party suppliers. For a complete list of these 3rd party
products and their end user license agreements, please go to the
following website.
http://www.jciblueconnect.com/faq/fulldisclosure.pdf
Bluetooth
® 2.0 interface
(if so equipped)
N00563900117
The Bluetooth
® 2.0 interface allows for making/receiving
hands-free calls in the vehicle using a Bluetooth
® compatible
cellular phone based on the wireless communication technol-
ogy commonly known as Bluetooth
®. It also allows the user to
play music, saved in a Bluetooth
® music player, from the vehi-
cle’s speakers.
The system is equipped with a voice recognition function,
which allows you to make hands-free calls by simple switch
operations and voice command operations using a defined
voice tree.
The Bluetooth
® 2.0 interface can be used when the ignition
switch is in the “ON” or “ACC” position.
Before you can use the Bluetooth
® 2.0 interface, you must pair
the Bluetooth
® device and Bluetooth
® 2.0 interface. Refer to
“Connecting the Bluetooth
® 2.0 interface and Bluetooth
®
device” on page 3-265.
Bluetooth
® is a registered trademark of BLUETOOTH SIG,
INC.
BK0150800US.book 257 ページ ２０１２年３月２９日　木曜日　午後２時３８分
