Page 148 of 722
Features and controls
3-53
3
NOTEWhen locking or unlocking with the key, only the driver’s
door will be locked or unlocked.
To lock or unlock all doors, use the power door lock
switches, the keyless entry system, the F.A.S.T-key or the
remote control transmitter of the F.A.S.T.-key.
Refer to “Power door locks” on page 3-56,
“Keyless entry system” on page3-9 and 3-45, and “To
operate using the F.A.S.T.-key” on page3-21.
In vehicles equipped with the F.A.S.T.-key, the driver’s
door can be locked and unlocked using the emergency
key.
Refer to “Emergency key” on page 3-33.
To lock or unlock the front doors with the keyTurn the key toward the front of the vehicle to lock the door.
After checking that the door is locked, turn the key back to the
center and remove it.1- Insert or remove the key
2- Lock
3- Unlock
BK0150800US.book 53 ページ 2012年3月29日 木曜日 午後2時38分

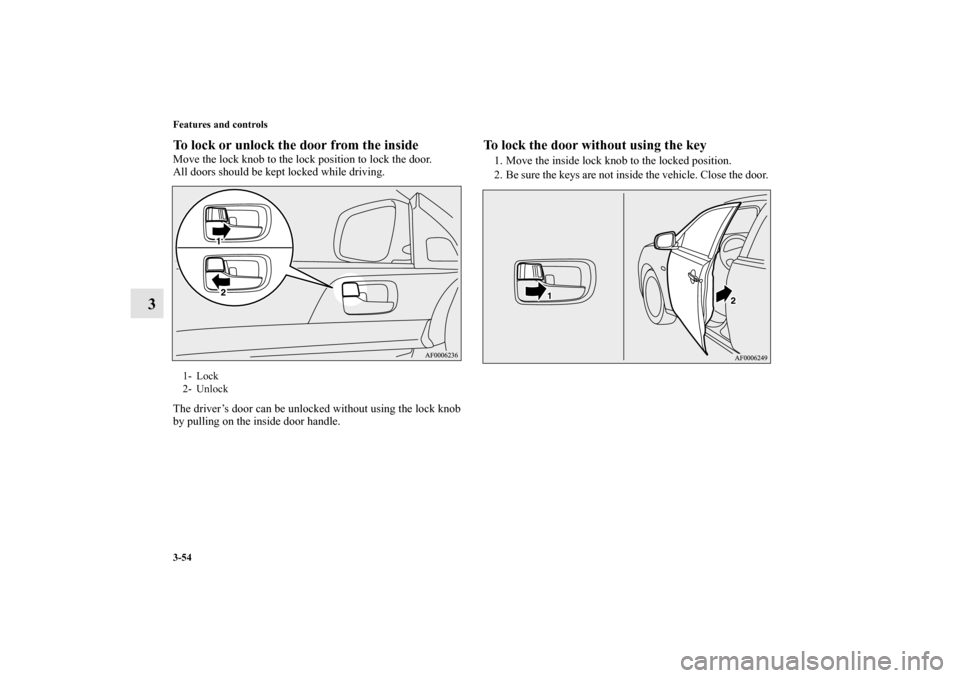

Page 149 of 722
3-54 Features and controls
3
To lock or unlock the door from the insideMove the lock knob to the lock position to lock the door.
All doors should be kept locked while driving.
The driver’s door can be unlocked without using the lock knob
by pulling on the inside door handle.
To lock the door without using the key1. Move the inside lock knob to the locked position.
2. Be sure the keys are not inside the vehicle. Close the door.
1- Lock
2- Unlock
BK0150800US.book 54 ページ 2012年3月29日 木曜日 午後2時38分
Page 150 of 722

Features and controls
3-55
3
Key reminder system
N00549600178
When a key was used to start the engineTy p e 1
Ty p e 2
If the ignition switch is turned off and the driver’s door is
opened with the key in the ignition switch, the key reminder
buzzer will sound intermittently to remind you to remove the
key.
The warning display will be displayed on the information
screen in the multi-information display.Lock out protection
N00517300039
When you push the lock knob forward or lock the door with the
power door lock switch in both of the following conditions, the
lock knob will automatically return to the unlocked position.
The key is in the ignition switch or the ignition switch is
in the “ACC” or “ON” position.
Driver’s door or front passenger door is opened.
Ignition switch return reminder system
N00503800121
When the F.A.S.T.-key was used to start the engineTy p e 1
Ty p e 2
If the driver’s door is opened while the ignition switch is in a
position other than “LOCK” (PUSH OFF), the ignition switch
return reminder buzzer will sound intermittently to remind you
to return the ignition switch to the “LOCK” (PUSH OFF) posi-
tion.
The warning display will be displayed on the information
screen in the multi-information display.
BK0150800US.book 55 ページ 2012年3月29日 木曜日 午後2時38分
Page 151 of 722
3-56 Features and controls
3Power door locks
N00509300564
NOTEWhen locking or unlocking with the key on the driver’s
door, only the driver’s door will lock or unlock.
Repeated continuous operation between lock and unlock
could activate the power door locking systems built-in
protection circuit and prevent the system from operating.
If this occurs, wait about 1 minute before operating the
inside lock knob or the key.
To lock and unlock the doorsUsing the power door lock switchAll of the doors can be locked or unlocked by pressing the
power door lock switch on the driver’s or the front passenger’s
door. 1- Lock
2- Unlock
BK0150800US.book 56 ページ 2012年3月29日 木曜日 午後2時38分
Page 152 of 722

Features and controls
3-57
3
Using the keyTurn the key in the driver’s door lock once in the unlocking
direction, and the driver’s door will be unlocked.
To unlock the doors
N00517700121
Using the ignition switch positionAll doors will unlock when the ignition switch is turned to the
“LOCK” position.Using the selector lever {continuously variable trans-
mission (CVT)} position or the gearshift lever (Twin
Clutch SST) positionAll doors will unlock when the selector lever (CVT) or the
gearshift lever (Twin Clutch SST) is moved to the “P” (PARK)
position with the ignition switch in the “ON” position.
1- Insert or remove the emergency key.
2- Lock
3- Unlock
You can select either the function to unlock the doors using the
ignition switch position or the function to unlock the doors using
the selector lever {continuously variable transmission (CVT)}
position or the gearshift lever (Twin Clutch SST) position.
These functions are not activated when the vehicle is shipped
from the factory. To activate or deactivate these functions, please
contact your authorized Mitsubishi Motors dealer.
BK0150800US.book 57 ページ 2012年3月29日 木曜日 午後2時38分
Page 155 of 722

3-60 Features and controls
3Trunk lid
N00509500175
To openOperation from outside the vehicleUsing the key (Vehicles with key cylinder)
Insert the key and turn it clockwise.
The trunk lid will pop up slightly. Lift it to open the trunk.
Using the remote control transmitter (Vehicles with keyless
entry system or F.A.S.T.-key)
Press the trunk button (Vehicles with keyless entry system or
F.A.S.T.-key) or OPEN switch (Vehicles with F.A.S.T.-key).
(See “Keyless entry system” on page 3-9, 3-45 or “Free-hand
Advanced Security Transmitter (F.A.S.T.-key)” on page 3-17.)
The trunk lid will pop up to slightly. Lift it to open the trunk.
WA R N I N G
!It is dangerous to drive with the trunk lid open since
carbon monoxide (CO) gas can enter the cabin. CO
is an invisible, odorless gas that can cause uncon-
sciousness and even death.Do not allow children to have access to the trunk,
either by climbing into the trunk from outside or
through the inside of the vehicle. Always close the
trunk lid when your vehicle is unattended. If
trapped in the trunk, it is possible to escape from the
trunk by using the inside emergency trunk release
lever. (See “Inside emergency trunk lid release” on
page 3-63.)
CAUTION
!Do not stand behind the exhaust pipe when loading
and unloading luggage. Heat from the exhaust could
lead to burns.
BK0150800US.book 60 ページ 2012年3月29日 木曜日 午後2時38分
Page 158 of 722

Features and controls
3-63
3 Inside emergency trunk lid release
N00509800165
The emergency trunk lid release is designed to provide a way
to open the trunk lid from inside the trunk. It was developed to
help prevent death and serious injuries to children who might
become locked inside a vehicle trunk.
The emergency trunk lid release lever (see illustration) is
mounted on the trunk lid.
The lever glows in the dark after exposure to sunlight.You and your family should familiarize yourselves with the
location and operation of the emergency trunk lid release lever.
Children should be taught not to play in or around vehicles.
WA R N I N G
!Children should never be left unsupervised in or
around vehicles.Unsupervised children could lock themselves in an
open vehicle or trunk.People trapped inside a vehicle or trunk, even if only
for a short period of time, can quickly die from suf-
focation or heat stroke, especially on hot days. Inte-
rior temperatures in vehicles can rise in minutes.Keep your vehicle doors locked and the trunk lid
closed when not in use. Keep your vehicle keys away
from children.
BK0150800US.book 63 ページ 2012年3月29日 木曜日 午後2時38分
Page 159 of 722

3-64 Features and controls
3
To open the trunk from the inside, move the lever (A) in the
direction of the arrow on the lever. Push up on the trunk lid to
open the trunk and climb out.
Theft-alarm system
N00510200185
The theft-alarm system is designed to provide protection from
unauthorized entry into the vehicle. This system is operated in
three stages: the first is the “armed” stage, the second is the
“alarm” stage, and third is the “disarmed” stage. If triggered,
the system provides both audible and visual alarm signals.Armed stage
N00510300157
Park the vehicle and stop the engine. Arm the system as
described below.
1. Turn the ignition switch to the “LOCK” position.
Also, if a key was used to start the engine, remove the key
from the ignition switch.
2. Make sure that the trunk lid and engine hood are closed.
CAUTION
!When loading the trunk, place your things so that
they will not touch the emergency trunk lid release
lever when you close the trunk. Otherwise you could
damage the lever and make it unusable.
CAUTION
!Do not modify or add parts to the theft-alarm sys-
tem. Doing so could cause the theft-alarm to mal-
function.
BK0150800US.book 64 ページ 2012年3月29日 木曜日 午後2時38分
