Page 262 of 722
Features and controls
3-167
3
However, you must repeat the speed setting procedure under
either of the following conditions:
The ignition switch is turned to the “OFF” position.
The cruise control is turned OFF.
“CRUISE” indicator light is turned off.
Tire pressure monitoring system
N00530200439
The tire pressure monitoring system uses tire inflation pressure
sensors (A) on the wheels to monitor the tire inflation pres-
sures. The system only indicates when a tire is significantly
under-inflated.
WA R N I N G
!The spare wheel does not have a tire inflation pres-
sure sensor.
When the spare tire is used, the tire pressure moni-
toring system will not work properly.
See an authorized Mitsubishi Motors dealer as soon
as possible to replace or repair the original tire.
BK0150800US.book 167 ページ ２０１２年３月２９日 木曜日 午後２時３８分
Page 263 of 722
3-168 Features and controls
3
NOTEThe tire pressure monitoring system is not a substitute for
regularly checking tire inflation pressures.
Be sure to check the tire inflation pressures as described in
“Tires” on page 7-28.The tire inflation pressure sensor (A) is installed in the
illustrated location.
For details, please contact your authorized Mitsubishi
Motors dealer.
• On vehicles with Type 1 sensor which has the metallic air
valve (B), replace grommet (C) with a new one when the
tire is replaced.
• On vehicles with Type 2 sensor which has the rubber air
valve (D), replace rubber valve (D) with new one when the
tire is replaced.
Ty p e 1
Ty p e 2
BK0150800US.book 168 ページ ２０１２年３月２９日 木曜日 午後２時３８分
Page 266 of 722
Features and controls
3-171
3
When the malfunction indicator is illuminated, the system may
not be able to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, includ-
ing the installation of replacement or alternate tires or wheels
on the vehicle that prevent the TPMS from functioning prop-
erly. Always check the TPMS malfunction telltale after replac-
ing one or more tires or wheels on your vehicle to ensure that
the replacement or alternate tires and wheels allow the TPMS
to continue to function properly.
If the warning light/display illuminates while
driving
N00532800439
1. If the tire pressure monitoring system warning light illu-
minates, avoid hard braking, sharp steering maneuvers
and high speeds. You should stop and adjust the tires to
the proper inflation pressure as soon as possible. Adjust
the spare tire at the same time. Refer to “Tires” on page 7-
28.NOTEIn addition, the warning display is displayed on the infor-
mation screen in the multi-information display.
When inspecting or adjusting the tire pressure, do not
apply excessive force to the valve stem to avoid breakage.
After inspecting or adjusting the tire pressure, always
reinstall the valve cap on the valve stem.
Without the valve cap, dirt or moisture could get into the
valve, resulting in damage to the tire inflation pressure
sensor.
Do not use metal valve caps, which may cause a metal
reaction, resulting in corrosion and damage of the tire
inflation pressure sensors.
Once adjustments have been made, the warning light will
go off after a few minutes of driving.
2. If the tire pressure monitoring system warning light
remains illuminated after you have been driving for about
20 minutes after you adjust the tire inflation pressure, one
or more of the tires may have a puncture. Inspect the tire
and if it has a puncture, have it repaired by an authorized
Mitsubishi Motors dealer as soon as possible.
BK0150800US.book 171 ページ ２０１２年３月２９日 木曜日 午後２時３８分
Page 267 of 722
3-172 Features and controls
3
NOTETo avoid the risk of damage to the tire inflation pressure
sensors, have any punctured tire repaired by an authorized
Mitsubishi Motors dealer. If the tire repair is not done by
an authorized Mitsubishi Motors dealer, it is not covered
by your warranty.
Do not use an aerosol puncture-repair product on any tire.
Such a spray could damage the tire inflation pressure sen-
sors. Have any puncture repaired by an authorized
Mitsubishi Motors dealer.The tire pressure monitoring system may not work normally in
the following circumstances:
A wireless facility or device using the same frequency is
near the vehicle.
Snow or ice is stuck inside the fenders and/or on the
wheels.
The tire inflation pressure sensor’s battery is dead.
Wheels other than Mitsubishi genuine wheels are being
used.
Wheels that are not fitted with tire inflation pressure sen-
sors are being used.
Wheels whose ID codes are not memorized by the vehicle
are used.
Compact spare tire is fitted on a road wheel.
A window tint that affects the radio wave signals is
installed.
NOTETire inflation pressures vary with the ambient tempera-
ture. If the vehicle is subjected to large variations in ambi-
ent temperature, the tire inflation pressures may be under-
inflated (causing the warning light/display to come on)
when the ambient temperature is relatively low. If the
warning light/display comes on, adjust the tire inflation
pressure.
WA R N I N G
!If the warning light/display illuminates while you
are driving, avoid hard braking, sharp steering
maneuvers and high speeds. Driving with an under-
inflated tire adversely affects vehicle performance
and can result in an accident.
CAUTION
!If a tire has a puncture, replace that tire with the
spare tire. Driving on a punctured tire could lead to
an accident.The warning light/display may not illuminate imme-
diately in the event of a tire blowout or rapid leak.
BK0150800US.book 172 ページ ２０１２年３月２９日 木曜日 午後２時３８分
Page 268 of 722
Features and controls
3-173
3
Whenever the tires and wheels are replaced with
new ones
N00532900179
If new wheels with new tire inflation pressure sensors are
installed, their ID codes must be programmed into the tire pres-
sure monitoring system. Have tire and wheel replacement per-
formed by an authorized Mitsubishi Motors dealer to avoid the
risk of damaging the tire inflation pressure sensors. If the
wheel replacement is not done by an authorized Mitsubishi
Motors dealer, it is not covered by your warranty.
General information
N00533000193
Your tire pressure monitoring system operates on a radio fre-
quency subject to Federal Communications Commission
(FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada
Rules (For vehicles sold in Canada). This device complies with
Part 15 of the FCC Rules and RSS-Gen of the Industry Canada
Rules.
Operation is subject to the following two conditions.
This device may not cause harmful interference.
This device must accept any interference received, includ-
ing interference that may cause undesired operation.
CAUTION
!The use of non-genuine wheels will prevent the
proper fit of the tire inflation pressure sensors,
resulting in air leakage or damage to the sensors.
CAUTION
!Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0150800US.book 173 ページ ２０１２年３月２９日 木曜日 午後２時３８分
Page 272 of 722
Features and controls
3-177
3
NOTEMirror image is displayed on the screen.
Monitor brightness is adjusted automatically by sensors.
It is possible to change the display language of the screen.
For details, please refer to the separate owner’s manual for
“Mitsubishi Multi-Communication System” or “Change
language or turn off the inside rearview mirror screen : To
change the language of warning text (3)” on page 3-178.
Under certain circumstances, it may become difficult to
see an image on the screen, even when the system is func-
tioning correctly.
• In a dark area, such as at night.
• When water drops or condensation are on the lens.
• When sun light or headlights shine directly into the lens.
Change language or turn off the inside rearview
mirror screen
N00568900040
It is possible to turn off the screen of the inside rearview mirror
and change the language of the warning messages on the
screen.To temporarily set the non-display modeIf you press the switch (1) while the image appears on the
screen, it goes off temporarily.
To return to display mode, press the switch again or turn the
ignition switch to the “ON” position after turning to “LOCK”
or “ACC” position.
BK0150800US.book 177 ページ ２０１２年３月２９日 木曜日 午後２時３８分
Page 333 of 722
3-238 Features and controls
3

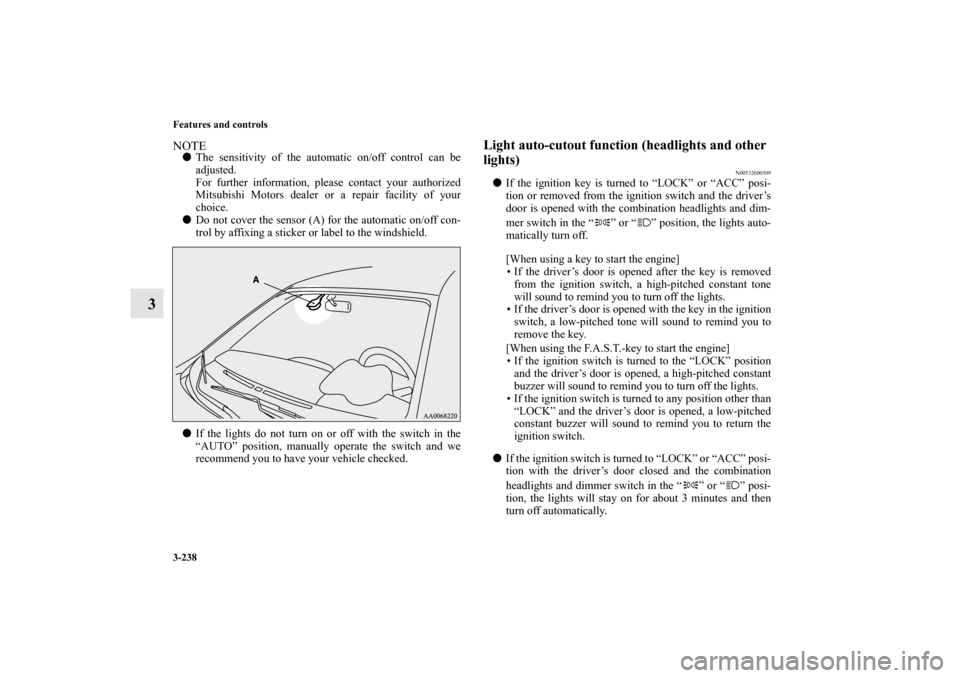

NOTEThe sensitivity of the automatic on/off control can be
adjusted.
For further information, please contact your authorized
Mitsubishi Motors dealer or a repair facility of your
choice.
Do not cover the sensor (A) for the automatic on/off con-
trol by affixing a sticker or label to the windshield.
If the lights do not turn on or off with the switch in the
“AUTO” position, manually operate the switch and we
recommend you to have your vehicle checked.
Light auto-cutout function (headlights and other
lights)
N00532600509
If the ignition key is turned to “LOCK” or “ACC” posi-
tion or removed from the ignition switch and the driver’s
door is opened with the combination headlights and dim-
mer switch in the “ ” or “ ” position, the lights auto-
matically turn off.
[When using a key to start the engine]
• If the driver’s door is opened after the key is removed
from the ignition switch, a high-pitched constant tone
will sound to remind you to turn off the lights.
• If the driver’s door is opened with the key in the ignition
switch, a low-pitched tone will sound to remind you to
remove the key.
[When using the F.A.S.T.-key to start the engine]
• If the ignition switch is turned to the “LOCK” position
and the driver’s door is opened, a high-pitched constant
buzzer will sound to remind you to turn off the lights.
• If the ignition switch is turned to any position other than
“LOCK” and the driver’s door is opened, a low-pitched
constant buzzer will sound to remind you to return the
ignition switch.
If the ignition switch is turned to “LOCK” or “ACC” posi-
tion with the driver’s door closed and the combination
headlights and dimmer switch in the “ ” or “ ” posi-
tion, the lights will stay on for about 3 minutes and then
turn off automatically.
BK0150800US.book 238 ページ ２０１２年３月２９日 木曜日 午後２時３８分
Page 342 of 722
Features and controls
3-247
3 Wiper and washer switch
N00523000608
Windshield wipers
N00542900013
Except for vehicle with rain sensor
N00569100010
The windshield wiper and washer can be operated with the
ignition switch in the “ON” or “ACC” position.
If the blades are frozen to the windshield, do not operate the
wipers until the ice has melted and the blades are freed, other-
wise the wiper motor may be damaged.
CAUTION
!If the washer is used in cold weather, the washer
fluid sprayed against the glass may freeze, which
may hinder visibility. Warm the glass with the
defroster before using the washer.
MIST- Misting function
The wipers will operate once.
OFF- Off
INT- Intermittent (Speed sensitive)
LO- Slow
HI- Fast
