Page 429 of 626
5-56 Comfort controls
5
2. Turn the SOUND switch (4) either clockwise or counter-
clockwise to change the tone/balance setting.
The status will be displayed in the display (3).A- Adjust mode
B- Adjust level
Adjust
Mode
Adjust
Level
Sound control switch operationCounterclock-
wise turn
Clockwise turn
SUB
PUNCH1 to 6 Weaker Stronger
TYPENORMAL ↔ POP ↔ ROCK ↔ HIP-HOP ↔
COUNTRY
FIELD NORMAL ↔ STAGE ↔ LIVE ↔ HALL
BASS
-6 to 6 Weaker Stronger MID
TREBLE
FA D E RF11 to
R11R
(Rear) increasesF
(Front) increases
BALANCEL11 to
R11L
(Left) increasesR
(Right) increases
BK0150900US.book 56 ページ ２０１２年５月７日 月曜日 午後１２時９分
Page 431 of 626

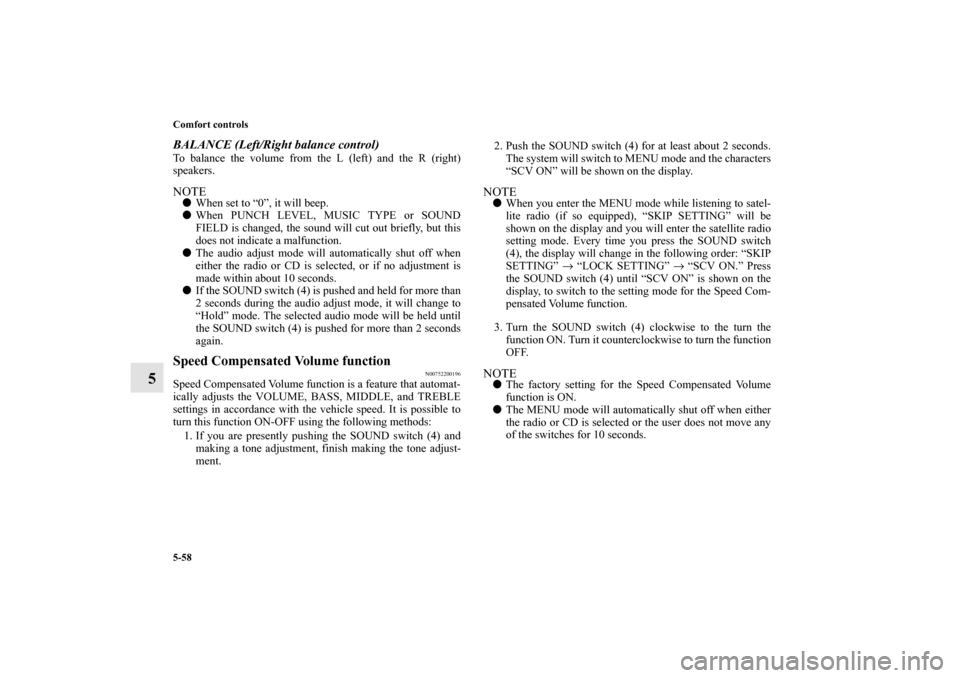

5-58 Comfort controls
5
BALANCE (Left/Right balance control)To balance the volume from the L (left) and the R (right)
speakers.NOTEWhen set to “0”, it will beep.
When PUNCH LEVEL, MUSIC TYPE or SOUND
FIELD is changed, the sound will cut out briefly, but this
does not indicate a malfunction.
The audio adjust mode will automatically shut off when
either the radio or CD is selected, or if no adjustment is
made within about 10 seconds.
If the SOUND switch (4) is pushed and held for more than
2 seconds during the audio adjust mode, it will change to
“Hold” mode. The selected audio mode will be held until
the SOUND switch (4) is pushed for more than 2 seconds
again.Speed Compensated Volume function
N00752200196
Speed Compensated Volume function is a feature that automat-
ically adjusts the VOLUME, BASS, MIDDLE, and TREBLE
settings in accordance with the vehicle speed. It is possible to
turn this function ON-OFF using the following methods:
1. If you are presently pushing the SOUND switch (4) and
making a tone adjustment, finish making the tone adjust-
ment.2. Push the SOUND switch (4) for at least about 2 seconds.
The system will switch to MENU mode and the characters
“SCV ON” will be shown on the display.
NOTEWhen you enter the MENU mode while listening to satel-
lite radio (if so equipped), “SKIP SETTING” will be
shown on the display and you will enter the satellite radio
setting mode. Every time you press the SOUND switch
(4), the display will change in the following order: “SKIP
SETTING” → “LOCK SETTING” → “SCV ON.” Press
the SOUND switch (4) until “SCV ON” is shown on the
display, to switch to the setting mode for the Speed Com-
pensated Volume function.
3. Turn the SOUND switch (4) clockwise to the turn the
function ON. Turn it counterclockwise to turn the function
OFF.NOTEThe factory setting for the Speed Compensated Volume
function is ON.
The MENU mode will automatically shut off when either
the radio or CD is selected or the user does not move any
of the switches for 10 seconds.
BK0150900US.book 58 ページ ２０１２年５月７日 月曜日 午後１２時９分
Page 492 of 626
Comfort controls
5-119
5 Antenna
N00734200455
To removeTurn the pole (A) counterclockwise.To installScrew the pole (A) clockwise into the base (B) until it is
securely retained.NOTEBe sure to remove the roof antenna in the following cases:
• When using an automatic car wash
• When covering your vehicle with a car cover
• When driving into a structure that has a low ceiling.
Digital clock
(if so equipped)
N00755000049
The time is displayed when the ignition switch is in the “ON”
or “ACC” position.To set the time1. Press and hold the CLOCK button and the clock display
flashes.
2. Press the various buttons to adjust.H — “Hour” setting
Press this button to fast-forward the “hours”.
M — “Minutes” setting
Press this button to fast-forward the “minutes”.
CLOCK DISP H M :00
BK0150900US.book 119 ページ ２０１２年５月７日 月曜日 午後１２時９分
Page 493 of 626
5-120 Comfort controls
5
3. When the time is set, press the DISP button to stop the
clock display from flashing. After time signal setting,
however, the clock display automatically stops flashing.NOTEReset the time after the battery terminals are disconnected
and reconnected.
Seconds do not appear in the clock display, but after
adjusting the “Minutes” setting and time signal setting,
the clock begins to operate from 0 seconds.
General information about your radio
N00733900400
Your vehicle’s radio receives both AM and FM stations.
The quality of your reception is affected by distance, obstacles,
and signal interference.
This radio complies with Part 15 of Federal Communications
Commission (FCC) Rules (for vehicles sold in U.S.A.). Opera-
tion is subject to the following conditions:
The device may not cause harmful interference.
This device must accept any interference recieved, includ-
ing interference that may cause undesirable operation.
:00 — Time signal setting
At the same time the button is pressed, the fol-
lowing modifications are made.
10:00 - 10:29 ......Change to 10:00
10:30 - 10:59 ......Change to 11:00
CAUTION
!Changes or modifications not expressly approved by
the party meeting the above conditions could void
the user’s authority to operate the equipment.
